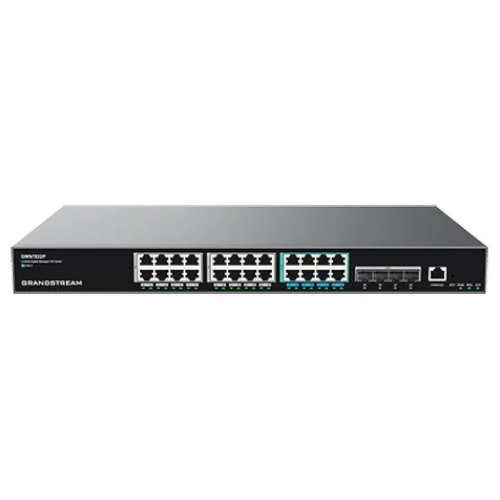

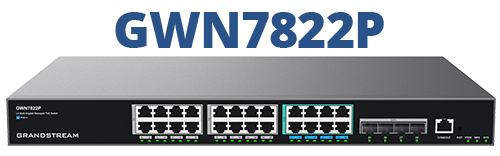

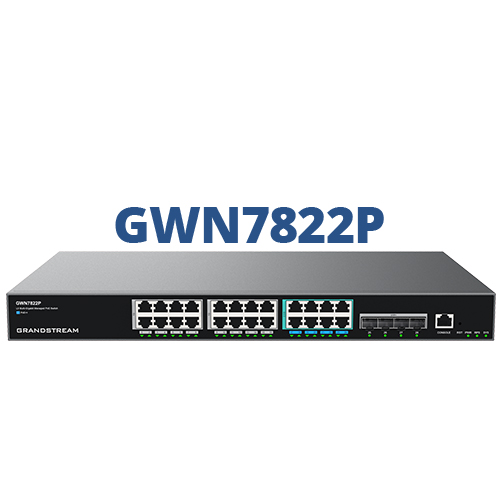

Grandstream GWN7822P 24 PORT POE 4 x 10G SFP+ LAYER 3 MULTI-GIGABIT SWITCH Managed

Grandstream GWN7822P 24-Port Layer 3 Managed Stackable Multi-Gigabit PoE++ Network Switch with 4 x 10G SFP+, Console Port & Optional RPS

The Grandstream GWN7822P is a 24-port Layer 3 managed and stackable multi-gigabit PoE switch for medium-to-large business networks. Sixteen Gigabit ports provide up to 30W PoE/PoE+, while eight 2.5GbE ports provide up to 60W PoE++, within a 360W shared budget. Four 10G SFP+ ports support high-bandwidth infrastructure links, while 152Gbps switching, IPv4 and IPv6 routing, advanced traffic management, comprehensive security and flexible administration support scalable deployment. An optional 300W external RPS provides redundant power.

Key Features

• 16 x Gigabit PoE [Power over Ethernet] RJ45 ports, 8 x 2.5GbE PoE RJ45 ports and 1 x console port
• 4 x 10G SFP+ [Small Form-factor Pluggable Plus] ports supporting up to four compatible single-mode or multi-mode modules, up to two interval-inserted 10G RJ45 modules, or DAC cables up to 5m
• Up to 30W PoE/PoE+ on ports 1-16 and up to 60W PoE++ on ports 17-24, within a 360W budget, with schedules, port priorities, power limits and LLDP-MED negotiation
• 152Gbps switching capacity, 76Gbps non-blocking throughput, 113.088Mpps forwarding rate, 12Mb packet buffer and network latency below 4µs
• 16K MAC [Media Access Control] addresses, 4K VLANs [Virtual Local Area Networks] and jumbo frames up to 12KB
• IPv4 and IPv6 static and dynamic routing with RIP, RIPng, OSPF, OSPFv3, BGP, routing policies, DHCP server and DHCP relay
• Stacking [up to four switches managed as one], 32 link aggregation groups and spanning-tree support [prevents network loops]
• IGMP [Internet Group Management Protocol] and MLD [Multicast Listener Discovery] Snooping, QoS [Quality of Service] controls and up to 2K ACLs [Access Control Lists]
• 802.1X and MAC authentication, RADIUS, TACACS+, DHCP and DHCPv6 snooping, ARP inspection, IP and IPv6 Source Guard, port security and DoS protection
• Optional 54V/300W RPS [Redundant Power Supply], dual hardware boot, dual system-file redundancy, two temperature-controlled fans and desktop or rack installation

Multi-Gigabit PoE++ and Redundant Power
Ports 1-16 provide Gigabit connectivity with up to 30W PoE/PoE+, while ports 17-24 support 2.5GbE connectivity and up to 60W PoE++. Administrators can schedule power delivery, set priorities and configure maximum power limits within the 360W budget, while LLDP-MED supports dynamic power negotiation. An optional 54V/300W external RPS provides an alternative power source to help maintain operation if the internal power supply fails.

Layer 3 Routing and Stacking
Static and dynamic IPv4 and IPv6 routing supports communication between network segments, with RIP, RIPng, OSPF, OSPFv3 and BGP available for different network requirements. Up to four compatible switches can form one logical stack for unified configuration and expansion, while link aggregation increases bandwidth and provides link resilience, including across stacked switches.

Network Segmentation and Traffic Control
Port-based, 802.1Q, MAC-based, protocol-based, Private and Voice VLANs provide flexible traffic separation. QoS prioritises important applications and controls bandwidth through traffic shaping and rate limiting. IGMP and MLD Snooping conserve bandwidth by directing multicast traffic only where required, while Ethernet, IPv4 and IPv6 ACLs control permitted and restricted traffic.

Secure and Flexible Management
Authentication, DHCP and DHCPv6 snooping, ARP inspection, IP and IPv6 Source Guard, port security and DoS protection help defend against unauthorised access, address spoofing and disruptive traffic. Local web, command-line, SNMP, GDMS Networking, GWN Manager and compatible GWN router management provide flexible administration. Dual hardware boot and dual system-file redundancy support reliable operation, while power-supply, fan, CPU and memory monitoring, Ping, Traceroute, port mirroring, copper cable testing, RMON and Syslog assist fault-finding.

Key Benefits

• Connects and powers up to twenty-four Gigabit and multi-gigabit devices
• Supplies up to 60W PoE++ through eight 2.5GbE ports
• Provides four 10G SFP+ ports for high-bandwidth infrastructure links
• Controls PoE delivery using schedules, priorities and power limits
• Supports optional redundant power for greater resilience
• Routes IPv4 and IPv6 traffic between network segments
• Combines up to four switches into one logical stack
• Separates, prioritises and secures business network traffic

Comms Express offers L3 and other managed switches in Grandstream Managed Network Switches, including:

• GWN7816 - 48 Gb + 6 x 10G SFP+, opt. 2nd hot-swap PSU
• GWN7816P - 48 Gb PoE (8 PoE++) + 6 x 10G SFP+, opt. 2nd hot-swap PSU

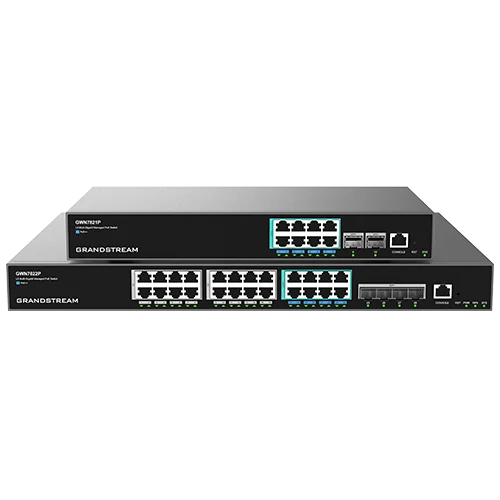

• GWN7821P - 8 x 2.5GbE PoE++ + 2 x 10G SFP+, 240W
• GWN7822P - 16 Gb + 8 x 2.5GbE PoE++ + 4 x 10G SFP+, 360W

Comms Express also offers:

• Grandstream Fibre Modules for compatible SFP and SFP+ connections
• SFPs & Fibre Transceivers from other leading manufacturers
• RJ45 Ethernet Cables & Patch Leads for network infrastructure and device connections
• Network Switches from other leading manufacturers

The package includes the GWN7822P switch, a 1.2m AC power cable, a 25cm ground cable, a power cable clamp, four rubber footpads, two rack-mounting brackets, eight KM 3 x 6mm screws, a Simplified Quick Installation Guide and regulatory information.

*For complete specifications see the documentation tab above
