| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
U Height: |
| Part No: | WMR1866B |
| Manufacturer No: | RR-W5-18-G |
| Delivery: | In Stock: 5-7 Days |
 |
The Racky Rax range of 600mm wall mounted data cabinets have been designed with ease of installation and maintenance in mind. The high specification of the cabinet means it's suitable for almost any data comms or voice networking installation.
The data cabinets are available in sizes from 6u to 21u and can be supplied fully assembled or flat packed. Each data cabinet comprises a welded steel frame and adjustable front and rear 19” mounting profiles. A gland plate is situated in the top and bottom of the cabinet to allow for easy cable access.
The cabinets feature ventilation slots top and bottom; have a lockable glass front door and removable sides. They are ideal for mounting Patch Panels and Switches.
The cabinet frameworks are finished in a high quality attractive black colour.

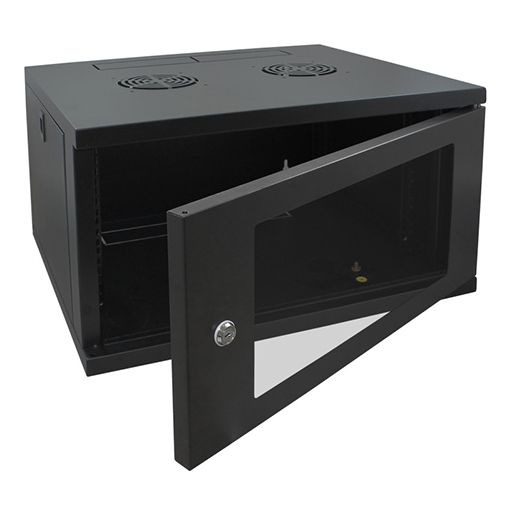

6u 600mm Deep Data Cabinet shown for illustration purposes only
Features
Technical Specification
| Cabinet Specs | |
| Cable Entry | Top & Bottom |
| Colours | Black |
| Construction | Welded |
| Depth | 600mm |
| Front Door Type | Glass Lockable/Removable |
| Internal Working Depth | 490mm |
| Mounting Profiles | 19" Adjustable Front & Rear |
| Side Panels | Lockable/Removable |
| Width | 600mm |
| Height Available | 6U / 340mm 9U / 470mm 12U / 600mm 15U / 735mm 18U / 875mm 21U / 1015mm |
| Manufacturer | RackyRax |
