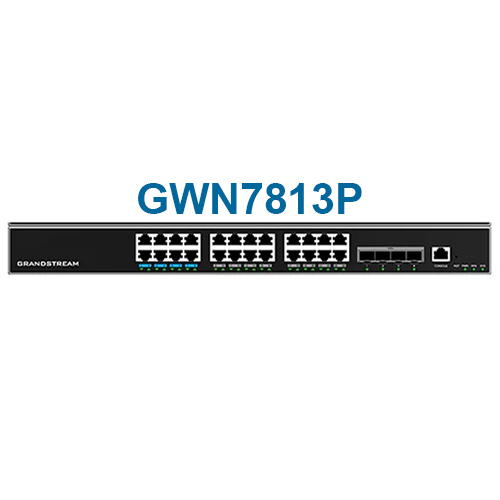

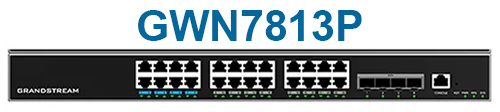

Grandstream GWN7813P 24PORT L3 PSE SWITCH 24 X POE, 4 x 10G SFP+

Grandstream GWN7813P 24-Port Layer 3 Managed Stackable PoE++ Network Switch with 4 x 10G SFP+, Console Port & Optional 300W RPS

The Grandstream GWN7813P is a 24-port Layer 3 managed and stackable PoE switch for businesses requiring high-capacity network control and power delivery. Ports 1-8 provide up to 60W PoE++, while ports 9-24 provide up to 30W PoE/PoE+, within a 370W shared budget. Four 10G SFP+ ports support high-bandwidth infrastructure links, while 128Gbps switching, IPv4 and IPv6 routing, advanced traffic control, comprehensive security and flexible management support scalable deployment. An optional 300W external RPS provides power redundancy.

Key Features

• 24 x Gigabit PoE [Power over Ethernet] RJ45 ports, 4 x 10G SFP+ [Small Form-factor Pluggable Plus] ports supporting up to four compatible single-mode or multi-mode modules, up to two RJ45 modules or DAC cables up to 5m, plus 1 x console port
• IEEE 802.3af/at/bt power delivery, with up to 60W PoE++ on ports 1-8 and up to 30W PoE/PoE+ on ports 9-24, within a 370W budget
• PoE schedules, port priorities, maximum power limits and LLDP-MED dynamic power negotiation
• 128Gbps switching capacity, 64Gbps non-blocking throughput, 95.232Mpps forwarding rate, 12MB packet buffer and network latency below 4µs
• 16K MAC [Media Access Control] addresses, 4K VLANs [Virtual Local Area Networks] and jumbo frames up to 12KB
• IPv4 and IPv6 static and dynamic routing with RIP, RIPng, OSPF, OSPFv3, BGP, routing policies, DHCP server and DHCP relay
• Stacking for up to four switches, 32 link aggregation groups and comprehensive spanning-tree support
• IGMP [Internet Group Management Protocol] and MLD [Multicast Listener Discovery] Snooping, QoS [Quality of Service] controls and up to 2K ACLs [Access Control Lists]
• 802.1X and MAC authentication, RADIUS, TACACS+, DHCP snooping, ARP inspection, IP Source Guard, port security and DoS protection
• Optional 54V/300W RPS [Redundant Power Supply], dual hardware boot, dual system-file redundancy, three temperature-controlled fans and desktop, wall or rack installation

High-Power PoE and Optional Redundancy
Ports 1-8 support IEEE 802.3bt PoE++ with up to 60W available per port, while ports 9-24 provide IEEE 802.3af/at PoE or PoE+ with up to 30W per port. Administrators can schedule power delivery, set priorities and configure maximum power limits within the 370W budget, while LLDP-MED supports dynamic power negotiation. The optional RPS-300W-B provides an independent 54V/300W power source and up to 240W of PoE capability, with seamless failover if the internal power supply fails.

Layer 3 Routing and Stacking
Static and dynamic IPv4 and IPv6 routing supports communication between network segments without requiring a separate router for every connection, with RIP, RIPng, OSPF, OSPFv3 and BGP supported. Up to four compatible switches can form one logical stack for unified configuration and expansion, while link aggregation increases bandwidth and provides link resilience, including across stacked switches.

Network Segmentation and Traffic Control
Port-based, 802.1Q, MAC-based, protocol-based, Private and Voice VLANs provide flexible traffic separation, while QinQ supports more complex VLAN deployments. QoS prioritises important applications and controls bandwidth through traffic shaping and rate limiting. IGMP and MLD Snooping conserve bandwidth by directing multicast traffic only where required, while up to 2K Ethernet, IPv4 and IPv6 ACLs control permitted and restricted traffic.

Secure and Flexible Management
Authentication, DHCP snooping, ARP inspection, IP Source Guard, port security and DoS protection help defend against unauthorised access, address spoofing and disruptive traffic. Local web, command-line, SNMP, GDMS Networking, GWN Manager and compatible GWN router management provide flexible administration. Power, RPS, fan, CPU and memory monitoring, plus Ping, Traceroute, port mirroring, copper cable testing, RMON and Syslog, assist monitoring and fault-finding.

Key Benefits

• Connects and powers up to twenty-four Gigabit network devices
• Supplies up to 60W PoE++ to eight high-power devices
• Provides four 10G SFP+ ports for high-bandwidth infrastructure links
• Controls PoE delivery using schedules, priorities and power limits
• Supports optional redundant power with seamless failover
• Routes IPv4 and IPv6 traffic between network segments
• Combines up to four switches into one logical stack
• Separates, prioritises and secures business network traffic

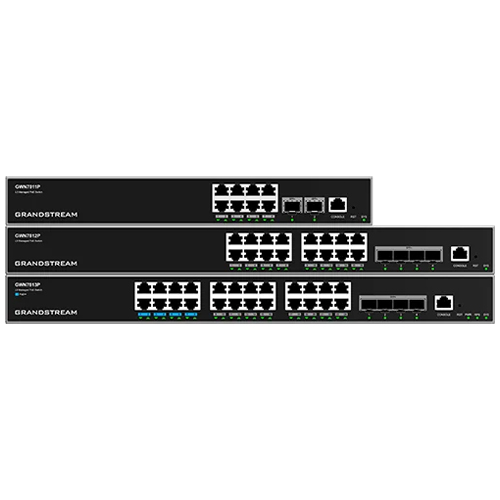

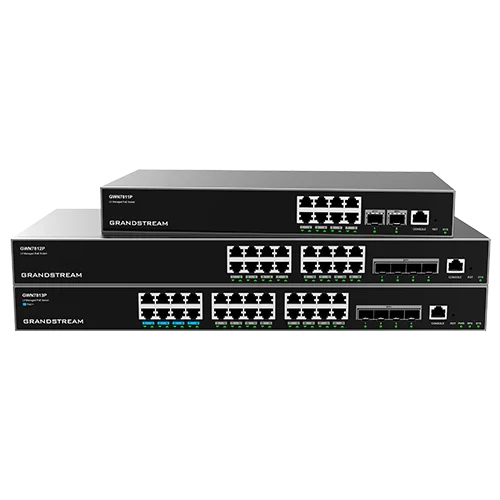

Comms Express offers L3 and other managed switches in Grandstream Managed Network Switches, including:

• GWN7811 - 8 Gb ports + 2 x 10G SFP+, L3, 56Gbps switching
• GWN7811P - 8 Gb ports + 2 x 10G SFP+, L3, 8 PoE/PoE+ ports, 120W budget
• GWN7812P - 16 Gb ports + 4 x 10G SFP+, L3, 16 PoE/PoE+ ports, 240W budget
• GWN7813 - 24 Gb ports + 4 x 10G SFP+, L3, 128Gbps switching, optional 60W RPS
• GWN7813P - 24 Gb ports + 4 x 10G SFP+, L3, 24 PoE ports including 8 PoE++, 370W budget

Comms Express also offers:

• Grandstream Fibre Modules for compatible SFP and SFP+ connections
• SFPs & Fibre Transceivers from other leading manufacturers
• RJ45 Ethernet Cables & Patch Leads for network infrastructure and device connections
• Network Switches from other leading manufacturers

The package includes the GWN7813P switch, a 1.2m 10A AC power cable, a 25cm ground cable, a power cable clamp, four rubber footpads, two rack-mounting kits, eight KM 3 x 6mm screws and a Quick Installation Guide.
