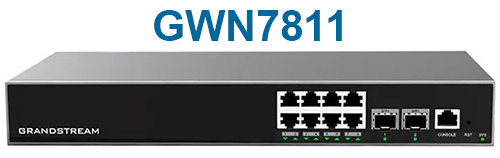

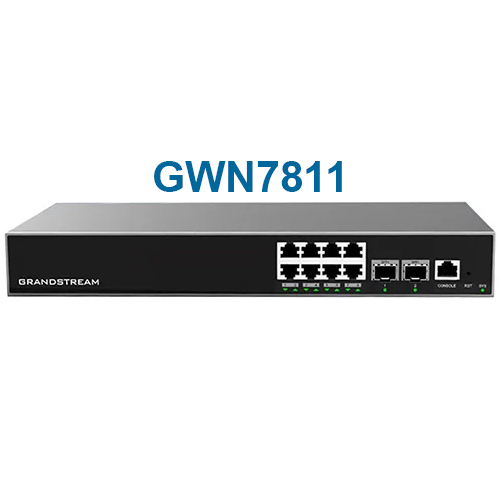

Grandstream GWN7811 NETWORK SWITCH 8 X GBE, 2 x 10G SFP+

Grandstream GWN7811 8-Port Layer 3 Managed Stackable Network Switch with 2 x 10G SFP+ & 1 x Console Port

The Grandstream GWN7811 is a fanless, 8-port Layer 3 managed and stackable switch for businesses requiring advanced network control. Eight Gigabit RJ45 ports connect computers, servers, network storage, wireless access points and other wired devices, while two 10G SFP+ ports provide high-bandwidth infrastructure links. A 56Gbps switching capacity, IPv4 and IPv6 routing, advanced VLAN, traffic-management and security features, plus local, cloud and on-premise management, support scalable deployment, monitoring and administration.

Key Features

• 8 x Gigabit RJ45 ports, 2 x 10G SFP+ [Small Form-factor Pluggable Plus] ports and 1 x console port
• SFP+ support for up to two compatible 10G single-mode, multi-mode or RJ45 modules, plus DAC cables up to 5m
• 56Gbps switching capacity, 28Gbps non-blocking throughput, 41.644Mpps forwarding rate, 12MB packet buffer and network latency below 4µs
• 16K MAC [Media Access Control] addresses, 4K VLANs [Virtual Local Area Networks] and jumbo frames up to 12KB
• IPv4 and IPv6 static and dynamic routing with RIP, RIPng, OSPF, OSPFv3, BGP, routing policies, DHCP server and DHCP relay
• Stacking for up to four switches, 32 link aggregation groups and comprehensive spanning-tree support
• IGMP [Internet Group Management Protocol] and MLD [Multicast Listener Discovery] Snooping, QoS [Quality of Service] controls and up to 2K ACLs [Access Control Lists]
• 802.1X and MAC authentication, RADIUS, TACACS+, DHCP snooping, ARP inspection, IP Source Guard, port security and DoS protection
• Local web and command-line management, SNMP, GDMS Networking, GWN Manager and compatible GWN series router management
• Dual hardware boot, dual system-file redundancy and fanless desktop, wall or rack installation

Layer 3 Routing and Stacking
Static and dynamic IPv4 and IPv6 routing supports communication between network segments without requiring a separate router for every connection, with RIP, RIPng, OSPF, OSPFv3 and BGP supported. Up to four compatible switches can form one logical stack for unified configuration and expansion, while link aggregation increases bandwidth and provides link resilience, including across stacked switches.

Network Segmentation and Traffic Control
Port-based, 802.1Q, MAC-based, protocol-based, Private and Voice VLANs provide flexible traffic separation, while QinQ supports more complex VLAN deployments. QoS prioritises important applications and controls bandwidth through traffic shaping and rate limiting. IGMP and MLD Snooping conserve bandwidth by directing multicast traffic only where required, while up to 2K Ethernet, IPv4 and IPv6 ACLs control permitted and restricted traffic.

Secure and Flexible Management
Authentication, DHCP snooping, ARP inspection, IP Source Guard, port security and DoS protection help defend against unauthorised access, address spoofing and disruptive traffic. Dual hardware boot and dual system-file redundancy support reliable startup and operation. Local web, command-line, SNMP, GDMS Networking, GWN Manager and compatible GWN router management provide flexible administration, while Ping, Traceroute, port mirroring, copper cable testing, RMON and Syslog assist monitoring and fault-finding.

Key Benefits

• Connects eight Gigabit devices and provides two 10G infrastructure links
• Routes IPv4 and IPv6 traffic between network segments
• Combines up to four switches into one logical stack
• Increases bandwidth and link resilience through link aggregation
• Separates, prioritises and controls business network traffic
• Combines layered security with redundant boot and system files
• Operates without a fan and supports desktop, wall or rack installation

Comms Express offers L3 and other managed switches in Grandstream Managed Network Switches, including:

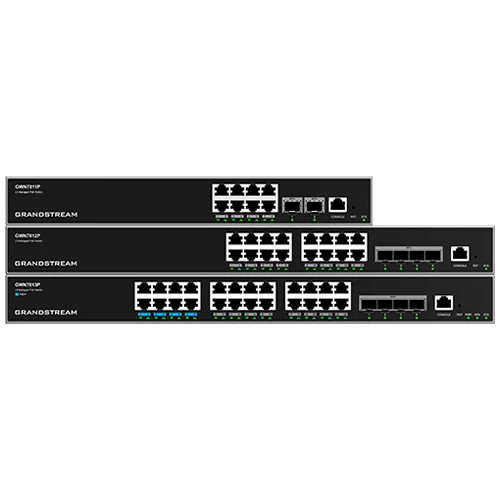

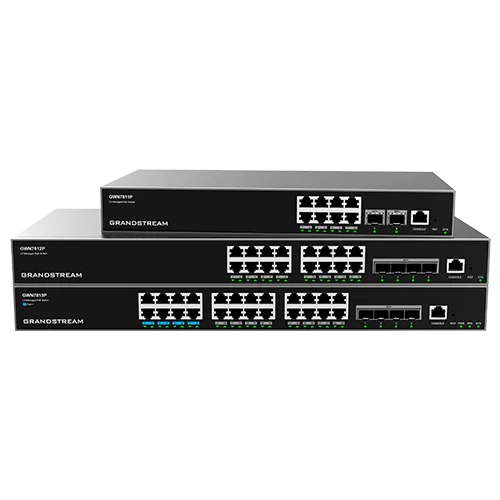

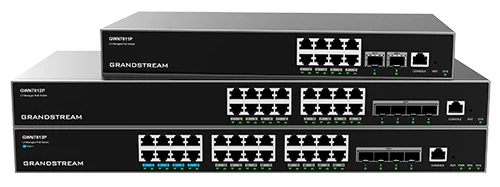

• GWN7811 - 8 Gb ports + 2 x 10G SFP+, L3, 56Gbps switching
• GWN7811P - 8 Gb ports + 2 x 10G SFP+, L3, 8 PoE/PoE+ ports, 120W budget
• GWN7812P - 16 Gb ports + 4 x 10G SFP+, L3, 16 PoE/PoE+ ports, 240W budget
• GWN7813 - 24 Gb ports + 4 x 10G SFP+, L3, 128Gbps switching, optional 60W RPS
• GWN7813P - 24 Gb ports + 4 x 10G SFP+, L3, 24 PoE ports including 8 PoE++, 370W budget

Comms Express also offers:

• Grandstream Fibre Modules for compatible SFP and SFP+ connections
• SFPs & Fibre Transceivers from other leading manufacturers
• RJ45 Ethernet Cables & Patch Leads for network infrastructure and device connections
• Network Switches from other leading manufacturers

The package includes the GWN7811 switch, a 1.2m 10A AC power cable, a 25cm ground cable, a power cable clamp, four rubber footpads, two extended rack-mounting kits, eight KM 3 x 6mm screws and a Quick Installation Guide.

*For complete specifications see the documentation tab above
