Teltonika Routers

Industrial Cellular Modem

TRM250 is an industrial grade cellular modem with multiple LPWAN connectivity options. It features NB-IoT, LTE Cat-M1, and is backward compatible with EGPRS (2G). It offers an extremely long lifecycle, low power consumption, and is the most flexible option when upgrading the connectivity of existing industrial equipment.

TRM250 has a USB interface, a durable aluminum housing, and an external antenna for better signal coverage. It is perfect for providing cost-efficient internet connectivity in remote monitoring applications.

Connectivity
4G/LTE (Cat M1), NB-IoT, 2G

Efficiency
Low power consumption

  Durability
Rugged aluminium housing

Compactness
Small size, easy installation

  USB
Interface for internet access

Ease Of Use
Controlled using Network Manager



Industrial Cellular Modem

Industrial grade cellular LTE Cat 1 modem with rugged aluminium housing is a compact and easy to use connectivity device that can provide cellular capabilities to equipment across all market segments.

It is backward compatible with 3G and 2G, therefore it is an optimal choice when it comes to large scale connectivity upgrades for Industrial or Public infrastructures. It offers a long and stable lifecycle and low power consumption important for IIoT projects.

TRM240 comes with a USB interface for power and communication.

Connectivity
4G/LTE (Cat 1), 3G, 2G

Efficiency
Low power consumption

  Durability
Rugged aluminium housing

Compactness
Small size, easy installation

  USB
Interface for internet access

Ease Of Use
Controlled using Network manager



Teltonika RUT300 x5 Port Industrial Ethernet Router


The RUT300 is a small, but powerful Ethernet router perfect for challenging industrial networking tasks as well as general networking applications.

Five Ethernet ports, two configurable digital Inputs/Outputs, and a USB port to easily connect the various equipment to the internet.

Preconfigured Firewall for immediate security and multiple top-rated VPNs.

Passive PoE helps to reduce deployment complexity.

Economical but a feature-rich industrial device that comes with all the benefits of RutOS and Remote Management System (RMS).




Front View:







Back View:






Interfaces
5 x Fast Ethernet ports (10/100 Mbps). 2 x Configurable digital Inputs/Outputs and USB 2.0

VPN
Numerous VPN services including OpenVPN, IPsec, PPTP, L2TP & DMVPN, L2TP, DMVPN, Stunnel and others

  Durability
Aluminum housing, which is capable to withstand harsh environments

VLAN
Supports up to 4096 VLAN IDs for VLAN tagging and port based VLANS

  Firewall
Unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

RMS
Compatible with Teltonika Remote Management System




Quick start guide:

Ethernet WAN 1 x WAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover LAN 4 x LAN ports (can be configured as secondary WAN ports), 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover Network Routing Static routes, Dynamic routes Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL) VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall Port forwards, traffic rules, NAT rules, custom rules DHCP Static and dynamic IP allocation, DHCP Relay QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e DDNS Supported >25 service providers, others can be configured manually Network backup Wired WAN options, each of which can be used as an automatic Failover Load balancing Balance Internet traffic over multiple WAN connections SSHFS Possibility to mount remote file system via SSH protocol Security Authentication Pre-shared key, digital certificates, X.509 certificates Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN Port and tag based VLAN separation WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter VPN OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) GRE GRE tunnel PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support ZeroTier ZeroTier VPN client support WireGuard WireGuard VPN client and server support Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code DMVPN Method of building scalable IPsec VPNs SSTP SSTP client instance support System characteristics CPU QCA9531, MIPS 24kc, 650 MHz RAM 64 MB, DDR2 FLASH storage 16 MB, SPI Flash Input / Output Configurable I/O 2 x Configurable digital Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA Events Email, RMS I/O juggler Allows to set certain I/O conditions to initiate event Power Connector 4 pin industrial DC power socket Input voltage range 7 - 30 VDC, reverse polarity protection, voltage surge/transient protection PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards Power consumption Idle: 1.3 W, Max: 3 W Physical interfaces (ports, LEDs, anntenas, buttons, SIM) I/Os 2 x Configurable digital Inputs/Outputs on 4 pin power connector Ethernet 5 x RJ45 ports, 10/100 Mbps Status LEDs 5 x ETH status, 1 x Power Power 1 x 4 pin DC connector USB 1 x USB A port for external devices Reset Reboot/User default reset/Factory reset button Physical specification Casing material Aluminium housing with DIN rail mounting option Dimensions (W x H x D) 100 x 30 x 85 mm Weight 229 g Mounting options DIN rail, flat surface placement Operating environment Operating temperature -40 °C to +75 °C Operating humidity 10 % to 90 % non-condensing Full specification and details can be found in the Product Datasheet PDF file

A quick start guide can be found in the Quick Start Guide PDF file

A product flyer can be found in the Product Flyer PDF file

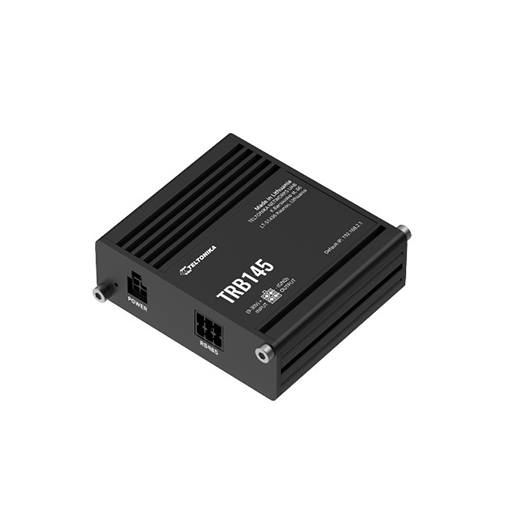

Teltonika TRB145 RS485 to 4G LTE Cat1 IoT gateway

/ TRB145 is a mission-critical LTE Cat 1 gateway, equipped with RS485 interface.

// Compact design and easy installation make this gateway perfect for applications, where a sole gadget must be remotely controlled over the RS485 serial interface.

// Just like the rest of TRB products, TRB145 is engineered to be used in industrial applications. Therefore, it has a wide range of software features, such as SMS control, Firewall, Open VPN, IPsec, Teltonika Networks Remote Management System (RMS), and FOTA support.

Teltonika TRB140 Ethernet to 4G LTE IoT gateway

Ultra-small, lightweight and energy efficient IoT device equipped with mission-critical LTE connectivity, Gigabit Ethernet interface and Linux environment offering a high degree of customization. TRB140 is perfect for projects and applications where a single device must be upgraded with reliable and secure Internet connectivity.

Teltonika TRB142 Industrial Rugged LTE RS232 GatewayThe Teltonika TRB142 comes with a widely used RS232 interface for remote device management. It is equipped with mission-critical LTE Cat 1 capabilities and software based on OpenWRT, hence offering a high degree of customisation. Just like the other TRB series products, it provides a wide range of software features such as SMS control, VPN, IPsec, Firewall, and FOTA support. This gateway is durable, offers a wide range of power supply voltages, and is compatible with Teltonika Networks Remote Management System (RMS).

Teltonika TRB142 Key Features

4G/LTE (Cat 1), 3G, 2G connectivity
Rugged aluminium housing
Equipped with RS232 for serial communication
Wide range of supported power supply voltages
Compact size, easy integration
Teltonika Remote Management System compatible



Teltonika TRB142 Technical Specifications

MobileMobile module: 4G (LTE) – Cat 1 up to 10 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
Bridge: Direct connection (bridge) between mobile ISP and device on LAN
Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received
SMS/Call: SMS status, SMS configuration, Call utilities
NetworkNetwork protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, PPP, SSH, DHCP, SNMP, MQTT
Bridge: Static routing
Connection monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection, Wget
Firewall: Port forwards, traffic rules, custom rules
DHCP: Static and dynamic IP allocation
QoS / Smart Queue Management (SQM) (planned): Traffic priority queuing by source/destination, service, protocol or port
DHCP: Supported >25 service providers, others can be configured manually
SecurityAuthentication: Pre-shared key, digital certificates, X.509 certificates
Firewall: Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPNOpenVPN: Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec: IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
GRE: GRE tunnel
PPTP, L2TP: Client/Server services can run simultaneously
Monitoring & ManagementWEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log
FOTA: Firmware update from sever, automatic notification
SSH: SSH (v1, v2)
SMS: SMS status, SMS configuration
MQTT: MQTT Broker, MQTT publisher
JSON-RPC: Management API over HTTP/HTTPS
Modbus: Modbus TCP status/control
RMS: Teltonika Remote Management System (RMS)
System CharacteristicsCPU: ARM Cortex-A7 1.2 GHz CPU
RAM: 128 MB (50 MB available for userspace)
FLASH memory: 512 MB (200 MB available for userspace)
Serial Communication ModesModes: Console, OverIP, Modem (Full or Partial control), Modbus RTU master, Modbus gateway, NTRIP client
Modbus TCP SlaveID filtering: Respond to one ID in range [1;255] or any
Allow remote access: Allow access through WAN
Custom registers: Modbus TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend Modbus TCP slave functionality
Supported functions: 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats: 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
Modbus RTU MasterSuported baud rates: From 300 to 115200
Supported functions: 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats: 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
Number of data bits: From 5 to 8
Number of stop bits: 1 or 2
Parity: None, Even, Odd
Flow control: None, RTS/CTS, Xon/Xof
Modbus Data to ServerProtocol: HTTP(S), MQTT
Firmware/ConfigurationWEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
FOTA: Update FW/configuration from server
RMS: Update FW/configuration for multiple devices
Keep settings: Update FW without losing current configuration
Firmware CustomisationOperating system: RutOS (OpenLinux based Linux OS)
Supported languages: Busybox shell, Lua, C, C++
Development tools: SDK package with build environment provided
Input/OutputConfigurable I/O: 2 x Digital Inputs/Outputs
Events: SMS status
PowerConnector: 4 pin industrial DC power socket
Input voltage range: 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10? max
Power consumption: < 5 W
Physical Interfaces (Ports, LEDs, Anntenas, Buttons, SIM)RS232: RS232 interface, DB9 socket, 5 pin configuration with flow control
I/Os: 2 Inputs/Outputs pin on 4 pin power connector
USB: Virtual network interface via USB
Status LEDs: 3 x connection type status LEDs, 5 x connection strength LEDs, 1x Power LED
SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power: 4 pin power connector with 2 x configurable Digital Inputs/Outputs
Anntenas: 1 x SMA for LTE
Reset: Restore factory settings button
Physical SpecificationsCasing material: Aluminum housing
Dimensions: 64.4 x 74.5 x 25 mm (L x W x H)
Weight: 135 g
Mounting options: Bottom and sideways DIN rail, Flat surface and direct PCB on DIN-Rail mounting options
Operating EnvironmentOperating temperature: -40 °C to 75 °C
Operating humidity: 10 % to 90 % non-condensing
Ingress Protection Rating: IP30
Regulatory & Type ApprovalsRegulatory: CE/RED, EAC, RoHS, WEEE
EMIStandards: Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0
ESD: EN 61000-4-2:2009
RS: EN 61000-4-3:2006 + A1:2008 + A2:2010
EFT: EN 61000-4-4:2012
Surge protection: EN 61000-4-5:2014
CS: EN 61000-4-6:2014
DIP: EN 61000-4-11:2004
RFStandards: EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2
SafetyStandards:
- IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017
- EN 50385:2017
- EN 62232:2017

Teltonika RUTX10 Dual-Band Enterprise router

The Teltonika RUTX10 is an enterprise router for small to medium size office applications. It comes with Dual-Band WiFi 5 802.11ac which is very suitable for high data transmission and robust wireless performance.

Other features include Quad-core CPU, 256 MB of RAM and 4 x Gigabit Ethernet ports.

Powerful hardware combined with all the advanced RutOS software and security features make this device a great performer as a fast, secure and reliable Enterprise router.

Teltonika RUTX10 Key Features

Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
Gigabit Ethernet with speeds up to 1000 Mbps
Teltonika Remote Management System compatible
Bluetooth LE for short range communication
Quad-core ARM Cortex A7 CPU, 717 MHz
RutOS – easy to use, secure and feature rich Operating System
Advanced

IoT ready with Bluetooth LE. High processing power. Convenient router access via Remote Management System.

Robust

Durable aluminium housing. Wide voltage range (9-50 V). External temperature range (-40 +75 °C).

Secure

Multiple VPN options. Advanced firewall functionality. Advanced WiFi encryption.

Teltonika RUTX10 Technical SpecificationsHardwareCPU: Quad Core ARM Cortex A7 717 MHz CPU
Memory: 256 MB SPI Flash, 256 MB of DDR3 RAM
Ethernet: 3 x LAN ports 10/100/1000 Mbps, 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps
WiFi: 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
Power supply: 9 - 50 VDC, 4 pin DC connector
Connectors: 1 x 4 pin DC, 4 x Ethernet, 2 x WiFi RP-SMA, 1 x RP-SMA for Bluetooth
Status LEDs: 1 x Power, 2 x WiFi band, 8 x Ethernet status
Operating temperature: -40 °C to 75 °C
Housing: Full aluminium with grounding screw
Dimensions: 115 mm x 95 mm x 32 mm
SoftwareNetwork protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet
Networking features: NAT, Static/Dynamic routing, Firewall, H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Unique networking features: VLAN, WEB Filter, Load Balancing, Network Backup
Connection monitoring: Ping Reboot, Periodic Reboot, Wget Reboot, LCP and ICMP for link inspection
Authetication: Pre-shared key, digital certificates, X.509 certificates
Keep settings: Update FW without losing current configuration
Monitoring & Management: WEB UI, SSH, SNMP, JSON-RPC, FOTA, RMS
Supported languages: Busybox shell, Lua, C, C++

4G Wi-Fi Router For The Home User

This router represents our extensive industrial IoT experience brought straight to your home. With 4G LTE-A technology you can use TCR100 as a primary or a backup connectivity source. Two Ethernet interfaces and Dual-band Wi-Fi allow to connect multiple devices with ease! TCR100 features connectivity indicators, Wi-Fi, and Wi-Fi Protected buttons for quick and simple setup. Reliable, secure and easy to use - TCR100 is the perfect choice for any home network.






TCR100 Features

4G LTE Advanced
LTE CAT6 enables cellular speeds up to 300Mbps with carrier aggregation

Secure
Firewall and numerous VPN services including OpenVPN, IPsec, PPTP, L2TP & DMVPN

  RMS
Compatible with our RMS enabling remote access and on-demand VPN services

RUTOS
Powerful OS with intuitive UI based on OpenWrt empowers endless configuration possibilities.

  Wi-Fi
Dual-Band with 2.4 GHz & 5.0 GHz frequencies

Durable
Rugged housing with heatsink for thermal efficiency



TCR100 Diagram

Industrial M2M Gateway

TRB255 can be used to integrate modern and legacy industrial equipment into one solution via RS232, RS485 & Ethernet interfaces. This industrial LTE Cat M1 & NB-IoT gateway is backward compatible to EGPRS (2G) networks. It can still be used with 2G network, however in case it gets shut down, there is a possibility to switch to LPWAN connectivity options.

TRB255 has a wide range of industrial and networking features such as Modbus, SMS control, Firewall, OpenVPN and more. This product is compatible with the Teltonika Networks Remote Management System (RMS).

Connectivity
4G/LTE (Cat M1), NB-IoT, 2G

9-30V
Wide range of supported power supply voltages

  Dual SIM
With auto failover, backup WAN and other switching scenarios

I/O
Multiple Inputs and Outputs for remote monitoring and control

  GNSS
Global Navigation Satellite System for location services with geofencing functionality

Serial Ports
RS232/RS485 serial communication interfaces



Teltonika TRB245 Industrial M2M 4G LTE Gateway


Industrial LTE Cat 4 gateway packs all essential features for any industry: fast and reliable internet connection, combination of Ethernet and serial communication, secure power connector, I/O ports, and time synchronization services.

TRB245 can be used to integrate modern and legacy industrial equipment in one solution via RS232 or RS485 interfaces.

A wide range of software features like SMS control, Firewall, OpenVPN, IPSec, RMS ensures that data can be reached securely.

Dual SIM functionality with auto-failover and a backup WAN ensure stable connectivity even if the primary connection is lost.




Front View:







Back View:








Connectivity 4G/LTE (Cat 4), 3G, 2G




Serial ports RS232/RS485 serial communication interfaces




I/O Multiple Inputs and Outputs for remote monitoring and control




9 - 30 V Wide range of power supply voltages




Dual sim With auto failover, backup WAN and other switching scenarios




GNSS Global Navigation Satellite System for location services with geofencing functionality




Quick start guide:

Mobile Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID. SMS/Call SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities USSD Supports sending and reading Unstructured Supplementary Service Data messages Black/White list Operator black/white list Band management Used band status display, Band lock APN Auto APN Bridge Direct connection (bridge) between mobile ISP and device on LAN Multiple PDN Possibility to use different PDNs for multiple network access and services SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, on roaming, no network, network denied, data connection fail Network Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPP, SSH, DHCP, Telnet, MQTT, Wake On Lan (WOL) Connection monitoring Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall Port forward, traffic rules, custom rules Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2) (planned) VoIP passthrough support (planned) H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets DDNS Supported >25 service providers, others can be configured manually SSHFS Possibility to mount remote file system via SSH protocol QoS / Smart Queue Management (SQM) (planned) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e Security Authentication re-shared key, digital certificates, X.509 certificates Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) Mobile quota control Custom data limits for both SIM cards WEB filter (planned) Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter VLAN (planned) Tag based VLAN separation VPN OpenVPN Multiple clients and server can be running simultaneously, 12 encryption methods OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC IPsec IKEv1, IKEv2, with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) GRE GRE tunnel PPTP, L2TP Client/Server services can run simultaneously, L2TPv3 support ZeroTier ZeroTier VPN client support WireGuard WireGuard VPN client and server support Stunnel (planned) Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code DMVPN (planned) Method of building scalable IPsec VPNs SSTP (planned) SSTP client instance support System characteristics CPU Qualcomm QCA9531, MIPS 24kc, 650 MHz RAM 64 MB, DDR2 FLASH storage 16MB SPI Flash (4 MB available for user) Input / Output Configurable I/O 3 x Configurable Inputs/Outputs. Digital input 0 - 6 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA Analog input 1 x Analog input (0 - 30 V) Output control HTTP POST/GET, Schedule Events SMS, Email I/O juggler Allows to set certain I/O conditions to initiate event Power Connector 2 pins in 16 pin industrial terminal block Input voltage range 9 – 30 VDC, reverse polarity protection, surge protection +/-1 kV 50 µs max Power consumption Idle: <1.2 W, Max: <5 W Physical interfaces (ports, LEDs, anntenas, buttons, SIM) I/Os 3 x Configurable I/O, 1 x Analog input in 16 pin terminal block Ethernet 1 x RJ45 port, 10/100 Mbps Status LEDs 3 x connection status LEDs, 3 x connection strength LEDs, 1 x power LED, 1 x Eth port status LED SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, double stacked SIM tray Power 2 pins in 16 pin terminal block Antennas 1 x SMA connector for LTE, 1 x SMA connector for GNSS Physical specification Casing material Aluminium housing with DIN rail mounting option Dimensions (W x H x D) 83 x 25 x 74.2 mm Weight 165 g Mounting options DIN rail, wall mounting (additional kits needed), flat surface placement Operating environment Operating temperature -40 °C to +75 °C Operating humidity 10 % to 90 % non-condensing Full specification and details can be found in the Product Datasheet PDF file

A quick start guide can be found in the Quick Start Guide PDF file

A product flyer can be found in the Product Flyer PDF file

Teltonika RUT360 4G LTE CAT6 Industrial Cellular Router


RUT360 is an updated version of our all-time best-seller RUT240. This compact industrial cellular router offers a possibility to connect to the internet using cellular, Wi-Fi, and wired networks.

RUT360 is equipped with two Ethernet interfaces, 802.11 b/g/n WiFi, and 4G LTE Cat 6 cellular module, offering data speeds up to 300 Mbps.

Unique programming, remote monitoring, and security features make RUT360 perfect for IoT and M2M applications, where secure and reliable connectivity is a must. Carrier aggregation functionality makes this compact device irreplaceable in areas or applications where cellular data speeds are limited.




Front View:







Back View:






4G LTE CAT 6
Cellular speeds up to 300Mbps with Carrier Aggregation

Wi-Fi
802.11 b/g/n WiFi

  Compactness
Small size - easy integration anywhere

Durability
Rugged aluminium housing

  Security
Firewall and numerous VPN services, including OpenVPN, IPsec, PPTP, L2TP & SSTP

RMS
Compatible with Teltonika Remote Management System




Quick start guide:


Mobile Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto reply USSD Supports sending and reading Unstructured Supplementary Service Data messages Black/Whiles list (planned) Operator black/white list Multiple PDN Possibility to use different PDNs for multiple network access and services Band management Band lock, Used band status display APN Auto APN Bridge mode Direct connection (bridge) between mobile ISP and device on LAN Ethernet WAN 1 x WAN port (can be configured as LAN) 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover LAN 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover Network Routing Static routes, Dynamic routes Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL) VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall Port forwards, traffic rules, NAT rules, custom rules DHCP Static and dynamic IP allocation, DHCP Relay, Relayd QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e DDNS Supported >25 service providers, others can be configured manually Network backup Mobile, Wired and WiFi WAN options, each of which can be used as an automatic Failover Load balancing Balance Internet traffic over multiple WAN connections SSHFS Possibility to mount remote file system via SSH protocol Security Authentication Pre-shared key, digital certificates, X.509 certificates Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN Tag based VLAN separation Mobile quota control Custom data limits for both SIM cards Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only VPN OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) GRE GRE tunnel PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support ZeroTier ZeroTier VPN client support WireGuard WireGuard VPN client and server support Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code DMVPN Method of building scalable IPsec VPNs SSTP SSTP client instance support System characteristics CPU QCA9531, MIPS 24kc, 650 MHz RAM 128 MB, DDR2 FLASH storage 16 MB, SPI Flash (optional up to 256 MB) Input / Output Configurable I/O 2 x Configurable digital Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA Events SMS, Email, RMS I/O juggler Allows to set certain I/O conditions to initiate event Power Connector 4 pin industrial DC power socket Input voltage range 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection Power consumption 10.5 W max Physical interfaces (ports, LEDs, anntenas, buttons, SIM) I/Os 2 x Configurable digital Inputs/Outputs on 4 pin power connector Ethernet 2 x RJ45 ports, 10/100 Mbps Status LEDs 2 x Mobile connection type, 3 x Mobile connection strength, 2 x Eth status, 1 x Power SIM 1 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders Antenna 2 x SMA for LTE, 2 x RP-SMA for WiFi Power 1 x 4 pin DC connector Reset Reboot/User default reset/Factory reset button Physical specification Casing material Aluminium housing with DIN rail mounting option Dimensions (W x H x D) 100 x 30 x 85 mm Weight 247 g Mounting options DIN rail, flat surface placement Operating environment Operating temperature -40 °C to +75 °C Operating humidity 10 % to 90 % non-condensing Full specification and details can be found in the Product Datasheet PDF file

A quick start guide can be found in the Quick Start Guide PDF file

A product flyer can be found in the Product Flyer PDF file

The Teltonika RUTX09 is a powerful LTE-A Cat6 cellular IoT router designed as a Main/Backup Internet source where steady connection and high data throughput is required.

Equipped with Dual-SIM, Carrier Aggregation and 4 x Gigabit Ethernet ports, the RUTX09 has all the advanced RutOS software and security features.

Teltonika RUTX09 Key Features

Supports LTE Cat 6 up to 300 Mbps
Gigabit Ethernet with speeds up to 1000 Mbps
Dual-SIM with auto Failover, backup WAN and other SW features
Teltonika Remote Management System compatible
Multiple secure VPN services
Easy to use, secure and feature rich OpenWrt based Operating System
Stable 24/7 operation
Durable aluminium housing
Multiple VPN options
Connection watchdog
Wide voltage range (9-50 V)
Advanced firewall functionality
3 alternative internet sources
External temperature range (-40 +75 °C)
Various encryption protocols supported
Thie RUTX09 also has VPN, Firewall and plenty of processing power for custom applications on OpenWrt based RutOS system.



Teltonika RUTX09 - Technical Specifications

HardwareMobile: 4G (LTE) – Cat 6 DL up to 300 Mbps, UL up to 50Mbps; DC-HSDPA; HSUPA; WCDMA
CPU: Quad Core ARM Cortex A7 717 MHz CPU
Memory: 256 MBytes Flash, 256 MBytes DDR3 RAM
Ethernet: 4 x 1Gbit Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
Power supply: 9 - 50 VDC, 4 pin DC connector
Connectors: 1 x 4 pin DC, 4 x Ethernet, 2 x Mobile SMA, 1 x GPS SMA
SIM: 2 x external SIM holders
Status LEDs: 1 x Power, 2 x SIM, 3 x Mobile network type, 5 x Signal Strength
Operating temperature: -40 °C to 75 °C
Housing: Full aluminium with grounding terminal
Dimensions: 115 mm x 95 mm x 44 mm
Weight: 456 g
SoftwareOperating system: RutOS (OpenWrt based Linux OS)
SIM switch: 2 SIM cards, auto-switch cases: data limit, roaming, no network, network denied, data connection fail
Multiple PDN: Possibility to use different PDNs for multiple network access and services
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet
Networking features: NAT, Static/Dynamic routing, Firewall, OpenVPN, IPSec, H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Unique networking features: VLAN, Mobile quota control, WEB Filter, Load Balancing, Network Backup, Auto Failover
Connection monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
Authentication: Pre-shared key, digital certificates, X.509 certificates
Keep settings: Update FW without loosing current configuration
Monitoring & Management: WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS
Supported languages: Busybox shell, Lua, C, C++
Development tools: SDK package with build environment provided

Teltonika RUTX11 Dual-Sim Gigabit Router

The Teltonika RUTX11 is a powerful and feature-rich device equipped with Dual-SIM, 4 x Gigabit Ethernet ports, Dual-Band AC WiFi, Bluetooth LE and USB interfaces. RUTX11 comes with all RutOS software and security features. This device is perfect for advanced industrial and enterprise applications.

Teltonika RUTX11 Key Features

LTE Cat 6 with speeds up to 300 Mbps
Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
Dual-SIM with auto Failover. Backup WAN and other SW features
Gigabit Ethernet with speeds up to 1000 Mbps
Teltonika Remote Management System compatible
Easy to use, secure and feature rich Operating System
Multiple protocols supported including MQTT, Modbus, TCP, BGP, GRE
Professional

TE Cat 6 and AC WiFi for high data throughput. High processing power. Convenient router access via Remote Management System.

Robust

Durable aluminium housing. Wide voltage range (9-50 V). External temperature range (-40 +75 °C).

Secure

Multiple VPN options. Advanced firewall functionality. Advanced WiFi encryption.

Teltonika RUTX11 Technical SpecificationsHardwareMobile: 4G (LTE) – Cat 6 DL up to 300 Mbps, UL up to 50Mbps; DC-HSDPA; HSUPA; WCDMA
CPU: Quad Core ARM Cortex A7 717 MHz CPU
Memory: 256 MB SPI Flash, 256 MB of DDR3 RAM
Ethernet: 3 x LAN ports 10/100/1000 Mbps, 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps
WiFi: 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
Power supply: 9 - 50 VDC, 4 pin DC connector
Connectors: 1 x 4 pin DC, 4 x Ethernet, 2 x SMA for LTE, 2 x WiFi RP-SMA, 1 x SMA for GNNS, 1 x RP-SMA for Bluetooth
SIM: 2 x external SIM holders
Status LEDs: 1 x Power, 3 x Mobile connection type, 5 x Mobile connection signal strength LEDs, 2 x WiFi band, 8 x Ethernet status, 4 x WAN type LEDs
Operating temperature: -40 °C to 75 °C
Housing: Full aluminium with grounding screw
Dimensions: 115 mm x 95 mm x 44 mm
SoftwareOperating system:  RutOS (OpenWrt based Linux OS)
SIM switch: 2 SIM cards, auto-switch cases: data limit, roaming, no network, network denied, data connection fail
Multiple PDN:  Possibility to use different PDNs for multiple network access and services
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet
Networking features: NAT, Static/Dynamic routing, Firewall, OpenVPN, IPSec, H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Unique networking features: VLAN, Mobile quota control, WEB Filter, Load Balancing, Network Backup, Auto Failover
Connection monitoring:   Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
Authentication: Pre-shared key, digital certificates, X.509 certificates
Keep settings: Update FW without losing current configuration
Monitoring & Management: WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS
Supported languages:   Busybox shell, Lua, C, C++
Development tools: SDK package with build environment provided

4G LTE CAT12 Industrial Cellular Router RUTX14 is the fastest single modem LTE router in our portfolio. 5x Gigabit Ethernet ports, Wave-2 802.11ac Dual-Band Wi-Fi, Bluetooth LE, USB interfaces, dual SIM for advanced throughput and ultra-reliable connectivity. Equipped with advanced security features like multiple VPN's, firewall & cyber attack prevention. Combination of fast LTE CAT12 connectivity, wide range of physical interfaces, extensive RutOS functionality and great remote management capabilities make this device an excellent choice for primary or backup connectivity.

4G LTE CAT12
Download up to 600 Mbps. Upload up to 150 Mbps

WIFI & BT
Wave-2 802.11ac Dual Band WIFI and Bluetooth LE

  Dual SIM
With auto failover, backup WAN and other switching scenarios

Load Balancing
Allows to use multiple WAN sources to increase throughput

  GNSS
Global Navigation Satellite System for location services with geofencing functionality

RMS
Compatible with Teltonika Remote Management System

  RUTX14 Diagram

Front View

Rear View

Product Overview


RUTXR1 is Teltonika's first-ever rack-mounted LTE Cat6 router with redundant power supplies and WAN interfaces, which can be conveniently placed in a server cabinet. It is equipped with dual SIM, USB, and Wave-2 802.11ac Dual Band WIFI.

But what makes this product stand out from the rest of Teltonika Networks products are the SFP WAN and dedicated console ports. The unique feature set of this product allows using it as a primary product in a small or home office with LTE backup capabilities, powerful WiFi, and no need for an additional SFP to Ethernet converter.

This feature-rich device is powered by RutOS and is a perfect choice, where a speedy and ultra-reliable connection is required!


Product Diagram






Product Features



LTE Cat 6 with speeds up to 300 Mbps
Dual-SIM with Auto Failover, Backup WAN and other SW features

Gigabit Ethernet with speeds up to 1000 Mbps
SFP port for long range Fiber-optic communication

Teltonika Remote Management System compatible
Easy to use, secure and feature rich OpenWrt based Operating System

RUTX50 INDUSTRIAL 5G ROUTER

RUTX50 is your future-proof, multi-network industrial router, offering 5G mobile communication for high-speed and data-heavy applications.

5G dual SIM cellular communication combined with 5 Gigabit Ethernet ports and dual-band Wi-Fi enables reliable ultra-low latency data transfer.

The power of 5G technology, combined with a wide range of interfaces and industrial hardware features, ensures adaptability for future upgrades and expansions.

RUTX50 comes with the RutOS, which provides advanced security features and specialized industrial protocols for a wide range of professional application scenarios, and is compatible with our Remote Management System (RMS), for optimized remote management and monitoring capabilities of large fleets of devices.



5G
Ultra-high cellular speeds of up to 3.3 Gbps

SA & NSA
Supports both architectures to leverage the 5G infrastructure

  ULTRA-LOW LATENCY
Single-digit latency for mission-critical applications

DUAL SIM
Uninterrupted communication with auto-failover

  WI-FI 5
Dual-band data throughput for up to 150 clients simultaneously

FUTURE-PROOFING
Backward compatible with 4G (LTE CAT 20) and 3G network technologies




Product Diagram Front View:

Back View:


Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Flyer PDF file

TRB500 INDUSTRIAL 5G ROUTER

The TRB500 gateway is a compact-sized and energy-efficient industrial gateway with a Gigabit Ethernet interface and two configurable I/Os, allowing high-level customization and implementation of a multitude of scenarios.

This device enables 5G network speeds with ultra-low latency for mission-critical infrastructures and high data throughput, ensured by 4 external antennas that allow the use of 4x4 MIMO.

TRB500 comes with the RutOS operating system, which provides advanced security features and compatibility with our Remote Management System (RMS) for optimized remote management and monitoring capabilities of large fleets of devices.


5G
Ultra-high cellular speeds of up to 1 Gbps

SA & NSA
Supports both architectures to leverage the 5G infrastructure

  ULTRA-LOW LATENCY
Single-digit latency for mission-critical applications

GIGABIT ETHERNET
Reliable communication for high data throughput

  COMPACTNESS
One of the smallest 5G gateways available in the market

FUTURE-PROOFING
Backward compatible with 4G (LTE CAT 20) and 3G network technologies




Product Diagram Front View:

Back View:


Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Flyer PDF file
