| Part No: | FETRB160 |
| Manufacturer No: | TRB160 |
| Delivery: | In Stock: 7-10 Days |
 |

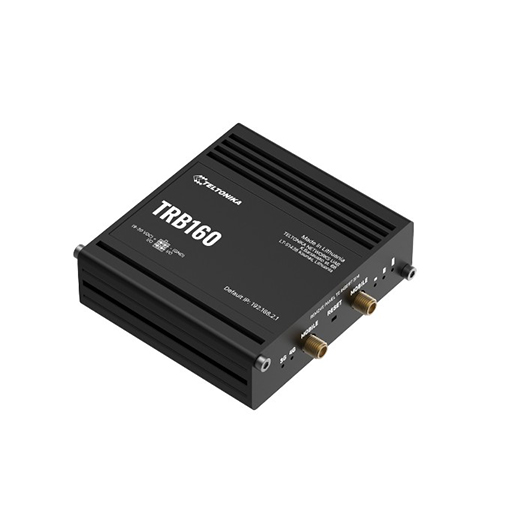

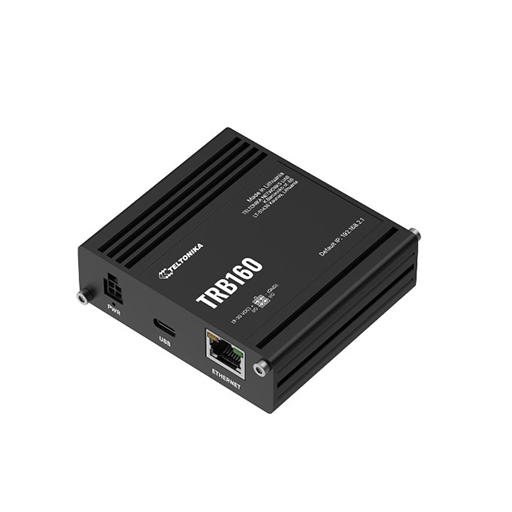

The Teltonika TRB160 is a compact 4G LTE Cat 6 IoT gateway that provides cellular connectivity with download speeds of up to 300 Mbps and upload speeds of up to 50 Mbps. It combines mobile broadband with a Gigabit Ethernet port and a USB Type-C virtual network interface for network data and power. Support for industrial communication protocols including Modbus, MQTT, OPC UA, DNP3 and DLMS makes it suitable for connecting and managing a wide range of IoT and M2M equipment. :contentReference[oaicite:0]{index=0}
The gateway uses 4G LTE Cat 6 technology with carrier aggregation to provide cellular download speeds of up to 300 Mbps and upload speeds of up to 50 Mbps. It also supports 3G connectivity, providing an alternative mobile network option where required.

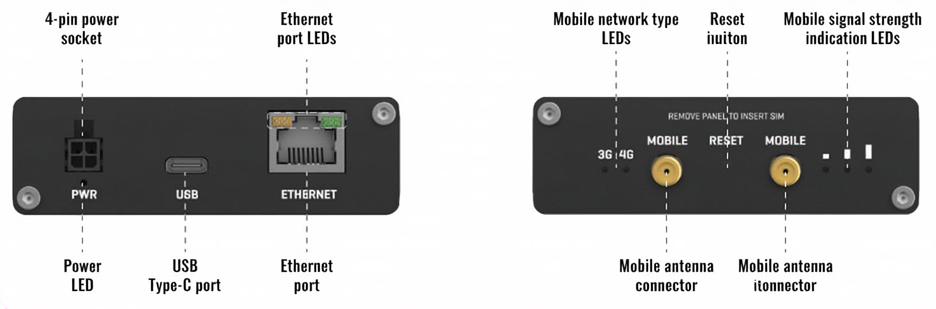

A single RJ45 Ethernet port supports 10/100/1000 Mbps operation, allowing connected equipment to communicate with the cellular network through a Gigabit Ethernet interface. IEEE 802.3, IEEE 802.3u and IEEE 802.3az standards are supported, along with auto MDI/MDIX crossover.
The gateway supports a range of protocols for industrial and machine-to-machine communication, including Modbus, MQTT, OPC UA, DNP3 and DLMS. Bridge and IP passthrough modes also provide options for connecting cellular services directly to equipment on the LAN.

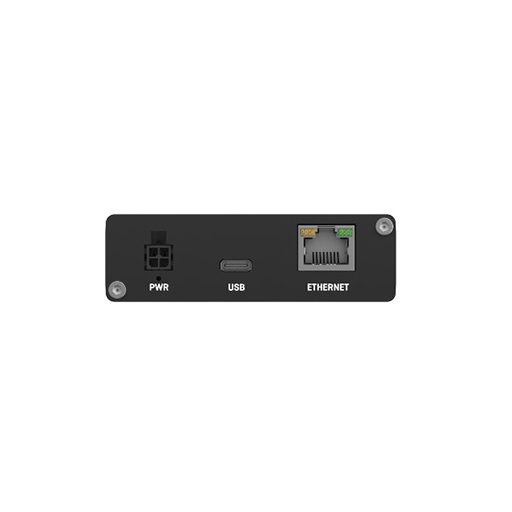

The USB Type-C interface provides a virtual network connection and can be used for both power and network data. The gateway also includes two configurable digital I/O connections on the 4-pin power connector, providing additional interfaces for compatible monitoring and control applications.
Compatibility with Teltonika Remote Management System allows the gateway to be accessed and managed remotely. RMS provides functions for device monitoring, configuration, firmware management and remote access, helping administrators maintain connected equipment from a central location.
The Teltonika TRB160 is a compact 4G LTE Cat 6 IoT gateway that provides cellular connectivity with download speeds of up to 300 Mbps and upload speeds of up to 50 Mbps. It combines mobile broadband with a Gigabit Ethernet port and a USB Type-C virtual network interface for network data and power. Support for industrial communication protocols including Modbus, MQTT, OPC UA, DNP3 and DLMS makes it suitable for connecting and managing a wide range of IoT and M2M equipment. :contentReference[oaicite:0]{index=0}
The gateway uses 4G LTE Cat 6 technology with carrier aggregation to provide cellular download speeds of up to 300 Mbps and upload speeds of up to 50 Mbps. It also supports 3G connectivity, providing an alternative mobile network option where required.
A single RJ45 Ethernet port supports 10/100/1000 Mbps operation, allowing connected equipment to communicate with the cellular network through a Gigabit Ethernet interface. IEEE 802.3, IEEE 802.3u and IEEE 802.3az standards are supported, along with auto MDI/MDIX crossover.
The gateway supports a range of protocols for industrial and machine-to-machine communication, including Modbus, MQTT, OPC UA, DNP3 and DLMS. Bridge and IP passthrough modes also provide options for connecting cellular services directly to equipment on the LAN.
The USB Type-C interface provides a virtual network connection and can be used for both power and network data. The gateway also includes two configurable digital I/O connections on the 4-pin power connector, providing additional interfaces for compatible monitoring and control applications.
Compatibility with Teltonika Remote Management System allows the gateway to be accessed and managed remotely. RMS provides functions for device monitoring, configuration, firmware management and remote access, helping administrators maintain connected equipment from a central location.
