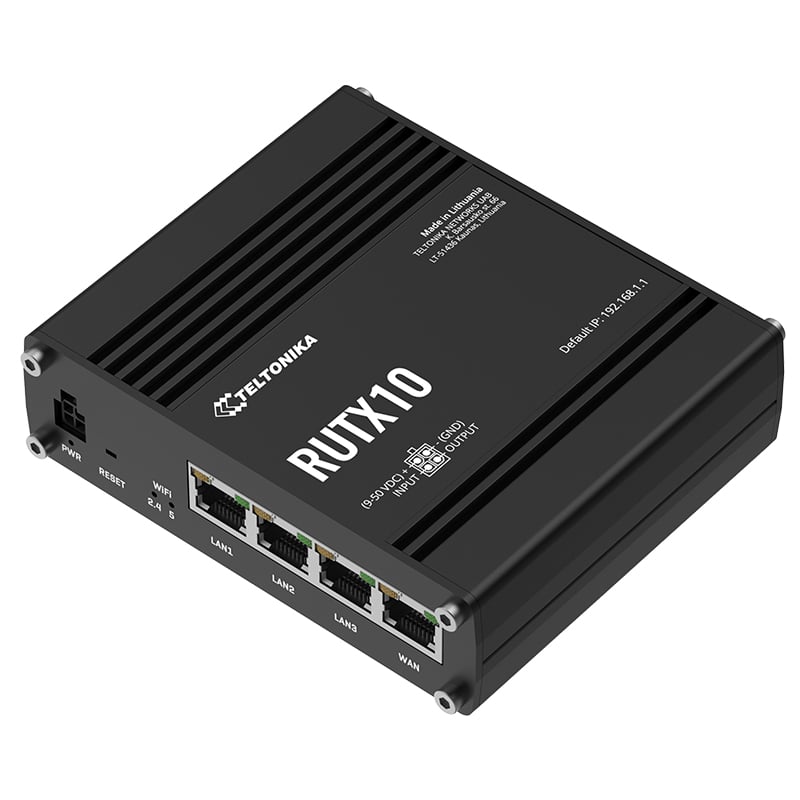

Teltonika RUTX10 Dual-Band Enterprise router

Teltonika RUTX10 Dual-Band Enterprise router

The Teltonika RUTX10 is an enterprise router for small to medium size office applications. It comes with Dual-Band WiFi 5 802.11ac which is very suitable for high data transmission and robust wireless performance.

Other features include Quad-core CPU, 256 MB of RAM and 4 x Gigabit Ethernet ports.

Powerful hardware combined with all the advanced RutOS software and security features make this device a great performer as a fast, secure and reliable Enterprise router.

Teltonika RUTX10 Key Features

• Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
• Gigabit Ethernet with speeds up to 1000 Mbps
• Teltonika Remote Management System compatible
• Bluetooth LE for short range communication
• Quad-core ARM Cortex A7 CPU, 717 MHz
• RutOS – easy to use, secure and feature rich Operating System

Advanced

IoT ready with Bluetooth LE. High processing power. Convenient router access via Remote Management System.

Robust

Durable aluminium housing. Wide voltage range (9-50 V). External temperature range (-40 +75 °C).

Secure

Multiple VPN options. Advanced firewall functionality. Advanced WiFi encryption.

Teltonika RUTX10 Technical Specifications

Hardware

• CPU: Quad Core ARM Cortex A7 717 MHz CPU
• Memory: 256 MB SPI Flash, 256 MB of DDR3 RAM
• Ethernet: 3 x LAN ports 10/100/1000 Mbps, 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps
• WiFi: 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
• Power supply: 9 - 50 VDC, 4 pin DC connector

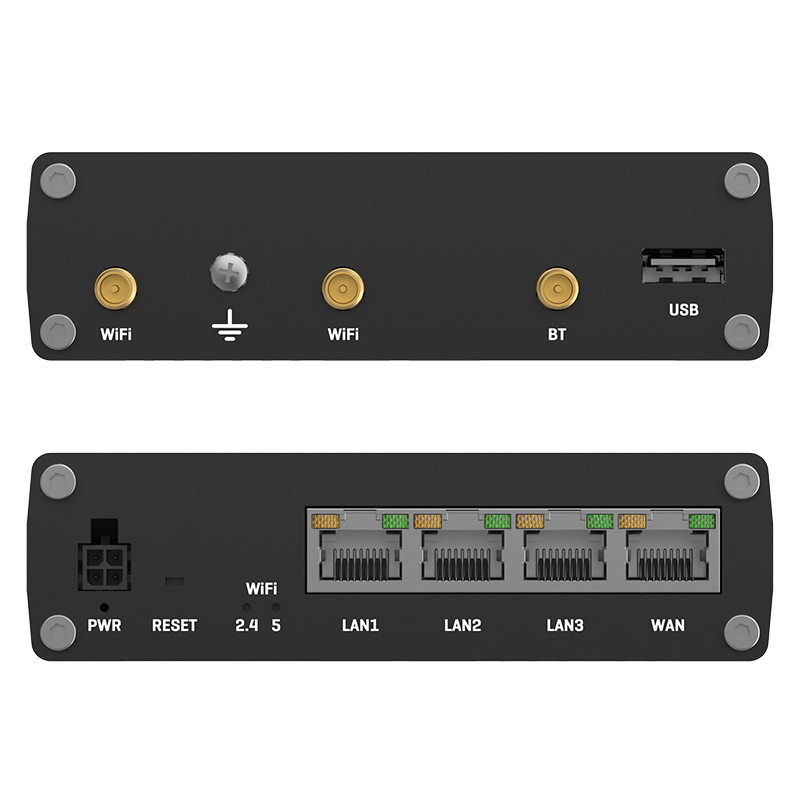

• Connectors: 1 x 4 pin DC, 4 x Ethernet, 2 x WiFi RP-SMA, 1 x RP-SMA for Bluetooth
• Status LEDs: 1 x Power, 2 x WiFi band, 8 x Ethernet status
• Operating temperature: -40 °C to 75 °C
• Housing: Full aluminium with grounding screw
• Dimensions: 115 mm x 95 mm x 32 mm

Software

• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet
• Networking features: NAT, Static/Dynamic routing, Firewall, H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Unique networking features: VLAN, WEB Filter, Load Balancing, Network Backup
• Connection monitoring: Ping Reboot, Periodic Reboot, Wget Reboot, LCP and ICMP for link inspection
• Authetication: Pre-shared key, digital certificates, X.509 certificates
• Keep settings: Update FW without losing current configuration
• Monitoring & Management: WEB UI, SSH, SNMP, JSON-RPC, FOTA, RMS
• Supported languages: Busybox shell, Lua, C, C++
