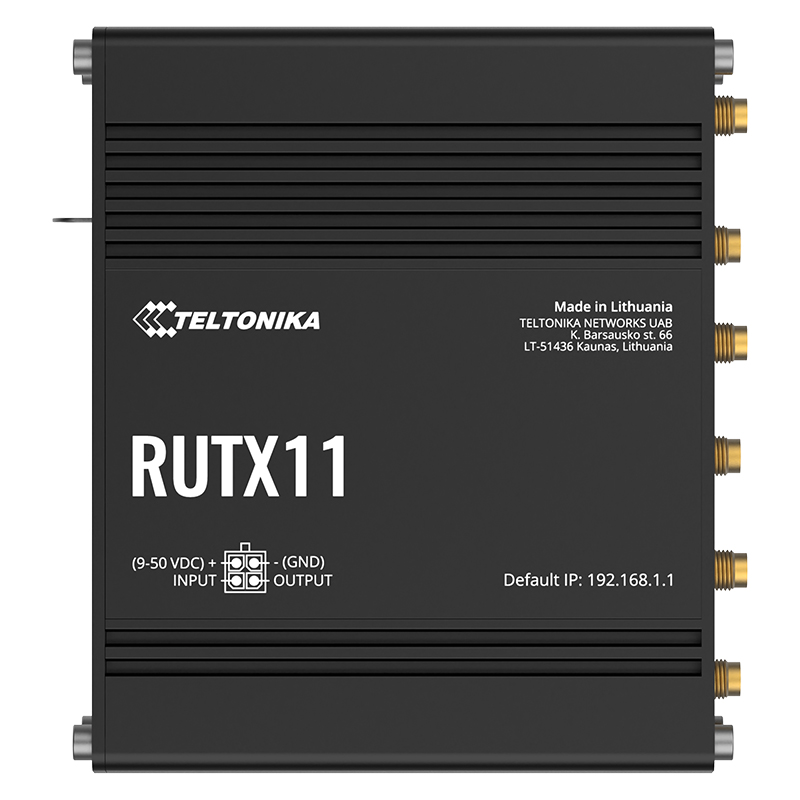

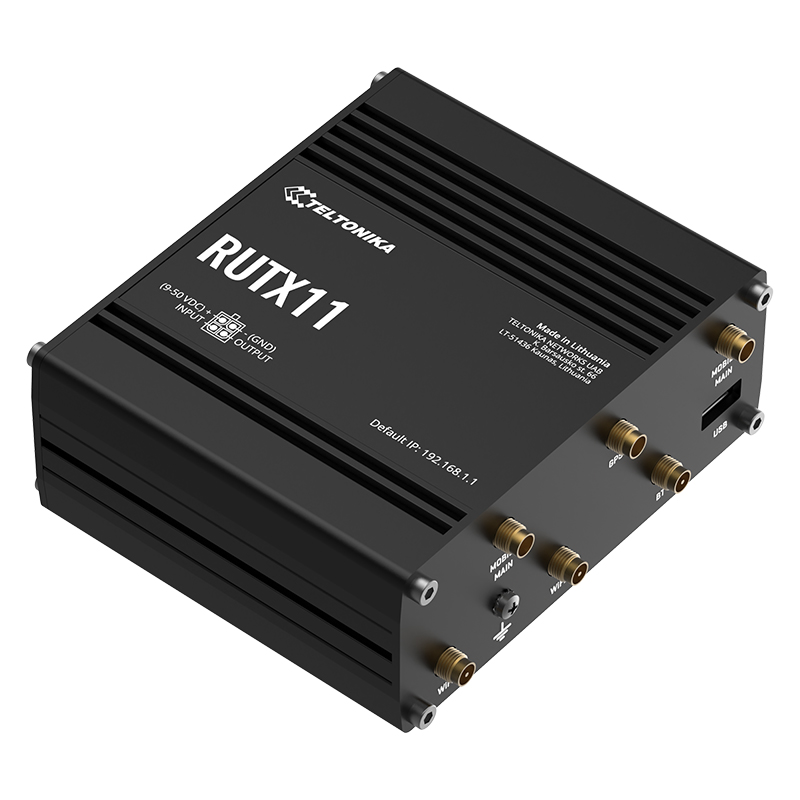

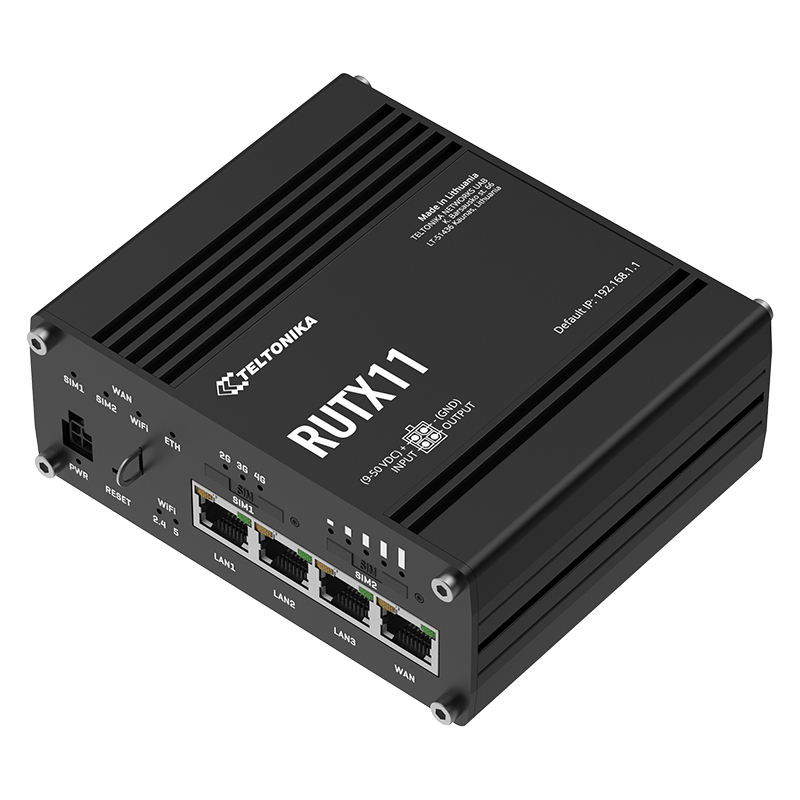

Teltonika RUTX11 Dual-Sim Gigabit Router

Teltonika RUTX11 Dual-Sim Gigabit Router

The Teltonika RUTX11 is a powerful and feature-rich device equipped with Dual-SIM, 4 x Gigabit Ethernet ports, Dual-Band AC WiFi, Bluetooth LE and USB interfaces. RUTX11 comes with all RutOS software and security features. This device is perfect for advanced industrial and enterprise applications.

Teltonika RUTX11 Key Features

• LTE Cat 6 with speeds up to 300 Mbps
• Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
• Dual-SIM with auto Failover. Backup WAN and other SW features
• Gigabit Ethernet with speeds up to 1000 Mbps
• Teltonika Remote Management System compatible
• Easy to use, secure and feature rich Operating System
• Multiple protocols supported including MQTT, Modbus, TCP, BGP, GRE

Professional

TE Cat 6 and AC WiFi for high data throughput. High processing power. Convenient router access via Remote Management System.

Robust

Durable aluminium housing. Wide voltage range (9-50 V). External temperature range (-40 +75 °C).

Secure

Multiple VPN options. Advanced firewall functionality. Advanced WiFi encryption.

Teltonika RUTX11 Technical Specifications

Hardware

• Mobile: 4G (LTE) – Cat 6 DL up to 300 Mbps, UL up to 50Mbps; DC-HSDPA; HSUPA; WCDMA
• CPU: Quad Core ARM Cortex A7 717 MHz CPU
• Memory: 256 MB SPI Flash, 256 MB of DDR3 RAM
• Ethernet: 3 x LAN ports 10/100/1000 Mbps, 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps
• WiFi: 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
• Power supply: 9 - 50 VDC, 4 pin DC connector

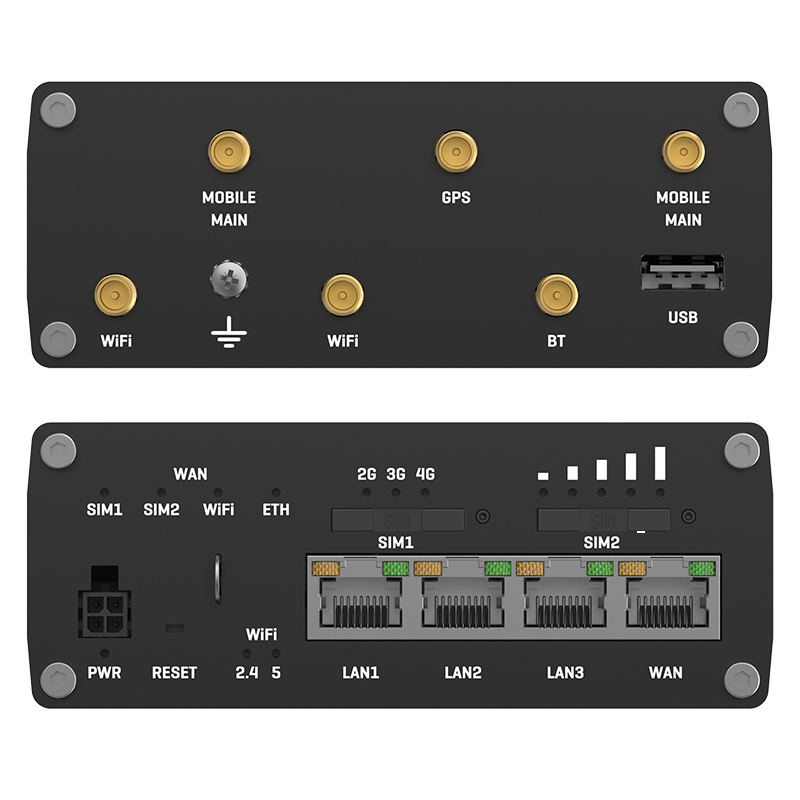

• Connectors: 1 x 4 pin DC, 4 x Ethernet, 2 x SMA for LTE, 2 x WiFi RP-SMA, 1 x SMA for GNNS, 1 x RP-SMA for Bluetooth
• SIM: 2 x external SIM holders
• Status LEDs: 1 x Power, 3 x Mobile connection type, 5 x Mobile connection signal strength LEDs, 2 x WiFi band, 8 x Ethernet status, 4 x WAN type LEDs
• Operating temperature: -40 °C to 75 °C
• Housing: Full aluminium with grounding screw
• Dimensions: 115 mm x 95 mm x 44 mm

Software

• Operating system:  RutOS (OpenWrt based Linux OS)
• SIM switch: 2 SIM cards, auto-switch cases: data limit, roaming, no network, network denied, data connection fail
• Multiple PDN:  Possibility to use different PDNs for multiple network access and services
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet
• Networking features: NAT, Static/Dynamic routing, Firewall, OpenVPN, IPSec, H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Unique networking features: VLAN, Mobile quota control, WEB Filter, Load Balancing, Network Backup, Auto Failover
• Connection monitoring:   Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Keep settings: Update FW without losing current configuration
• Monitoring & Management: WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS
• Supported languages:   Busybox shell, Lua, C, C++
• Development tools: SDK package with build environment provided
