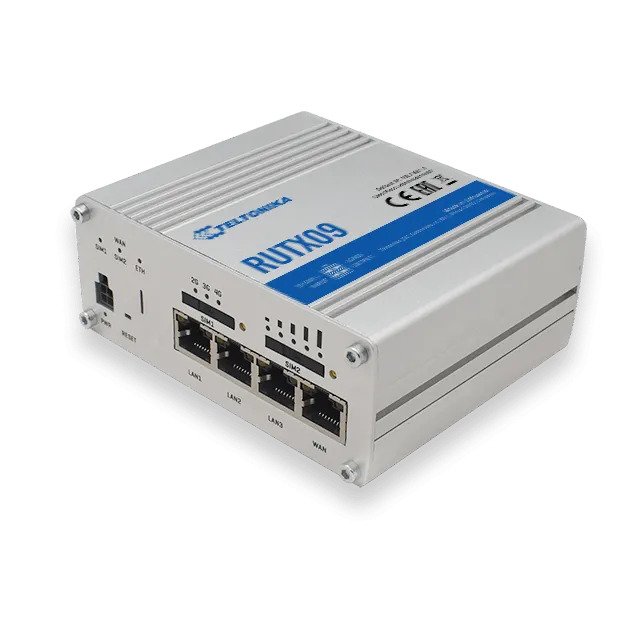

Teltonika RUTX09 LTE-A CAT6 cellular IoT router w/ Dual-SIM

The Teltonika RUTX09 is a powerful LTE-A Cat6 cellular IoT router designed as a Main/Backup Internet source where steady connection and high data throughput is required.

Equipped with Dual-SIM, Carrier Aggregation and 4 x Gigabit Ethernet ports, the RUTX09 has all the advanced RutOS software and security features.

Teltonika RUTX09 Key Features

• Supports LTE Cat 6 up to 300 Mbps
• Gigabit Ethernet with speeds up to 1000 Mbps
• Dual-SIM with auto Failover, backup WAN and other SW features
• Teltonika Remote Management System compatible
• Multiple secure VPN services
• Easy to use, secure and feature rich OpenWrt based Operating System
• Stable 24/7 operation
• Durable aluminium housing
• Multiple VPN options
• Connection watchdog
• Wide voltage range (9-50 V)
• Advanced firewall functionality
• 3 alternative internet sources
• External temperature range (-40 +75 °C)
• Various encryption protocols supported

Thie RUTX09 also has VPN, Firewall and plenty of processing power for custom applications on OpenWrt based RutOS system.

Teltonika RUTX09 - Technical Specifications

Hardware

• Mobile: 4G (LTE) – Cat 6 DL up to 300 Mbps, UL up to 50Mbps; DC-HSDPA; HSUPA; WCDMA
• CPU: Quad Core ARM Cortex A7 717 MHz CPU
• Memory: 256 MBytes Flash, 256 MBytes DDR3 RAM
• Ethernet: 4 x 1Gbit Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
• Power supply: 9 - 50 VDC, 4 pin DC connector

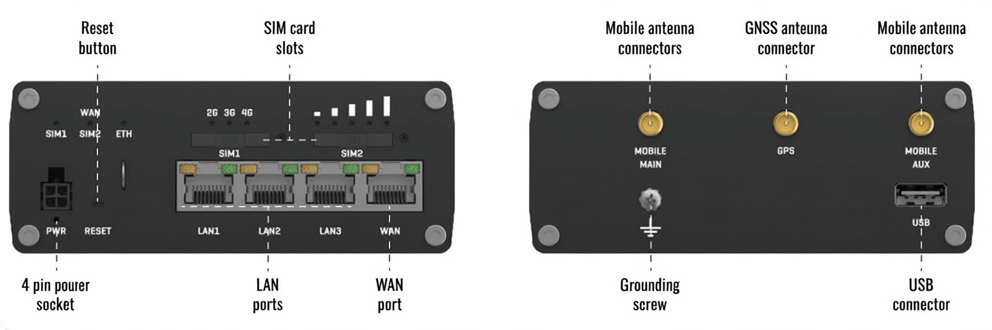

• Connectors: 1 x 4 pin DC, 4 x Ethernet, 2 x Mobile SMA, 1 x GPS SMA
• SIM: 2 x external SIM holders
• Status LEDs: 1 x Power, 2 x SIM, 3 x Mobile network type, 5 x Signal Strength
• Operating temperature: -40 °C to 75 °C
• Housing: Full aluminium with grounding terminal
• Dimensions: 115 mm x 95 mm x 44 mm
• Weight: 456 g

Software

• Operating system: RutOS (OpenWrt based Linux OS)
• SIM switch: 2 SIM cards, auto-switch cases: data limit, roaming, no network, network denied, data connection fail
• Multiple PDN: Possibility to use different PDNs for multiple network access and services
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet
• Networking features: NAT, Static/Dynamic routing, Firewall, OpenVPN, IPSec, H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Unique networking features: VLAN, Mobile quota control, WEB Filter, Load Balancing, Network Backup, Auto Failover
• Connection monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Keep settings: Update FW without loosing current configuration
• Monitoring & Management: WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS
• Supported languages: Busybox shell, Lua, C, C++
• Development tools: SDK package with build environment provided
