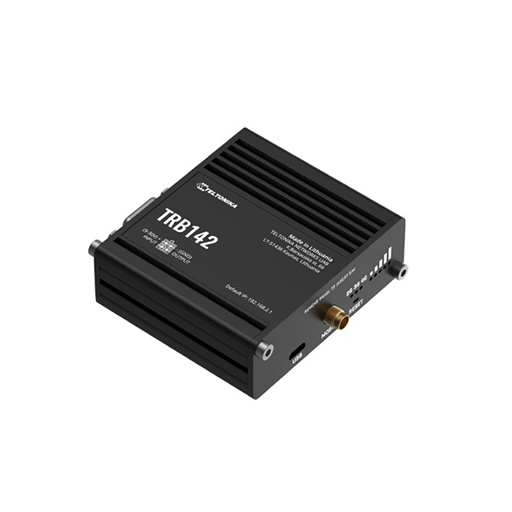

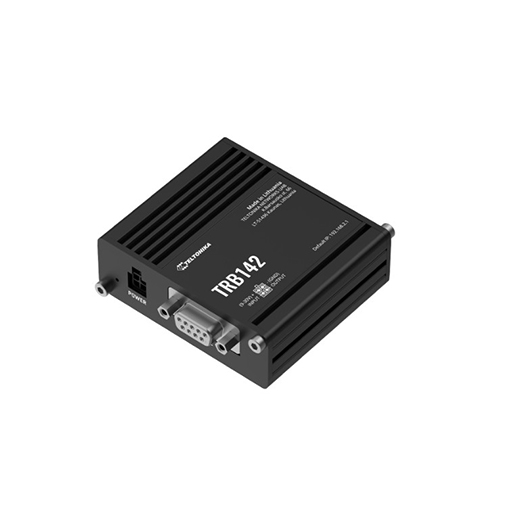

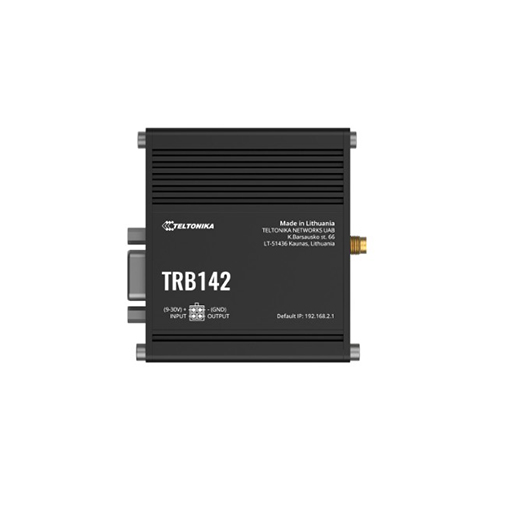

Teltonika TRB142 RS232 to 4G LTE Cat1 IoT gateway

Teltonika TRB142 Industrial Rugged LTE RS232 Gateway

The Teltonika TRB142 comes with a widely used RS232 interface for remote device management. It is equipped with mission-critical LTE Cat 1 capabilities and software based on OpenWRT, hence offering a high degree of customisation. Just like the other TRB series products, it provides a wide range of software features such as SMS control, VPN, IPsec, Firewall, and FOTA support. This gateway is durable, offers a wide range of power supply voltages, and is compatible with Teltonika Networks Remote Management System (RMS).

Teltonika TRB142 Key Features

• 4G/LTE (Cat 1), 3G, 2G connectivity
• Rugged aluminium housing
• Equipped with RS232 for serial communication
• Wide range of supported power supply voltages
• Compact size, easy integration
• Teltonika Remote Management System compatible

Teltonika TRB142 Technical Specifications

Mobile

• Mobile module: 4G (LTE) – Cat 1 up to 10 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
• Bridge: Direct connection (bridge) between mobile ISP and device on LAN
• Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received
• SMS/Call: SMS status, SMS configuration, Call utilities

Network

• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, PPP, SSH, DHCP, SNMP, MQTT
• Bridge: Static routing
• Connection monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection, Wget
• Firewall: Port forwards, traffic rules, custom rules
• DHCP: Static and dynamic IP allocation
• QoS / Smart Queue Management (SQM) (planned): Traffic priority queuing by source/destination, service, protocol or port
• DHCP: Supported >25 service providers, others can be configured manually

Security

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

• OpenVPN: Multiple clients and a server can run simultaneously, 12 encryption methods
• OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
• IPsec: IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
• GRE: GRE tunnel
• PPTP, L2TP: Client/Server services can run simultaneously

Monitoring & Management

• WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log
• FOTA: Firmware update from sever, automatic notification
• SSH: SSH (v1, v2)
• SMS: SMS status, SMS configuration
• MQTT: MQTT Broker, MQTT publisher
• JSON-RPC: Management API over HTTP/HTTPS
• Modbus: Modbus TCP status/control
• RMS: Teltonika Remote Management System (RMS)

System Characteristics

• CPU: ARM Cortex-A7 1.2 GHz CPU
• RAM: 128 MB (50 MB available for userspace)
• FLASH memory: 512 MB (200 MB available for userspace)

Serial Communication Modes

• Modes: Console, OverIP, Modem (Full or Partial control), Modbus RTU master, Modbus gateway, NTRIP client

Modbus TCP Slave

• ID filtering: Respond to one ID in range [1;255] or any
• Allow remote access: Allow access through WAN
• Custom registers: Modbus TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend Modbus TCP slave functionality
• Supported functions: 01, 02, 03, 04, 05, 06, 15, 16
• Supported data formats: 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

Modbus RTU Master

• Suported baud rates: From 300 to 115200
• Supported functions: 01, 02, 03, 04, 05, 06, 15, 16
• Supported data formats: 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
• Number of data bits: From 5 to 8
• Number of stop bits: 1 or 2
• Parity: None, Even, Odd
• Flow control: None, RTS/CTS, Xon/Xof

Modbus Data to Server

• Protocol: HTTP(S), MQTT

Firmware/Configuration

• WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
• FOTA: Update FW/configuration from server
• RMS: Update FW/configuration for multiple devices
• Keep settings: Update FW without losing current configuration

Firmware Customisation

• Operating system: RutOS (OpenLinux based Linux OS)
• Supported languages: Busybox shell, Lua, C, C++
• Development tools: SDK package with build environment provided

Input/Output

• Configurable I/O: 2 x Digital Inputs/Outputs
• Events: SMS status

Power

• Connector: 4 pin industrial DC power socket
• Input voltage range: 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10? max
• Power consumption: < 5 W

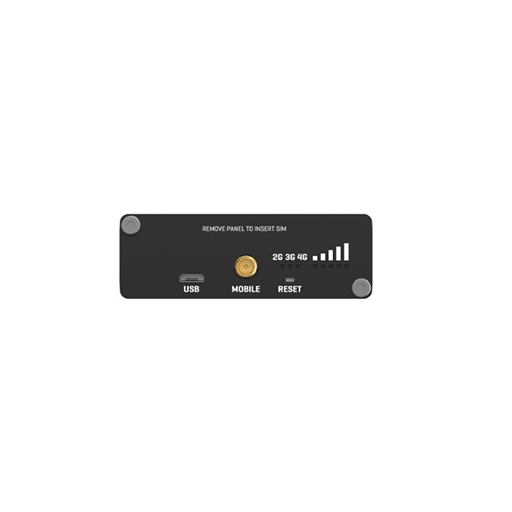

Physical Interfaces (Ports, LEDs, Anntenas, Buttons, SIM)

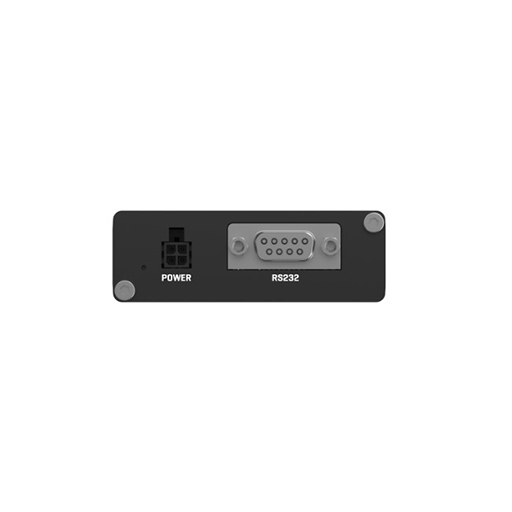

• RS232: RS232 interface, DB9 socket, 5 pin configuration with flow control
• I/Os: 2 Inputs/Outputs pin on 4 pin power connector
• USB: Virtual network interface via USB
• Status LEDs: 3 x connection type status LEDs, 5 x connection strength LEDs, 1x Power LED
• SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
• Power: 4 pin power connector with 2 x configurable Digital Inputs/Outputs
• Anntenas: 1 x SMA for LTE
• Reset: Restore factory settings button

Physical Specifications

• Casing material: Aluminum housing
• Dimensions: 64.4 x 74.5 x 25 mm (L x W x H)
• Weight: 135 g
• Mounting options: Bottom and sideways DIN rail, Flat surface and direct PCB on DIN-Rail mounting options

Operating Environment

• Operating temperature: -40 °C to 75 °C
• Operating humidity: 10 % to 90 % non-condensing
• Ingress Protection Rating: IP30

Regulatory & Type Approvals

• Regulatory: CE/RED, EAC, RoHS, WEEE

EMI

• Standards: Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0
• ESD: EN 61000-4-2:2009
• RS: EN 61000-4-3:2006 + A1:2008 + A2:2010
• EFT: EN 61000-4-4:2012
• Surge protection: EN 61000-4-5:2014
• CS: EN 61000-4-6:2014
• DIP: EN 61000-4-11:2004

RF

• Standards: EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2

Safety

• Standards:
  - IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017
  - EN 50385:2017
  - EN 62232:2017
