StarTech SDOCK4U313 4-Bay SATA HDD Docking Station - For 2.5 inch/3.5 inch - USB 3.1 (10Gbps)

4-Bay SATA HDD Docking Station - For 2.5”/3.5" SSDs/HDDs - USB 3.1 (10Gbps)

Gain quick access to up to four SSDs/HDDs simultaneously, while also being able to swap drives in and out as needed

This 4-bay SATA HDD docking station lets you access up to four solid-state drives or hard drives simultaneously over USB 3.1 (10Gbps), and hot swap drives with ease. Ideal for IT professionals, the docking station provides large data capacity and fast file transfers, helping you manage your workflow more efficiently.

Save time accessing and managing your data

When you’re managing a large number of drives, the HDD/SSD docking station saves you time. Quickly dock and swap your drives for disk imaging, data recovery from failing drives, data backups, or other tasks.

The hard drive docking station also has SMART support, for accessing important drive information such as hours in use, number of power cycles, and disk health.

Fast data transfers

With USB 3.1 Gen 2, the HDD docking station lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.

Convenient compatibility

The hard drive docking station includes a USB Type-C cable, for connecting to USB-C equipped laptops and devices, and a USB Type-A cable, for backward compatibility with your existing USB 3.0, 2.0 and 1.x devices.

The docking station also works with 2.5” and 3.5” IDE hard drives, mSATA drives and M.2 drives using a compatible StarTech.com adapter:

IDE hard drives: Use StarTech.com adapter SAT2IDEADP SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks

mSATA drives: Use StarTech.com adapter SAT32MSAT257 mSATA SSD to 2.5in SATA Adapter Converter

M.2 drives: Use StarTech.com adapter SAT32M225 M.2 NGFF SSD to 2.5in SATA Adapter Converter

The SDOCK4U313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

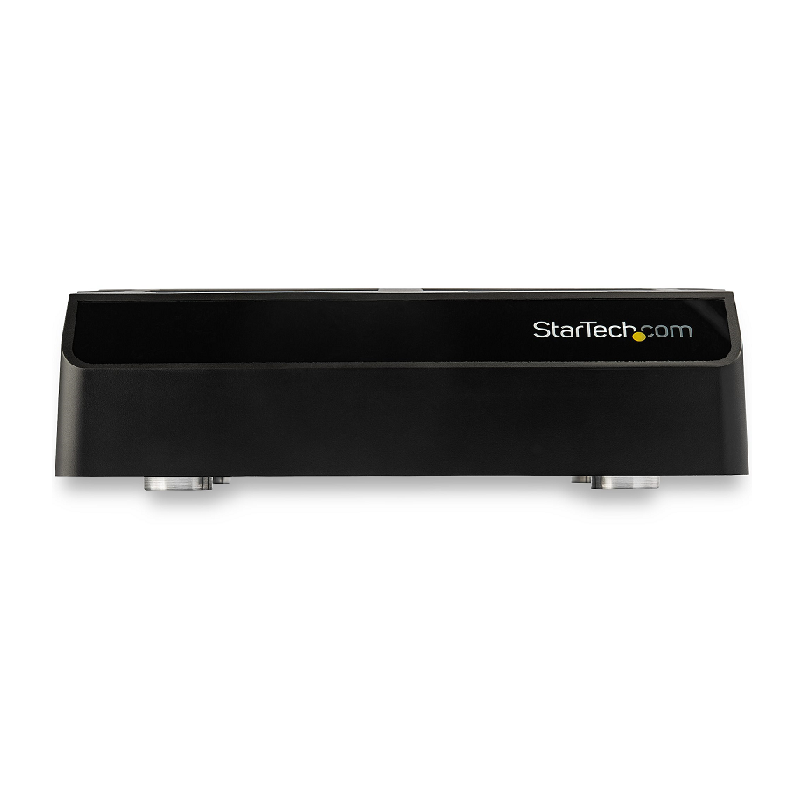

Front view:

1. Hard drive #1 eject button

2. Hard drive #1 slot

3. Hard drive #1 power and activity LED

4. Hard drive #1 power button

5. Hard drive #2 eject button

6. Hard drive #2 slot

7. Hard drive #2 power and activity LED

8. Hard drive #2 power button

9. Hard drive #3 eject button

10. Hard drive #3 slot

11. Hard drive #3 power and activity LED

12. Hard drive #3 power button

13. Hard drive #4 eject button

14. Hard drive #4 slot

15. Hard drive #4 power and activity LED

16. Hard drive #4 power button

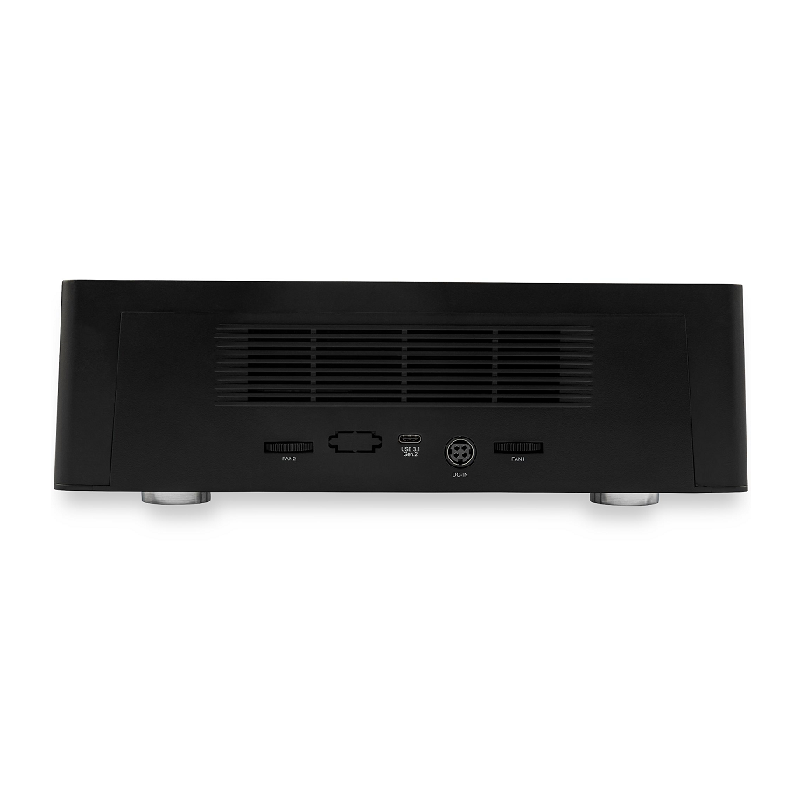

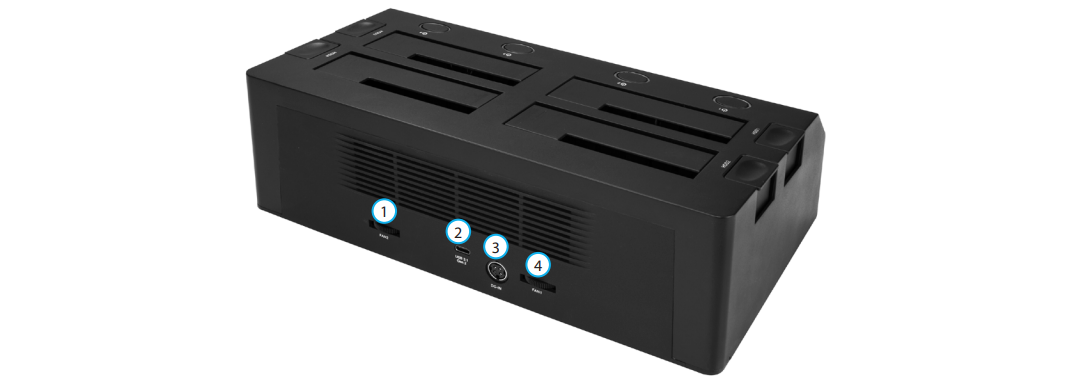

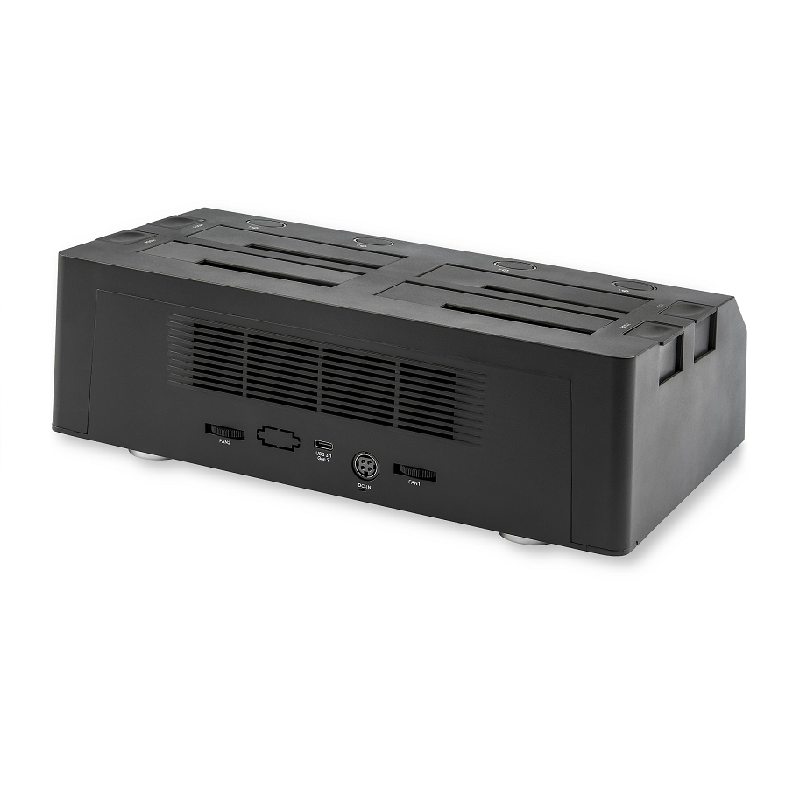

Rear view:

1. Fan 2 dial

2. USB C port

3. Power adapter port

4. Fan 1 dial

Applications:

• Perfect for system builders and IT professionals who need quick access to drives for imaging
• Quickly recover and backup data from an old drive
• Transfer data from one hard drive to another
• Convenient for technicians who test or benchmark multiple hard drives

Features:

• Quad-bay top-loading design with independent drive doors, drive controllers, power switching, and ejection buttons
• Access up to four 2.5”/3.5” SSDs/HDDs simultaneously over USB 3.1 (10Gbps), and hot swap drives
• USB Type-C and USB Type-A interface, backward compatible with USB 3.0, 2.0 and 1.x
• Support for SATA I, II and III (up to 6Gbps)
• SMART support to enable access to important drive data, such as hours in use, number of power cycles, disk health
• TRIM support
• 4Kn support
• Built-in dual 60 mm cooling fans help to maintain an optimum operating temperature
• UASP support for enhanced performance
• Plug-and-play functionality; no driver or software installation required

Full specification and details can be found in the PDF file

A user manual can be found in the PDF file
