| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FESDOCK2U33EB |
| Manufacturer No: | SDOCK2U33EB |
| Delivery: | In Stock: Next Day |
 |

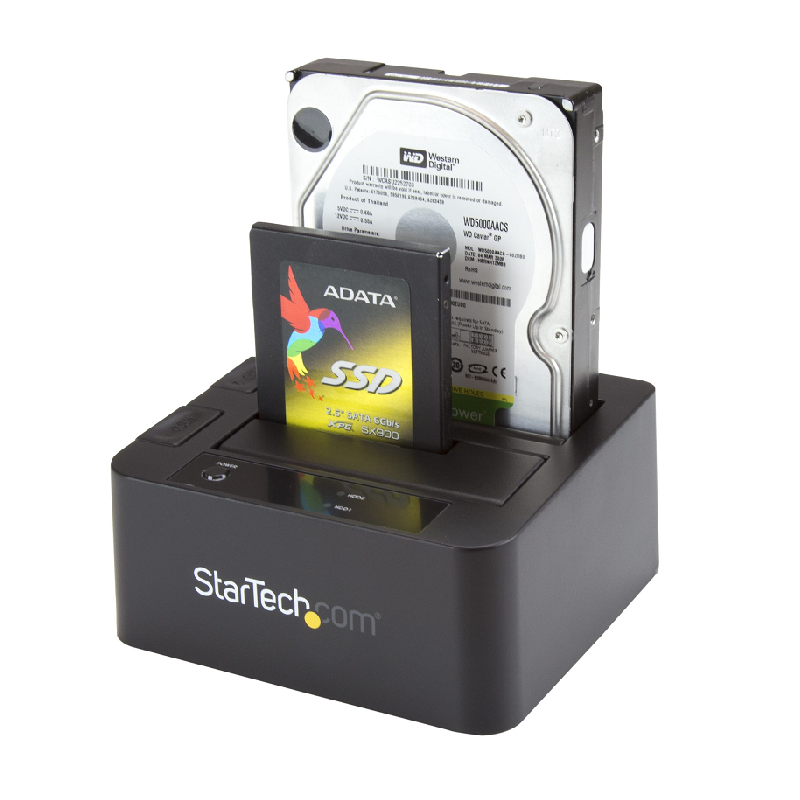

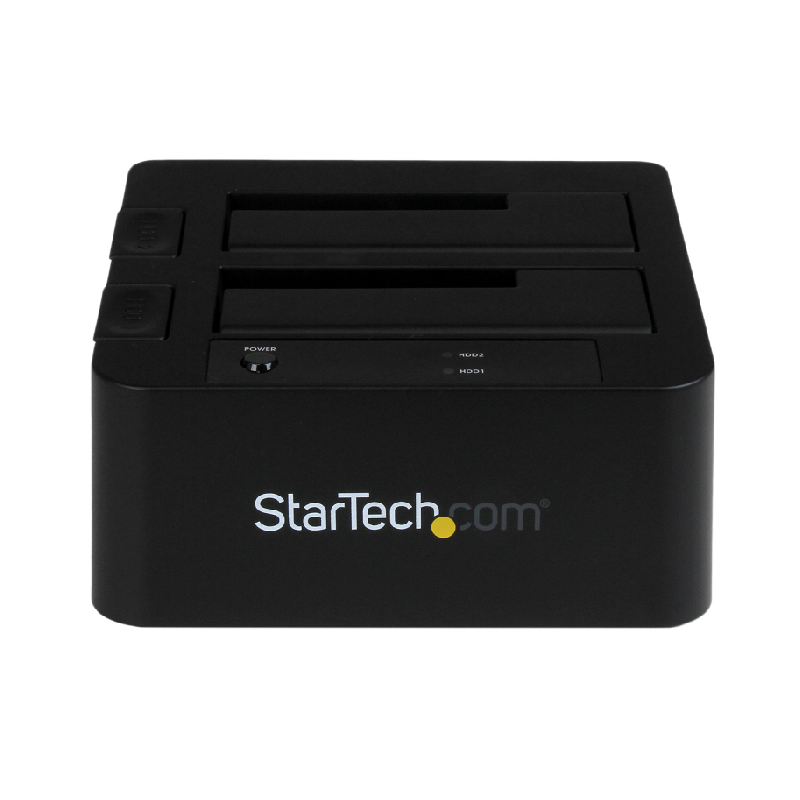

USB 3.0 / eSATA Dual Hard Drive Docking Station with UASP for 2.5/3.5in SATA SSD / HDD – SATA 6 Gbps
Easily connect and swap two 2.5 or 3.5in SATA III drives through eSATA or USB 3.0
The SDOCK2U33EB Dual 2.5/3.5" SATA hard drive docking station lets you dock and swap hard drives from your desktop or laptop computer simultaneously using a single eSATA or USB port.
For fast performance and efficient data transfers when connected through eSATA, the docking station supports full SATA III transfer speeds -- up to 6 Gbps. For universal compatibility, the dock can be connected through USB 3.0 with transfer speeds up 5 Gbps plus support for UASP, which supports performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.
The hard drive docking station supports the fastest drive technologies including SATA III (6 Gbps), hybrid drives and solid state drives (SSD), ensuring you can save time by getting the most out of your drive performance.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock.
To ensure compatibility with your computer system, the SDOCK2U33EB supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.
The SDOCK2U33EB is backed by a StarTech.com 2-year warranty and free lifetime technical support.

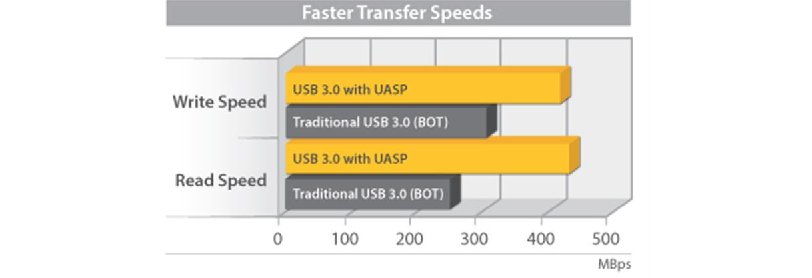

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

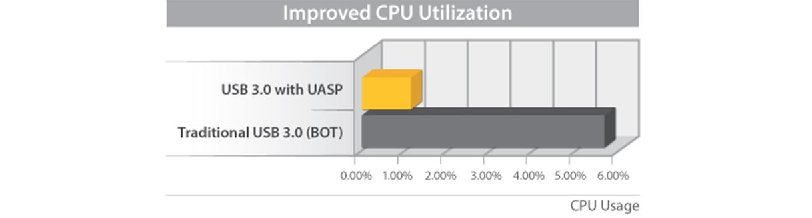

At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
| Storage | |
| Storage media type | HDD, SSD |
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | 2.5, 3.5" |
| Number of storage drives supported | 2 |
| Maximum storage capacity | 8 TB |
| Ports & interfaces | |

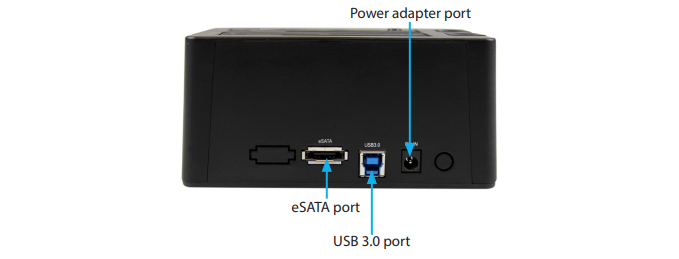

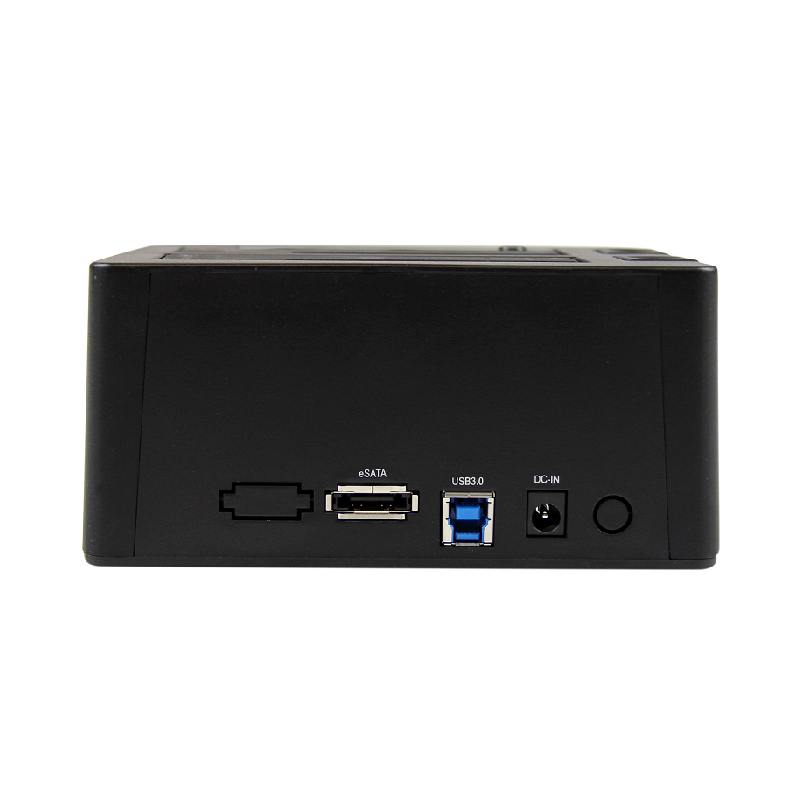

| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| eSATA ports quantity | 1 |
| DC-in jack | Yes |
| Technical details | |
| Standard interfaces | eSATA,USB 3.2 Gen 1 (3.1 Gen 1) |
| Maximum data transfer rate | 6 Gbit/s |
| Product colour | Black |
| Material | Plastic |
| Chipset | JMicron - JMS562 |
| Sustainability certificates | RoHS |
| Features | |
| Maximum data transfer rate | 6 Gbit/s |

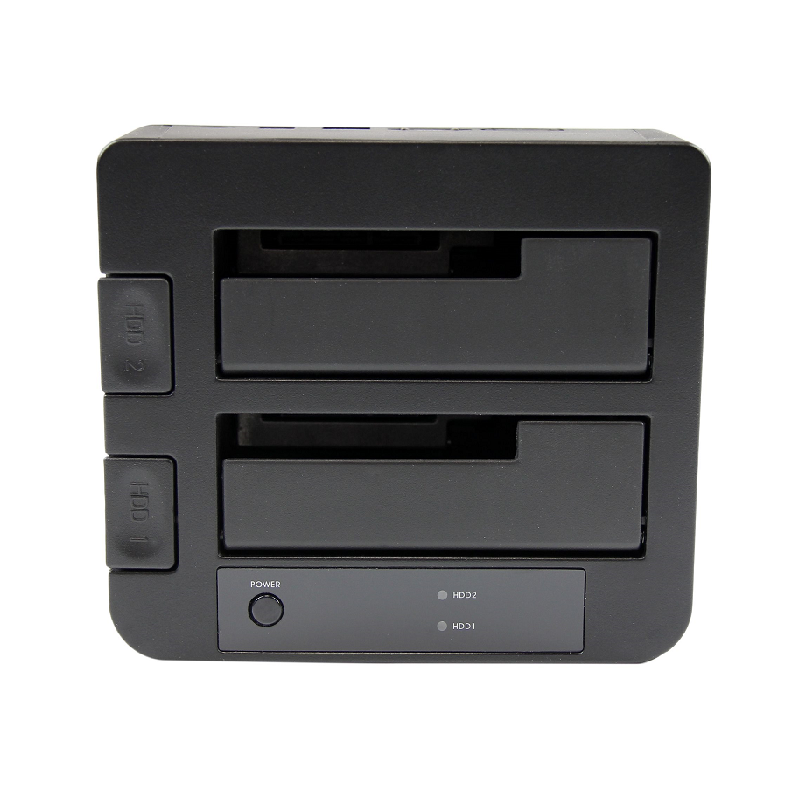

| LED indicators | Activity, Power |
| Product colour | Black |
| Material | Plastic |
| Certification | CE, FCC |
| Chipset | JMicron - JMS562 |
| Power | |
| Power plug type | Type M |
| AC input voltage | 100-240 V |
| Input current | 1.5 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Operational conditions | |
| Storage temperature (T-T) | 5 - 35 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80 % |
| Weight & dimensions | |
| Width | 132 mm |
| Depth | 143 mm |
| Height | 70 mm |
| Weight | 490 g |
| Packaging data | |
| Package width | 123 mm |
| Package depth | 185 mm |
| Package height | 210 mm |
| Package weight | 1.06 kg |
| Manual | Yes |

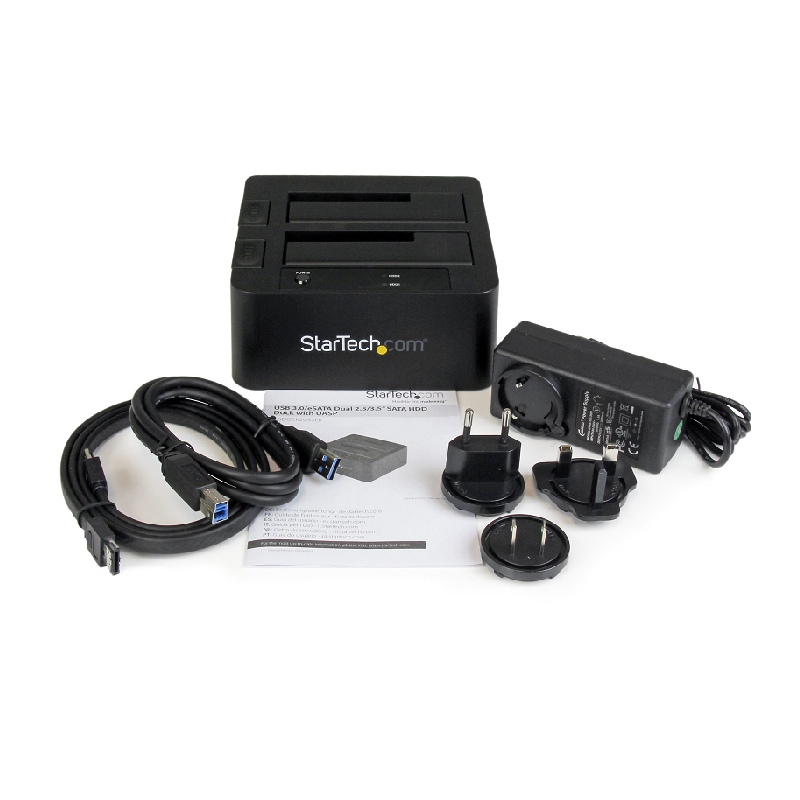

| AC adapter included | Yes |
| Included power plug types | EU, NA, UK |
| Cables included | eSATA, USB |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
