| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FETAP100 |
| Manufacturer No: | TAP100 |
| Delivery: | In Stock: Next Day |
 |

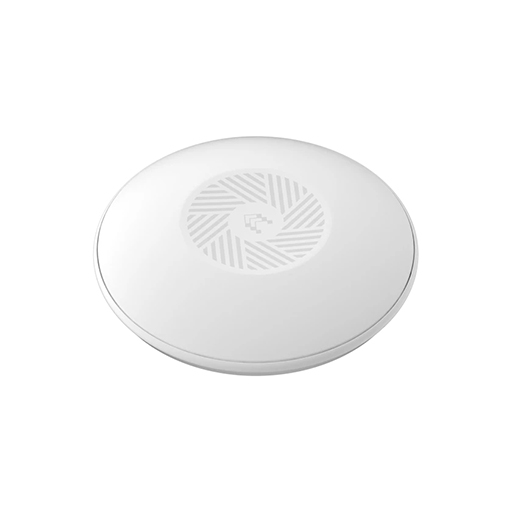

The Teltonika TAP100 is a compact Wi-Fi 4 access point that provides wireless connectivity through a single 10/100 Mbps RJ45 port with active PoE input. It operates on the 2.4 GHz band using two internal antennas and can support up to 100 simultaneous Wi-Fi connections, making it suitable for extending wireless coverage in small commercial and network environments.
The access point uses IEEE 802.11b/g/n Wi-Fi 4 technology on the 2.4 GHz frequency band. Two internal omnidirectional antennas provide wireless coverage, while support for up to 100 simultaneous Wi-Fi users allows multiple devices to connect to the access point at the same time.

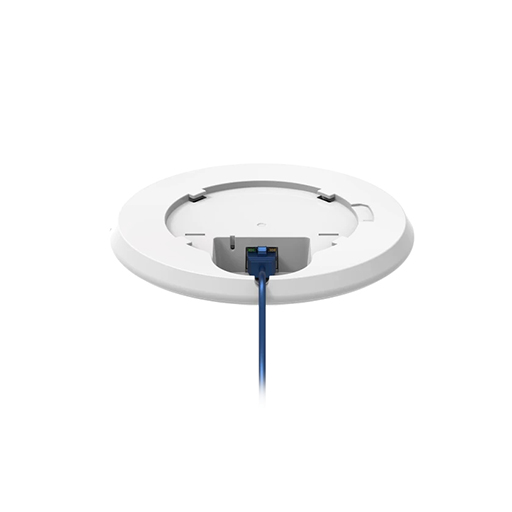

A single RJ45 Ethernet port provides 10/100 Mbps wired connectivity and supports IEEE 802.3, IEEE 802.3u and IEEE 802.3az standards. The same RJ45 connection supplies power through active 802.3af PoE Class 1, with an input voltage range of 44.0 - 57.0 V.
Wireless mesh using 802.11s and fast roaming using 802.11r help support wireless networks with multiple access points. BSS transition management using 802.11v and radio resource measurement using 802.11k provide additional wireless management functions. MAC filtering supports allowlist and blocklist operation.
The access point supports WPA2 and WPA3 security methods, including WPA2-PSK, WPA2-Enterprise, WPA3-SAE and WPA3-EAP. OWE, AES-CCMP, TKIP, client separation and EAP-TLS with PKCS#12 certificates are also supported, while SSID stealth mode and MAC-based access control provide additional network access options.
RutOS provides a WebUI for configuration, firmware updates, monitoring and troubleshooting. The TAP100 also supports SSH, SNMP, JSON-RPC and FOTA, while Teltonika RMS enables remote monitoring and management. Network features include IPv4 and IPv6, DHCP client, VLAN separation and DNS over HTTPS.

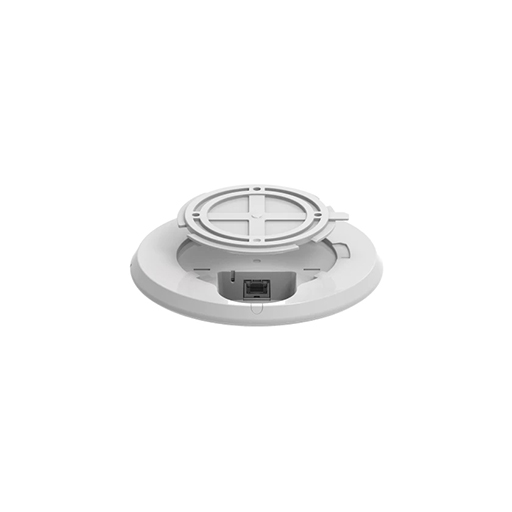

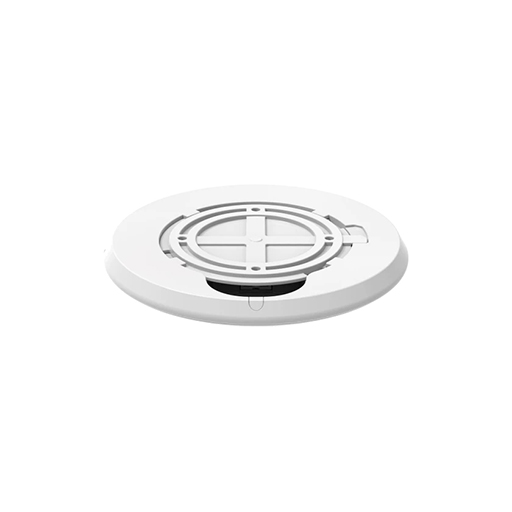

The access point uses a UV-stabilized plastic housing measuring 158 mm in diameter and 30 mm in height, with a weight of 190 g. An integrated mounting bracket supports ceiling installation, while the IP30-rated enclosure and operating temperature range of -40 °C to 75 °C allow it to be used across a broad range of indoor environments.
The TAP100 uses a MediaTek MIPS 24Kc processor running at 580 MHz, with 64 MB of DDR2 RAM and 16 MB of SPI Flash storage. Maximum power consumption is below 2 W, and the unit includes a power LED and physical reset button for status indication and device control.
The Teltonika TAP100 is a compact Wi-Fi 4 access point that provides wireless connectivity through a single 10/100 Mbps RJ45 port with active PoE input. It operates on the 2.4 GHz band using two internal antennas and can support up to 100 simultaneous Wi-Fi connections, making it suitable for extending wireless coverage in small commercial and network environments.
The access point uses IEEE 802.11b/g/n Wi-Fi 4 technology on the 2.4 GHz frequency band. Two internal omnidirectional antennas provide wireless coverage, while support for up to 100 simultaneous Wi-Fi users allows multiple devices to connect to the access point at the same time.
A single RJ45 Ethernet port provides 10/100 Mbps wired connectivity and supports IEEE 802.3, IEEE 802.3u and IEEE 802.3az standards. The same RJ45 connection supplies power through active 802.3af PoE Class 1, with an input voltage range of 44.0 - 57.0 V.
Wireless mesh using 802.11s and fast roaming using 802.11r help support wireless networks with multiple access points. BSS transition management using 802.11v and radio resource measurement using 802.11k provide additional wireless management functions. MAC filtering supports allowlist and blocklist operation.
The access point supports WPA2 and WPA3 security methods, including WPA2-PSK, WPA2-Enterprise, WPA3-SAE and WPA3-EAP. OWE, AES-CCMP, TKIP, client separation and EAP-TLS with PKCS#12 certificates are also supported, while SSID stealth mode and MAC-based access control provide additional network access options.
RutOS provides a WebUI for configuration, firmware updates, monitoring and troubleshooting. The TAP100 also supports SSH, SNMP, JSON-RPC and FOTA, while Teltonika RMS enables remote monitoring and management. Network features include IPv4 and IPv6, DHCP client, VLAN separation and DNS over HTTPS.
The access point uses a UV-stabilized plastic housing measuring 158 mm in diameter and 30 mm in height, with a weight of 190 g. An integrated mounting bracket supports ceiling installation, while the IP30-rated enclosure and operating temperature range of -40 °C to 75 °C allow it to be used across a broad range of indoor environments.
The TAP100 uses a MediaTek MIPS 24Kc processor running at 580 MHz, with 64 MB of DDR2 RAM and 16 MB of SPI Flash storage. Maximum power consumption is below 2 W, and the unit includes a power LED and physical reset button for status indication and device control.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
