| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FETRB501 |
| Manufacturer No: | TRB501 |
| Delivery: | In Stock: 7-10 Days |
 |

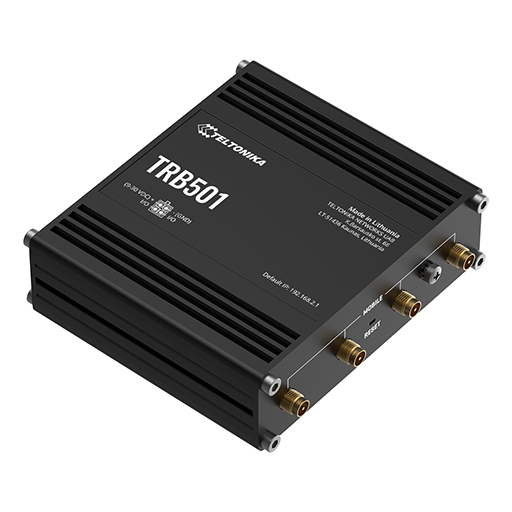

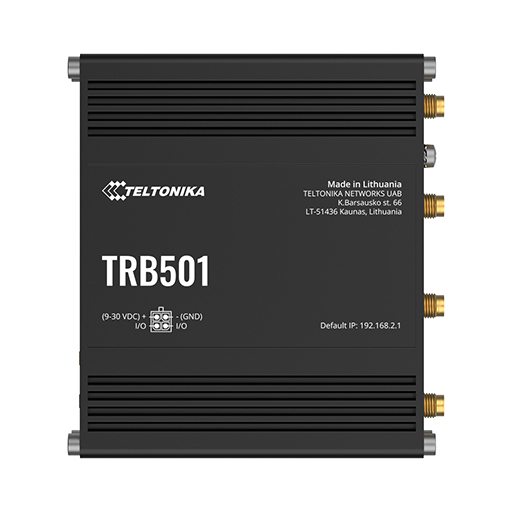

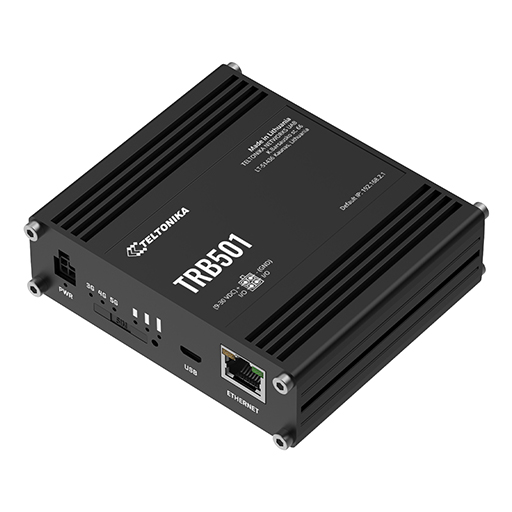

The Teltonika TRB501 is an industrial 5G gateway that combines 5G Sub-6 GHz connectivity with a high-speed 2.5 Gbps Ethernet interface for fast data transfer between cellular and wired networks. Supporting both 5G SA and NSA modes, it can reach download speeds of up to 2.4 Gbps in SA mode and 3.4 Gbps in NSA mode, with 5G carrier aggregation based on 3GPP Release 16. The compact unit also provides configurable digital I/O, a Mini SIM slot, four SMA mobile antenna connectors and a micro USB virtual network interface.
The gateway supports 5G Sub-6 GHz networks in both Standalone and Non-Standalone modes. The 5G modem can provide download speeds of up to 2.4 Gbps in SA mode and 3.4 Gbps in NSA mode, with upload speeds reaching up to 900 Mbps and 550 Mbps respectively. 5G carrier aggregation and 3GPP Release 16 capabilities support high-throughput cellular communication.
When 5G coverage is unavailable, the gateway can use 4G LTE Cat 19 connectivity with download speeds of up to 1.6 Gbps. LTE Cat 18 provides upload speeds of up to 200 Mbps, giving connected equipment an alternative cellular connection across supported networks.

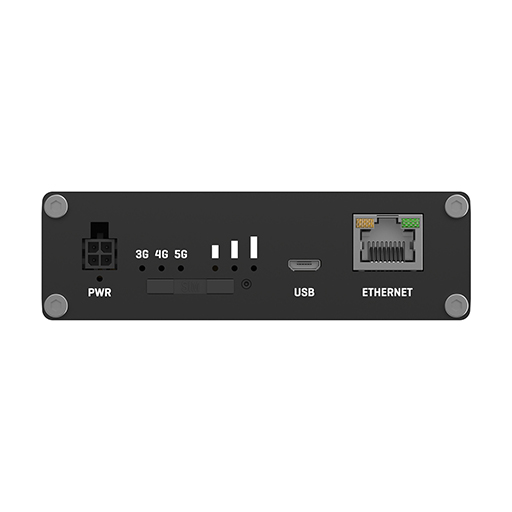

The RJ45 Ethernet interface supports 10, 100, 1000 and 2500 Mbps connection speeds. The 2.5 Gigabit Ethernet port provides a high-bandwidth wired interface for equipment that needs to transfer large amounts of data through the cellular network.

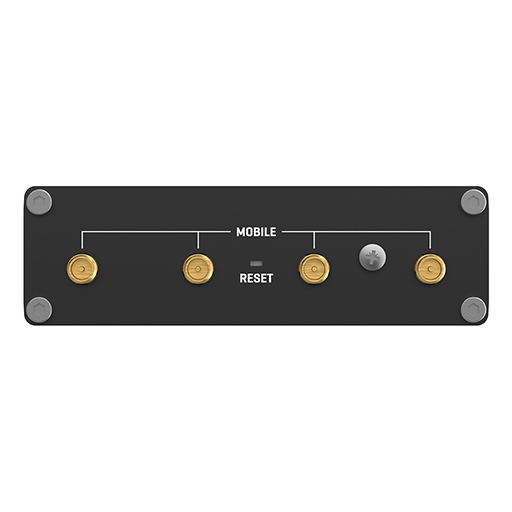

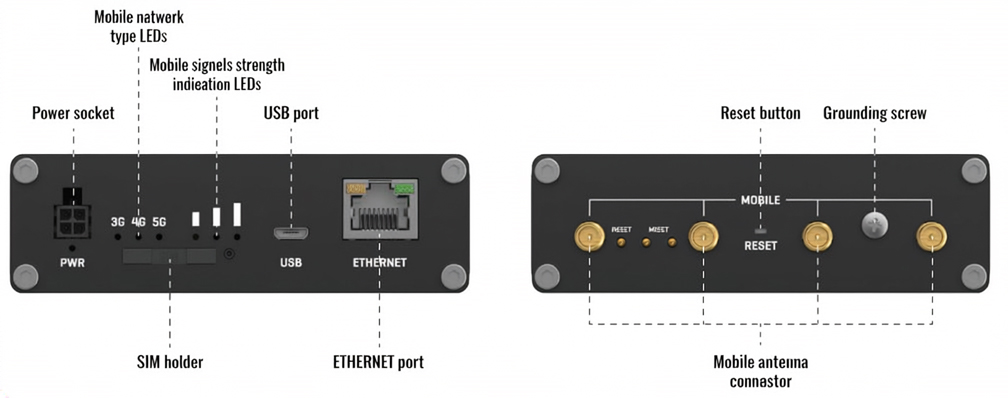

Two configurable digital I/O connections are available through the four-pin power connector. The gateway also includes a Mini SIM slot, four SMA connectors for mobile antennas and a micro USB interface that provides a virtual network connection.
The gateway supports industrial communication protocols including Modbus, DNP3 and DLMS. These capabilities allow it to communicate with industrial equipment and systems used for SCADA, telemetry and smart grid applications.
RutOS, based on OpenWrt, provides the gateway's network management environment and includes functions such as APN management, SIM PIN control, bridge mode, IP passthrough, routing and mobile connection management. Teltonika RMS provides remote monitoring and administration capabilities for compatible deployments.
The Teltonika TRB501 is an industrial 5G gateway that combines 5G Sub-6 GHz connectivity with a high-speed 2.5 Gbps Ethernet interface for fast data transfer between cellular and wired networks. Supporting both 5G SA and NSA modes, it can reach download speeds of up to 2.4 Gbps in SA mode and 3.4 Gbps in NSA mode, with 5G carrier aggregation based on 3GPP Release 16. The compact unit also provides configurable digital I/O, a Mini SIM slot, four SMA mobile antenna connectors and a micro USB virtual network interface.
The gateway supports 5G Sub-6 GHz networks in both Standalone and Non-Standalone modes. The 5G modem can provide download speeds of up to 2.4 Gbps in SA mode and 3.4 Gbps in NSA mode, with upload speeds reaching up to 900 Mbps and 550 Mbps respectively. 5G carrier aggregation and 3GPP Release 16 capabilities support high-throughput cellular communication.
When 5G coverage is unavailable, the gateway can use 4G LTE Cat 19 connectivity with download speeds of up to 1.6 Gbps. LTE Cat 18 provides upload speeds of up to 200 Mbps, giving connected equipment an alternative cellular connection across supported networks.
The RJ45 Ethernet interface supports 10, 100, 1000 and 2500 Mbps connection speeds. The 2.5 Gigabit Ethernet port provides a high-bandwidth wired interface for equipment that needs to transfer large amounts of data through the cellular network.
Two configurable digital I/O connections are available through the four-pin power connector. The gateway also includes a Mini SIM slot, four SMA connectors for mobile antennas and a micro USB interface that provides a virtual network connection.
The gateway supports industrial communication protocols including Modbus, DNP3 and DLMS. These capabilities allow it to communicate with industrial equipment and systems used for SCADA, telemetry and smart grid applications.
RutOS, based on OpenWrt, provides the gateway's network management environment and includes functions such as APN management, SIM PIN control, bridge mode, IP passthrough, routing and mobile connection management. Teltonika RMS provides remote monitoring and administration capabilities for compatible deployments.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
