| Part No: | FETRB141 |
| Manufacturer No: | TRB141 |
| Delivery: | In Stock: 7-10 Days |
 |

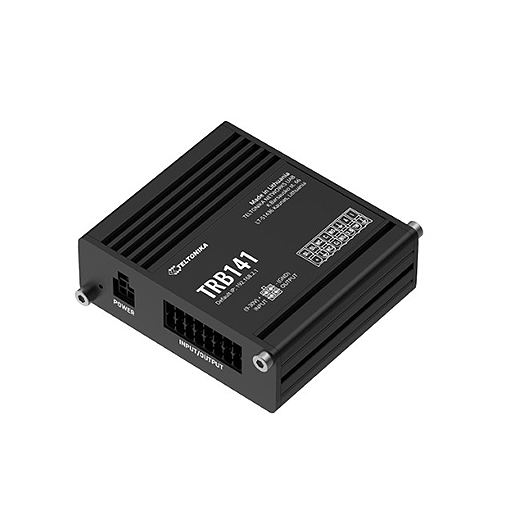

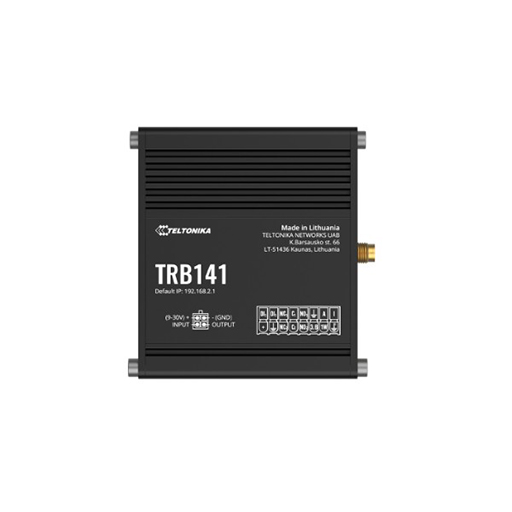

The Teltonika TRB141 is a compact industrial LTE Cat 1 gateway that combines 4G connectivity with a wide selection of configurable inputs and outputs. It supports 4G/LTE Cat 1, 3G and 2G networks and provides interfaces for digital, analogue, isolated, relay and 1-Wire connections. With RutOS, Modbus and DNP3 support, a Micro USB port and an aluminium housing with DIN rail mounting, it provides a practical platform for remote monitoring and control of connected equipment.

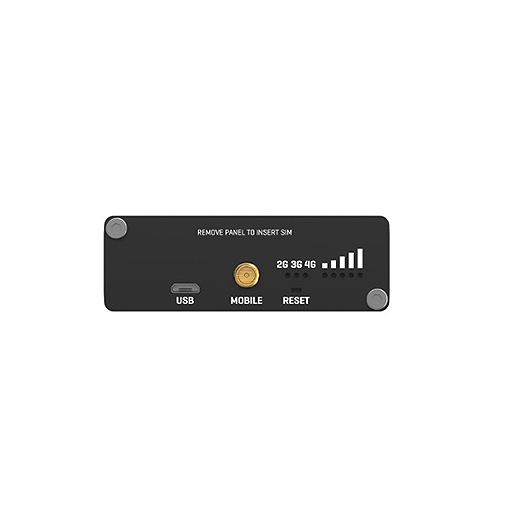

The gateway provides cellular connectivity through 4G LTE Cat 1, with fallback to 3G and 2G networks. A single internal Mini SIM slot and SMA antenna connector provide the mobile interface, allowing connected equipment to communicate over cellular networks.

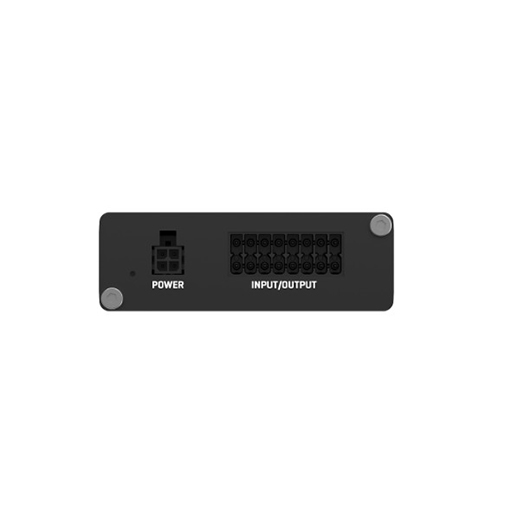

A range of input and output interfaces allows the gateway to monitor equipment and control connected devices. The available interfaces include configurable digital inputs and open collector outputs, dry/wet inputs, an isolated input, an analogue input and both latching and non-latching relay outputs.
The analogue input supports a 0-30 V range and can also be configured for 4-20 mA current measurement, allowing compatible industrial sensors to be connected. A dedicated 1-Wire interface provides connectivity for supported 1-Wire sensors and devices.
The gateway supports industrial communication protocols including Modbus and DNP3. These capabilities allow it to communicate with compatible industrial equipment while its I/O interfaces provide direct monitoring and control of connected hardware.
RutOS provides networking and management functions including VPN, firewall, SSH, CLI, SNMP, MQTT, JSON-RPC, SMS and remote management through Teltonika Networks Remote Management System. Firmware updates can also be handled remotely using FOTA support.
