Austin Hughes Console Drawers

CyberView RKP 1U Series

The RKP series 1U LCD Key drawer is available with a 17 or 19" SAMSUNG Class A LCD panel, the rack mount drawer ships as standard with both PS/2 and USB (Combo) connectivity and with a touchpad mouse and UK keyboard.


Secure Remote with optional IP Access

A second user can work securely via a remote keyboard, monitor and mouse across the World Wide Web using 128 bit secure IP access. This plug and play technology requires no software to be installed on the servers or remote PC’s but provides seamless secure access either over Cat6 cable or via IP and a web browser. Secure IP access allows the ultimate server control even to Bios level of your infrastructure.

Console Drawer Features:

1U LCD Screen / Keyboard Drawer
Space saving 1U design incorporating LCD screen and keyboard
Available with a 17" or 19" Samsung LCD screen,  in a 1U unit
Built in on screen display controlled by integeral membrane switches
Alllows adjustment of color, contrast, brightness, H position, V position, Auto Configure, OSD, etc
Unique modular mechanical design
Allows easy component level replacement and provides a KVM migration path
Extended slide rails provide clearance distance between rack panel mounts and rear of the LCD screen
Alllows protruding equipment i.e servers and patch panels to be mounted directly above the drawer, without interference
Slide rails have two friction stops to prevent movement of the keyboard
Alllowing comfortable working on the unit while maintaining safety practices
A selection of keyboards and mouse options
Available with notebook keyboard and either trackball or touchpad mouse
Full selection of keyboard languages
Available in European (UK) / US / Spanish / German / French / Italian / Norwegian
All mounting hardware included
Optional inbuilt KVM Options (PS2/USB)

CV-801 / CV-1601 Series KVM switches -: 1U rack mount PS/2 KVM (keyboard, Video and Mouse)switches with front LED membrane providing channel and bank selection or OSD (on screen display) using hotkeys.Using the PS/2 KVM switch allows you to connect upto 16 servers, in addition to this the KVM switch can be cascaded 'or stacked' with our other CV series KVM switches to enable access to upto 128 servers.

Click here to download a data sheet for the optional KVM

8 or 16 port KVM
Available with PS/2 or USB KVM switch options, cascade able up to 128 servers
Built in integral membrane switch
Allows user to choose server selection via membrane button or 'hot' keys via OSD
Multiplatform
Provides instant switching between PC's, SUN's, IBM's, HP's, Compaq and DELL platforms
Stay Alive Feature
Safeguards server for power loss to switch
Access Password Security
Supports eight character password protection and search feature for specific PC or server name
Auto Scan Mode
Monitor your servers at intervals 5 - 99 seconds, set by the user
Supplied with 8 x 6ft C Series KVM connection cables
Supports good rear cable management via the use of 8 x 3 in 1 cables
Optional inbuilt KVM Options (IP)

IP-802 / IP-1602 Series KVM switches :- 1U rack mount PS/2 - two console - KVM (keyboard, Video and Mouse)switches with front LED membrane providing channel and bank selection or OSD (on screen display) using hotkeys.

Using the PS/2 KVM switch allows you to connect upto 16 servers, in addition to this the KVM switch can be cascaded 'or stacked' with our other CV series KVM switches to enable access to upto 128 servers.

Click here to download a data sheet for the IP KVM Option

Austin Hughes F117 Full HD, 17” LED Console Drawer Keyboard,TP Mouse, Combo plus 1 x Austin Hughes CX-6A 1.8m Console Cable for DVI and 2 x USB Featuring a 17? FHD LED-backlit LCD display (1920 x 1080 video) and notepad keyboard with touchpad, the CyberView F117 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the-art, modular rack console drawer.

Key Features:

/* normal spacing between all items */ .spaced-list li { margin-bottom: 0.7em; /* adjust as needed */ } /* extra space after the final item */ .spaced-list li:last-child { margin-bottom: 1.5em; /* slightly larger gap */ } 1U 17" LED-backlit LCD console drawer
1920 x 1080 native resolution / 16.7M colors ( 8-bit )
HDMI + VGA ( speakers excluded ) + USB K/B & MS
104-key keyboard with either touchpad or trackball
Short depth design of 460mm
Light weight
One Man installation design
Enhanced aesthetics with molded front handle
2 Years Standard Warranty - Expandable up to 5 years
Options:

/* normal spacing between all items */ .spaced-list li { margin-bottom: 0.7em; /* adjust as needed */ } /* extra space after the final item */ .spaced-list li:last-child { margin-bottom: 1.5em; /* slightly larger gap */ } Dual stereo speakers for HDMI ( HS4.4 )
DP 1.0 + Speakers ( DP )
DVI-D + Audio + Speakers ( DV4.4 )
Composite + Audio IN + Speakers ( BNC )
3G-SDI Broadcast-grade input + Speakers ( SDI )
Front USB hub port for device access ( USB )
2-post rack mounting brackets ( ORB-2.1 )
DC power : 12V / 24V / 48V / 125V / 250V
Keyboard available in 9 languages
Projected Capacitive 10-pt touchscreen
Resistive 1-pt touchscreen
Integrated KVM Switch options (available from Comms Express)
Integrated KVM Options:

All-in-one Control Solutions
Austin Hughes offers a large variety of KVM switches designed to allow users to control & switch between all the computers in an environment from a single convenient 1U rack mount solution.

CyberView KVMs have been designed to be driver-free to work with all known software and computer platforms, and have been tested and approved with CE, UKCA, FCC, REACH, RoHS3, WEEE Certifications for IT, manufacturing, SOHO, commercial, military, government, and broadcast applications.

CyberView KVMs support high definition resolutions up to 1080p & 1920 x 1200 (via local, remote, and IP*).

Network IP Users
Access all your servers remotely with high performance IP 1080p* CyberView IP KVMs only require a web browser to connect to computer sources remotely from anywhere in the world. Our IP based method employs enterprise grade security using AES encryption. BIOS-level Access removes the need to ever be physically present with servers.

Extended Users
Integrated KVM Extenders - Remote Access CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.

Comms Express are proud to be a UK Austin Hughes Distribution Partner.
So we're best placed to help you with sales & technical support for their excellent range of products.






Package Contents:

/* normal spacing between all items */ .spaced-list li { margin-bottom: 0.7em; /* adjust as needed */ } /* extra space after the final item */ .spaced-list li:last-child { margin-bottom: 2em; /* slightly larger gap */ } 1 x F117 Console Drawer
1 x CX-6A 1.8m Console Cable for DVI and 2 x USB
1 x Power cord
8 x M6 screw, cage nut & cup washer
2-Year standard warranty - upgradable up to 5 years
*For complete specifications see the documentation tab above

Austin Hughes CyberView F117-S Full HD 17in LED Console Drawer with 8 or 16 port Local DB-15 Combo KVM The CyberView F117 rack console features a 17" Widescreen LCD capable of 1920 x 1080 video.

Featuring a 17" FHD LCD display and notepad keyboard with touchpad, the CyberView F117 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the-art, modular rack console drawer.

DB-15 Combo can be ordered with 8 or 16 or port Local DB-15 Combo KVM
F117-S801e_EU  8-port  /  F117-S1601e_EU  16-port

Integrated KVM Extenders - Remote Access
CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.

Key Specifications:

VGA console 6ft cable: CB-6A Drawer end: DB-15 + USB type A x 2
Server end: DB-15 + USB type A x 2 KVM DB-15 Combo KVM Input Type G keyboard integrated with touchpad Form Factor 1U Rackmount Screen Size and Resolution 17 Inch / 1080p FHD (1920 x 1080) Design Short depth design of 460mm Key Features:

/* normal spacing between all items */ .spaced-list li { margin-bottom: 0.7em; /* adjust as needed */ } /* extra space after the final item */ .spaced-list li:last-child { margin-bottom: 2em; /* slightly larger gap */ } 1U 17.3" LCD console drawer
1920 x 1080 native resolution / 16.7M colors ( 8-bit )
HDMI + VGA video input ( speakers excluded )
104-key USB keyboard with touchpad
Short depth design of 460mm
Light weight
One Man installation design
New enhanced aesthetics with molded front handle
TAA Compliant
2-year standard warranty ( upgradable up to 5 years )
Comms Express are proud to be a UK Austin Hughes Distribution Partner.
So we're best placed to help you with sales & technical support for their excellent range of products.






*For complete specifications see the documentation tab above

Austin Hughes CyberView F117-U Full HD 17in LED Rack Console Drawer with 8, 16 or 32 port Local Cat6 Combo KVM The CyberView F117 rack console features a 17" Widescreen LCD capable of 1920 x 1080 video.

Featuring a 17" FHD LCD display and notepad keyboard with touchpad or trackball, the CyberView F117 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the-art, modular rack console combo drawer.

Cat6 Combo can be ordered with 8, 16 or 32 port local Cat6 KVM
F117-U801e_EU  8-port  /  F117-U1601e_EU  16-port  /  F117-U3201e_EU  32-port

Integrated KVM Extenders - Remote Access
CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.

Key Specifications:

KVM Cat6 Combo KVM Input Type G keyboard integrated with touchpad Form Factor 1U Rackmount Screen Size and Resolution 17 Inch / 1080p FHD (1920 x 1080) Design Short depth design of 460mm Key Features:

/* normal spacing between all items */ .spaced-list li { margin-bottom: 0.7em; /* adjust as needed */ } /* extra space after the final item */ .spaced-list li:last-child { margin-bottom: 2em; /* slightly larger gap */ } 1U 17.3" LCD console drawer
1920 x 1080 native resolution / 16.7M colors ( 8-bit )
HDMI + VGA video input ( speakers excluded )
104-key USB keyboard with touchpad
Short depth design of 460mm
Light weight
One Man installation design
New enhanced aesthetics with molded front handle
TAA Compliant
2-year standard warranty ( upgradable up to 5 years )
Comms Express are proud to be a UK Austin Hughes Distribution Partner.
So we're best placed to help you with sales & technical support for their excellent range of products.






*For complete specifications see the documentation tab above

Austin Hughes X117e_EU 16.2? WUXGA LCD Console Drawer Keyboard,TP Mouse, Combo, 1 x CX-6A

Austin Hughes X124e_EU 1U 24? WUXGA LCD Console Drawer Keyboard, TP Mouse, Combo, 1 x CX-6A

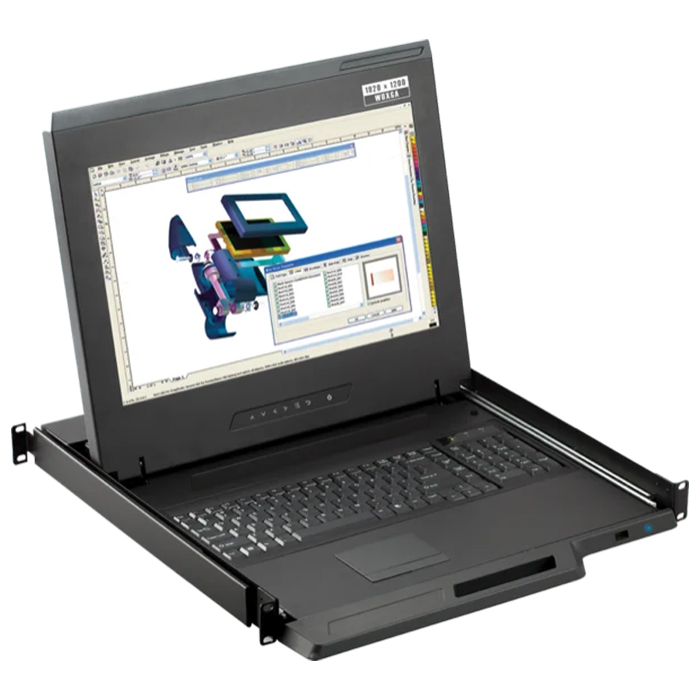

Austin Hughes K117e_EU 1U 17? 4K LCD Console Drawer Keyboard, TP Mouse, Display Port Input, 480mm

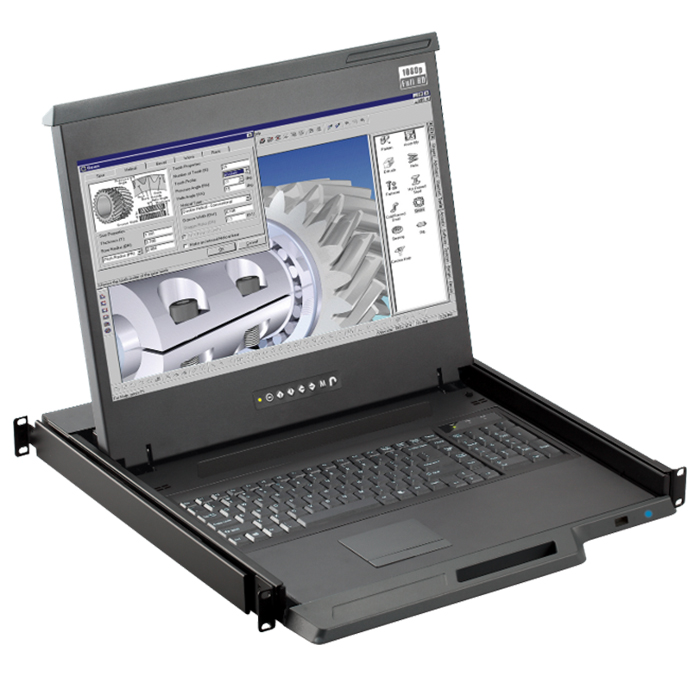

Austin Hughes F117-UIP3202e_EU HD 17” LED Console Drawer Keyboard,TP Mouse, Two Console 32 Port Cat6 IP KVM

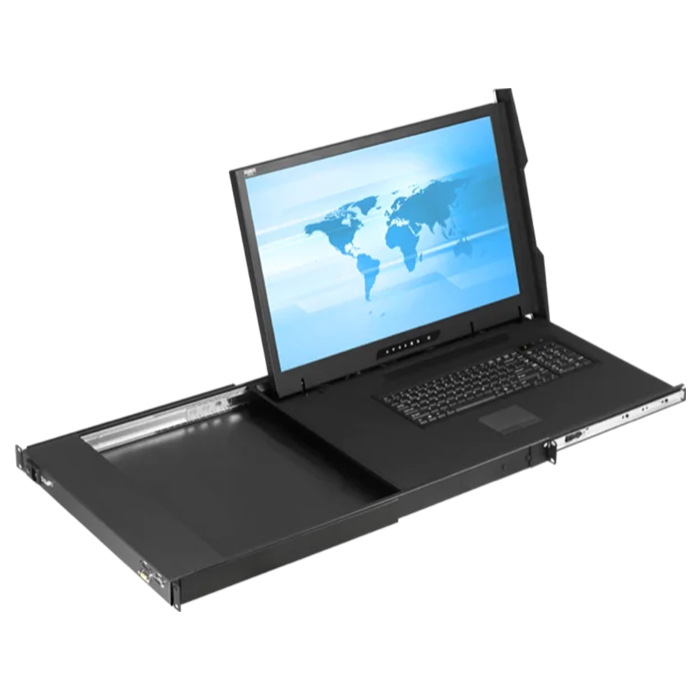

The CyberView X124 rack console features a 24" WUXGA LCD capable of 1920 x 1200 video.

Featuring a large 24" WUXGA LCD display and notepad keyboard with touchpad or trackball, the CyberView X124 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the- art, modular rack console drawer.

Console Drawer Specification



X124-S801e_EU / XX124-S1601e_EU VGA console 6ft cable: CB-6A Drawer end: DB-15 + USB type A x 2
Server end: DB-15 + USB type A x 2 Input Type G keyboard integrated with touchpad Form Factor 1U Rackmount Screen Size and Resolution 16.2 Inch / 1920 x 1200 WUXGA native Design Short depth design of 480mm Warranty 2 Years Full specifications and options can be found in the downloads tab Benefits



1U 24" WUXGA LCD console drawer
1920 x 1200 native resolution / 16.7M colors (8-bit)
DVI-D + VGA video input / USB KB / MS
104-key keyboard with touchpad
One Man installation design
Enhanced aesthetics with molded front handle
2-year standard warranty (upgradable up to 5 years)
Features



24" Monitor

The X124 feature a WUXGA display that support up to 1920 x 1200 native resolution / 16.7M colors.

Short-Depth Design

Our Short Depth design allows you to mount the console in only 480mm of space.

1U Rack Mount

The X124 mounts into only 1U. of standard 19" Rack Mount Space. Control your datacenter from only 1U.

Enhanced aesthetics with 2-point lock

1U slim design with molded front handle

LED Touch OSD

The LED touch On-Screen-Display provides a convenient way to control device settings & switch between sources

DVI-D + VGA & USB Standard Input

Modular design supports a variety of integrated KVM options for your applications.

Access all your servers remotely over the internet

Use a VNC Viewer or Java Web Browser to connect to computers sources remotely from anywhere in the world. CyberViews IP based method employs enterprise grade security using AES encryption and RSA public key authentication.

Integrated KVM Extenders – Remote Access

CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.

The CyberView X117 rack console features a 16.2" WUXGA LCD capable of 1920 x 1200 video.

Featuring a WUXGA 16.2" LCD display and notepad keyboard with touchpad or trackball, the CyberView X117 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the- art, modular rack console drawer.

Console Drawer Specification



X117-S801e_EU / X117-S1601e_EU VGA console 6ft cable: CB-6A Drawer end: DVI-D + USB type A x 2
Server end: DVI-D + USB type A x 2 Input Type G keyboard integrated with touchpad Form Factor 1U Rackmount Screen Size and Resolution 16.2 Inch / 1920 x 1200 WUXGA native Design Short depth design of 480mm Warranty 2 Years Full specifications and options can be found in the downloads tab Benefits



1U 16.2" WUXGA LCD console drawer
1920 x 1200 native resolution / 16.7M colors (8-bit)
HDMI 1.4 + DVI-D + VGA video input / USB KB / MS
104-key keyboard with touchpad
Short depth design of 480 mm
One Man installation design
Enhanced aesthetics with molded front handle
2-year standard warranty (upgradable up to 5 years)
Features



16.2" Monitor

The X117 feature a WUXGA display that support up to 1920 x 1200 native resolution / 16.7M colors ( 8-bit ).

Short-Depth Design

Our Short Depth design allows you to mount the console in only 480mm of space.

1U Rack Mount

The X117 mounts into only 1U. of standard 19" Rack Mount Space. Control your datacenter from only 1U.

Enhanced Aesthetics with Molded Front Handle

Our second generation design features a new 1U slim design with a molded front handle for easy access

LED Touch OSD

The LED touch On-Screen-Display provides a convenient way to control device settings & switch between sources

HDMI 1.4 + DVID-D + VGA + USB Input

Modular design supports a variety of integrated KVM options for your applications.

Access all your servers remotely over the internet

Use a VNC Viewer or Java Web Browser to connect to computers sources remotely from anywhere in the world. CyberViews IP based method employs enterprise grade security using AES encryption and RSA public key authentication.

Integrated KVM Extenders – Remote Access

CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.

The CyberView X124 rack console features a 24" WUXGA LCD capable of 1920 x 1200 video.

Featuring a large 24" WUXGA LCD display and notepad keyboard with touchpad or trackball, the CyberView X124 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the- art, modular rack console drawer.

Console Drawer Specification



X124-U801e_EU / X124-U1601e_EU / X124-U3201e_EU VGA console 6ft cable: CB-6A Drawer end: DB-15 + USB type A x 2
Server end: DB-15 + USB type A x 2 Input Type G keyboard integrated with touchpad Form Factor 1U Rackmount Screen Size and Resolution 16.2 Inch / 1920 x 1200 WUXGA native Design Short depth design of 480mm Warranty 2 Years Full specifications and options can be found in the downloads tab Benefits



1U 24" WUXGA LCD console drawer
1920 x 1200 native resolution / 16.7M colors (8-bit)
DVI-D + VGA video input / USB KB / MS
104-key keyboard with touchpad
One Man installation design
Enhanced aesthetics with molded front handle
2-year standard warranty (upgradable up to 5 years)
Features



24" Monitor

The X124 feature a WUXGA display that support up to 1920 x 1200 native resolution / 16.7M colors.

Short-Depth Design

Our Short Depth design allows you to mount the console in only 480mm of space.

1U Rack Mount

The X124 mounts into only 1U. of standard 19" Rack Mount Space. Control your datacenter from only 1U.

Enhanced aesthetics with 2-point lock

1U slim design with molded front handle

LED Touch OSD

The LED touch On-Screen-Display provides a convenient way to control device settings & switch between sources

DVI-D + VGA & USB Standard Input

Modular design supports a variety of integrated KVM options for your applications.

Access all your servers remotely over the internet

Use a VNC Viewer or Java Web Browser to connect to computers sources remotely from anywhere in the world. CyberViews IP based method employs enterprise grade security using AES encryption and RSA public key authentication.

Integrated KVM Extenders – Remote Access

CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.

The CyberView X117 rack console features a 16.2" WUXGA LCD capable of 1920 x 1200 video.

Featuring a WUXGA 16.2" LCD display and notepad keyboard with touchpad or trackball, the CyberView X117 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the- art, modular rack console drawer.

Console Drawer Specification



X117-U801e_EU / X117-U1601e_EU / X117-U3201e_EU KVM Cat6 KVM Input Type G keyboard integrated with touchpad Form Factor 1U Rackmount Screen Size and Resolution 16.2 Inch / 1920 x 1200 WUXGA native Design Short depth design of 480mm Warranty 2 Years Full specifications and options can be found in the downloads tab Benefits



1U 16.2" WUXGA LCD console drawer
1920 x 1200 native resolution / 16.7M colors (8-bit)
HDMI 1.4 + DVI-D + VGA video input / USB KB / MS
104-key keyboard with touchpad
Short depth design of 480 mm
One Man installation design
Enhanced aesthetics with molded front handle
2-year standard warranty (upgradable up to 5 years)
Features



16.2" Monitor

The X117 feature a WUXGA display that support up to 1920 x 1200 native resolution / 16.7M colors ( 8-bit ).

Short-Depth Design

Our Short Depth design allows you to mount the console in only 480mm of space.

1U Rack Mount

The X117 mounts into only 1U. of standard 19" Rack Mount Space. Control your datacenter from only 1U.

Enhanced Aesthetics with Molded Front Handle

Our second generation design features a new 1U slim design with a molded front handle for easy access

LED Touch OSD

The LED touch On-Screen-Display provides a convenient way to control device settings & switch between sources

HDMI 1.4 + DVID-D + VGA + USB Input

Modular design supports a variety of integrated KVM options for your applications.

Access all your servers remotely over the internet

Use a VNC Viewer or Java Web Browser to connect to computers sources remotely from anywhere in the world. CyberViews IP based method employs enterprise grade security using AES encryption and RSA public key authentication.

Integrated KVM Extenders – Remote Access

CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.

Austin Hughes K117-801Ke_EU 1U 17? 4K LCD Console Drawer Keyboard, Touchpad Mouse, Single Console 8 Port 4K KVM
