| Part No: | AHX117e_EU |
| Manufacturer No: | X117e_EU |
| Delivery: | In Stock: 5-7 Days |
 |

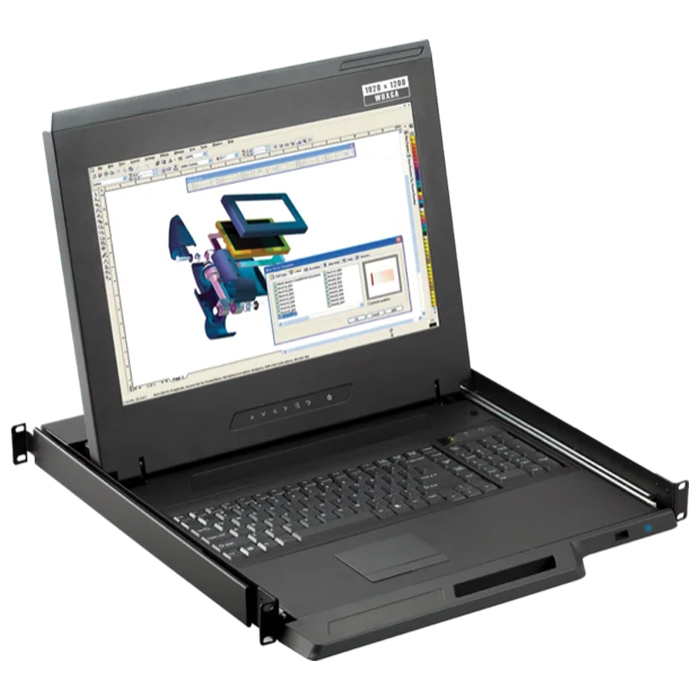

The CyberView X117e_EU combines a 16.2" WUXGA LED-backlit LCD, 104-key USB keyboard and integrated touchpad in a compact 1U rack console drawer. Its 1920 x 1200 native resolution, 16.7 million colours and 8-bit colour depth provide clear local access to compatible servers and other rack-mounted equipment.
The short-depth 480mm chassis is designed for data centres, server rooms and other professional IT environments where rack space is valuable. HDMI 1.4, DVI-D and VGA inputs provide flexible video connectivity, while the supplied CX-6A console cable supports direct DVI-D and USB connection to a server or external KVM switch.
Key Features:
Key Specifications:
| Configuration | Single-console drawer for direct server or external KVM connection |
| Input Type | 104-key USB keyboard with integrated touchpad |
| Form Factor | 1U rackmount |
| Screen Size and Resolution | 16.2in / 1920 x 1200 WUXGA native resolution |
| Video Connectivity | HDMI 1.4, DVI-D single-link and VGA video inputs |
| Supplied Console Cable | 1 x CX-6A 1.8m DVI-D and USB console cable |
| Dimensions and Weight | 442 x 480 x 44mm (W x D x H) / 10.9kg net weight |
| Mounting Distance | 490 to 720mm |
| Warranty | 2-year standard warranty, upgradable to 5 years |
Comms Express is proud to be a UK Austin Hughes distribution partner.
This means we're well placed to provide sales and technical support across their excellent range of products.
Features:

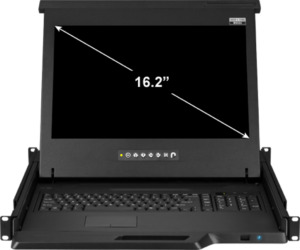

16.2" WUXGA Monitor
The LED-backlit display provides a native resolution of 1920 x 1200 with 16.7 million colours and 8-bit colour depth.
Short-Depth Design
The compact 480mm chassis supports rack mounting distances from 490 to 720mm, helping conserve valuable cabinet space.
1U Rackmount Design
The X117 occupies only 1U of standard 19" rack space, bringing the display, keyboard and touchpad together in one convenient console.
Moulded Front Handle
The slim front panel includes a moulded handle for straightforward access when pulling the console drawer out of the rack.

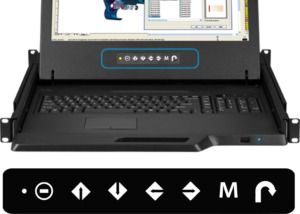

On-Screen Display Controls
The front membrane controls provide convenient access to brightness, contrast, colour, image and video-source settings.
HDMI 1.4, DVI-D, VGA and USB Connectivity
Multiple video inputs and USB keyboard and mouse connectivity support direct connection to compatible servers or an external KVM switch.
For complete specifications, see the documentation tab above.
Console Drawer Specification
| X117e_EU | |
| DVI-D console 6ft cable: CX-6A | Drawer end : DVI-D + USB type A x 2 Server end : DVI-D + USB type A x 2 |
| Input Type | G keyboard integrated with touchpad |
| Form Factor | 1U Rackmount |
| Screen Size and Resolution | 16.2 Inch / 1920 x 1200 WUXGA native |
| Design | Short depth design of 480mm |
| Warranty | 2 Years |
| Full specifications and options can be found in the downloads tab | |
Features
16.2" Monitor
The X117 feature a WUXGA display that support up to 1920 x 1200 native resolution / 16.7M colors ( 8-bit ).
Short-Depth Design
Our Short Depth design allows you to mount the console in only 480mm of space.
1U Rack Mount
The X117 mounts into only 1U. of standard 19" Rack Mount Space. Control your datacenter from only 1U.
Enhanced Aesthetics with Molded Front Handle
Our second generation design features a new 1U slim design with a molded front handle for easy access
LED Touch OSD
The LED touch On-Screen-Display provides a convenient way to control device settings & switch between sources
HDMI 1.4 + DVID-D + VGA + USB Input
Modular design supports a variety of integrated KVM options for your applications.
Access all your servers remotely over the internet
Use a VNC Viewer or Java Web Browser to connect to computers sources remotely from anywhere in the world. CyberViews IP based method employs enterprise grade security using AES encryption and RSA public key authentication.
Integrated KVM Extenders – Remote Access
CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.
