Austin Hughes 1u Cyberview LCD, Keyboard & Mouse Console Drawer

CyberView RKP 1U Series

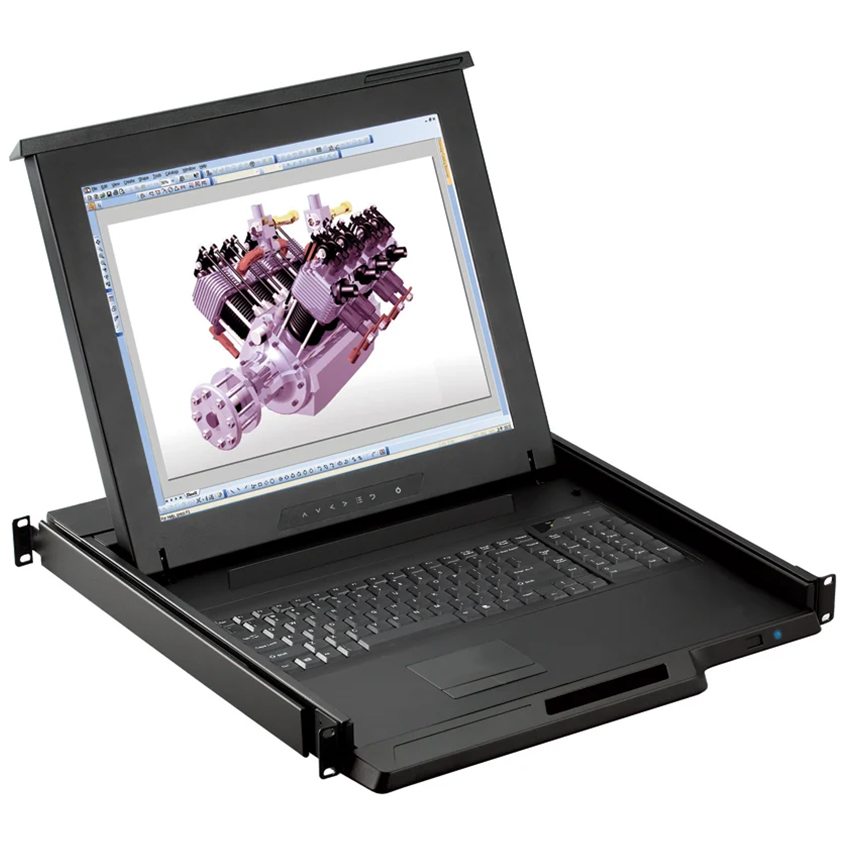

The RKP series 1U LCD Key drawer is available with a 17 or 19" SAMSUNG Class A LCD panel, the rack mount drawer ships as standard with both PS/2 and USB (Combo) connectivity and with a touchpad mouse and UK keyboard.

Secure Remote with optional IP Access

A second user can work securely via a remote keyboard, monitor and mouse across the World Wide Web using 128 bit secure IP access. This plug and play technology requires no software to be installed on the servers or remote PC’s but provides seamless secure access either over Cat6 cable or via IP and a web browser. Secure IP access allows the ultimate server control even to Bios level of your infrastructure.

Console Drawer Features:

• 1U LCD Screen / Keyboard Drawer
  Space saving 1U design incorporating LCD screen and keyboard
• Available with a 17" or 19" Samsung LCD screen,  in a 1U unit
• Built in on screen display controlled by integeral membrane switches
  Alllows adjustment of color, contrast, brightness, H position, V position, Auto Configure, OSD, etc
• Unique modular mechanical design
  Allows easy component level replacement and provides a KVM migration path

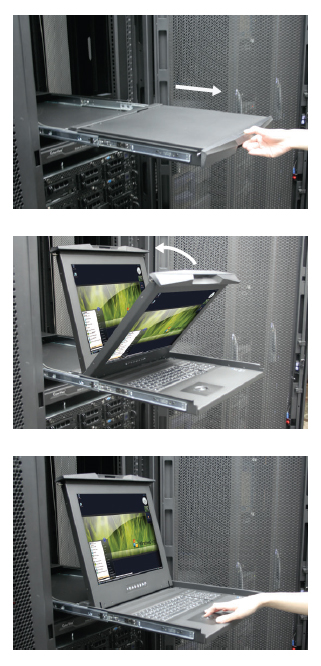

• Extended slide rails provide clearance distance between rack panel mounts and rear of the LCD screen
  Alllows protruding equipment i.e servers and patch panels to be mounted directly above the drawer, without interference
• Slide rails have two friction stops to prevent movement of the keyboard
  Alllowing comfortable working on the unit while maintaining safety practices
• A selection of keyboards and mouse options
  Available with notebook keyboard and either trackball or touchpad mouse
• Full selection of keyboard languages
  Available in European (UK) / US / Spanish / German / French / Italian / Norwegian
• All mounting hardware included

Optional inbuilt KVM Options (PS2/USB)

CV-801 / CV-1601 Series KVM switches -: 1U rack mount PS/2 KVM (keyboard, Video and Mouse)switches with front LED membrane providing channel and bank selection or OSD (on screen display) using hotkeys.Using the PS/2 KVM switch allows you to connect upto 16 servers, in addition to this the KVM switch can be cascaded 'or stacked' with our other CV series KVM switches to enable access to upto 128 servers.

Click here to download a data sheet for the optional KVM

• 8 or 16 port KVM
  Available with PS/2 or USB KVM switch options, cascade able up to 128 servers
• Built in integral membrane switch
  Allows user to choose server selection via membrane button or 'hot' keys via OSD
• Multiplatform
  Provides instant switching between PC's, SUN's, IBM's, HP's, Compaq and DELL platforms
• Stay Alive Feature
  Safeguards server for power loss to switch
• Access Password Security
  Supports eight character password protection and search feature for specific PC or server name
• Auto Scan Mode
  Monitor your servers at intervals 5 - 99 seconds, set by the user
• Supplied with 8 x 6ft C Series KVM connection cables
  Supports good rear cable management via the use of 8 x 3 in 1 cables

Optional inbuilt KVM Options (IP)

IP-802 / IP-1602 Series KVM switches :- 1U rack mount PS/2 - two console - KVM (keyboard, Video and Mouse)switches with front LED membrane providing channel and bank selection or OSD (on screen display) using hotkeys.

Using the PS/2 KVM switch allows you to connect upto 16 servers, in addition to this the KVM switch can be cascaded 'or stacked' with our other CV series KVM switches to enable access to upto 128 servers.

Click here to download a data sheet for the IP KVM Option
