| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | AHF117E_EU |
| Manufacturer No: | F117e_EU |
| Delivery: | In Stock: 5-7 Days |
 |

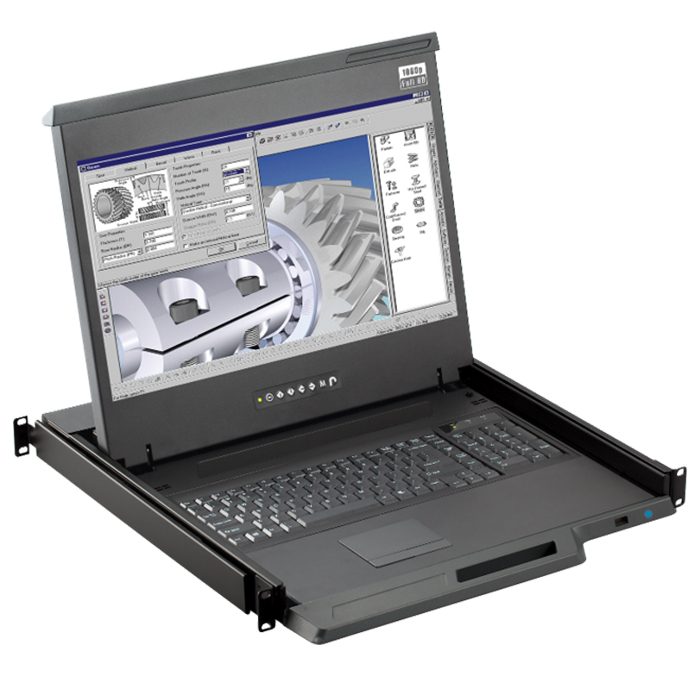

Featuring a 17? FHD LED-backlit LCD display (1920 x 1080 video) and notepad keyboard with touchpad, the CyberView F117 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the-art, modular rack console drawer.
Key Features:
Options:
Integrated KVM Options:
All-in-one Control Solutions
Austin Hughes offers a large variety of KVM switches designed to allow users to control & switch between all the computers in an environment from a single convenient 1U rack mount solution.
CyberView KVMs have been designed to be driver-free to work with all known software and computer platforms, and have been tested and approved with CE, UKCA, FCC, REACH, RoHS3, WEEE Certifications for IT, manufacturing, SOHO, commercial, military, government, and broadcast applications.
CyberView KVMs support high definition resolutions up to 1080p & 1920 x 1200 (via local, remote, and IP*).
Network IP Users
Access all your servers remotely with high performance IP 1080p*
CyberView IP KVMs only require a web browser to connect to computer sources remotely from anywhere in the world. Our IP based method employs enterprise grade security using AES encryption. BIOS-level Access removes the need to ever be physically present with servers.
Extended Users
Integrated KVM Extenders - Remote Access
CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.
Comms Express are proud to be a UK Austin Hughes Distribution Partner.
So we're best placed to help you with sales & technical support for their excellent range of products.
Package Contents:
*For complete specifications see the documentation tab above
The CyberView F117 rack console features a 17" Widescreen LCD capable of 1920 x 1080 video.
Featuring a 17" FHD LCD display and notepad keyboard with touchpad or trackball, the CyberView F117 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the-art, modular rack console drawer.
Console Drawer Specification
| F117e_EU | |
| DVI-D console 6ft cable: CX-6A | Drawer end: DVI-D + USB type A x 2 Server end: DVI-D + USB type A x 2 |
| KVM | DVI-D KVM |
| Input Type | G keyboard integrated with touchpad |
| Form Factor | 1U Rackmount |
| Screen Size and Resolution | 17 Inch / 1080p FHD (1920 x 1080) |
| Design | Short depth design of 460mm |
| Warranty | 2 Years |
| Full specifications and options can be found in the downloads tab | |
Features
17" Full HD 1080p Monitor
The F117 features a high-quality 17" display that supports up to FHD 1080P resolution with 16.7M colors (8-bit).
Short-Depth Design
Our Short Depth design allows you to mount the console in only 460mm of space.
1U Rack Mount
The F117 mounts into only 1U. of standard 19" Rack Mount Space. Control your entire datacenter from only 1U.
Enhanced Aesthetics with Molded Front Handle
Our second generation design features a new 1U slim design with a molded front handle for easy access
LED Touch OSD
The LED touch On-Screen-Display provides a convenient way to control device settings & switch between sources
DVI-D + VGA & USB Standard Input
Modular design supports a variety of integrated KVM options for your applications.
Access all your servers remotely over the internet
Use a VNC Viewer or Java Web Browser to connect to computers sources remotely from anywhere in the world. CyberViews IP based method employs enterprise grade security using AES encryption and RSA public key authentication.
Integrated KVM Extenders – Remote Access
CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
