| Part No: | AHF117-UIP3202e_EU |
| Manufacturer No: | F117-UIP3202e_EU |
| Delivery: | In Stock: 5-7 Days |
 |

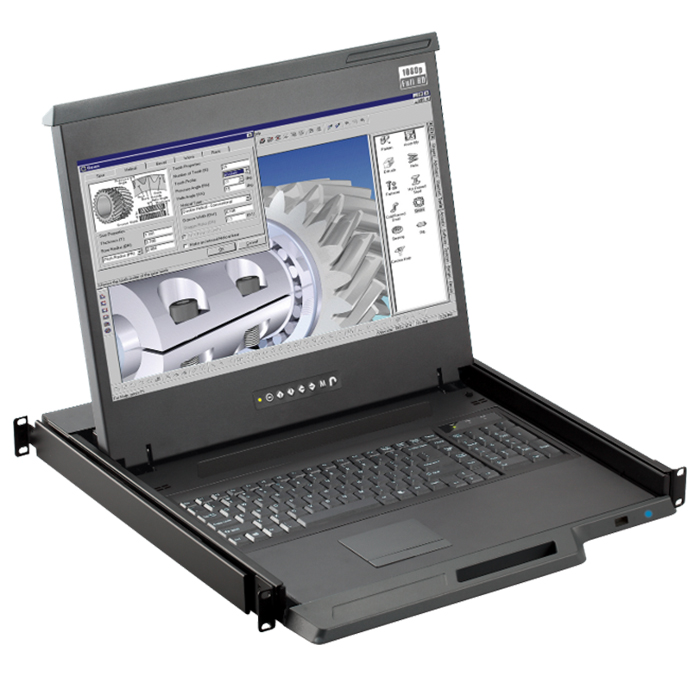

The CyberView F117-UIP3202e_EU combines a 17.3" FHD LED-backlit LCD, 104-key USB keyboard with integrated touchpad and a 32-port Cat6 IP KVM in a compact 1U rack console drawer. Its 1920 x 1080 native resolution and 16.7 million colour, 8-bit display provide clear local access to connected servers and other rack-mounted equipment.
Designed for data centres, server rooms and other professional IT environments, this model provides direct control from the integrated local console together with secure browser-based IP remote access. Each connected server requires a compatible DG-series dongle and Cat5 or Cat6 patch lead, purchased separately to suit VGA, DVI-D, HDMI, DisplayPort or USB-C equipment, with supported connection distances of up to 40m.
Key Features:
Key Specifications:
| Configuration | Integrated local console drawer with 32-port Cat6 IP KVM |
| Input Type | 104-key USB keyboard with integrated touchpad |
| Form Factor | 1U rackmount |
| Screen Size and Resolution | 17.3in / 1920 x 1080 FHD native resolution |
| KVM Ports | 32 x RJ45 Cat6 KVM server ports |
| Supported Server Interfaces | VGA, DVI-D, HDMI, DisplayPort and USB-C through compatible DG-100S, DG-100SD, DG-100H, DG-100P or DG-100C dongles |
| Server Connection Requirements | One compatible DG-series dongle and Cat5 or Cat6 patch lead are required for each connected server and must be purchased separately |
| Maximum Server Distance | Up to 40m between the KVM and server dongle using Cat5 or Cat6 cabling |
| IP Remote Access | RJ45 Ethernet browser-based remote console with 15-user login and 1 active IP user |
| IP Security and Management | TLS 1.3, AES encryption, LDAP, Active Directory, HTTPS, DHCP, BOOTP and DNS |
| Expansion | Up to 256 servers through an 8-level cascade |
| Dimensions and Weight | 442 x 580 x 44mm (W x D x H) / 11.6kg net weight |
| Mounting Distance | 470 to 800mm |
| Warranty | 2-year standard warranty, upgradable to 5 years |
Comms Express is proud to be a UK Austin Hughes distribution partner.
This means we're well placed to provide sales and technical support across their excellent range of products.
Features:

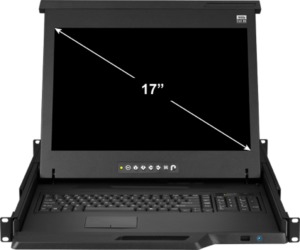

17.3" FHD LCD
The LED-backlit display provides a 1920 x 1080 native resolution with 16.7 million colours, delivering clear local access for server management and monitoring.
1U Rackmount Design
The F117 occupies only 1U of standard 19" rack space while combining the LCD, keyboard, touchpad and KVM controls in one 580mm-depth chassis.

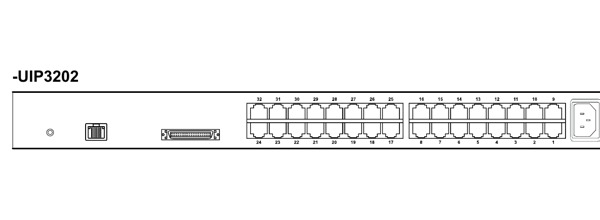

32-Port Cat6 IP KVM
The integrated KVM rear panel provides 32 RJ45 server ports for high-density local and remote management of connected equipment.
Moulded Front Handle
The slim front panel includes a moulded handle for straightforward drawer access, helping make regular operation and maintenance easier in busy rack environments.

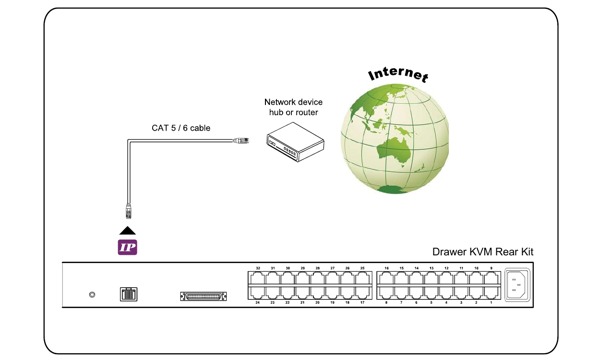

Browser-Based IP Access
The integrated IP console connects to the network through RJ45 Ethernet and supports secure remote server management using compatible HTML5 web browsers.
Flexible Server Connectivity
Separately purchased DG-series dongles support VGA, DVI-D, HDMI, DisplayPort and USB-C servers, allowing mixed hardware to be managed through one KVM platform.
For complete specifications, see the documentation tab above.
Console Drawer Specification
| F117-UIP3202e_EU | |
| KVM | Cat6 IP KVM |
| Input Type | G keyboard integrated with touchpad |
| Form Factor | 1U Rackmount |
| Screen Size and Resolution | 17 Inch / 1080p FHD (1920 x 1080) |
| Design | Short depth design of 460mm |
| Warranty | 2 Years |
| Full specifications and options can be found in the downloads tab | |
Features
17" Full HD 1080p Monitor
The F117 features a high-quality 17" display that supports up to FHD 1080P resolution with 16.7M colors (8-bit).
Short-Depth Design
Our Short Depth design allows you to mount the console in only 460mm of space.
1U Rack Mount
The F117 mounts into only 1U. of standard 19" Rack Mount Space. Control your entire datacenter from only 1U.
Enhanced Aesthetics with Molded Front Handle
Our second generation design features a new 1U slim design with a molded front handle for easy access
LED Touch OSD
The LED touch On-Screen-Display provides a convenient way to control device settings & switch between sources
DVI-D + VGA & USB Standard Input
Modular design supports a variety of integrated KVM options for your applications.
Access all your servers remotely over the internet
Use a VNC Viewer or Java Web Browser to connect to computers sources remotely from anywhere in the world. CyberViews IP based method employs enterprise grade security using AES encryption and RSA public key authentication.
Integrated KVM Extenders – Remote Access
CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.
