| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | AHX124e_EU |
| Manufacturer No: | X124e_EU |
| Delivery: | In Stock: 5-7 Days |
 |

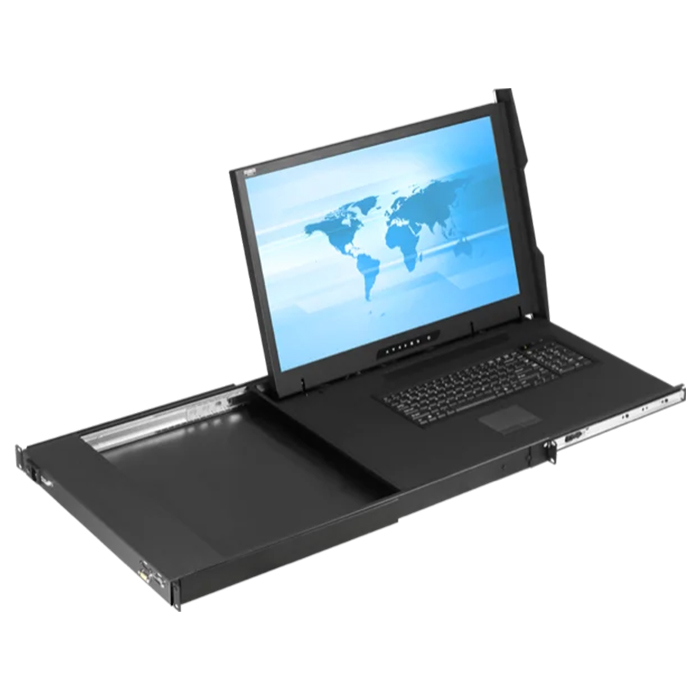

The CyberView X124e_EU combines a large 24.1" WUXGA LED-backlit LCD, 104-key USB keyboard and integrated touchpad in a compact 1U rack console drawer. Its 1920 x 1200 native resolution and 16.7 million colour display provide clear local access to compatible servers and other rack-mounted equipment.
Designed for data centres, server rooms and other professional IT environments, the X124e_EU provides HDMI 1.4 and VGA video inputs with USB keyboard and mouse connectivity. The supplied CX-6B console cable supports direct HDMI and USB connection to a compatible server or external KVM switch.
Key Features:
Key Specifications:
| Configuration | Single-console drawer for direct server or external KVM connection |
| Input Type | 104-key USB keyboard with integrated touchpad |
| Form Factor | 1U rackmount |
| Screen Size and Resolution | 24.1in / 1920 x 1200 WUXGA native resolution |
| Video Connectivity | HDMI 1.4 with HDCP 1.4 and VGA video inputs |
| Supplied Console Cable | 1 x CX-6B 1.8m HDMI and USB console cable |
| Dimensions and Weight | 442 x 690 x 44mm (W x D x H) / 15.3kg net weight |
| Mounting Distance | 660 to 890mm |
| Warranty | 2-year standard warranty, upgradable to 5 years |
Comms Express is proud to be a UK Austin Hughes distribution partner.
This means we're well placed to provide sales and technical support across their excellent range of products.
Features:
24.1" WUXGA Monitor
The large LED-backlit display provides a native resolution of 1920 x 1200, support for 16.7 million colours and wide 178-degree viewing angles.

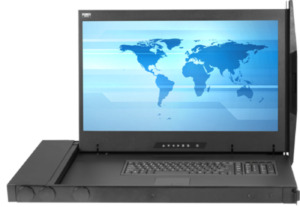

Rackmount Installation
The integrated mounting slides support rack depths from 660 to 890mm, with mounting hardware supplied for straightforward installation.
1U Rackmount Design
The X124 occupies only 1U of standard 19" rack space, bringing the display, keyboard and touchpad together in one convenient rack console.
Moulded Front Panel and 2-Point Lock
The slim front panel incorporates a carry handle and secure 2-point lock for practical access and a clean rack installation.

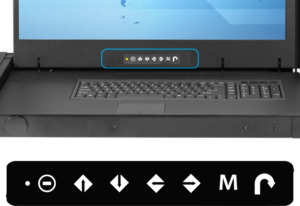

On-Screen Display Controls
The membrane controls provide convenient access to brightness, contrast, colour, image position, video-source selection and other display settings.
HDMI 1.4, VGA and USB Connectivity
HDMI 1.4 and VGA video inputs are combined with USB keyboard and mouse connectivity for direct server or external KVM access.
For complete specifications, see the documentation tab above.
Console Drawer Specification
| X124e_EU | |
| DVI-D console 6ft cable : CX-6A | Drawer end : DVI-D + USB type A x 2 Server end : DVI-D + USB type A x 2 |
| Input Type | G keyboard integrated with touchpad |
| Form Factor | 1U Rackmount |
| Screen Size and Resolution | 16.2 Inch / 1920 x 1200 WUXGA native |
| Design | Short depth design of 480mm |
| Warranty | 2 Years |
| Full specifications and options can be found in the downloads tab | |
Features
24" Monitor
The X124 feature a WUXGA display that support up to 1920 x 1200 native resolution / 16.7M colors.
Short-Depth Design
Our Short Depth design allows you to mount the console in only 480mm of space.
1U Rack Mount
The X124 mounts into only 1U. of standard 19" Rack Mount Space. Control your datacenter from only 1U.
Enhanced aesthetics with 2-point lock
1U slim design with molded front handle
LED Touch OSD
The LED touch On-Screen-Display provides a convenient way to control device settings & switch between sources
DVI-D + VGA & USB Standard Input
Modular design supports a variety of integrated KVM options for your applications.
Access all your servers remotely over the internet
Use a VNC Viewer or Java Web Browser to connect to computers sources remotely from anywhere in the world. CyberViews IP based method employs enterprise grade security using AES encryption and RSA public key authentication.
Integrated KVM Extenders – Remote Access
CyberView KVMs can also be optionally controlled by users from up to 150m (500ft) away. Integrated CATx extenders allow you to easily connect the included remote user stations over single CATx cables.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
