| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
Ports: |
| Part No: | AHX124-U801e_EU |
| Manufacturer No: | X124-U801e_EU |
| Delivery: | In Stock: 5-7 Days |
 |

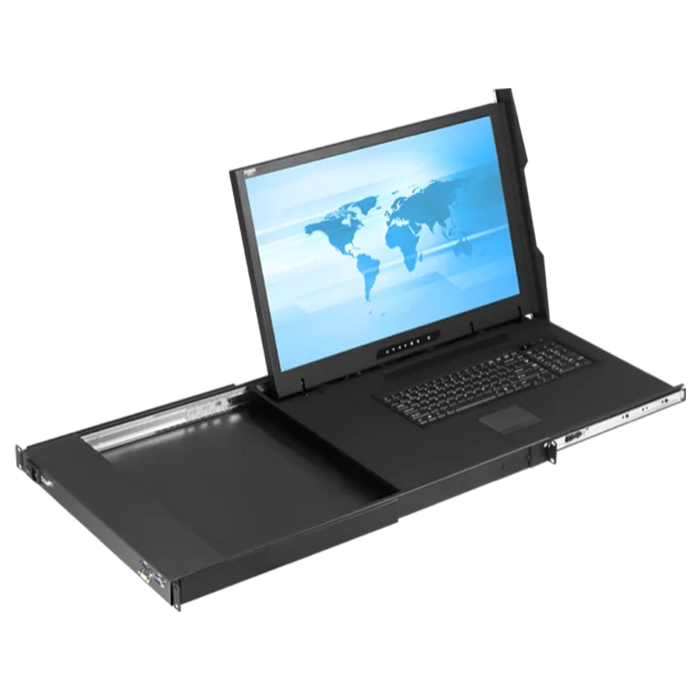

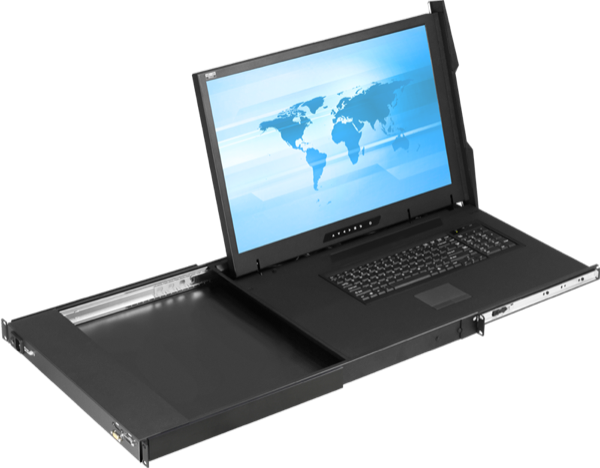

The CyberView X124 rack console features a 24.1" WUXGA LCD capable of displaying video at resolutions up to 1920 x 1200.
Featuring a large 24.1" WUXGA LCD display and a keyboard with integrated touchpad, the CyberView X124 provides a space-saving rack-console solution for data centres and other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse and KVM switch within this state-of-the-art modular rack console drawer.
The Cat6 Combo KVM can be ordered with 8, 16 or 32 ports.
X124-U801e_EU - 8-port / X124-U1601e_EU - 16-port / X124-U3201e_EU - 32-port
Key Specifications:
| KVM Port Connection |
8, 16 or 32 x RJ-45 KVM ports, depending on the selected variant Connects to compatible VGA, DVI-D, HDMI, DisplayPort or USB-C dongles over Cat5 or Cat6 cable up to 40m |
| Input Type | G keyboard with integrated touchpad |
| Form Factor | 1U rackmount |
| Screen Size and Resolution | 24.1in / 1920 x 1200 WUXGA native resolution |
| Dimensions | 442 x 800 x 44mm (W x D x H) with integrated KVM |
| Warranty | 2 years |
Key Features:
Comms Express is proud to be a UK Austin Hughes distribution partner.
This means we're well placed to provide sales and technical support across their excellent range of products.
Features:
24.1" Monitor
The X124 features a WUXGA display that supports a native resolution of up to 1920 x 1200 and 16.7 million colours.
Rackmount Installation
The integrated mounting slides support rack depths from 660 to 970mm for console-with-KVM configurations.
1U Rack Mount
The X124 occupies only 1U of standard 19" rack space, providing monitor, keyboard, mouse and KVM control from a compact rackmount console.
Enhanced Aesthetics with 2-Point Lock
The slim 1U design features a moulded front panel and secure 2-point lock.
LED Touch OSD
The LED touch on-screen display provides a convenient way to control device settings and switch between sources.
HDMI 1.4 + VGA + USB Inputs
The modular design supports a variety of integrated KVM options for different applications.
Access Connected Servers Remotely Over IP
Selected CyberView IP KVM models* provide secure browser-based remote access to connected servers over the network or internet, with support for TLS 1.3, AES encryption, LDAP, Active Directory and HTTPS.
(* UIP802, UIP1602 and UIP3202 models only)
Integrated KVM Extenders - Remote Access
Selected two-console CyberView KVM models* include a remote-console receiver that connects over a single Cat5, Cat5e or Cat6 cable, allowing users to control connected servers from up to 150m away, depending on the display resolution.
(* U802, U1602 and U3202 models only)
For complete specifications, see the documentation tab above.
