| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
Ports: |
| Part No: | AHX117-S801e_EU |
| Manufacturer No: | X117-S801e_EU |
| Delivery: | In Stock: 5-7 Days |
 |

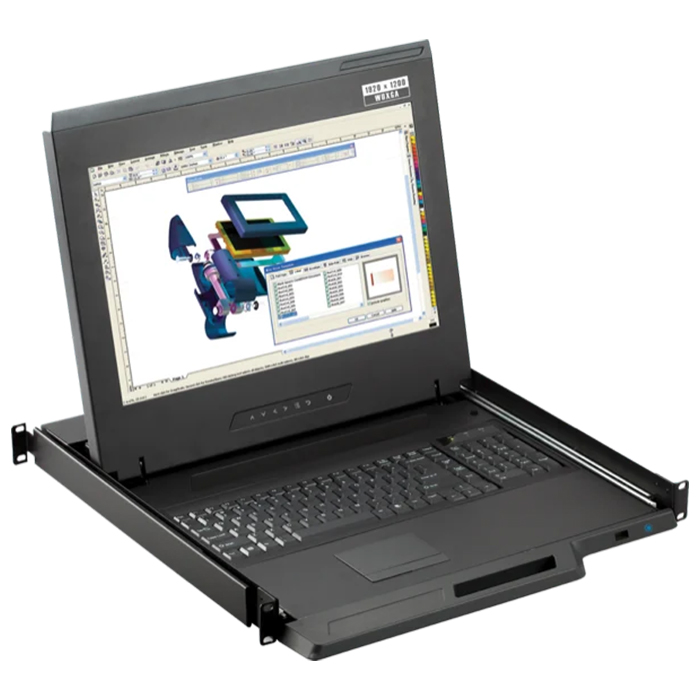

The CyberView X117 rack console features a 16.2" WUXGA LCD capable of displaying video at resolutions up to 1920 x 1200.
Featuring a 16.2" WUXGA LCD display and a keyboard with integrated touchpad, the CyberView X117 provides a space-saving rack-console solution for data centres and other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse and KVM switch within this state-of-the-art modular rack console drawer.
The Combo KVM can be ordered with 8 or 16 ports.
X117-S801e_EU - 8-port / X117-S1601e_EU - 16-port
Key Specifications:
| VGA Console Cable: CB-6A (1.8m) |
Drawer end: DB-15 + 2 x USB Type-A Server end: DB-15 + 2 x USB Type-A |
| Input Type | G keyboard with integrated touchpad |
| Form Factor | 1U rackmount |
| Screen Size and Resolution | 16.2in / 1920 x 1200 WUXGA native resolution |
| Design | Short-depth design of 480mm |
| Warranty | 2 years |
Key Features:
Comms Express is proud to be a UK Austin Hughes distribution partner.
This means we're well placed to provide sales and technical support across their excellent range of products.
Features
16.2" Monitor
The X117 features a WUXGA display that supports a native resolution of up to 1920 x 1200 and 16.7 million colours (8-bit).
Short-Depth Design
The short-depth design allows you to mount the console in only 480mm of space.
1U Rack Mount
The X117 occupies only 1U of standard 19" rack space, providing monitor, keyboard, mouse and KVM control from a compact rackmount console.
Enhanced Aesthetics with Moulded Front Handle
The second-generation design features a slim 1U format with a moulded front handle for easy access.
LED Touch OSD
The LED touch on-screen display provides a convenient way to control device settings and switch between sources.
HDMI 1.4 + DVI-D + VGA + USB Inputs
The modular design supports a variety of integrated KVM options for different applications.
Access Connected Servers Remotely Over IP
Selected CyberView IP KVM models* provide secure browser-based remote access to connected servers over the network or internet, with support for TLS 1.3, AES encryption, LDAP, Active Directory and HTTPS.
(* UIP802, UIP1602 and UIP3202 models only)
Integrated KVM Extenders - Remote Access
Selected two-console CyberView KVM models* include a remote-console receiver that connects over a single Cat5, Cat5e or Cat6 cable, allowing users to control connected servers from up to 150m away, depending on the display resolution.
(* U802, U1602 and U3202 models only)
For complete specifications, see the documentation tab above.
