| Part No: | AHX117-U801e_EU |
| Manufacturer No: | X117-U801e_EU |
| Delivery: | In Stock: 5-7 Days |
 |

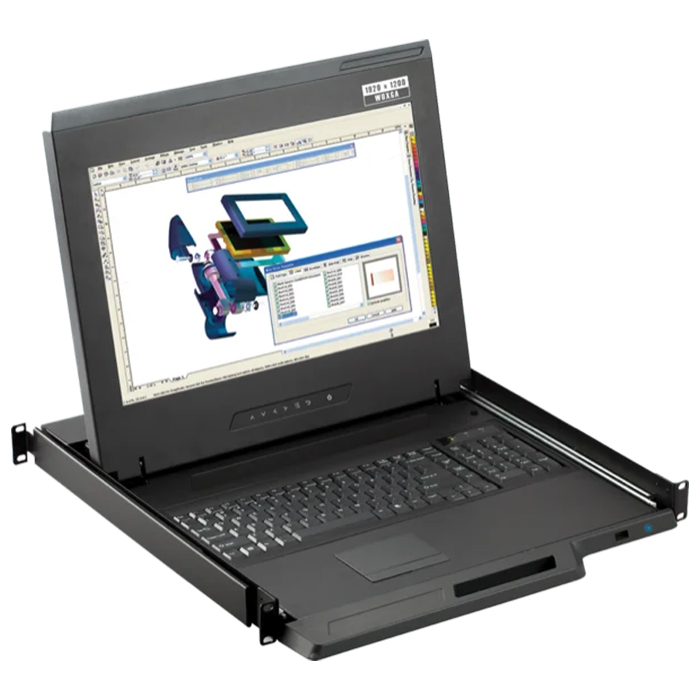

The CyberView X117 rack console features a 16.2" WUXGA LCD capable of 1920 x 1200 video.
Featuring a WUXGA 16.2" LCD display and notepad keyboard with touchpad or trackball, the CyberView X117 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the- art, modular rack console drawer.
Cat6 Combo KVM can be ordered with 8, 16 or 32 ports.
X117-U801e_EU 8-port / X117-U1601e_EU 16-port / X117-U3201e_EU 32-port
Key Specifications:
| KVM | Cat6 KVM |
| Input Type | G keyboard integrated with touchpad |
| Form Factor | 1U Rackmount |
| Screen Size and Resolution | 16.2 Inch / 1920 x 1200 WUXGA native |
| Design | Short depth design of 480mm |
| Warranty | 2 Years |
Key Features:
Comms Express are proud to be a UK Austin Hughes Distribution Partner.
So we're best placed to help you with sales & technical support for their excellent range of products.
Features
16.2" Monitor
The X117 features a WUXGA display that supports a native resolution of up to 1920 x 1200 and 16.7 million colours (8-bit).
Short-Depth Design
Our short-depth design allows you to mount the console in only 480mm of space.
1U Rack Mount
The X117 occupies only 1U of standard 19" rack space, allowing you to control your data centre from a compact rackmount console.
Enhanced Aesthetics with Molded Front Handle
Our second-generation design features a slim 1U format with a molded front handle for easy access.
LED Touch OSD
The LED touch on-screen display provides a convenient way to control device settings and switch between sources.
HDMI 1.4 + DVI-D + VGA + USB Input
The modular design supports a variety of integrated KVM options for different applications.
Access Connected Servers Remotely Over IP
Selected CyberView IP KVM models* provide secure browser-based remote access to connected servers over the network or internet, with support for TLS 1.3, AES encryption, LDAP, Active Directory and HTTPS.
(* UIP802, UIP1602 and UIP3202 models only)
Integrated KVM Extenders - Remote Access
Selected two-console CyberView KVM models* include a remote-console receiver that connects over a single Cat5, Cat5e or Cat6 cable, allowing users to control connected servers from up to 150m away, depending on the display resolution.
(* U802, U1602 and U3202 models only)
For complete specifications, see the documentation tab above.
