| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | AHK117e_EU |
| Manufacturer No: | K117e_EU |
| Delivery: | In Stock: 5-7 Days |
 |

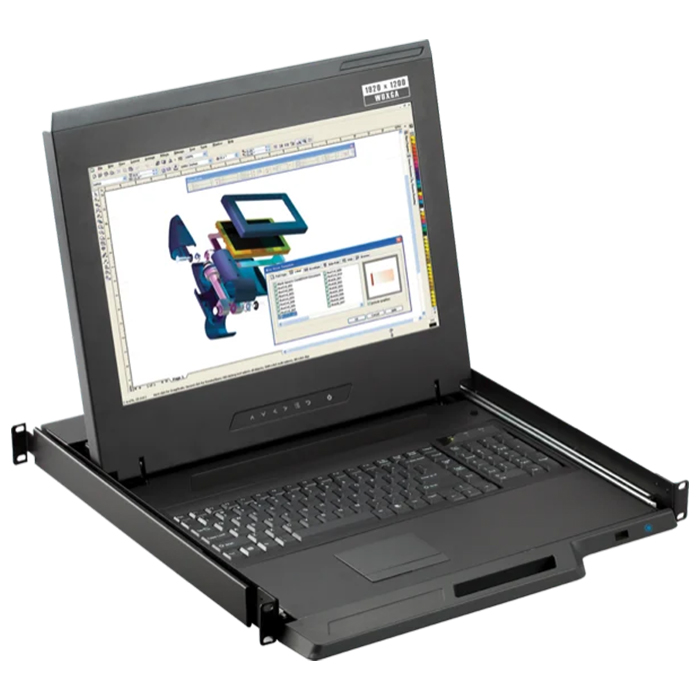

The CyberView K117e_EU combines a 17.3" 4K LED-backlit LCD, 104-key USB keyboard and integrated touchpad in a compact 1U rack console drawer. Its 3840 x 2160 at 60Hz native resolution and 16.7 million colour, 8-bit display provide clear, detailed local access to compatible servers and other rack-mounted equipment.
The short-depth 460mm chassis is designed for data centres, server rooms and other professional IT environments where rack space is valuable. DisplayPort 1.2 provides the standard video connection, with separate USB connections for the keyboard and mouse. One DisplayPort cable and two USB cables are supplied for direct connection to a server or external DisplayPort KVM switch.
Key Features:
Key Specifications:
| Configuration | Single-console drawer for direct server or external KVM connection |
| Input Type | 104-key USB keyboard with integrated touchpad |
| Form Factor | 1U rackmount |
| Screen Size and Resolution | 17.3in / 3840 x 2160 at 60Hz 4K native resolution |
| Video Connectivity | DisplayPort 1.2 with HDCP 1.3 |
| Supplied Console Cables | 1 x DisplayPort cable and 2 x USB Type A cables |
| Dimensions and Weight | 442 x 460 x 44mm (W x D x H) / 11.2kg net weight |
| Mounting Distance | 490 to 720mm |
| Warranty | 2-year standard warranty, upgradable to 5 years |
Comms Express is proud to be a UK Austin Hughes distribution partner.
This means we're well placed to provide sales and technical support across their excellent range of products.
Features:

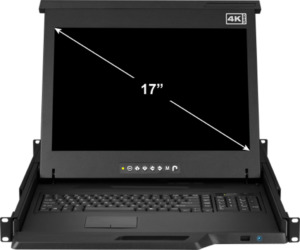

17.3" 4K Monitor
The LED-backlit display provides a native resolution of 3840 x 2160 at 60Hz, with 16.7 million colours and 8-bit colour depth.
Short-Depth Design
The compact 460mm chassis supports rack mounting distances from 490 to 720mm, helping conserve valuable cabinet space.
1U Rackmount Design
The K117 occupies only 1U of standard 19" rack space, bringing the 4K display, keyboard and touchpad together in one convenient console.
Moulded Front Handle
The slim front panel includes a moulded handle for straightforward access when pulling the console drawer out of the rack.

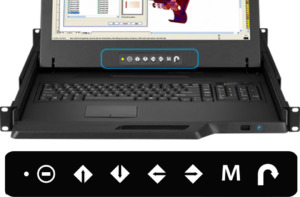

On-Screen Display Controls
The front membrane controls provide convenient access to brightness, contrast, colour, image and other display settings.
DisplayPort and USB Connectivity
DisplayPort 1.2 video and separate USB keyboard and mouse connections support direct access to compatible servers or an external DisplayPort KVM switch.
For complete specifications, see the documentation tab above.
The CyberView K117 rack console features a 17" 4K LCD capable of 4K video.
Featuring a 4K 17" LCD display and notepad keyboard with touchpad or trackball, the CyberView K117 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the- art, modular rack console drawer.
Console Drawer Specification
| K117e_EU | |
| Video Input | Display Port |
| Input Type | G keyboard integrated with touchpad |
| Form Factor | 1U Rackmount |
| Screen Size and Resolution | 1U 17" 4K LCD console drawer 3840 x 2160@60Hz native resolution (1920x1080/1920x1200 support) |
| Design | Short depth design of 480mm |
| Warranty | 2 Years |
| Full specifications and options can be found in the downloads tab | |
Features
17" Monitor
The K117 feature a 4K display that support up to 3840 x 2160 @60Hz native resolution with 16.7M colors (8-bit).
Short-Depth Design
Our Short Depth design allows you to mount the console in only 480mm of space.
1U Rack Mount
The K117 mounts into only 1U. of standard 19" Rack Mount Space. Control your datacenter from only 1U.
Enhanced Aesthetics with Molded Front Handle
Our second generation design features a new 1U slim design with a molded front handle for easy access
LED Touch OSD
The LED touch On-Screen-Display provides a convenient way to control device settings & switch between sources
HDMI 1.4 + DVID-D + VGA + USB Input
Modular design supports a variety of integrated KVM options for your applications.
Integrated 4K 60Hz KVM Switch
K117 is available as a stand-alone console, or with an optional 8-Port Austin Hughes CyberView 4K KVM Switch (PN K117-801K). The KVM mounts into the rear of the 1U chassis and allows an administrator to control up to eight servers from one keyboard, mouse and monitor setup.
