| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | AHK117-801Ke_EU |
| Manufacturer No: | K117-801Ke_EU |
| Delivery: | In Stock: 5-7 Days |
 |

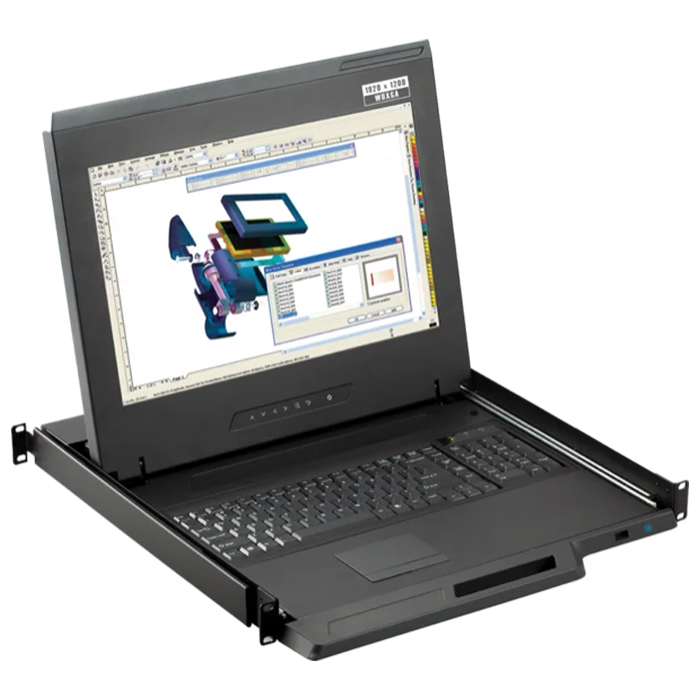

The CyberView K117-801Ke_EU combines a 17.3" 4K LED-backlit LCD, 104-key USB keyboard and integrated touchpad with an eight-port HDMI KVM switch in a single 1U rack console drawer. Its 3840 x 2160 native resolution at 60Hz, 16.7 million colours and 8-bit colour depth provide a highly detailed local display for managing compatible servers and other computer systems.
Each KVM port combines HDMI 2.0 video with USB keyboard and mouse connectivity, allowing one administrator to select and control up to eight connected computers. One separately selected 1.8m Austin Hughes KVM cable is required for each server: CK-6P for DisplayPort and USB-A connections at up to 4K 60Hz, CK-6H for HDMI and USB-A connections at up to 4K 60Hz, or CH-6D for DVI-D and USB-A connections at up to 2K 60Hz. Front-panel controls and keyboard hotkeys provide straightforward port selection, while two USB-A hub ports support additional USB peripherals.
Key Features:
Key Specifications:
| Configuration | Single-console drawer with integrated eight-port local HDMI KVM switch |
| Input Type | 104-key USB keyboard with integrated touchpad |
| Form Factor | 1U rackmount |
| Screen Size and Resolution | 17.3in / 3840 x 2160 at 60Hz native resolution |
| KVM Connectivity | 8 x HDMI 2.0 and USB-B KVM ports |
| Server KVM Cables | Selected separately, with one 1.8m cable required per connected server: CK-6P for DisplayPort and USB-A at up to 4K 60Hz, CK-6H for HDMI and USB-A at up to 4K 60Hz, or CH-6D for DVI-D and USB-A at up to 2K 60Hz |
| Computer Selection | Front channel button or keyboard hotkeys, with automatic scanning |
| USB Hub | 2 x USB-A ports |
| Dimensions and Weight | 442 x 580 x 44mm (W x D x H) / 12.1kg net weight |
| Mounting Distance | 490 to 800mm |
| Power Input | Auto-sensing 100 to 240V AC, 50/60Hz |
| Warranty | 2-year standard warranty, upgradable to 5 years |
Comms Express is proud to be a UK Austin Hughes distribution partner.
This means we're well placed to provide sales and technical support across their excellent range of products.
|
|
|
|
17.3" 4K Display |
Short-Depth Design |
1U Rackmount Design |
|
|
|
|
Moulded Front Handle |
LED Touch OSD Controls |
Integrated 8-Port 4K KVM |
For complete specifications, see the documentation tab above.

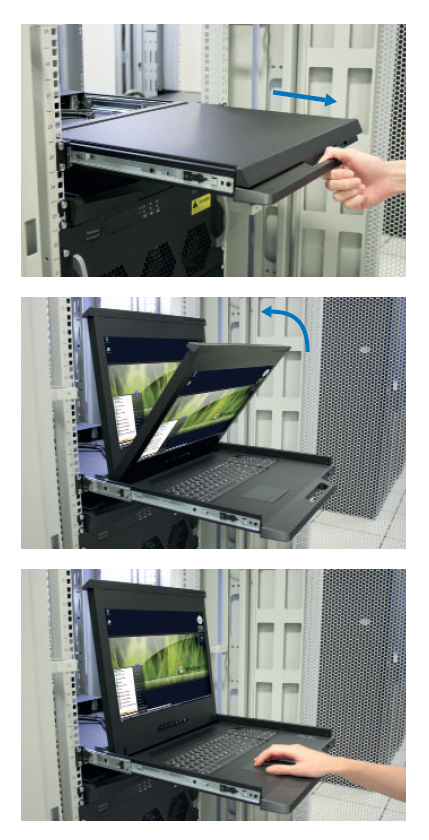

The CyberView K117 rack console features a 17" 4K LCD capable of 4K video.
Featuring a 4K 17" LCD display and notepad keyboard with touchpad or trackball, the CyberView K117 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the- art, modular rack console drawer.
Console Drawer Specification
| K117-801Ke_EU | |
| Video Input | Display Port |
| Input Type | G keyboard integrated with touchpad |
| Form Factor | 1U Rackmount |
| Screen Size and Resolution | 1U 17" 4K LCD console drawer 3840 x 2160@60Hz native resolution (1920x1080/1920x1200 support) |
| Design | Short depth design of 480mm |
| Warranty | 2 Years |
| Full specifications and options can be found in the downloads tab | |
Features

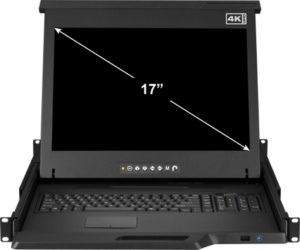

17" Monitor
The K117 feature a 4K display that support up to 3840 x 2160 @60Hz native resolution with 16.7M colors (8-bit).
Short-Depth Design
Our Short Depth design allows you to mount the console in only 480mm of space.
1U Rack Mount
The K117 mounts into only 1U. of standard 19" Rack Mount Space. Control your datacenter from only 1U.

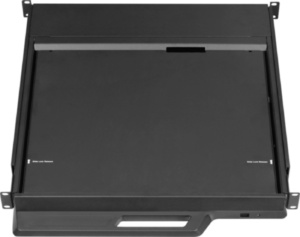

Enhanced Aesthetics with Molded Front Handle
Our second generation design features a new 1U slim design with a molded front handle for easy access

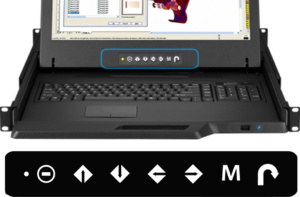

LED Touch OSD
The LED touch On-Screen-Display provides a convenient way to control device settings & switch between sources
HDMI 1.4 + DVID-D + VGA + USB Input
Modular design supports a variety of integrated KVM options for your applications.

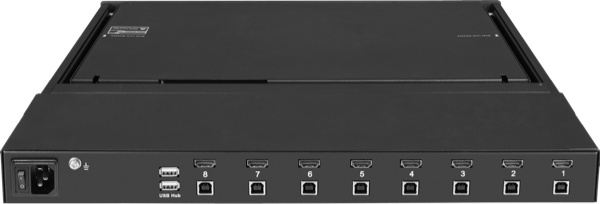

Integrated 4K 60Hz KVM Switch
K117 is available as a stand-alone console, or with an optional 8-Port Austin Hughes CyberView 4K KVM Switch (PN K117-801K). The KVM mounts into the rear of the 1U chassis and allows an administrator to control up to eight servers from one keyboard, mouse and monitor setup.
