| Part No: | AHX124-S801e_EU |
| Manufacturer No: | X124-S801e_EU |
| Delivery: | In Stock: 5-7 Days |
 |

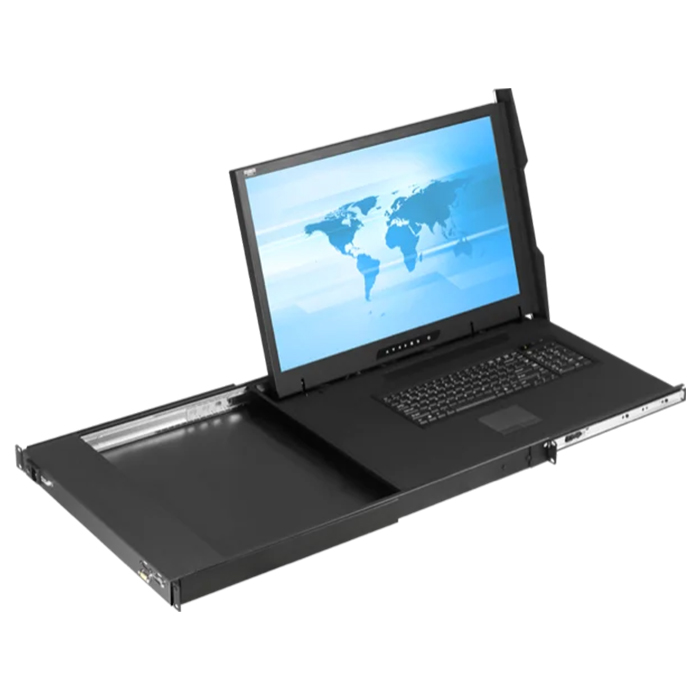

The CyberView X124-S rack console combines a 24.1" WUXGA LED-backlit LCD, keyboard, touchpad and local DB-15 Combo KVM switch in a compact 1U drawer. Its 1920 x 1200 native resolution provides a clear widescreen display for managing connected servers and other compatible equipment.
Designed for data centres, server rooms and other professional IT environments, the X124-S is available with an integrated 8 or 16 port KVM switch for convenient local control from the rack.
Key Features:
The DB-15 Combo KVM can be ordered with 8 or 16 ports.
X124-S801e_EU - 8-port / X124-S1601e_EU - 16-port
Key Specifications:
| KVM Port Connection |
8 or 16 x DB-15 Combo KVM ports, depending on the selected variant Uses compatible CB-6, CB-10 or CB-15 USB 2-in-1 KVM cables |
| Input Type | 104-key USB keyboard with integrated touchpad |
| Form Factor | 1U rackmount |
| Screen Size and Resolution | 24.1in / 1920 x 1200 WUXGA native resolution |
| Dimensions | 442 x 800 x 44mm (W x D x H) with integrated KVM |
| Warranty | 2-year standard warranty, upgradable to 5 years |
Comms Express is proud to be a UK Austin Hughes distribution partner.
This means we're well placed to provide sales and technical support across their excellent range of products.
Features:
24.1" WUXGA Monitor
The X124 features an LED-backlit display with a native resolution of 1920 x 1200 and support for 16.7 million colours.

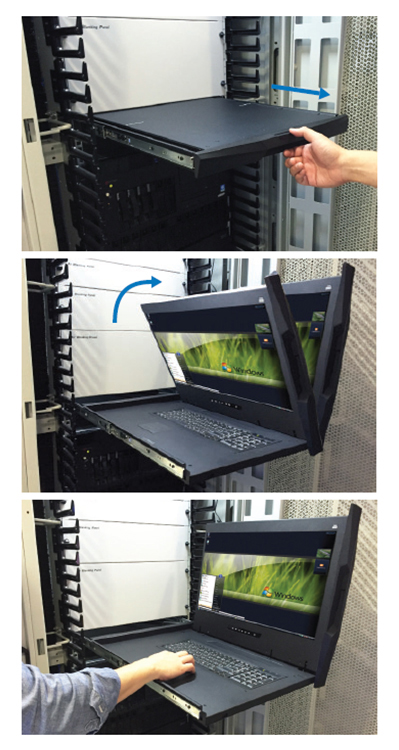

Rackmount Installation
The integrated mounting slides support rack depths from 660 to 970mm for console-with-KVM configurations.
1U Rackmount Design
The X124 occupies only 1U of standard 19" rack space, providing monitor, keyboard, mouse and KVM control from a compact rack console.
Moulded Front Panel and 2-Point Lock
The slim 1U drawer features a moulded front panel and secure 2-point lock for a clean and practical rack installation.
On-Screen Display Controls
The membrane controls provide convenient access to brightness, contrast, colour, image-position and other display settings.
HDMI 1.4, VGA and USB Connectivity
Standard HDMI 1.4 and VGA video inputs are combined with USB keyboard and mouse connectivity for local rack access.
For complete specifications, see the documentation tab above.
