Schleifenbauer Basic PDUs

The Schleifenbauer E26CWNN36C1 is a double vertical Power Distribution Unit (PDU) designed for high-capacity, customizable power distribution in data centers and industrial environments. It supports a 63A, 3-phase input and features 30 configurable outlets.

Key Features Profile color black, aluminium with stainless steel covers (IP20)
L x W x D = 1615 x 65 x 105 mm (0U) (excl. strain relief, mounting & cable bending radius)
Three phase 63 A, 230/400V - 50Hz
Power entry side-cover top
Power lead (5G10 halogenfree) with CEE plug 3,0m
30 x IEC 60320 - C13/C15/C19/C21 (IEC Lock)
12 x Hydraulic-magnetic breaker 16A
Durable Enclosure with Professional Finish The unit features a robust enclosure constructed from black aluminum, complemented by stainless steel covers. Rated at IP20, it offers solid mechanical protection suitable for standard data center and industrial environments.

Compact Vertical Profile With dimensions of 1615 x 65 x 105 mm (L x W x D), this 0U PDU fits seamlessly into vertical rack spaces. It’s designed to minimize obstruction, excluding strain relief and mounting hardware for cleaner cable routing.

High-Capacity Power Input Engineered to handle demanding power loads, the PDU supports a three-phase 63A input at 230/400V and 50Hz, ensuring consistent delivery for power-intensive applications across multiple rack units.

Flexible and Secure Power Connections Equipped with a 3.0m power lead (5G10 halogen-free) and CEE plug, the cable enters via the top side-cover for streamlined installation. Its design emphasizes safety and reduced environmental impact.

Versatile Outlet Configuration and Protection The PDU hosts 30 IEC 60320 outlets—including C13, C15, C19, and C21—secured with IEC Lock. It also features 12 hydraulic-magnetic 16A circuit breakers, providing dependable overload protection and easy reset functionality.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The Schleifenbauer 8856VNN3361 is a custom-engineered PDU designed to support large-scale IT infrastructure with precision and control. Featuring 48 power outlets in a compact double-horizontal frame, it enables seamless deployment in high-density racks without compromising airflow or space. With optional remote monitoring and outlet-level switching, it offers the insight and flexibility needed for modern power management strategies.

Key Features Profile color black, aluminium with stainless steel covers (IP20)
L x W x D = 1300 x 65 x 52.5 mm (0U) (excl. strain relief, mounting & cable bending radius)
Toolless mount buttons (brackets not included) (distance=800, positions=250.0, 1050.0mm)
Three phase 32 A, 230/400V - 50Hz
Power entry side-cover top
Power lead (5G6 halogenfree) with CEE plug 3,0m (strain relief height 2,5cm)
12 x IEC 60320 C19, 36 x IEC 60320 C13
6 x Hydraulic-magnetic breaker 16A
Enclosure Design Constructed from black aluminum with stainless steel covers, rated at IP20 for protection in standard environments.

Mounting Method Toolless mount buttons support fast installation with designated bracket positions.

Power Configuration Three-phase power input rated at 32 A, 230/400V - 50Hz, ensures reliable high-capacity operation.

Outlet Capacity Equipped with 12 x IEC 60320 C19 and 36 x IEC 60320 C13 outlets to accommodate a wide range of device connections.

Integrated Protection Includes six hydraulic-magnetic 16A breakers to safeguard connected equipment from overloads and faults.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The Schleifenbauer E8A3VNN3361 is a vertical, 0U rack-mountable Power Distribution Unit (PDU) designed for high-density data center environments. It delivers 32A across three phases and features 42 outlets, typically comprising a mix of IEC 60320 C13 and C19 sockets.

Key Features Profile color black, aluminium with stainless steel covers (IP20)
L x W x D = 1145 x 65 x 52.5 mm (0U) (excl. strain relief, mounting & cable bending radius)
Toolless mount buttons (brackets not included) (distance=800, positions=172.4, 972.6mm)
Three phase 32 A, 230/400V - 50Hz
Power entry side-cover top
Power lead (5G6 halogenfree) with CEE plug 3,0m (strain relief height 2,5cm)
36 x IEC 60320 C13 , 6 x IEC 60320 C19
6 x Thermal breaker 16A (ETA)
Enclosure The enclosure is made of black aluminum with stainless steel covers, offering an IP20 protection rating.

Dimensions Dimensions: 1145 x 65 x 52.5 mm (0U), excluding strain relief, mounting, and cable bending radius.

Mounting Features Features toolless mounting buttons with mounting distances of 800 mm and positions at 172.4 mm and 972.6 mm (brackets not included).

Power Input Power input is three-phase 32A with a voltage of 230/400V at 50Hz, ensuring high power capacity for demanding systems.

Cable Lead Comes with a power lead (5G6 halogen-free) equipped with a CEE plug and a cable length of 3.0 meters, including a strain relief height of 2.5 cm.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The Schleifenbauer 67EDVNN1321 Vertical PDU is designed for high-demand environments such as data centers, server rooms, and industrial facilities. With a 32A, 3-phase input, this PDU offers efficient and reliable power distribution to up to 30 outlets. The PDU comes with a robust aluminum housing and a stainless steel cover, offering durable protection and a sleek appearance.

Key Features Profile color black, aluminium with stainless steel covers (IP20)
L x W x D = 795 x 65 x 52.5 mm (0U) (excl. strain relief, mounting & cable bending radius)
Toolless mount buttons (brackets not included) (distance=533, positions=130.8, 664.2mm)
Single phase 32 A, 230VAC - 50Hz
Power entry side-cover top
Power lead (3G6 halogenfree) with CEE plug 3,0m (strain relief height 2,5cm)
24 x IEC 60320 C13 , 6 x IEC 60320 C19
2 x Thermal breaker 16A (ETA)
Enclosure The PDU features a robust black aluminum profile with stainless steel covers providing an IP20 protection rating for reliable durability in various environments.

Mount Equipped with tool-less mount buttons, the PDU allows for easy installation, with adjustable mounting distances.

Power Input This PDU supports a single-phase 32A power input at 230VAC and 50Hz, making it suitable for high-power applications.

Cable Entry The PDU features a power entry located on the side-cover top, allowing for flexible cable management during installation.

Outlets With 24 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, the PDU ensures ample power distribution for diverse devices and equipment.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

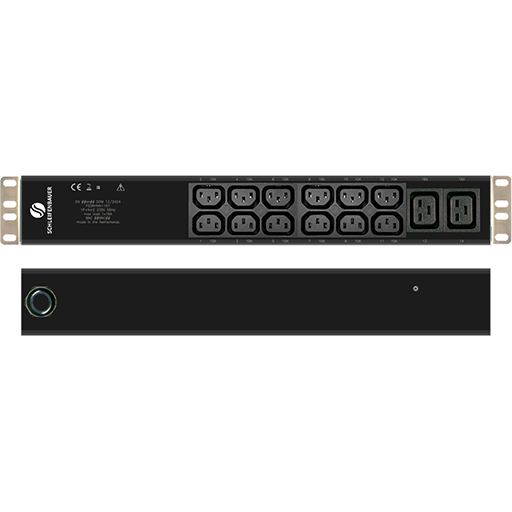

The Schleifenbauer F03AHNN1101 is a high-performance, horizontal Power Distribution Unit (PDU) designed to provide reliable and efficient power management in rack-mounted environments. With 14 outlets and a 16A current rating, this PDU offers flexibility and robust performance for a wide range of applications, including data centers and server rooms.

Key Features Profile color black, aluminium with stainless steel covers (IP20)
L x W x D = 440 x 65 x 52.5 mm (1.5 U) (excl. strain relief, mounting & cable bending radius)
Sidecover 19 inch
Single phase 16 A, 230VAC - 50Hz
Power entry rear-side left
Power lead (3G2,5 halogenfree) with C20 plug 2,5m (strain relief height 2,5cm)
2 x IEC 60320 C19, 12 x IEC 60320 C13
Enclosure The unit features a sleek black profile, crafted from durable aluminum with stainless steel covers, ensuring robust protection with an IP20 rating.

Mount Designed for easy installation, the PDU includes sidecovers for 19-inch rack mounting, providing seamless integration into standard server racks.

Power Input Equipped with a single-phase power input, the PDU supports 16A at 230VAC with a 50Hz frequency, delivering reliable power to your equipment.

Cable Entry The power entry is conveniently located on the rear-left side, allowing for clean cable management and improved space efficiency in your setup.

Cable & Plug The unit comes with a 2.5-meter power lead (3G2.5 halogen-free), featuring a C20 plug with a strain relief height of 2.5 cm to ensure a secure and stable connection.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

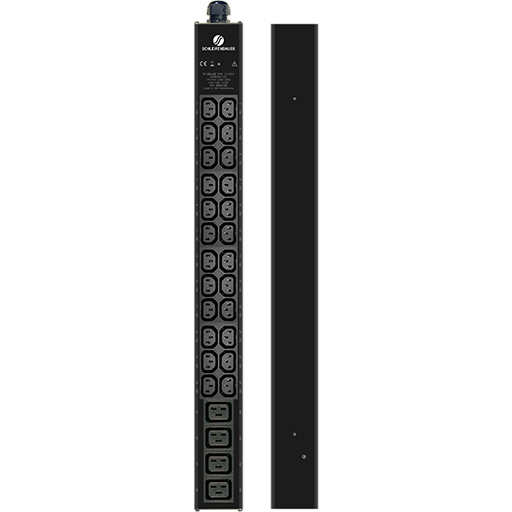

The Schleifenbauer 5D96VNN1101 is a vertical power distribution unit (PDU) designed for high-density rack environments where efficient power management and flexibility are essential. This model operates on a 16A single-phase input and features a total of 28 outlets, making it suitable for a wide range of IT and data center applications.

Key Features Profile color black, aluminium with stainless steel covers (IP20)
L x W x D = 650 x 65 x 52.5 mm (0U) (excl. strain relief, mounting & cable bending radius)
Toolless mount buttons (brackets not included) (distance=450, positions=100.0, 550.0mm)
Single phase 16 A, 230VAC - 50Hz
Power entry side-cover top
Power lead (3G2,5 halogenfree) with CEE plug 1,0m (strain relief height 2,5cm)
24 x IEC 60320 C13 , 4 x IEC 60320 C19
Enclosure Crafted from black aluminum with stainless steel end covers, the housing meets IP20 standards for safe indoor use.

Mount Equipped with toolless mounting buttons, the unit installs easily at fixed 100 mm and 550 mm positions—no brackets required.

Power Input This PDU is powered by a 230V single-phase input at 16 amps, supporting standard European power infrastructure.

Cable Entry The mains cable is routed through the top side-cover, optimizing space and accessibility during installation.

Cable & Plug A 1.0-meter halogen-free 3G2.5 power lead terminates in a CEE plug, secured with 2.5 cm strain relief for durability under load.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The Schleifenbauer 73DCDNN3361 is a high-performance double horizontal Power Distribution Unit (PDU) engineered for demanding data center and server rack environments. Designed for 3-phase power systems, this 32A-rated unit supports efficient energy distribution across critical IT equipment. Its compact double-horizontal form factor allows for streamlined integration into standard 19” rack setups, making it ideal for setups where vertical space is limited. With 12 power outlets, it supports a wide range of devices while maintaining clear cable management and load balancing.

Key Features Profile color black, aluminium with stainless steel covers (IP20)
L x W x D = 440 x 65 x 105 mm (1.5 U) (excl. strain relief, mounting & cable bending radius)
Sidecover 19 inch double deep housing
Three phase 32 A, 230/400V - 50Hz
Power entry rear-side left
Power lead (5G6 halogenfree) with CEE plug 3,0m (strain relief height 2,5cm)
12 x IEC 60320 - C13/C15/C19/C21 and C13/C15 (IEC Lock)
6 x Hydraulic-magnetic breaker 16A
Power Input Accepts a three-phase 32A input at 230/400V (50Hz), delivering stable, high-capacity power to connected devices.

Cable Entry Power is routed through a rear-side left cable entry, keeping the front panel clean and improving cable management within the rack.

Cable & Plug Fitted with a durable, halogen-free 5G6 cable and 3.0m length, the unit terminates in a reliable CEE plug with a 2.5 cm strain relief for added durability.

Outlets Equipped with 12 IEC 60320 outlets, including C13, C15, C19, C21, and IEC Lock variants, offering versatile connectivity for mixed equipment types.

Fuses Six hydraulic-magnetic 16A breakers provide solid circuit protection, minimizing the risk of overload or equipment damage during power fluctuations.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The Schleifenbauer 9A94HNN3361 is a high-capacity horizontal PDU engineered for secure and efficient energy distribution in professional IT environments. Built for racks requiring dependable 32A power management, it features six C19 outlets in a streamlined 19-inch housing. This unit is purpose-built for performance-driven installations where reliability and monitoring precision are essential. Designed with datacenters, server rooms, and enterprise infrastructure in mind, it integrates seamlessly into horizontal rack spaces without compromising power accessibility.

Key Features Profile color black, aluminium with stainless steel covers (IP20)
L x W x D = 440 x 65 x 52.5 mm (1.5 U) (excl. strain relief, mounting & cable bending radius)
Sidecover 19 inch
Three phase 32 A, 230/400V - 50Hz
Power entry rear-side left
Power lead (5G6 halogenfree) with CEE plug 3,0m (strain relief height 2,5cm)
6 x IEC 60320 - C13/C15/C19/C21 (IEC Lock)
6 x Hydraulic-magnetic breaker 16A
Enclosure The unit features a black aluminum profile with stainless steel covers, offering a clean, professional look and rated to IP20 for protection.

Power It is configured for a three-phase power supply, rated at 32A with a voltage specification of 230/400V at 50Hz.

Cable & Plug It includes a 3.0-meter halogen-free power cable (5G6) paired with a CEE plug. The design incorporates a strain relief feature with a height of 2.5 cm.

Outlets This unit provides six IEC 60320 outlets that support C13, C15, C19, and C21 plug types, all secured with IEC Lock technology for added connection stability.

Fuses Protection is provided through six hydraulic-magnetic breakers, each rated at 16A, ensuring reliable and consistent circuit protection.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The Schleifenbauer F86CHNN1321 is a horizontal 32A power distribution unit engineered to support demanding IT environments. Built with a streamlined design and reliable performance profile, this 1-phase PDU delivers clean, uninterrupted power across 14 secure IEC lock outlets. Designed for consistent uptime and rack-level integration, it’s ideal for controlled power in data center setups, server rooms, or high-load electrical enclosures.

Key Features Profile color black, aluminium with stainless steel covers (IP20)
L x W x D = 440 x 65 x 52.5 mm (1.5 U) (excl. strain relief, mounting & cable bending radius)
Sidecover 19 inch
Single phase 32 A, 230VAC - 50Hz
Power entry rear-side left
Power lead (3G6 halogenfree) with CEE plug 3,0m (strain relief height 2,5cm)
12 x IEC 60320 C13 , 2 x IEC 60320 C19
2 x Hydraulic-magnetic breaker 16A
Power Input This unit operates on a single-phase 32A supply at 230VAC and 50Hz, supporting high-capacity rack applications.

Outlet Configuration It includes a total of 14 outlets—12 IEC 60320 C13 and 2 IEC 60320 C19—accommodating a variety of equipment connections.

Enclosure The PDU features a black aluminum profile with stainless steel covers and an IP20 rating, providing a durable and professional-grade housing.

Cable & Plug A 3.0-meter halogen-free 3G6 power lead is factory-fitted with a CEE plug, and includes a strain relief with a height of 2.5 cm for secure installation.

Fuses Protection is handled by two hydraulic-magnetic breakers rated at 16A, offering reliable overload safeguarding.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The Schleifenbauer E46EVNN1101 is a horizontal PDU designed for dependable power distribution in demanding IT and data center environments. Built with 12 IEC C13 and 2 IEC C19 outlets, and a 16A single-phase connection, it offers secure, flexible deployment within standard rack configurations. Its durable aluminum housing, halogen-free cable, and toolless mounting make it ideal for both new builds and retrofit projects requiring reliable infrastructure support.

Key Features Profile color black, aluminium with stainless steel covers (IP20)
L x W x D = 375 x 65 x 52.5 mm (0U) (excl. strain relief, mounting & cable bending radius)
Toolless mount buttons (brackets not included) (distance=266, positions=54.2, 320.8mm)
Single phase 16 A, 230VAC - 50Hz
Power entry side-cover top
Power lead (3G2,5 halogenfree) with CEE plug 3,0m (strain relief height 2,5cm)
12 x IEC 60320 C13 , 2 x IEC 60320 C19
Power Input The unit is rated at 16 amps and supports single-phase power distribution.

Outlets Equipped with 12 IEC 60320 C13 and 2 IEC 60320 C19 outlets, it offers a versatile range of device connectivity.

Cable & Plug Features a CEE 16A plug and a 3.0-meter halogen-free power cable to meet safety and environmental standards.

Enclosure Constructed with black anodized aluminum and rated IP20, making it suitable for use in controlled environments.

Mounting Designed for horizontal, toolless 0U rack installation, enabling efficient setup and maintenance.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The Schleifenbauer 4CDBDNN1321 is a single-phase 32A horizontal Power Distribution Unit (PDU) designed for efficient power distribution in data centers and server rooms. With 20 IEC 60320 C13 outlets, it offers reliable and scalable power management. The PDU features metered inputs, allowing for precise monitoring of power consumption, and is housed in a 19-inch double-deep aluminum enclosure with an IP20 rating, ensuring durability and safety.

Key Features Profile color black, aluminium with stainless steel covers (IP20)
L x W x D = 440 x 65 x 105 mm (1.5 U) (excl. strain relief, mounting & cable bending radius)
Sidecover 19 inch double deep housing
Single phase 32 A, 230VAC - 50Hz
Power entry rear-side left
Power lead (3G6 halogenfree) with CEE plug 3,0m (strain relief height 2,5cm)
20 x IEC 60320 C13
2 x Hydraulic-magnetic breaker 16A
Mount The PDU features a sidecover, with a 19-inch double deep housing design, making it compatible with standard rack mounting.

Power Input It operates with a single-phase 32A power input, with an input voltage of 230VAC and a frequency of 50Hz.

Cable & Plug The power lead is halogen-free, 3G6, and measures 3.0 meters. It comes with a CEE plug, and the strain relief height is 2.5 cm.

Outlets The PDU includes 20 outlets, all of which are IEC 60320 C13, suitable for various devices.

Fuses It is equipped with 2 hydraulic-magnetic breakers rated at 16A for overcurrent protection.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The Schleifenbauer 1533VNN1321 Vertical Power Distribution Unit (PDU) offers a high-performance solution for power distribution in server racks and IT environments. With a robust 32A current rating and 30 outlets (including both C19 and C13 outlets), this PDU ensures reliable and efficient power management. Designed for vertical mounting, it helps save valuable space while maintaining easy access to power connections. It is ideal for data centers, network racks, and any application requiring a high-density, reliable, and secure power distribution system.

Key Features Enclosure: Profile color black, aluminium with stainless steel covers (IP20)
Dimensions: L x W x D = 785 x 65 x 52.5 mm (0U) (excl. strain relief, mounting & cable bending radius)
Mount: Toolless mount buttons (brackets not included) (distance=533, positions=125.8, 659.2mm)
Power Input: single phase 32 A, 230VAC - 50Hz
Cable Entry: power entry side-cover top
Cable & Plug: Power lead (3G6 halogenfree) with CEE plug 3,0m (strain relief height 2,5cm)
Outlets: 24 x IEC 60320 C13 , 6 x IEC 60320 C19
Fuses: 2 x Hydraulic-magnetic breaker 16A
Enclosure The enclosure is black, made of aluminum with stainless steel covers, and has an IP20 rating.

Power Input The power input is single-phase, 32A, 230VAC, operating at 50Hz.

Cable & Plug The power lead is 3G6 halogen-free, with a CEE plug, and is 3.0 meters long. The strain relief height is 2.5 cm.

Outlets The unit has 24 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets.

Fuses It includes 2 hydraulic-magnetic breakers, each rated for 16A.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

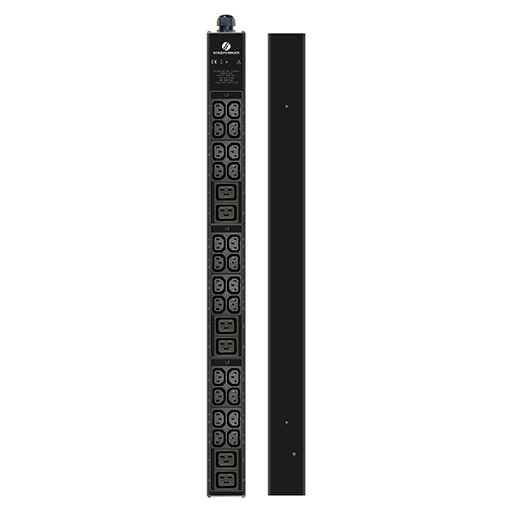

The Schleifenbauer 77A6VNN3101 is a premium vertical power distribution unit built for high-efficiency, three-phase environments. With 30 secure IEC Lock outlets, this unit supports dense server rack deployments with minimal footprint, enabling optimal power delivery in demanding IT infrastructure.

Key Features Profile color black, aluminium with stainless steel covers (IP20)
L x W x D = 780 x 65 x 52.5 mm (0U) (excl. strain relief, mounting & cable bending radius)
Toolless mount buttons (brackets not included) (distance=533, positions=123.3, 656.7mm)
Three phase 16 A, 230/400V - 50Hz
Power entry side-cover top
Power lead (5G2,5 halogenfree) with CEE plug 3,0m (strain relief height 2,5cm)
24 x IEC 60320 C13 , 6 x IEC 60320 C19
Enclosure The enclosure profile is in black, made from aluminium with stainless steel covers, and has an IP20 rating for basic protection against dust and foreign objects.

Power Input This unit operates on three-phase power, with a current rating of 16 A and is compatible with 230/400V at 50Hz, providing reliable power distribution for a wide range of equipment.

Cable Entry The cable entry is positioned at the power entry side-cover top for optimal cable management and organization.

Cable & Plug The power lead is halogen-free and measures 3.0 m in length, terminating in a CEE 16A plug, with a strain relief height of 2.5 cm for added safety and durability.

Outlets The PDU provides 24 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, offering versatility for powering various devices in your setup.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The Schleifenbauer D281HNN3101 is a robust, rack-mountable Power Distribution Unit designed to deliver consistent and efficient power distribution in server rooms and network environments. Built for reliability and ease of integration, this horizontal 19" PDU supports a 16A single-phase input and provides nine IEC C13 outlets to accommodate standard IT equipment. Its an excellent choice for infrastructure where dependable power distribution is required. Durable, compact, and engineered with quality in mind, it’s well-suited to both enterprise and data center environments seeking solid foundational hardware.

Key Features Profile color black, aluminium with stainless steel covers (IP20)
L x W x D = 440 x 65 x 52.5 mm (1.5 U) (excl. strain relief, mounting & cable bending radius)
Sidecover 19 inch
Three phase 16 A, 230/400V - 50Hz
Power entry rear-side left
Power lead (5G2,5 halogenfree) with CEE plug 3,0m (strain relief height 2,5cm)
9 x IEC 60320 - C13/C15/C19/C21 (IEC Lock)
Mount It mounts using a sidecover configuration compatible with standard 19-inch racks.

Power Input This PDU supports three-phase power at 16A, operating at 230/400V and 50Hz.

Cable Entry Power is supplied via a rear-side left cable entry point for streamlined rack integration.

Cable & Plug It comes with a 3.0-meter halogen-free 5G2.5 mm² power lead, featuring a CEE plug and a strain relief height of 2.5 cm.

Outlets The device includes nine IEC 60320 outlets, supporting C13, C15, C19, and C21 connector types, all equipped with IEC Lock mechanisms to secure connections.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The Schleifenbauer 5FFBHNN1101 is a basic horizontal Power Distribution Unit (PDU) designed for efficient power distribution in data centers and IT infrastructures. It features 14 IEC Lock outlets, including C13 and 2 C19 sockets, providing a total power capacity of 3.6 kVA. The unit is housed in a robust aluminum enclosure with stainless steel covers, ensuring durability and compliance with IP20 standards. It comes equipped with a 3.0-meter halogen-free CEE 16A power lead, facilitating easy integration into existing setups. The PDU supports toolless mounting with standard 19-inch sidecover brackets, allowing for straightforward installation.

Key Features Single-phase 16A, 230VAC, 50Hz
14 x IEC 60320 - C13/C15/C19/C21 and C13/C15 (IEC Lock)
Aluminum body with stainless steel covers (IP20)
440 x 65 x 52.5 mm (L x W x D)
3.0m halogen-free CEE 16A power lead
Toolless sidecover brackets for standard 19-inch racks
Power Input This unit operates on a single-phase input at 16A, 230VAC, and 50Hz.

Outlets It includes 14 IEC 60320 outlets, featuring a mix of C13, C15, C19, and C21 types, with select C13 and C15 outlets using IEC Lock mechanisms.

Cable Entry The power cable enters the unit from the rear-side left position for streamlined rack integration.

Cable & Plug The unit is equipped with a 3.0-meter halogen-free power lead, terminated with a CEE 16A plug.

Enclosure & Protection It features a durable aluminum housing with stainless steel end covers and is rated to IP20 protection standards.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.
