| Part No: | SB-F86CHNN1321 |
| Manufacturer No: | F86CHNN1321 |
| Delivery: | In Stock: 2-3 Weeks |
 |

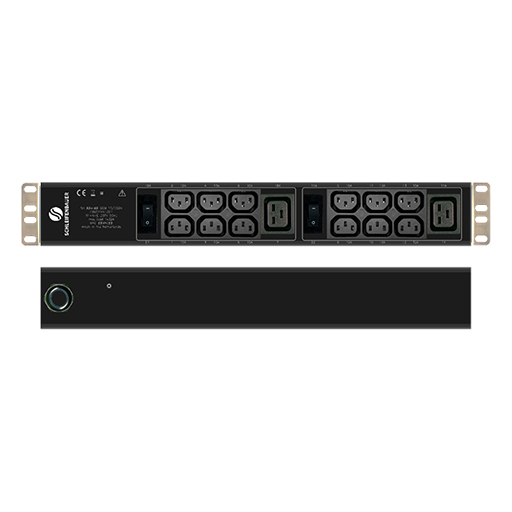

The Schleifenbauer F86CHNN1321 is a horizontal 32A power distribution unit engineered to support demanding IT environments. Built with a streamlined design and reliable performance profile, this 1-phase PDU delivers clean, uninterrupted power across 14 secure IEC lock outlets. Designed for consistent uptime and rack-level integration, it’s ideal for controlled power in data center setups, server rooms, or high-load electrical enclosures.
This unit operates on a single-phase 32A supply at 230VAC and 50Hz, supporting high-capacity rack applications.
It includes a total of 14 outlets—12 IEC 60320 C13 and 2 IEC 60320 C19—accommodating a variety of equipment connections.
The PDU features a black aluminum profile with stainless steel covers and an IP20 rating, providing a durable and professional-grade housing.
A 3.0-meter halogen-free 3G6 power lead is factory-fitted with a CEE plug, and includes a strain relief with a height of 2.5 cm for secure installation.
Protection is handled by two hydraulic-magnetic breakers rated at 16A, offering reliable overload safeguarding.
*For complete specifications please see the documentation tab above.
Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.
The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.
With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.
The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.
Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.
With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.
The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.
The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.
The Schleifenbauer F86CHNN1321 is a horizontal 32A power distribution unit engineered to support demanding IT environments. Built with a streamlined design and reliable performance profile, this 1-phase PDU delivers clean, uninterrupted power across 14 secure IEC lock outlets. Designed for consistent uptime and rack-level integration, it’s ideal for controlled power in data center setups, server rooms, or high-load electrical enclosures.
This unit operates on a single-phase 32A supply at 230VAC and 50Hz, supporting high-capacity rack applications.
It includes a total of 14 outlets—12 IEC 60320 C13 and 2 IEC 60320 C19—accommodating a variety of equipment connections.
The PDU features a black aluminum profile with stainless steel covers and an IP20 rating, providing a durable and professional-grade housing.
A 3.0-meter halogen-free 3G6 power lead is factory-fitted with a CEE plug, and includes a strain relief with a height of 2.5 cm for secure installation.
Protection is handled by two hydraulic-magnetic breakers rated at 16A, offering reliable overload safeguarding.
*For complete specifications please see the documentation tab above.
Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.
The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.
With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.
The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.
Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.
With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.
The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.
The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.
