| Part No: | SB-4CDBDNN1321 |
| Manufacturer No: | 4CDBDNN1321 |
| Delivery: | In Stock: 2-3 Weeks |
 |

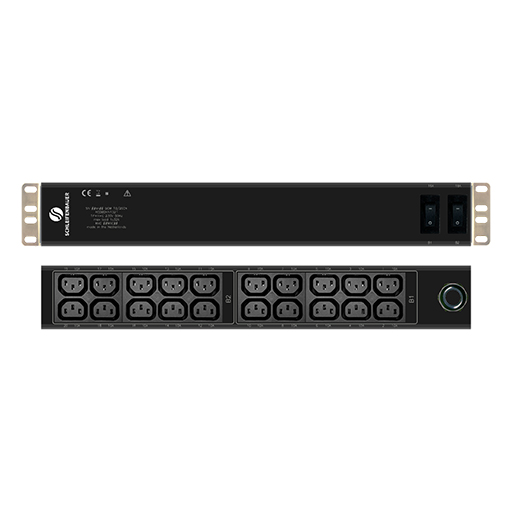

The Schleifenbauer 4CDBDNN1321 is a single-phase 32A horizontal Power Distribution Unit (PDU) designed for efficient power distribution in data centers and server rooms. With 20 IEC 60320 C13 outlets, it offers reliable and scalable power management. The PDU features metered inputs, allowing for precise monitoring of power consumption, and is housed in a 19-inch double-deep aluminum enclosure with an IP20 rating, ensuring durability and safety.
The PDU features a sidecover, with a 19-inch double deep housing design, making it compatible with standard rack mounting.
It operates with a single-phase 32A power input, with an input voltage of 230VAC and a frequency of 50Hz.
The power lead is halogen-free, 3G6, and measures 3.0 meters. It comes with a CEE plug, and the strain relief height is 2.5 cm.
The PDU includes 20 outlets, all of which are IEC 60320 C13, suitable for various devices.
It is equipped with 2 hydraulic-magnetic breakers rated at 16A for overcurrent protection.
*For complete specifications please see the documentation tab above.
Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.
The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.
With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.
The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.
Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.
With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.
The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.
The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.
The Schleifenbauer 4CDBDNN1321 is a single-phase 32A horizontal Power Distribution Unit (PDU) designed for efficient power distribution in data centers and server rooms. With 20 IEC 60320 C13 outlets, it offers reliable and scalable power management. The PDU features metered inputs, allowing for precise monitoring of power consumption, and is housed in a 19-inch double-deep aluminum enclosure with an IP20 rating, ensuring durability and safety.
The PDU features a sidecover, with a 19-inch double deep housing design, making it compatible with standard rack mounting.
It operates with a single-phase 32A power input, with an input voltage of 230VAC and a frequency of 50Hz.
The power lead is halogen-free, 3G6, and measures 3.0 meters. It comes with a CEE plug, and the strain relief height is 2.5 cm.
The PDU includes 20 outlets, all of which are IEC 60320 C13, suitable for various devices.
It is equipped with 2 hydraulic-magnetic breakers rated at 16A for overcurrent protection.
*For complete specifications please see the documentation tab above.
Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.
The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.
With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.
The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.
Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.
With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.
The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.
The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.
