| Part No: | SB-E46EVNN1101 |
| Manufacturer No: | E46EVNN1101 |
| Delivery: | In Stock: 2-3 Weeks |
 |

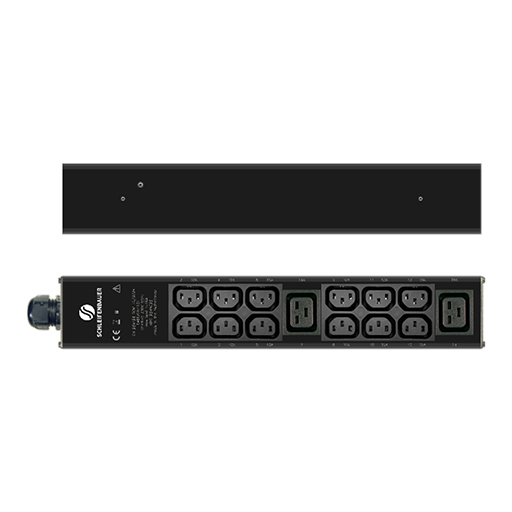

The Schleifenbauer E46EVNN1101 is a horizontal PDU designed for dependable power distribution in demanding IT and data center environments. Built with 12 IEC C13 and 2 IEC C19 outlets, and a 16A single-phase connection, it offers secure, flexible deployment within standard rack configurations. Its durable aluminum housing, halogen-free cable, and toolless mounting make it ideal for both new builds and retrofit projects requiring reliable infrastructure support.
The unit is rated at 16 amps and supports single-phase power distribution.
Equipped with 12 IEC 60320 C13 and 2 IEC 60320 C19 outlets, it offers a versatile range of device connectivity.
Features a CEE 16A plug and a 3.0-meter halogen-free power cable to meet safety and environmental standards.
Constructed with black anodized aluminum and rated IP20, making it suitable for use in controlled environments.
Designed for horizontal, toolless 0U rack installation, enabling efficient setup and maintenance.
*For complete specifications please see the documentation tab above.
Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.
The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.
With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.
The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.
Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.
With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.
The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.
The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.
