| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
If you wish to enquire about this product please contact us on
0800 488 0000
| Part No: | SB-E8A3VNN3361 |
| Manufacturer No: | E8A3VNN3361 |
| Delivery: | In Stock: 2-3 Weeks |
 |

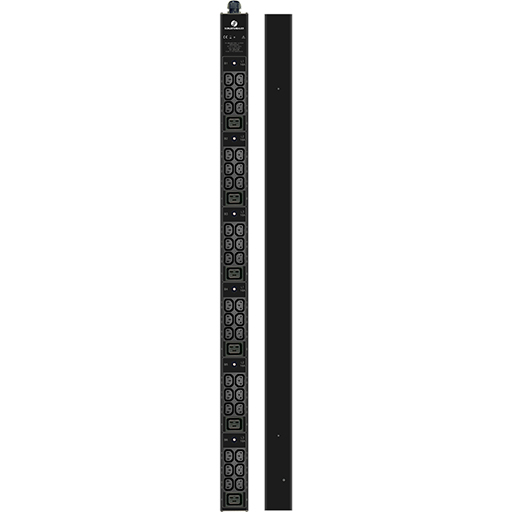

The Schleifenbauer E8A3VNN3361 is a vertical, 0U rack-mountable Power Distribution Unit (PDU) designed for high-density data center environments. It delivers 32A across three phases and features 42 outlets, typically comprising a mix of IEC 60320 C13 and C19 sockets.
The enclosure is made of black aluminum with stainless steel covers, offering an IP20 protection rating.
Dimensions: 1145 x 65 x 52.5 mm (0U), excluding strain relief, mounting, and cable bending radius.
Features toolless mounting buttons with mounting distances of 800 mm and positions at 172.4 mm and 972.6 mm (brackets not included).
Power input is three-phase 32A with a voltage of 230/400V at 50Hz, ensuring high power capacity for demanding systems.
Comes with a power lead (5G6 halogen-free) equipped with a CEE plug and a cable length of 3.0 meters, including a strain relief height of 2.5 cm.
*For complete specifications please see the documentation tab above.
Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.
The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.
With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.
The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.
Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.
With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.
The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.
The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.
The Schleifenbauer E8A3VNN3361 is a vertical, 0U rack-mountable Power Distribution Unit (PDU) designed for high-density data center environments. It delivers 32A across three phases and features 42 outlets, typically comprising a mix of IEC 60320 C13 and C19 sockets.
The enclosure is made of black aluminum with stainless steel covers, offering an IP20 protection rating.
Dimensions: 1145 x 65 x 52.5 mm (0U), excluding strain relief, mounting, and cable bending radius.
Features toolless mounting buttons with mounting distances of 800 mm and positions at 172.4 mm and 972.6 mm (brackets not included).
Power input is three-phase 32A with a voltage of 230/400V at 50Hz, ensuring high power capacity for demanding systems.
Comes with a power lead (5G6 halogen-free) equipped with a CEE plug and a cable length of 3.0 meters, including a strain relief height of 2.5 cm.
*For complete specifications please see the documentation tab above.
Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.
The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.
With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.
The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.
Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.
With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.
The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.
The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.
