Schleifenbauer Switched PDUs

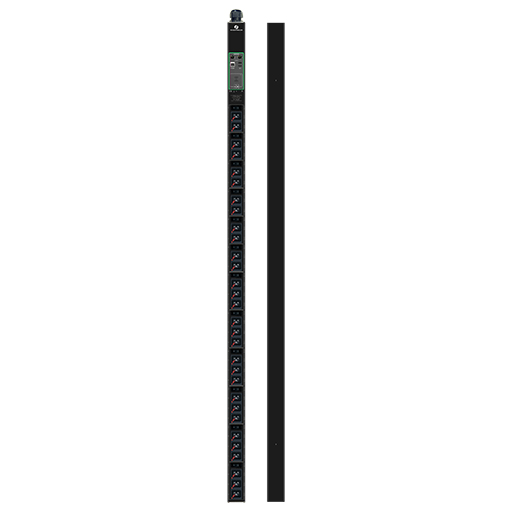

The GM DD7BWMS36C8 is a double vertical, high-capacity switched PDU designed for advanced power distribution in enterprise IT environments. Built for flexibility and intelligent energy management, it combines robust metering, secure remote monitoring, and versatile outlet configurations to support modern data infrastructure with precision and control.

Key Features 30 switched IEC outlets with bistable relays at near-zero crossing
12-branch metering with real-time energy analytics
Dual Ethernet gateway with RJ45 daisy chaining
Remote NFC-enabled smartphone display access
Secure TLS communication with Enertree software integration
IEC 60320 Outlet 30 IEC 60320 outlets (C13/C15/C19/C21) with secure IEC Lock support, all switchable.

Power Configuration Three-phase 63A input (230/400V, 50Hz), equipped with a 5G10 halogen-free power lead and CEE plug, 3.0m length.

Metering & Monitoring 12 metered branches report voltage, current, active/reactive/apparent power, energy, THD, frequency, and power factor.

Connectivity Gateway module supports dual 1Gbps Ethernet, USB, RJ45 daisy chaining, and secure TLS links to management software.

Enclosure & Dimensions Black aluminum profile with stainless steel covers (IP20). Dimensions: 1755 x 65 x 105 mm (0U).

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Switched Outlets This functionality allows connected IT hardware to be remotely powered on or off, enhancing flexibility and efficiency in data centre management. Utilising Near Zero Voltage Switching (N-ZVS) and Outlet Switching Delay, each outlet can be controlled with optimised performance while reducing electrical stress on the power infrastructure.

A remotely switchable PDU provides key benefits such as: Improved energy efficiency by powering down unused equipment, Reduced operational costs through fewer on-site interventions, Enhanced outlet-level power control, Increased availability via remote reboots during incidents In addition, the PDU supports compliance with EU energy efficiency regulations, including the Energy Efficiency Directive (EED).

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

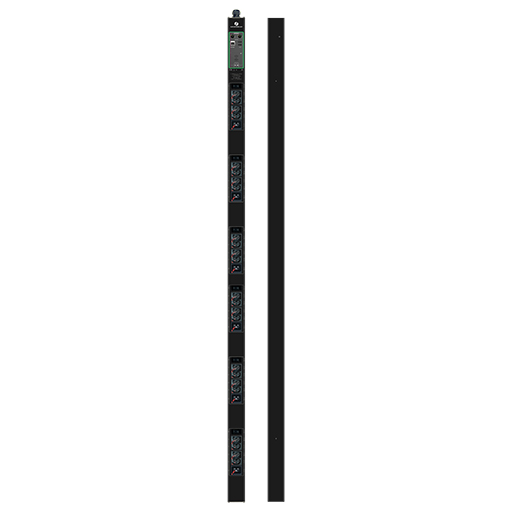

The GM D750VMS3366 Switched PDU 5.0 Gateway offers a high-performance solution designed to meet the needs of modern data centers and facilities, providing efficient power distribution, precise monitoring, and enhanced connectivity. With a robust 0U vertical design and a range of advanced features, it ensures reliability and safety, offering both remote monitoring and secure, encrypted communication for seamless integration into PDU management systems.

Key Features Remote smartphone NFC display
30 switched outlets with near-zero crossing switching relays
Toolless, hot-swappable communication module
ESD-safe design
TLS encrypted communication
General Remote display via smartphone NFC app, up to 100 PDUs can share a single IP address. Features an ESD-safe design and toolless, hot-swappable communications module for easy setup and maintenance.

Outlets The PDU includes 30 switched outlets, with a mix of 18 IEC Lock 60320-CX (C13/C15/C19/C21) and 12 IEC Lock C13/C15 outlets for versatile power distribution across various devices.

Connectivity The gateway module supports dual 1Gbps Ethernet (RJ45/USB) connections, RJ45 daisy chain, USB expansion/sensor, and offers TLS encrypted communication to integrate with Enertree PDU monitoring and management software.

Enclosure The unit features a black aluminium profile with stainless steel covers, providing an IP20 rating for durability and protection against dust and particles.

Power Input Supports three-phase 32A, 230/400V power input at 50Hz, ensuring high capacity for demanding environments and applications.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Switched Outlets This functionality allows connected IT hardware to be remotely powered on or off, enhancing flexibility and efficiency in data centre management. Utilising Near Zero Voltage Switching (N-ZVS) and Outlet Switching Delay, each outlet can be controlled with optimised performance while reducing electrical stress on the power infrastructure.

A remotely switchable PDU provides key benefits such as: Improved energy efficiency by powering down unused equipment, Reduced operational costs through fewer on-site interventions, Enhanced outlet-level power control, Increased availability via remote reboots during incidents In addition, the PDU supports compliance with EU energy efficiency regulations, including the Energy Efficiency Directive (EED).

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

This 0U vertical PDU delivers reliable, intelligent power distribution with 36 switched outlets, precise metering, and a robust 32 A three-phase input. Designed for high-density data environments, it combines advanced monitoring features with efficient space utilization, all encased in a durable aluminum profile with stainless steel covers.

Key Features 36 switched outlets (30 x IEC C13, 6 x IEC C19) with bistable near zero crossing switching relays
Three-phase 32 A metered input with full electrical parameter monitoring
NFC-enabled smartphone app for local display
Share one IP address across up to 100 PDUs
Dual 1Gbps Ethernet ports with RJ45 daisy chaining
Hot-swappable toolless communications module
Secure TLS connection to Enertree software platform
Durable IP20-rated aluminum and stainless steel enclosure
Remote Management Control and monitor power usage remotely through a secure TLS connection to Enertree software. NFC-enabled smartphone app provides quick local access to PDU data without a display.

IEC 60320 Switchable Outlets Features 36 total outlets: 30 x IEC 60320 C13 and 6 x IEC 60320 C19. All are individually switchable with bistable relays for precise load control and energy management.

Connectivity Equipped with dual 1Gbps Ethernet ports (RJ45/USB), RJ45 daisy-chain capability, and USB expansion/sensor support, enabling flexible network configurations across multiple PDUs.

Power Input & Metering Supports 32 A three-phase input (230/400V - 50Hz) with extensive metering: voltage, current, power (W, VA, VAR), energy (kWh, VAh), frequency, power factor, crest factor, and total harmonic distortion.

Design & Installation 0U vertical aluminum profile (1805 x 65 x 52.5 mm), with black and stainless steel finish. Toolless mounting buttons included (brackets not included). Cable entry through the top side-cover with a 3.0m halogen-free power lead and CEE plug.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Switched Outlets This functionality allows connected IT hardware to be remotely powered on or off, enhancing flexibility and efficiency in data centre management. Utilising Near Zero Voltage Switching (N-ZVS) and Outlet Switching Delay, each outlet can be controlled with optimised performance while reducing electrical stress on the power infrastructure.

A remotely switchable PDU provides key benefits such as: Improved energy efficiency by powering down unused equipment, Reduced operational costs through fewer on-site interventions, Enhanced outlet-level power control, Increased availability via remote reboots during incidents In addition, the PDU supports compliance with EU energy efficiency regulations, including the Energy Efficiency Directive (EED).

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

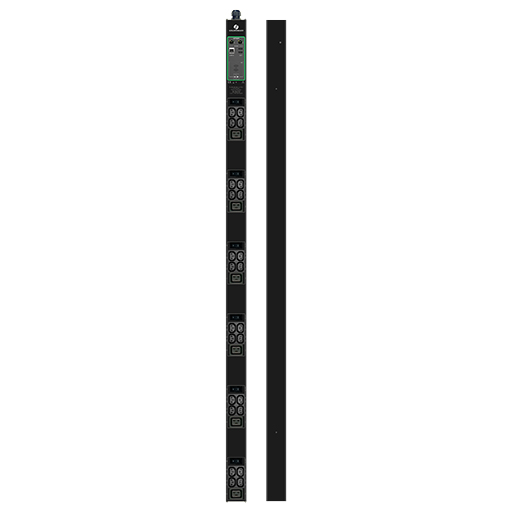

This vertical 0U PDU solution delivers precise power distribution with intelligent switching capabilities, metered input, and remote management features. Designed for high-density IT environments, it combines robust monitoring, advanced connectivity, and ease of integration with a toolless setup.

Key Features Three-phase 32 A metered input with switched outlets
24 total outlets: 18 x IEC C13 and 6 x IEC C19
Toolless, hot-swappable communications module with NFC smartphone support
Supports daisy chaining of up to 100 PDUs on a single IP address
Secure TLS-encrypted communication with Enertree software
General ESD-safe enclosure with NFC app control, IP sharing for up to 100 units, and toolless module replacement enhance both safety and operational flexibility.

Connectivity Dual 1Gbps Ethernet ports (RJ45/USB), RJ45 daisy-chain support, USB expansion and sensor integration, with secure TLS communication.

Power Input Three-phase 32 A input at 230/400V (50Hz), supplied via 3.0m halogen-free 5G6 power lead with CEE plug and strain relief (height 2.5cm).

Input Metering Tracks voltage, current, active/reactive/apparent power, energy usage, frequency, power factor, crest factor, and THD.

Mount & Enclosure Black aluminum/stainless steel casing (IP20), 0U design with toolless mount buttons. Dimensions: 1510 x 65 x 52.5 mm.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Switched Outlets This functionality allows connected IT hardware to be remotely powered on or off, enhancing flexibility and efficiency in data centre management. Utilising Near Zero Voltage Switching (N-ZVS) and Outlet Switching Delay, each outlet can be controlled with optimised performance while reducing electrical stress on the power infrastructure.

A remotely switchable PDU provides key benefits such as: Improved energy efficiency by powering down unused equipment, Reduced operational costs through fewer on-site interventions, Enhanced outlet-level power control, Increased availability via remote reboots during incidents In addition, the PDU supports compliance with EU energy efficiency regulations, including the Energy Efficiency Directive (EED).

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The 7385VIS1101 is a vertical PDU (0U) providing single-phase 16 A metered input with 24 switched outlets. It features advanced remote monitoring via a smartphone NFC app, and up to 100 PDUs can be managed under a single IP address. The communications module is ESD-safe and can be hot-swapped without tools for minimal downtime.

Key Features General Connectivity: Dual 1Gbps Ethernet (RJ45/USB), RJ45 daisy chain, USB expansion/sensor.
Encrypted Communication: TLS encryption for secure data transmission with Enertree PDU monitoring and management software.
Enclosure: Robust black aluminum profile with stainless steel covers (IP20 rating).
Toolless Mounting: Easy installation with toolless mounting buttons (brackets not included).
Monitoring: Includes detailed input metering for precise monitoring of power metrics.
IEC 60320 Outlets 4 x IEC 60320 C19, 20 x IEC 60320 C13 outlets to provide flexible power distribution.

Power Input Single-phase 16 A at 230VAC, 50Hz for consistent power delivery.

Switched Outlets 24 times bistable near-zero crossing switching relays for reliable power switching.

Cable & Plug 3-meter power lead (3G2.5 halogen-free) with CEE plug, strain relief height of 2.5 cm.

Dimensions L x W x D = 1140 x 65 x 52.5 mm (0U), excluding strain relief, mounting, and cable bending radius.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Switched Outlets This functionality allows connected IT hardware to be remotely powered on or off, enhancing flexibility and efficiency in data centre management. Utilising Near Zero Voltage Switching (N-ZVS) and Outlet Switching Delay, each outlet can be controlled with optimised performance while reducing electrical stress on the power infrastructure.

A remotely switchable PDU provides key benefits such as: Improved energy efficiency by powering down unused equipment, Reduced operational costs through fewer on-site interventions, Enhanced outlet-level power control, Increased availability via remote reboots during incidents In addition, the PDU supports compliance with EU energy efficiency regulations, including the Energy Efficiency Directive (EED).

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

This vertical 0U PDU combines precise metering, secure connectivity, and individual outlet switching in a compact, tool-free design. Built for modern data centers, it streamlines monitoring, reduces cabling, and supports smart management across shared infrastructures—all while maintaining high electrical performance and durability.

Key Features Three-phase 16 A input with full electrical metering and remote display via NFC app
Switched outlet control with 30 bistable relays for efficient power cycling
Dual 1Gbps Ethernet ports with daisy-chain support and USB expansion
Secure TLS communication with Enertree management software
Toolless installation, hot-swappable communication module, and ESD-safe design
General Remotely view status using an NFC smartphone app; manage up to 100 PDUs on a single IP address; hot-swappable, toolless communication module for quick serviceability; ESD-safe construction.

Outlets & Switching 30 total switched outlets: 24 x IEC C13, 6 x IEC C19. Switched using bistable relays triggered near zero crossing for low-wear performance.

Connectivity Dual 1Gbps Ethernet (RJ45/USB), RJ45 daisy chain, USB expansion for sensors. Secure TLS-encrypted communication with complimentary Enertree software suite.

Power & Metering Three-phase 16 A, 230/400V input; input metering includes voltage, current, power (active, apparent, reactive), energy (kWh, VAh), frequency, power factor, crest factor, and THD.

Physical Design Aluminum profile with black/stainless finish (IP20 rated). 1375 x 65 x 52.5 mm (excluding cable and mounting space). Toolless button mount with pre-set positions. 3.0m halogen-free power cable with CEE plug. Top-entry side cover for cable access.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Switched Outlets This functionality allows connected IT hardware to be remotely powered on or off, enhancing flexibility and efficiency in data centre management. Utilising Near Zero Voltage Switching (N-ZVS) and Outlet Switching Delay, each outlet can be controlled with optimised performance while reducing electrical stress on the power infrastructure.

A remotely switchable PDU provides key benefits such as: Improved energy efficiency by powering down unused equipment, Reduced operational costs through fewer on-site interventions, Enhanced outlet-level power control, Increased availability via remote reboots during incidents In addition, the PDU supports compliance with EU energy efficiency regulations, including the Energy Efficiency Directive (EED).

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

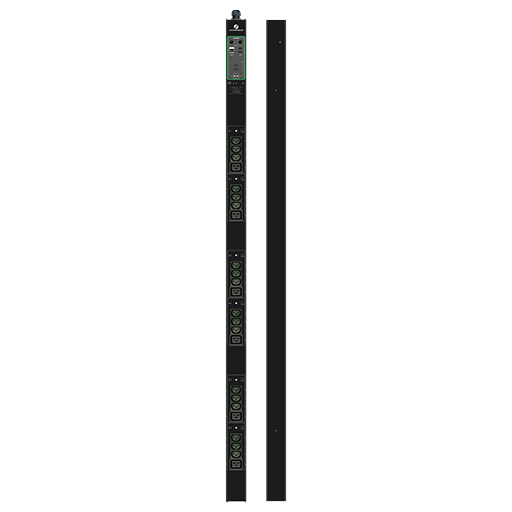

The GM 8344VIS3361 Switched PDU 5.0 Gateway is a high-performance, vertical power distribution unit designed for modern industrial applications. Its compact 0U design, combined with advanced monitoring and switching capabilities, ensures optimal management of power in critical environments. The device is highly versatile, supporting remote display via NFC, and it integrates seamlessly with Enertree PDU monitoring software for efficient power management.

Key Features: Remote display with NFC for easy setup and monitoring
30 switched outlets (24 x IEC 60320 C13, 6 x IEC 60320 C19) for flexible power management
Toolless hot-swappable communications module for easy maintenance
Integrated energy metering for real-time performance tracking
ESD safe ensuring enhanced protection in sensitive environments
General Remote display using smartphone NFC app, up to 100 PDUs sharing one IP address. ESD safe and toolless, with a hot-swappable communications module.

Connectivity Dual 1Gbps Ethernet (RJ45/USB), RJ45 daisy chain, USB expansion/sensor. Encrypted communication with Enertree PDU management software.

Enclosure Black aluminum profile with stainless steel covers, rated IP20 for protection against dust and water ingress.

Power Input Three-phase 32 A, 230/400V, 50Hz power input for reliable performance in industrial settings.

Fuses Six hydraulic-magnetic breakers (16A) for safe and secure power protection.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Switched Outlets This functionality allows connected IT hardware to be remotely powered on or off, enhancing flexibility and efficiency in data centre management. Utilising Near Zero Voltage Switching (N-ZVS) and Outlet Switching Delay, each outlet can be controlled with optimised performance while reducing electrical stress on the power infrastructure.

A remotely switchable PDU provides key benefits such as: Improved energy efficiency by powering down unused equipment, Reduced operational costs through fewer on-site interventions, Enhanced outlet-level power control, Increased availability via remote reboots during incidents In addition, the PDU supports compliance with EU energy efficiency regulations, including the Energy Efficiency Directive (EED).

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

Designed for intelligent power management in enterprise server environments, the GM B3ECDIS3361 delivers precision, control, and reliability in a compact double-horizontal form factor. With advanced switching, full-spectrum input metering, and smartphone-enabled remote access, this PDU streamlines energy distribution without compromising uptime or efficiency.

Key Features 12 switched IEC C13 outlets with near-zero crossing relays
Smartphone NFC setup with remote monitoring via Enertree software
Supports up to 100 PDUs on a single IP address
Dual 1Gbps Ethernet with RJ45 daisy-chaining and USB expansion
Comprehensive electrical monitoring: V, A, W, VA, VAR, kWh, Hz, and more
Modular, hot-swappable communication unit with ESD protection
Toolless installation with black aluminum housing and stainless steel covers
IEC 60320 Switched Outlets Twelve individually switched IEC 60320 C13 outlets, powered by bistable relays enabling low-stress, near-zero crossing switching for each outlet.

Mounting & Enclosure IP20-rated black aluminum chassis with stainless steel sidecovers, designed for 19-inch double-deep rack mount installations. Dimensions: 440 x 65 x 105 mm (1.5U).

Power Input Three-phase 32A input at 230/400V (50Hz) delivered via a 3.0m halogen-free 5G6 power lead and CEE plug. Rear-left cable entry with 2.5cm strain relief height.

Input Metering Monitors voltage, current, active/reactive/apparent power, energy consumption (kWh), frequency, power factor, crest factor, and total harmonic distortion.

Connectivity & Communication Dual 1Gbps Ethernet ports, USB expansion/sensor support, RJ45 daisy-chaining. Encrypted TLS communication with Enertree software and NFC smartphone app for remote display and setup.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Switched Outlets This functionality allows connected IT hardware to be remotely powered on or off, enhancing flexibility and efficiency in data centre management. Utilising Near Zero Voltage Switching (N-ZVS) and Outlet Switching Delay, each outlet can be controlled with optimised performance while reducing electrical stress on the power infrastructure.

A remotely switchable PDU provides key benefits such as: Improved energy efficiency by powering down unused equipment, Reduced operational costs through fewer on-site interventions, Enhanced outlet-level power control, Increased availability via remote reboots during incidents In addition, the PDU supports compliance with EU energy efficiency regulations, including the Energy Efficiency Directive (EED).

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The GM 7C54DMS1323 offers precise energy oversight and flexible control in high-density IT environments. Designed with dual horizontal installation, this gateway PDU supports 32A single-phase input and advanced metering across two independent branches. Featuring 12 switched outlets, hot-swappable communication capabilities, and a secure remote access interface, it ensures consistent uptime and efficient energy usage across modern data centers.

Key Features Double horizontal PDU with sleek sidecover 19-inch housing
12 switched outlets supporting bistable relays and IEC Lock protection, including 6 x IEC Lock 60320 – CX (C13/C15/C19/C21) and 6 x IEC Lock C13/C15 (IEC Lock)
Remote management via smartphone NFC app and encrypted TLS communication
Dual metered branches with detailed voltage, power, and frequency data
Toolless hot-swappable module and USB expansion for scalability
General Remote display with NFC smartphone app; manages up to 100 PDUs with hot-swappable, toolless communication modules. ESD-safe design.

Switched Outlets 12 bistable relay-based outlets with secure switching and near-zero crossing activation. Includes IEC Lock for secure power retention, featuring 6 x IEC Lock 60320 – CX (C13/C15/C19/C21) and 6 x IEC Lock C13/C15 (IEC Lock).

Connectivity Dual 1Gbps Ethernet ports (RJ45/USB), RJ45 daisy chain, USB expansion/sensor. Supports TLS-encrypted communication with Enertrec management suite.

Power Input Single phase 32 A, 230VAC, 50Hz

Branch Metering Captures voltage, current, active/reactive/apparent power, energy (kWh/kVAh), frequency, power factor, crest factor, and THD (5%) on two separate branches.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Switched Outlets This functionality allows connected IT hardware to be remotely powered on or off, enhancing flexibility and efficiency in data centre management. Utilising Near Zero Voltage Switching (N-ZVS) and Outlet Switching Delay, each outlet can be controlled with optimised performance while reducing electrical stress on the power infrastructure.

A remotely switchable PDU provides key benefits such as: Improved energy efficiency by powering down unused equipment, Reduced operational costs through fewer on-site interventions, Enhanced outlet-level power control, Increased availability via remote reboots during incidents In addition, the PDU supports compliance with EU energy efficiency regulations, including the Energy Efficiency Directive (EED).

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

Designed for modern IT infrastructures, the GM C1FCVIS1101 combines advanced switching capabilities with smart connectivity to deliver robust power distribution and intuitive control. Supporting up to 30 outlets and tailored configurability, it enables precise power management and seamless integration across enterprise-grade systems.

Key Features: Vertical 0U rack-mount design with 30 switched outlets (24 x IEC 60320 C13, 6 x IEC 60320 C19)
Smartphone NFC remote display and tool-less module access
Dual 1Gbps Ethernet with secure TLS communication
Active power monitoring including V, A, W, PF, and THDi
Supports CEE plug with customizable configurations
IEC 60320 Outlets Equipped with 30 IEC outlets (24x C13, 6x C19), featuring bistable relays with near-zero switching delay.

Remote Monitoring Supports remote display via smartphone NFC app, with shared IP access for up to 100 PDUs, along with ESD-safe and tool-less module swapping for streamlined maintenance.

Connectivity Dual Gigabit Ethernet ports (RJ45), USB expansion, sensor integration, and secure TLS encrypted communication—optimized for integration with the Entree monitoring platform.

Mount & Enclosure Black anodized aluminum body with stainless steel IP20 covers, secured using toolless mount buttons (customizable bracket positions up to 106.0mm apart).

Power & Metering Operates on single-phase 16 A, 230V AC input, delivering real-time data on voltage, current, energy, and harmonics for accurate usage analysis and reporting.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Switched Outlets This functionality allows connected IT hardware to be remotely powered on or off, enhancing flexibility and efficiency in data centre management. Utilising Near Zero Voltage Switching (N-ZVS) and Outlet Switching Delay, each outlet can be controlled with optimised performance while reducing electrical stress on the power infrastructure.

A remotely switchable PDU provides key benefits such as: Improved energy efficiency by powering down unused equipment, Reduced operational costs through fewer on-site interventions, Enhanced outlet-level power control, Increased availability via remote reboots during incidents In addition, the PDU supports compliance with EU energy efficiency regulations, including the Energy Efficiency Directive (EED).

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

This Switched PDU 5.0 Gateway is designed for optimal power distribution with advanced metering capabilities and remote monitoring, ensuring efficient management of your infrastructure. Featuring tool-less installation and a compact 0U profile, it offers ease of use while supporting high-power and safe operation in demanding environments.

Key Features: Remote display using smartphone NFC app for up to 100 PDUs.
Tool-less hot-swappable communications module, ESD safe.
Dual 1Gbps Ethernet connectivity with encrypted communication.
24 switched outlets with bistable zero-crossing switching relays.
Accurate metering for power, voltage, current, and energy consumption.
IEC 60320 Outlets Includes 20 x IEC 60320 C13 outlets and 4 x IEC 60320 C19 outlets for versatile power distribution to multiple devices.

Remote Display Supports remote display through a smartphone NFC app, allowing up to 100 PDUs to share one IP address for easy monitoring and control.

Connectivity Equipped with a dual 1Gbps Ethernet gateway module (RJ45/USB) for seamless communication, along with TLS encrypted connection to Enertree PDU monitoring software.

Tool-less Hot-Swappable Module The communication module is hot-swappable without the need for tools, ensuring minimal downtime and flexibility during maintenance or upgrades.

Power Input Supports single-phase power input at 32A, 230VAC with a 50Hz frequency, designed for robust and reliable performance in demanding environments.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Switched Outlets This functionality allows connected IT hardware to be remotely powered on or off, enhancing flexibility and efficiency in data centre management. Utilising Near Zero Voltage Switching (N-ZVS) and Outlet Switching Delay, each outlet can be controlled with optimised performance while reducing electrical stress on the power infrastructure.

A remotely switchable PDU provides key benefits such as: Improved energy efficiency by powering down unused equipment, Reduced operational costs through fewer on-site interventions, Enhanced outlet-level power control, Increased availability via remote reboots during incidents In addition, the PDU supports compliance with EU energy efficiency regulations, including the Energy Efficiency Directive (EED).

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The GM E2C5VMS1323 Switched PDU 5.0 Gateway offers versatile power distribution in a compact 0U vertical design, tailored for both small and large-scale deployments. It supports a wide range of monitoring and management features, including real-time metering, branch-level energy analysis, and advanced outlet control. This unit is ideal for environments requiring robust, scalable, and efficient power management solutions. Its combination of 30 switched outlets and the ability to monitor each branch individually provides enhanced control over your power infrastructure.

Key Features Remote display via smartphone NFC app
Up to 100 PDUs share a single IP address
Toolless hot-swappable communication module
Dual 1Gbps Ethernet connectivity (RJ45/USB)
Energy metering per outlet, branch, and overall unit
IEC 60320 Outlets 18 x IEC Lock 60320 – CX (C13/C15/C19/C21) and 12 x IEC Lock C13/C15.

Connectivity Gateway Module: Dual 1Gbps Ethernet (RJ45/USB), RJ45 daisy chain, USB expansion/sensor. TLS encrypted communication to Enertree PDU monitoring & management software.

Power Input Single phase 32 A, 230VAC - 50Hz.

Enclosure Profile color black, aluminium with stainless steel covers, IP20 rated.

Fuses 2 x Hydraulic-magnetic breaker 16A.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Switched Outlets This functionality allows connected IT hardware to be remotely powered on or off, enhancing flexibility and efficiency in data centre management. Utilising Near Zero Voltage Switching (N-ZVS) and Outlet Switching Delay, each outlet can be controlled with optimised performance while reducing electrical stress on the power infrastructure.

A remotely switchable PDU provides key benefits such as: Improved energy efficiency by powering down unused equipment, Reduced operational costs through fewer on-site interventions, Enhanced outlet-level power control, Increased availability via remote reboots during incidents In addition, the PDU supports compliance with EU energy efficiency regulations, including the Energy Efficiency Directive (EED).

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

Designed for high-efficiency power distribution in modern rack environments, the GM F47CVIS3101 delivers intelligent control, precision metering, and versatile connectivity in a compact vertical 0U form. With 42 switched outlets and remote monitoring capabilities, this unit simplifies power management across complex setups while maintaining industry safety and mounting standards.

Key Features Switched outlet control with 42 bistable relays (30 x IEC C13 and 12 x IEC C19)
Full input metering: voltage, current, power, energy, and quality metrics
Dual 1Gbps Ethernet with daisy chain and USB expansion
Remote management via smartphone NFC app and Enertree software
Toolless, hot-swappable communications module
IEC 60320 Outlets Equipped with 30 x IEC C13 and 12 x IEC C19 outlets, all switchable using bistable relays near zero-crossing for safety and efficiency.

Power Configuration Three-phase 16 A input with CEE plug and 3.0m halogen-free power lead. Operates at 230/400V – 50Hz.

Metering & Monitoring Monitors voltage, current, power (W/VA/VAR), energy (kWh/VAh), frequency, power factor, crest factor, and total harmonic distortion.

Enclosure & Mounting Black aluminum with stainless steel cover (IP20). Mounts vertically (0U) using toolless mount buttons. Toolless brackets sold separately.

Connectivity & Intelligence Features a gateway module with dual Ethernet, USB expansion, and RJ45 daisy chaining. Encrypted communication supports centralized software integration.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Switched Outlets This functionality allows connected IT hardware to be remotely powered on or off, enhancing flexibility and efficiency in data centre management. Utilising Near Zero Voltage Switching (N-ZVS) and Outlet Switching Delay, each outlet can be controlled with optimised performance while reducing electrical stress on the power infrastructure.

A remotely switchable PDU provides key benefits such as: Improved energy efficiency by powering down unused equipment, Reduced operational costs through fewer on-site interventions, Enhanced outlet-level power control, Increased availability via remote reboots during incidents In addition, the PDU supports compliance with EU energy efficiency regulations, including the Energy Efficiency Directive (EED).

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The GM 017EDIS3101 Switched PDU 5.0 Gateway is an advanced power distribution unit, designed to optimize power management in a variety of environments. This model combines the functionality of remote display, intelligent metering, and seamless network integration. With a robust build and multiple connectivity options, it is ideal for environments requiring reliable and efficient power distribution with real-time monitoring and management.

Key Features: Remote display via smartphone NFC app
12 switched C13 outlets for flexible and efficient outlet control
Up to 100 PDUs share a single IP address
ESD safe and toolless hot-swappable communications module
TLS encrypted communication for secure integration with Enertree software
IEC 60320 Outlets 12 x IEC 60320 C13, with 12 bistable near zero crossing switching relays.

Enclosure Black aluminum with stainless steel covers (IP20 rated).

Input Metering Voltage (V), Current (A), Active Power (W), Apparent Power (VA), Reactive Power (VAR), Energy (kWh), Apparent Energy (VAh), Frequency (Hz), Power Factor, Crest Factor, Total Harmonic Distortion (%).

Power Input Three-phase 16A, 230/400V, 50Hz.

Connectivity Dual 1Gbps Ethernet ports, RJ45 daisy chain, USB expansion/sensor.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Switched Outlets This functionality allows connected IT hardware to be remotely powered on or off, enhancing flexibility and efficiency in data centre management. Utilising Near Zero Voltage Switching (N-ZVS) and Outlet Switching Delay, each outlet can be controlled with optimised performance while reducing electrical stress on the power infrastructure.

A remotely switchable PDU provides key benefits such as: Improved energy efficiency by powering down unused equipment, Reduced operational costs through fewer on-site interventions, Enhanced outlet-level power control, Increased availability via remote reboots during incidents In addition, the PDU supports compliance with EU energy efficiency regulations, including the Energy Efficiency Directive (EED).

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The GM 1FE2DIS1101 is engineered to bring intelligent power management to modern IT racks. Designed with remote configuration in mind and built to withstand demanding environments, it delivers reliable performance, streamlined deployment, and enhanced visibility of power metrics—ideal for scalable infrastructure applications.

Key Features: 12 x IEC Lock 60320 – CX (C13/C15/C19/C21) and 6 x IEC Lock C13/C15 (IEC Lock)
Comprehensive input metering for real-time power quality analysis
Dual Ethernet with RJ45 daisy-chain and USB expansion for connectivity
Remote setup and monitoring via NFC smartphone app
Durable aluminum build with IP20-rated stainless steel covers
IEC 60320 Outlets Equipped with 12 x IEC Lock 60320 – CX (C13/C15/C19/C21) and 6 x IEC Lock C13/C15 (IEC Lock), enabling secure and flexible power distribution across varied equipment types.

Power Input & Compatibility Supports single phase 16 A at 230VAC, 50Hz, ensuring compatibility with standard rack systems and infrastructure designs.

Intelligent Metering Tracks voltage, current, wattage, apparent power, reactive energy, total harmonic distortion, and more, helping maintain system reliability.

Remote Access & Expansion Includes a gateway module with dual 1Gbps Ethernet (RJ45/USB), RJ45 daisy chaining, and USB sensor support with TLS encryption via complimentary Enertree software.

Mounting & Design 19-inch double-deep housing with rear-side left cable entry and profile-color aluminum casing with stainless black covers for secure and efficient deployment.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Switched Outlets This functionality allows connected IT hardware to be remotely powered on or off, enhancing flexibility and efficiency in data centre management. Utilising Near Zero Voltage Switching (N-ZVS) and Outlet Switching Delay, each outlet can be controlled with optimised performance while reducing electrical stress on the power infrastructure.

A remotely switchable PDU provides key benefits such as: Improved energy efficiency by powering down unused equipment, Reduced operational costs through fewer on-site interventions, Enhanced outlet-level power control, Increased availability via remote reboots during incidents In addition, the PDU supports compliance with EU energy efficiency regulations, including the Energy Efficiency Directive (EED).

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.
