Schleifenbauer Monitored PDUs

This PDU solution combines dense outlet capacity with intelligent monitoring and a modular network interface for high-performance environments. Designed for flexibility, it supports up to 100 units sharing a single IP via a secure gateway. With outlet-level insight and a hot-swappable communications module, it offers real-time visibility without disruption. Built with an aluminium and stainless-steel enclosure, it ensures long-term durability in rack-mounted vertical applications.

Key Features: Secure, encrypted TLS communication via gateway module
Metered inputs, branches (12x), and all 30 outlets
Toolless, hot-swappable communication module with smartphone NFC support
3-phase 63A power input with 43.6 kVA capacity
Supports up to 100 PDUs on a shared IP address
Input Power Capacity Three-phase 63 A input at 230/400V, supporting up to 43.6 kVA for high-load installations.

Outlet Configuration 30 IEC outlets (C13/C15/C19/C21) with IEC Lock, each individually metered for full visibility.

Metering Capability Monitors voltage, current, power (active, reactive, apparent), energy, frequency, and distortion.

Network Connectivity Dual 1GbE ports, USB, and RJ45 daisy-chain, all secured via TLS and linked to Enertree software.

Enclosure & Design Black anodized aluminium with stainless steel side covers, IP20 rated, tool-free and ESD-safe.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Individually Monitored Outlets This functionality provides real-time insight into the energy consumption of each connected IT device through individually monitored outlets. It enables precise measurement of voltage, current, power and energy (kWh) per outlet, allowing organisations to optimise energy management and cost allocation.

Ideal for capacity planning, predictive maintenance, and cost distribution in environments such as colocation facilities, it also enables detailed energy analysis, real-time monitoring and reporting, and seamless integration with DCIM tools.

This functionality supports sustainability goals by improving energy efficiency – for example, by identifying so-called “zombie servers” that consume power but contribute no real workload. Eliminating such unused resources leads to significant cost savings and improved operational efficiency.

Measured parameters: Voltage (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Power factor.

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The Monitored PDU 5.0 Gateway offers remote display via smartphone NFC app, supporting up to 100 PDUs on a single IP address. With a tool-less hot-swappable communications module, dual 1Gbps Ethernet connectivity, and secure TLS encryption, it ensures seamless integration and efficient power management. The unit features 36 outlets with full metering capabilities, and its durable aluminum profile with stainless steel covers ensures long-lasting performance. Ideal for data centers, it supports three-phase 32A power and comprehensive metering for voltage, current, active power, and more.

Key Features Remote display using smartphone NFC app, up to 100 PDUs share one IP address.
Toolless hot-swappable communications module.
36 x IEC 60320 outlets (C13/C15/C19/C21) with IEC Lock options.
Input metering for voltage, current, power, energy, and harmonic distortion.
6 x Hydraulic-magnetic breakers (16A) for reliable circuit protection.
Remote Display & NFC App Allows for up to 100 PDUs to be monitored via a smartphone NFC app, simplifying remote management.

Toolless Hot-Swappable Module The communications module can be swapped without the need for tools, ensuring easy and efficient maintenance.

IEC 60320 Outlets 36 x IEC 60320 - C13/C15/C19/C21 and C13/C15 (IEC Lock) outlets ensure secure connections for various devices and equipment.

Comprehensive Metering Metering capabilities include voltage, current, active power, reactive power, energy, frequency, and harmonic distortion.

Hydraulic-Magnetic Breakers 6 hydraulic-magnetic breakers provide protection for the PDUs, ensuring reliable operation and safety.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Individually Monitored Outlets This functionality provides real-time insight into the energy consumption of each connected IT device through individually monitored outlets. It enables precise measurement of voltage, current, power and energy (kWh) per outlet, allowing organisations to optimise energy management and cost allocation.

Ideal for capacity planning, predictive maintenance, and cost distribution in environments such as colocation facilities, it also enables detailed energy analysis, real-time monitoring and reporting, and seamless integration with DCIM tools.

This functionality supports sustainability goals by improving energy efficiency – for example, by identifying so-called “zombie servers” that consume power but contribute no real workload. Eliminating such unused resources leads to significant cost savings and improved operational efficiency.

Measured parameters: Voltage (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Power factor.

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The PDU offers a streamlined and efficient solution for high-demand environments, providing reliable power distribution and comprehensive monitoring. With built-in metering capabilities, it delivers real-time insights into power usage and performance. Its tool-free, hot-swappable design simplifies maintenance, ensuring minimal downtime. Whether for small-scale setups or large installations, this unit’s robust construction and advanced features make it an essential asset for any network infrastructure.

Key Features Remote display using smartphone NFC app
Toolless hot-swappable communications module
Supports up to 100 PDUs sharing one IP address
Comprehensive metering capabilities for voltage, current, power, and more
Hydraulic-magnetic breaker protection for improved safety
Power Input Three-phase 32 A, 230/400V - 50Hz

Cable Entry Power entry: Rear-side left, Power lead: 5G6 halogen-free with CEE plug, 3.0m

Outlets 3 x IEC Lock C13/C15, 6 x IEC Lock 60320 – CX (C13/C15/C19/C21)

Input Metering Voltage (V), Current (A), Active Power (W), Apparent Power (VA), Energy (kWh)

Fuses 6 x Hydraulic-magnetic breaker 16A

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Individually Monitored Outlets This functionality provides real-time insight into the energy consumption of each connected IT device through individually monitored outlets. It enables precise measurement of voltage, current, power and energy (kWh) per outlet, allowing organisations to optimise energy management and cost allocation.

Ideal for capacity planning, predictive maintenance, and cost distribution in environments such as colocation facilities, it also enables detailed energy analysis, real-time monitoring and reporting, and seamless integration with DCIM tools.

This functionality supports sustainability goals by improving energy efficiency – for example, by identifying so-called “zombie servers” that consume power but contribute no real workload. Eliminating such unused resources leads to significant cost savings and improved operational efficiency.

Measured parameters: Voltage (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Power factor.

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

This intelligent power distribution unit is designed for high-performance data center environments requiring precise energy tracking, easy integration, and future-ready connectivity. With 24 metered outlets—18 x IEC C13 and 6 x IEC C19—it supports diverse rack equipment while offering encrypted communication and modular expandability. Its design simplifies infrastructure monitoring while maintaining electrical safety and operational flexibility.

Key Features 24 metered outlets: 18 x IEC C13, 6 x IEC C19 for flexible device support
Smartphone NFC app for remote display and diagnostics
Toolless, hot-swappable communication module
Dual Ethernet and USB gateway connectivity with TLS encryption
High-quality aluminum and stainless steel enclosure with IP20 rating
General Remote access via smartphone NFC, supports up to 100 PDUs on a single IP, ESD-safe design, and modular hot-swappable comms unit with no tools required.

Connectivity Dual 1Gbps Ethernet ports, RJ45 daisy chain, USB expansion for sensors, with TLS-encrypted communication linked to Enertree monitoring software.

Enclosure Sturdy aluminum profile in black with stainless steel covers; IP20-rated for safety and durability in professional rack environments.

Power & Metering Three-phase 32A input at 230/400V (50Hz), full metering at input and outlet levels, including voltage, current, power, energy metrics, harmonic distortion, and more.

Mount & Cabling Toolless mounting with spacing options at 800mm, 255mm, and 1055mm. Comes with a 3.0m halogen-free power lead and CEE plug, including strain relief for cable safety.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Individually Monitored Outlets This functionality provides real-time insight into the energy consumption of each connected IT device through individually monitored outlets. It enables precise measurement of voltage, current, power and energy (kWh) per outlet, allowing organisations to optimise energy management and cost allocation.

Ideal for capacity planning, predictive maintenance, and cost distribution in environments such as colocation facilities, it also enables detailed energy analysis, real-time monitoring and reporting, and seamless integration with DCIM tools.

This functionality supports sustainability goals by improving energy efficiency – for example, by identifying so-called “zombie servers” that consume power but contribute no real workload. Eliminating such unused resources leads to significant cost savings and improved operational efficiency.

Measured parameters: Voltage (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Power factor.

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

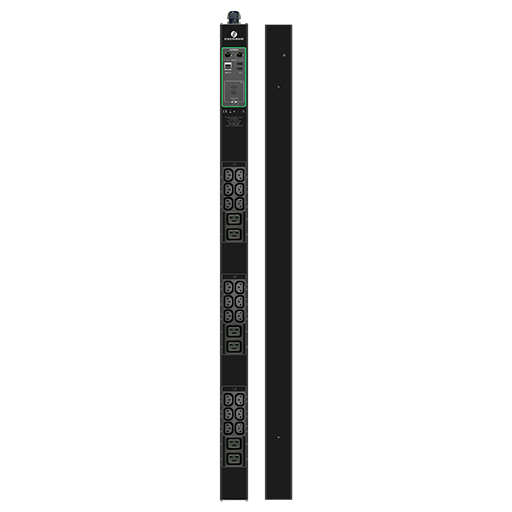

The 5A17VIM3101 Monitored PDU 5.0 Gateway provides high-efficiency power distribution and advanced monitoring, making it perfect for demanding environments that require reliable energy management and flexibility.

Key Features Vertical PDU (0U): The 5A17VIM3101 features a vertical 0U form factor, allowing for efficient use of rack space in tight environments.
Three-phase 16A Power Input: It supports a three-phase 16A input, providing reliable power delivery for high-demand applications.
Metered Input: The PDU includes metering for input voltage, current, and power consumption, offering precise control over energy usage.
Metered Outlets: With 24 metered outlets, the device enables detailed monitoring of power consumption across all connected equipment.
24 Outlets: The PDU provides 24 outlets (18 x IEC 60320 C13 and 6 x IEC 60320 C19), ensuring compatibility with various devices.
Power Input Three-phase 16A, 230/400V, 50Hz for reliable and efficient power delivery.

Connectivity Dual 1Gbps Ethernet (RJ45/USB), daisy-chaining, and USB expansion for flexible communication options.

Remote Display Smartphone NFC app enables convenient remote monitoring and control.

Durability ESD safe design with tool-less hot-swappable communications module for easy maintenance.

Mounting Tool-less mounting system allows for quick and easy installation with adjustable positioning.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Individually Monitored Outlets This functionality provides real-time insight into the energy consumption of each connected IT device through individually monitored outlets. It enables precise measurement of voltage, current, power and energy (kWh) per outlet, allowing organisations to optimise energy management and cost allocation.

Ideal for capacity planning, predictive maintenance, and cost distribution in environments such as colocation facilities, it also enables detailed energy analysis, real-time monitoring and reporting, and seamless integration with DCIM tools.

This functionality supports sustainability goals by improving energy efficiency – for example, by identifying so-called “zombie servers” that consume power but contribute no real workload. Eliminating such unused resources leads to significant cost savings and improved operational efficiency.

Measured parameters: Voltage (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Power factor.

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

This vertical PDU (0 U) provides advanced power distribution, monitoring, and management for diverse applications. Featuring three-phase 32 A input, it ensures safe and efficient energy usage.

Key Features: Outlets: 36 x IEC 60320 C13 and 6 x IEC 60320 C19 outlets for flexible power distribution.
Remote Display: Use a smartphone NFC app for remote monitoring.
ESD Safe: The PDU is designed to prevent electrostatic discharge damage.
Toolless Communication Module: Hot-swappable for easy upgrades or replacements.
Encrypted Communication: Ensures secure data transmission with TLS encryption.
Mounting Flexibility: Toolless mounting options for quick and simple setup.
Remote Display Use the smartphone NFC app for remote monitoring. Up to 100 PDUs can share a single IP address for centralized management.

ESD Safe The design ensures the PDU is electrostatic discharge safe, providing protection for sensitive equipment.

Toolless Hot Swappable Communications Module The communications module can be easily swapped out without the need for tools, ensuring minimal downtime for maintenance or upgrades.

Encrypted Communication TLS encrypted communication is supported, ensuring the secure transfer of data to the complimentary Enertree software for monitoring and management.

Mounting Flexibility The PDU is equipped with toolless mount buttons, allowing for easy installation without the need for brackets, offering mounting options at specified positions.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Individually Monitored Outlets This functionality provides real-time insight into the energy consumption of each connected IT device through individually monitored outlets. It enables precise measurement of voltage, current, power and energy (kWh) per outlet, allowing organisations to optimise energy management and cost allocation.

Ideal for capacity planning, predictive maintenance, and cost distribution in environments such as colocation facilities, it also enables detailed energy analysis, real-time monitoring and reporting, and seamless integration with DCIM tools.

This functionality supports sustainability goals by improving energy efficiency – for example, by identifying so-called “zombie servers” that consume power but contribute no real workload. Eliminating such unused resources leads to significant cost savings and improved operational efficiency.

Measured parameters: Voltage (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Power factor.

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The A69CVIM1101 Monitored PDU 5.0 Gateway offers robust monitoring and management capabilities with a compact and versatile design. Perfect for environments that require efficient power distribution and real-time metering, this unit delivers up-to-date data and seamless connectivity, ensuring uninterrupted power management with ease of installation.

Key Features: Remote display via smartphone NFC app.
Supports up to 100 PDUs on one IP address.
Dual 1Gbps Ethernet and USB connectivity.
TLS encrypted communication for secure management.
ESD safe and toolless hot-swappable communications module.
Outlets 4 x IEC 60320 C19, 20 x IEC 60320 C13 outlets for versatile power distribution.

Enclosure Profile color black, aluminum with stainless steel covers (IP20).

Electrical Protection Overcurrent and overload protection, short-circuit protection for maximum safety.

Power Input Single-phase 16A, 230VAC, 50Hz.

Cable Entry Power entry side-cover top for easy cable management.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Individually Monitored Outlets This functionality provides real-time insight into the energy consumption of each connected IT device through individually monitored outlets. It enables precise measurement of voltage, current, power and energy (kWh) per outlet, allowing organisations to optimise energy management and cost allocation.

Ideal for capacity planning, predictive maintenance, and cost distribution in environments such as colocation facilities, it also enables detailed energy analysis, real-time monitoring and reporting, and seamless integration with DCIM tools.

This functionality supports sustainability goals by improving energy efficiency – for example, by identifying so-called “zombie servers” that consume power but contribute no real workload. Eliminating such unused resources leads to significant cost savings and improved operational efficiency.

Measured parameters: Voltage (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Power factor.

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The CB23VMM1323 Monitored PDU 5.0 Gateway is designed to provide a seamless power distribution solution for environments requiring robust energy monitoring and management. With advanced connectivity options and a compact design, it ensures precise power measurements across all outlets, making it an ideal choice for data centers, network racks, and other critical systems.

Key Features: Remote display via NFC smartphone app
Up to 100 PDUs sharing a single IP address
ESD safe, toolless, hot-swappable communication module
Dual 1Gbps Ethernet ports with encrypted communication
Enclosure with IP20 rating, black aluminum profile and stainless steel covers
Connectivity: Dual 1Gbps Ethernet (RJ45/USB), RJ45 daisy chain, USB expansion/sensor, TLS encrypted communication to Enertree PDU monitoring & management software.

Dimensions: L x W x D = 1130 x 65 x 52.5 mm (excluding strain relief, mounting & cable bending radius).

Power Input: Single-phase 32 A, 230VAC - 50Hz.

Outlets: 20 x IEC 60320 C13, 4 x IEC 60320 C19.

Metering: Voltage (V), current (A), active power (W), apparent power (VA), reactive power (VAR), energy (kWh), apparent energy (VAh), power factor, crest factor, total harmonic distortion (%).

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Individually Monitored Outlets This functionality provides real-time insight into the energy consumption of each connected IT device through individually monitored outlets. It enables precise measurement of voltage, current, power and energy (kWh) per outlet, allowing organisations to optimise energy management and cost allocation.

Ideal for capacity planning, predictive maintenance, and cost distribution in environments such as colocation facilities, it also enables detailed energy analysis, real-time monitoring and reporting, and seamless integration with DCIM tools.

This functionality supports sustainability goals by improving energy efficiency – for example, by identifying so-called “zombie servers” that consume power but contribute no real workload. Eliminating such unused resources leads to significant cost savings and improved operational efficiency.

Measured parameters: Voltage (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Power factor.

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

This advanced 0U PDU solution is engineered for high-performance environments requiring both outlet-level insight and scalable connectivity. Designed for efficient deployment, it combines high-density power delivery with secure remote monitoring, ensuring seamless integration into rack systems where uptime and intelligence are key.

Key Features 36 total IEC Lock outlets (18 x CX, 18 x standard)
Input and outlet-level metering for accurate power diagnostics
Supports 100 PDUs per shared IP via NFC smartphone access
Dual 1Gbps Ethernet with TLS encryption for secure communication
Toolless, hot-swappable communication module with ESD protection
Three-Phase 16A Input Delivers up to 11 kVA at 230/400V, providing reliable high-capacity power to connected equipment.

36 Outlet Configuration Equipped with 18 x IEC Lock 60320 – CX (C13/C15/C19/C21) and 18 x IEC Lock C13/C15, suitable for a wide range of devices.

Comprehensive Metering Monitors voltage, current, energy, power factor, THD, and more—across both input and each individual outlet.

Integrated Gateway Module Features dual 1Gbps Ethernet (RJ45/USB), USB expansion, and daisy chaining, secured via TLS encryption.

Toolless Mounting and Hot-Swap Module Installs easily with integrated mount buttons; communications module is ESD-safe and replaceable without downtime.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Individually Monitored Outlets This functionality provides real-time insight into the energy consumption of each connected IT device through individually monitored outlets. It enables precise measurement of voltage, current, power and energy (kWh) per outlet, allowing organisations to optimise energy management and cost allocation.

Ideal for capacity planning, predictive maintenance, and cost distribution in environments such as colocation facilities, it also enables detailed energy analysis, real-time monitoring and reporting, and seamless integration with DCIM tools.

This functionality supports sustainability goals by improving energy efficiency – for example, by identifying so-called “zombie servers” that consume power but contribute no real workload. Eliminating such unused resources leads to significant cost savings and improved operational efficiency.

Measured parameters: Voltage (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Power factor.

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

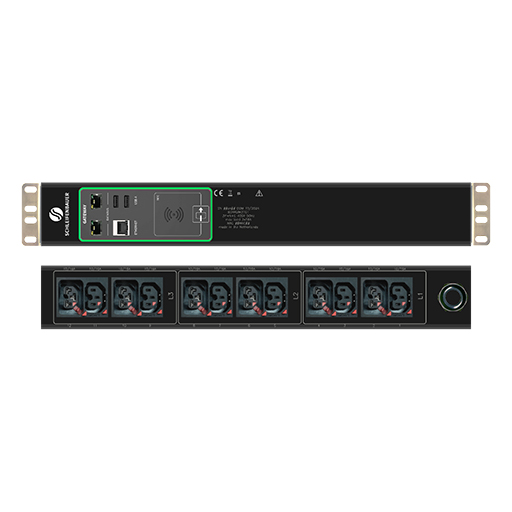

The Monitored PDU 5.0 Gateway offers advanced connectivity and metering capabilities for efficient power management. With the ability to monitor and manage up to 100 PDUs over a single IP address and tool-free communications module swapping, this device ensures seamless integration and operation. The system is designed for secure, TLS-encrypted communication and offers high-level monitoring via the Enertree software, making it ideal for enterprises that require precise energy usage tracking and control across multiple outlets and phases.

Key Features Metering Per Phase: Provides detailed monitoring of voltage, current, active power, and more for each individual phase.
Branch Metering: Tracks power consumption at the branch level for more granular energy management.
Outlet Metering: Monitors each outlet for real-time data, including power factors and harmonic distortion.
Outlet Switching Intelligence: Smart switching capabilities allow control over individual outlets for optimized load management.
Hot-Swappable Communication Module: Tool-free installation and maintenance of the communication module for quick upgrades or replacements.
Power Input Three-phase 16 A, 230/400V - 50Hz input ensures efficient power distribution for demanding applications.

Outlet Configuration The PDU features 12 outlets: 6 x IEC Lock 60320 – CX (C13/C15/C19/C21) and 6 x IEC Lock C13/C15, providing versatile and secure power distribution options.

Connectivity Dual 1Gbps Ethernet (RJ45/USB) with RJ45 daisy-chain and USB expansion ports ensure flexible connectivity options and easy scalability.

Enclosure Constructed from durable aluminium with stainless steel covers (IP20), offering robust protection for internal components.

Metering Features The PDU tracks detailed energy metrics per phase, outlet, and branch, including voltage, current, power factor, total harmonic distortion, and more for precise monitoring.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Individually Monitored Outlets This functionality provides real-time insight into the energy consumption of each connected IT device through individually monitored outlets. It enables precise measurement of voltage, current, power and energy (kWh) per outlet, allowing organisations to optimise energy management and cost allocation.

Ideal for capacity planning, predictive maintenance, and cost distribution in environments such as colocation facilities, it also enables detailed energy analysis, real-time monitoring and reporting, and seamless integration with DCIM tools.

This functionality supports sustainability goals by improving energy efficiency – for example, by identifying so-called “zombie servers” that consume power but contribute no real workload. Eliminating such unused resources leads to significant cost savings and improved operational efficiency.

Measured parameters: Voltage (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Power factor.

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The Schleifenbauer GM 0885VIM1321 Monitored Vertical PDU 5.0 Gateway offers an advanced, efficient solution for high-performance data center operations. With 30 monitored outlets and a 32A rating, this device ensures seamless power distribution and precise energy monitoring, making it an ideal choice for environments requiring optimal power management and reliability.

Key Features 32A current rating for high power output
30 individually monitored outlets for precise energy usage tracking
Supports EnerTree DCEM software for real-time monitoring and energy management
Daisy-chaining support for easy scaling and IP address management
Smartphone integration via NFC for local access and visual status indicators
Current rating The device has a current rating of 32A, providing a high power capacity for efficient operation in demanding environments.

30 Outlets 24 x IEC 60320 C13, 6 x IEC 60320 C19

Power Distribution Individual outlet monitoring for accurate energy data

Gateway Integration Software Compatibility: EnerTree DCEM for advanced power management

Daisy-Chaining Support Network Management: Up to 100 PDUs can be managed with one IP address

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Individually Monitored Outlets This functionality provides real-time insight into the energy consumption of each connected IT device through individually monitored outlets. It enables precise measurement of voltage, current, power and energy (kWh) per outlet, allowing organisations to optimise energy management and cost allocation.

Ideal for capacity planning, predictive maintenance, and cost distribution in environments such as colocation facilities, it also enables detailed energy analysis, real-time monitoring and reporting, and seamless integration with DCIM tools.

This functionality supports sustainability goals by improving energy efficiency – for example, by identifying so-called “zombie servers” that consume power but contribute no real workload. Eliminating such unused resources leads to significant cost savings and improved operational efficiency.

Measured parameters: Voltage (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Power factor.

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.



With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

The GM C899VIM1101 delivers robust power distribution control in a compact vertical format designed for high-density IT environments. With metered input and outlets, this 30-outlet PDU allows operators to monitor energy metrics in real time while streamlining power distribution across multiple racks. A smartphone-compatible NFC interface and dual Ethernet ports provide seamless integration into modern network infrastructures, making it ideal for enterprise-scale deployments that require both precision and scalability.

Key Features Vertical 0U form factor with side-cover cable entry for clean rack installations
Supports up to 100 PDUs sharing one IP address via smart gateway module
Real-time input and outlet-level metering for voltage, current, and energy usage
Toolless mounting buttons for quick and secure installation
Secure remote access via TLS encryption and smartphone NFC app
Power Input Single-phase 16 A, 230VAC – 50Hz input ensures consistent, reliable power for IT equipment.

Metering Capability Metered input and outlets provide granular data including voltage, current, frequency, power (W), and energy (kWh).

Outlet Configuration Equipped with 30 total outlets: 24 x IEC 60320 C13 and 6 x IEC 60320 C19 for mixed device support.

Connectivity Dual 1Gbps Ethernet (RJ45), USB, and TLS encrypted connections with optional expansion ports.

Enclosure Design Durable black aluminum housing with stainless steel covers (IP20) provides secure and heat-efficient protection.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Individually Monitored Outlets This functionality provides real-time insight into the energy consumption of each connected IT device through individually monitored outlets. It enables precise measurement of voltage, current, power and energy (kWh) per outlet, allowing organisations to optimise energy management and cost allocation.

Ideal for capacity planning, predictive maintenance, and cost distribution in environments such as colocation facilities, it also enables detailed energy analysis, real-time monitoring and reporting, and seamless integration with DCIM tools.

This functionality supports sustainability goals by improving energy efficiency – for example, by identifying so-called “zombie servers” that consume power but contribute no real workload. Eliminating such unused resources leads to significant cost savings and improved operational efficiency.

Measured parameters: Voltage (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Power factor.

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

This monitored PDU is a robust and flexible solution for high-density power distribution in data centers and network environments. Engineered for remote accessibility and precise monitoring, it integrates modern communication features and reliable metering to streamline power management across multiple PDUs. Designed with a slim profile and advanced input/output options, this unit supports demanding electrical infrastructures with ease.

Key Features Double horizontal PDU with 14 secure-locking IEC outlets
Metered input and metered outlets for detailed monitoring
Supports smartphone NFC app for remote access and control
Single-phase input rated at 230V AC / 50Hz, 16 A
Equipped with USB, Ethernet (RJ45/SBUS) for gateway communication
Power Input Single phase 16 A, 230VAC – 50Hz

Outlets 14x IEC 60320 – C13/C15/C19x12 and C13x15 (IEC Lock)

Connectivity Gigabit Ethernet module with RJ45/SBUS, USB expansion, NFC support

Input Metering Voltage (V), current (A), active power (W), apparent power (VA), reactive power (VAR), energy (kWh)

Enclosure Slim aluminum housing with stainless steel covers (IP20-rated)

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Individually Monitored Outlets This functionality provides real-time insight into the energy consumption of each connected IT device through individually monitored outlets. It enables precise measurement of voltage, current, power and energy (kWh) per outlet, allowing organisations to optimise energy management and cost allocation.

Ideal for capacity planning, predictive maintenance, and cost distribution in environments such as colocation facilities, it also enables detailed energy analysis, real-time monitoring and reporting, and seamless integration with DCIM tools.

This functionality supports sustainability goals by improving energy efficiency – for example, by identifying so-called “zombie servers” that consume power but contribute no real workload. Eliminating such unused resources leads to significant cost savings and improved operational efficiency.

Measured parameters: Voltage (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Power factor.

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.



With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

Designed for high-density environments, this advanced PDU system streamlines power monitoring and distribution with NFC-based remote access and full-spectrum metering. Its modular architecture, smart communication capabilities, and compact form factor make it a practical choice for modern IT setups that demand performance without sacrificing serviceability or space efficiency.

Key Features Remote display using smartphone NFC app for easy management
Tool-less, hot-swappable communications module for hassle-free upgrades
Up to 100 PDUs share a single IP address, maximizing efficiency
TLS encrypted communication to Enertree PDU monitoring software for secure data transmission
Full metering capabilities for accurate power monitoring
Connectivity Dual 1Gbps Ethernet (RJ45/USB) with RJ45 daisy chain and USB expansion/sensor for scalable communication options.

Power Input Single-phase 32 A, 230VAC at 50Hz supports high-capacity workloads while maintaining efficiency and stability.

Metering Capabilities Includes voltage, current, active/apparent/reactive power, frequency, power factor, crest factor, energy (kWh), and THD (%).

Enclosure Black aluminum chassis with stainless steel covers, rated IP20, compact 1.5U profile for space-conscious installations.

Outlets Equipped with 16 x IEC 60320 C13 and 2 x IEC 60320 C19 outlets, all metered individually for detailed energy tracking.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Individually Monitored Outlets This functionality provides real-time insight into the energy consumption of each connected IT device through individually monitored outlets. It enables precise measurement of voltage, current, power and energy (kWh) per outlet, allowing organisations to optimise energy management and cost allocation.

Ideal for capacity planning, predictive maintenance, and cost distribution in environments such as colocation facilities, it also enables detailed energy analysis, real-time monitoring and reporting, and seamless integration with DCIM tools.

This functionality supports sustainability goals by improving energy efficiency – for example, by identifying so-called “zombie servers” that consume power but contribute no real workload. Eliminating such unused resources leads to significant cost savings and improved operational efficiency.

Measured parameters: Voltage (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Power factor.

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

This double horizontal 1.5U PDU delivers advanced power monitoring and streamlined connectivity for data environments requiring precision and reliability. Built for ESD-safe deployment, it supports secure remote access via smartphone NFC and integrates seamlessly with Enertree’s encrypted monitoring platform. Its rugged construction, hot-swappable communication module, and detailed metering per input, branch, and outlet make it ideal for intelligent infrastructure management.

Key Features Metered per input, per branch, and per outlet for full visibility
Dual 1Gbps Ethernet ports with RJ45 daisy chain and USB expansion
Secure NFC smartphone interface with TLS-encrypted communication
Equipped with 12 IEC Lock outlets: 6 × CX (C13/C15/C19/C21) + 6 × C13/C15
32A single-phase input supporting 7.4 kVA power capacity
Remote Monitoring Access Smartphone-based NFC display supports up to 100 PDUs per IP address, offering secure TLS integration with Enertree software.

Integrated Gateway Module Includes dual 1Gbps Ethernet ports, USB expansion, and RJ45 daisy chaining for scalable and resilient network integration.

Precision Metering Input, two-branch, and 12-outlet metering includes voltage, current, power, power factor, harmonic distortion, and more.

Outlet Configuration Includes 6 x IEC Lock 60320 – CX (C13/C15/C19/C21) and 6 x IEC Lock C13/C15 outlets for high-retention, flexible connectivity.

Durable Build Constructed with black aluminum and stainless steel (IP20), featuring rear-side power entry and halogen-free 3.0m CEE plug.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Individually Monitored Outlets This functionality provides real-time insight into the energy consumption of each connected IT device through individually monitored outlets. It enables precise measurement of voltage, current, power and energy (kWh) per outlet, allowing organisations to optimise energy management and cost allocation.

Ideal for capacity planning, predictive maintenance, and cost distribution in environments such as colocation facilities, it also enables detailed energy analysis, real-time monitoring and reporting, and seamless integration with DCIM tools.

This functionality supports sustainability goals by improving energy efficiency – for example, by identifying so-called “zombie servers” that consume power but contribute no real workload. Eliminating such unused resources leads to significant cost savings and improved operational efficiency.

Measured parameters: Voltage (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Power factor.

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

This vertical power distribution unit (PDU) is engineered for high-efficiency and precision, enabling seamless integration into data centers and other critical systems. Its compact design, combined with advanced metering capabilities and robust connectivity options, ensures optimal performance and reliability in power distribution.

Key Features Remote display via smartphone NFC app
Up to 100 PDUs sharing a single IP address
ESD safe and toolless hot-swappable communications module
Dual 1Gbps Ethernet and USB connectivity
TLS encrypted communication to Enertree PDU management software
Power Input Single-phase 32 A, 230VAC, 50Hz

Branch Metering Monitors voltage (V), current (A), active power (W), apparent power (VA), reactive power (VAR), energy (kWh), apparent energy (VAh), frequency (Hz), power factor, crest factor, and total harmonic distortion (%).

Enclosure Black aluminium profile with stainless steel covers, IP20 rated

Outlets 18 x IEC Lock 60320 – CX (C13/C15/C19/C21) and 18 x IEC Lock C13/C15 outlets

Fuses Two hydraulic-magnetic breakers rated at 16A, GM F54EVMM1323

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Individually Monitored Outlets This functionality provides real-time insight into the energy consumption of each connected IT device through individually monitored outlets. It enables precise measurement of voltage, current, power and energy (kWh) per outlet, allowing organisations to optimise energy management and cost allocation.

Ideal for capacity planning, predictive maintenance, and cost distribution in environments such as colocation facilities, it also enables detailed energy analysis, real-time monitoring and reporting, and seamless integration with DCIM tools.

This functionality supports sustainability goals by improving energy efficiency – for example, by identifying so-called “zombie servers” that consume power but contribute no real workload. Eliminating such unused resources leads to significant cost savings and improved operational efficiency.

Measured parameters: Voltage (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Power factor.

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.



With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

Monitored PDU 5.0 Gateway – Intelligent Power Management for Modern Deployments Designed for high-density environments, this 0U vertical PDU offers intelligent power distribution with metering at every level—input, branch, and outlet. With 42 metered outlets and a tool-free hot-swappable communication module, it's engineered for flexibility, safety, and real-time visibility. Ideal for scalable deployments with secure centralized management over a shared IP, this PDU is tailored to meet demanding technical infrastructure requirements.

Key Features Toolless hot-swappable gateway module with dual Ethernet & USB
Metering at phase, branch, and outlet level with comprehensive metrics
Up to 100 PDUs share one IP address via encrypted communication
Remote NFC display support through smartphone app
Reliable, ESD-safe design with rugged aluminum and stainless steel enclosure
Form Factor & Outlets 0U vertical mount with 36x C13 and 6x C19 IEC outlets, ESD-safe, with tool-free installation and strain-relief power entry.

Power Capacity Single phase, 32A input supporting up to 7.4 kVA at 230VAC, 50Hz with CEE plug and 3-meter halogen-free lead.

Advanced Metering Monitors voltage, current, power, energy, and harmonic distortion across phases, branches, and all 42 outlets.

Network-Ready Design Dual 1Gbps Ethernet ports, USB for sensor expansion, and encrypted TLS connection to Enertree management software.

Durable Enclosure Aluminum chassis with black profile and stainless steel covers (IP20), 1615 x 65 x 52.5 mm dimensions excluding mounts.

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Individually Monitored Outlets This functionality provides real-time insight into the energy consumption of each connected IT device through individually monitored outlets. It enables precise measurement of voltage, current, power and energy (kWh) per outlet, allowing organisations to optimise energy management and cost allocation.

Ideal for capacity planning, predictive maintenance, and cost distribution in environments such as colocation facilities, it also enables detailed energy analysis, real-time monitoring and reporting, and seamless integration with DCIM tools.

This functionality supports sustainability goals by improving energy efficiency – for example, by identifying so-called “zombie servers” that consume power but contribute no real workload. Eliminating such unused resources leads to significant cost savings and improved operational efficiency.

Measured parameters: Voltage (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Power factor.

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.

This horizontal monitored PDU is engineered for advanced data center and network infrastructure, supporting remote energy monitoring and secure connectivity across up to 100 PDUs. Featuring robust input metering and eight outlets, it provides reliable single-phase power distribution with streamlined management through Enetrefe communication. The unit is built for flexibility, easy integration, and safe operation under high-demand conditions.

Key Features Remote smartphone NFC setup with gateway communication support
Supports up to 100 PDUs with one IP address for simplified management
Input metering with multi-value reporting including V, A, VA, W, and more
Robust stainless steel housing with IP20 protection rating
Horizontal mounting with 8 secure outlets and strain relief power entry
Power Input Single phase 16 A, 230VAC, 50Hz

Connectivity Gateway module with RJ45 (10/100/1000 Mbps), USB expansion interface, and TLS encrypted communication

Enclosure Slim profile with stainless steel and black aluminum construction, IP20 rated

Mount Type Horizontal mounting (sidecover 19 in)

Outlets 8 x IEC 60320 C13 outlets total, metered for usage monitoring

*For complete specifications please see the documentation tab above.

PDU 5.0 Is Here Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.

PDU 5.0 Key Features Seamless DCIM Integration: Supports multiple protocols such as HTTP/HTTPS, REST API, MODBUS/TCP, SNMP (v1/v2c/v3), IPv4/IPv6, and more.
High Security Standards: Strong passwords, user roles, Active Directory®, LDAP/S, AES 256-bit encryption, SSH, and SSL/TLS 1.3.
Efficient Capacity Planning: Real-time data for informed decisions on capacity and power usage.
Power Usage Effectiveness (PUE) Monitoring: Optimise energy efficiency with precise measurements.
Multi-Device Web GUI: User-friendly, UX-driven interface for managing multiple devices from a single dashboard.
Real-Time Insights for Efficient Energy Management The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.

Daisy Chaining: Simplified IT Infrastructure Management With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.

Visual Status Indicators for Quick Assessment The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU’s status and detect any alerts or issues. This feature makes routine checks faster and simpler.

Smartphone Integration via NFC for Local Access Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.

Secure and Reliable Communication With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.

EnerTree DCEM: A Comprehensive Data Centre Energy Management Solution The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.


The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.

Incoming Energy Monitoring This functionality enables the PDU to measure the total incoming energy consumption. The unit monitors the complete flow of current, voltage, power, and energy (kWh) from the power source into the PDU.

This data provides valuable insights for analysing and optimising energy usage within the data centre or server room – supporting cost control, capacity planning, and the identification of inefficiencies.

If the PDU is configured with multiple phases, energy consumption is measured per phase. If divided into multiple protected groups, consumption is monitored individually per group.

Measured parameters include: Voltage (V), Voltage dips/spikes (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Frequency (Hz), Power factor.

Monitoring energy consumption also helps improve Power Usage Effectiveness (PUE) – a key metric for energy efficiency in data centres – and supports compliance with the EU Energy Efficiency Directive (EED).

Individually Monitored Outlets This functionality provides real-time insight into the energy consumption of each connected IT device through individually monitored outlets. It enables precise measurement of voltage, current, power and energy (kWh) per outlet, allowing organisations to optimise energy management and cost allocation.

Ideal for capacity planning, predictive maintenance, and cost distribution in environments such as colocation facilities, it also enables detailed energy analysis, real-time monitoring and reporting, and seamless integration with DCIM tools.

This functionality supports sustainability goals by improving energy efficiency – for example, by identifying so-called “zombie servers” that consume power but contribute no real workload. Eliminating such unused resources leads to significant cost savings and improved operational efficiency.

Measured parameters: Voltage (V), Current (A), Peak current (A), Active power (W), Apparent power (VA), Reactive power (VAR), Energy (Wh), Apparent energy (VAh), Total harmonic distortion (%), Crest factor, Power factor.

Modular Design for Maximum Flexibility and Future-Readiness The modular structure of the PDU 5.0, with hot-swappable communication modules such as Gateway, Controller, and Daisy Chain, offers flexible integration without downtime. This allows for easy adaptation to evolving data centre needs without operational interruptions.

With plug-and-play sensor capabilities, the PDU supports up to 32 sensors per unit, enabling extensive environmental monitoring and management. The dual 1 Gbps network connectivity (Ethernet port & USB Port), Dual Databus, and Dual USB on the Gateway and Controller modules ensure reliable, high-speed connections within your network.

Gateway Module Designed for advanced energy management alongside the EnerTree Platform with web GUI, this module centralises data from PDUs, improving efficiency and lowering costs by requiring less hardware within the PDU.

The intelligence of the PDU resides within the EnerTree Platform for high-compute power monitoring, optimising physical storage for historical PDU data, assisting with risk analysis, and system management.

The Gateway module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Controller Module The embedded EnerTree Lite software with an internal web GUI for conventional management. For data centres that prefer a traditional, standalone approach, the Controller Module provides an embedded EnerTree Lite solution with PDU intelligence and web interface within the module.

This module is fully compatible with other PDU monitoring and management software, delivering essential functionality via “EnerTree Lite,” a simplified version of the complete EnerTree platform.

The Controller module is equipped with a 1 Gbps Ethernet RJ45 port with status indicators, 2 Databus RJ45 ports with status indicators, and 2 USB-A ports. A secondary 1 Gbps Ethernet port is supported via USB. All interfaces support zero-touch provisioning (plug-and-play).

Daisy Chain Module A secure data communication module without an Ethernet port, collecting and transmitting data from PDU to the Gateway or Controller. The Daisy Chain Module acts as a Data Relay Module, facilitating PDU network expansion by creating a ring topology.

This reduces the need for additional Ethernet ports and enhances security by minimising the risk of external access. In this ring configuration, a single Gateway or Controller module suffices to communicate with the EnerTree platform or other PDU monitoring systems, supporting up to 100 PDUs on one IP address.

This setup enables ultra-fast, real-time data transmission, improving scalability and operational efficiency. The module is equipped with 2 Databus RJ45 ports with status indicators and 2 USB-A ports. All interfaces support zero-touch provisioning (plug-and-play).

Why PDU 5.0 by Schleifenbauer is a Smart Choice for Your Data Centre Efficient Management and Future-Proof Technology: Reduce complexity and streamline network management with the innovative daisy-chain capability. The PDU 5.0 supports the latest demands in AI, HPC, and data centre environments, ensuring your infrastructure is future-ready.
Real-Time Monitoring and Optimal Power Management: Gain instant insights into power usage and environmental data for swift, targeted action. These real-time insights facilitate optimal power management and enhance capacity planning.
Reliability and Security: Designed to minimise downtime and maximise operational uptime. The PDU 5.0 meets the highest security standards with comprehensive measures to protect data centres.
Adaptability and Scalability: Easily accommodate changes and expansions without downtime or complex adjustments. The PDU 5.0 offers a flexible, future-proof design, ideal for growing data centre needs.
