| Part No: | SB-E26CWNN36C1 |
| Manufacturer No: | E26CWNN36C1 |
| Delivery: | In Stock: 2-3 Weeks |
 |

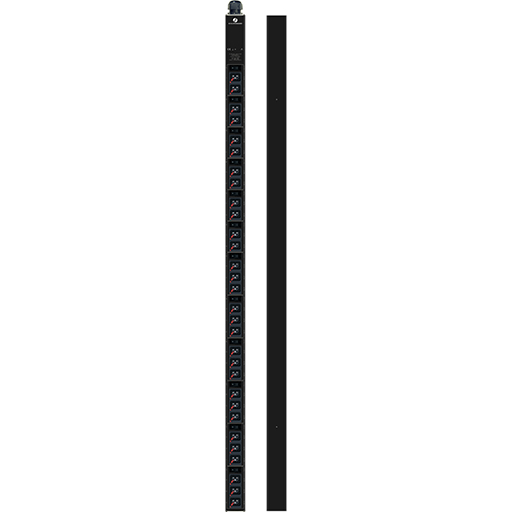

The Schleifenbauer E26CWNN36C1 is a double vertical Power Distribution Unit (PDU) designed for high-capacity, customizable power distribution in data centers and industrial environments. It supports a 63A, 3-phase input and features 30 configurable outlets.
The unit features a robust enclosure constructed from black aluminum, complemented by stainless steel covers. Rated at IP20, it offers solid mechanical protection suitable for standard data center and industrial environments.
With dimensions of 1615 x 65 x 105 mm (L x W x D), this 0U PDU fits seamlessly into vertical rack spaces. It’s designed to minimize obstruction, excluding strain relief and mounting hardware for cleaner cable routing.
Engineered to handle demanding power loads, the PDU supports a three-phase 63A input at 230/400V and 50Hz, ensuring consistent delivery for power-intensive applications across multiple rack units.
Equipped with a 3.0m power lead (5G10 halogen-free) and CEE plug, the cable enters via the top side-cover for streamlined installation. Its design emphasizes safety and reduced environmental impact.
The PDU hosts 30 IEC 60320 outlets—including C13, C15, C19, and C21—secured with IEC Lock. It also features 12 hydraulic-magnetic 16A circuit breakers, providing dependable overload protection and easy reset functionality.
*For complete specifications please see the documentation tab above.
Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.
The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.
With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.
The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.
Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.
With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.
The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.
The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.
The Schleifenbauer E26CWNN36C1 is a double vertical Power Distribution Unit (PDU) designed for high-capacity, customizable power distribution in data centers and industrial environments. It supports a 63A, 3-phase input and features 30 configurable outlets.
The unit features a robust enclosure constructed from black aluminum, complemented by stainless steel covers. Rated at IP20, it offers solid mechanical protection suitable for standard data center and industrial environments.
With dimensions of 1615 x 65 x 105 mm (L x W x D), this 0U PDU fits seamlessly into vertical rack spaces. It’s designed to minimize obstruction, excluding strain relief and mounting hardware for cleaner cable routing.
Engineered to handle demanding power loads, the PDU supports a three-phase 63A input at 230/400V and 50Hz, ensuring consistent delivery for power-intensive applications across multiple rack units.
Equipped with a 3.0m power lead (5G10 halogen-free) and CEE plug, the cable enters via the top side-cover for streamlined installation. Its design emphasizes safety and reduced environmental impact.
The PDU hosts 30 IEC 60320 outlets—including C13, C15, C19, and C21—secured with IEC Lock. It also features 12 hydraulic-magnetic 16A circuit breakers, providing dependable overload protection and easy reset functionality.
*For complete specifications please see the documentation tab above.
Starting April 2025, Schleifenbauer is introducing the PDU 5.0, a cutting-edge Power Distribution Unit (PDU) crafted through collaboration with over 40 data centre operators. This next-generation PDU, paired with EnerTree software, is designed to address the unique challenges of modern data centres. Perfectly suited for the high demands of Artificial Intelligence (AI), High-Performance Computing (HPC), and Machine Learning (ML), the PDU 5.0 provides enhanced energy management and performance optimisation. With this solution, data centres can expect reliable, scalable power distribution, advanced monitoring, and seamless adaptability to the evolving digital landscape.
The PDU 5.0 by Schleifenbauer streams live data from the PDU, offering real-time monitoring of power usage and environmental factors. This provides instant access to critical data, allowing you to respond immediately to changes and prevent potential issues, contributing to a more stable and reliable IT environment.
With the ability to manage up to 100 PDUs through a single IP address, the PDU 5.0 minimises network management complexity. This saves time and reduces operational costs, enabling data centre managers to work more efficiently.
The integrated LED ring provides a quick visual status display of the PDU, allowing administrators to instantly understand the PDU's status and detect any alerts or issues. This feature makes routine checks faster and simpler.
Using the Rack PDU Display app and NFC technology, you can easily access PDU data without the need for a physical display on the PDU itself. This adds flexibility, eliminates a vulnerable component, and allows for secure, rapid local access to PDU measurement data.
With encryption and specific access settings, the PDU 5.0 ensures secure data exchange within your data centre, keeping sensitive information well-protected.
The PDU 5.0 comes equipped with EnerTree software, enabling advanced energy management with monitoring, reporting, and alert features.
The software supports various devices, including third-party PDUs, UPS systems, cooling equipment, and sensors, making it an all-in-one solution for data centre managers.
