| Part No: | FEN484-12M12 |
| Manufacturer No: | N484-12M12 |
| Delivery: | In Stock: 5-7 Days |
 |

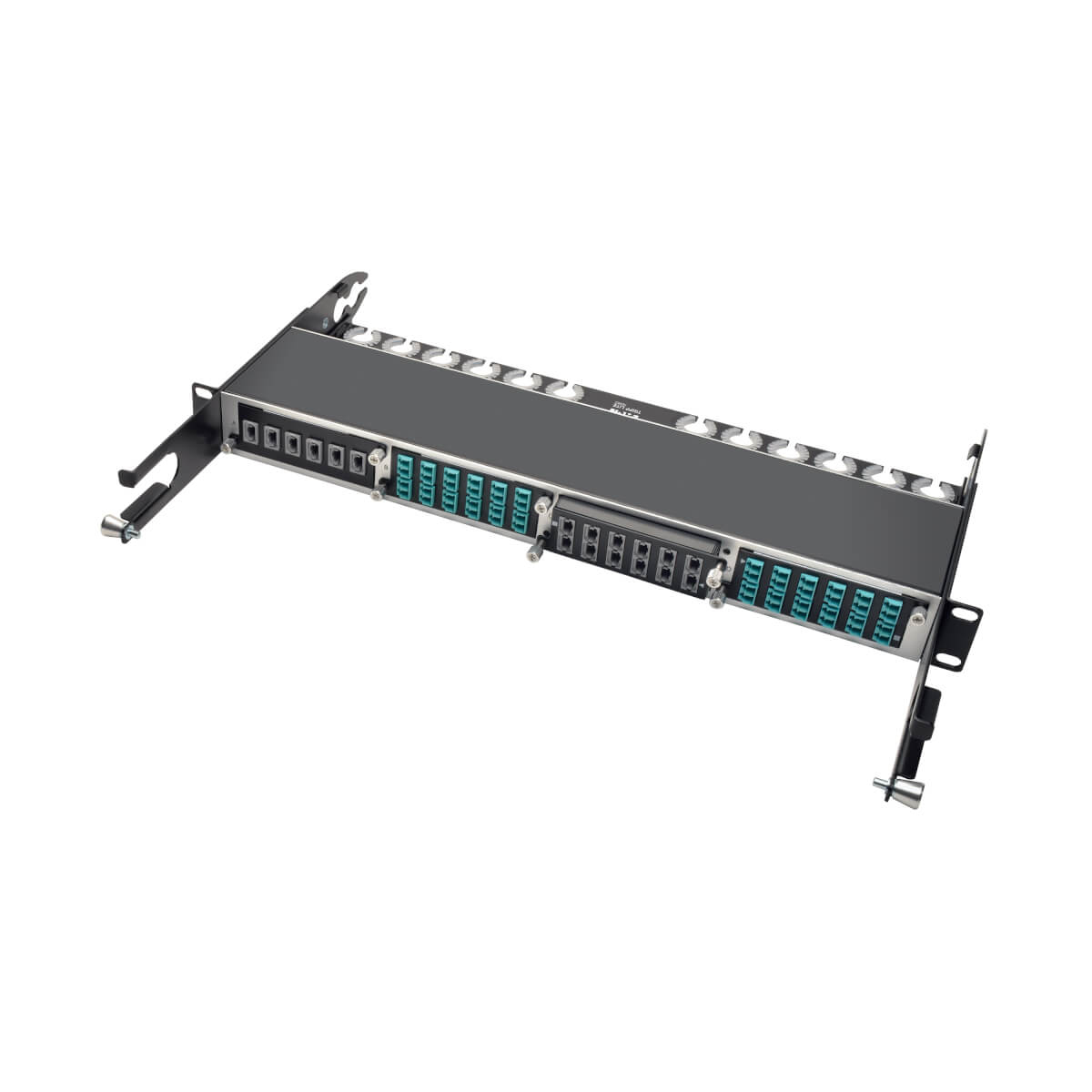

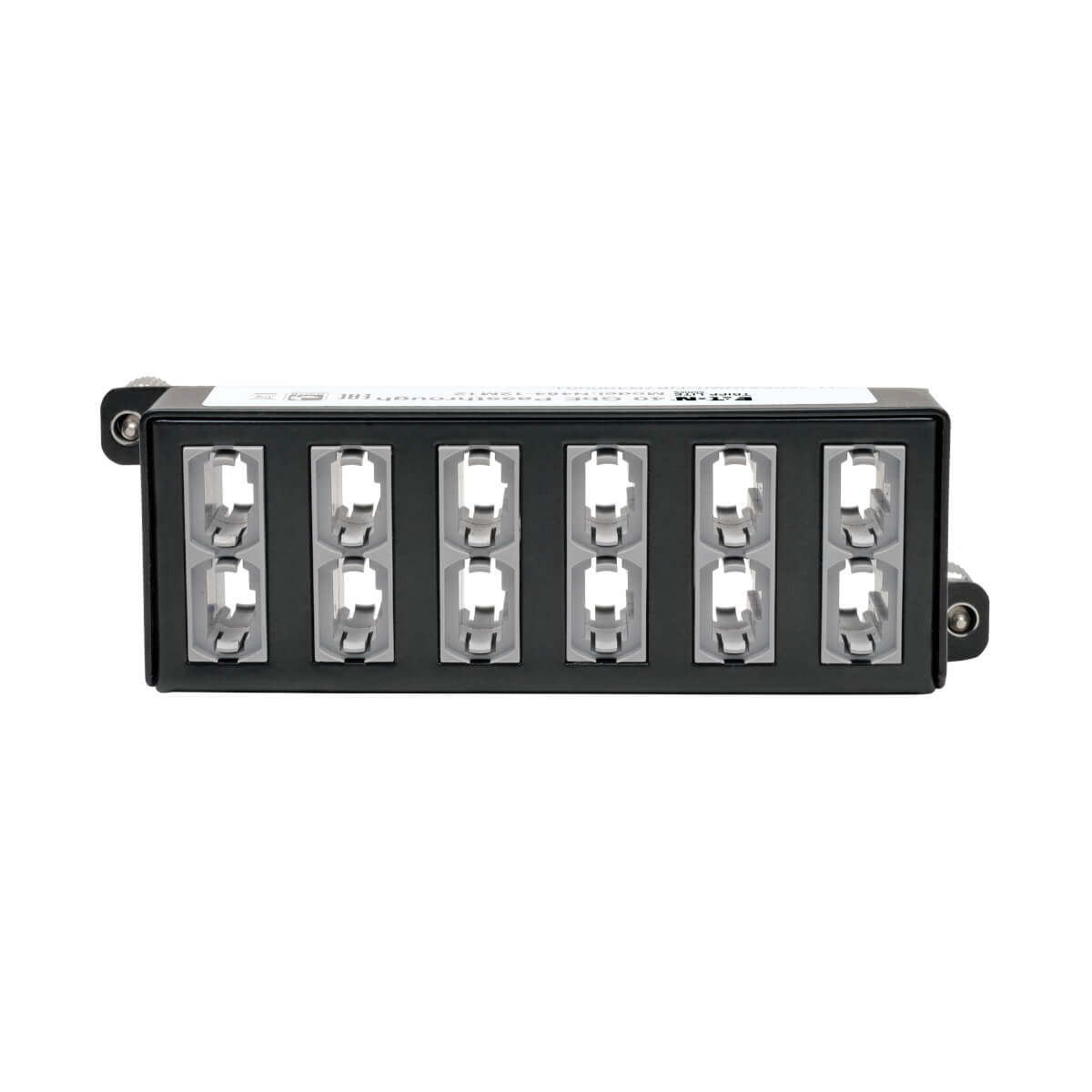

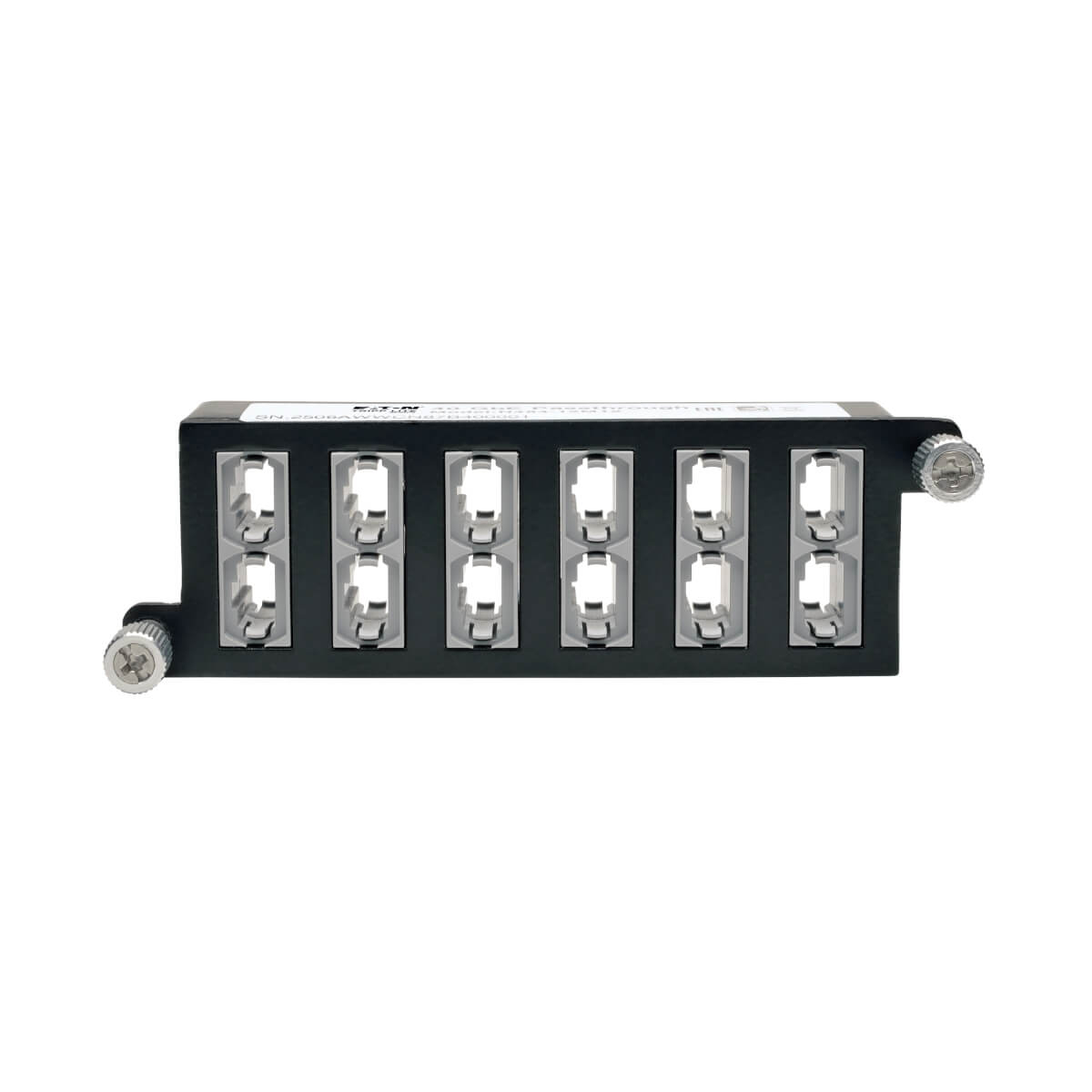

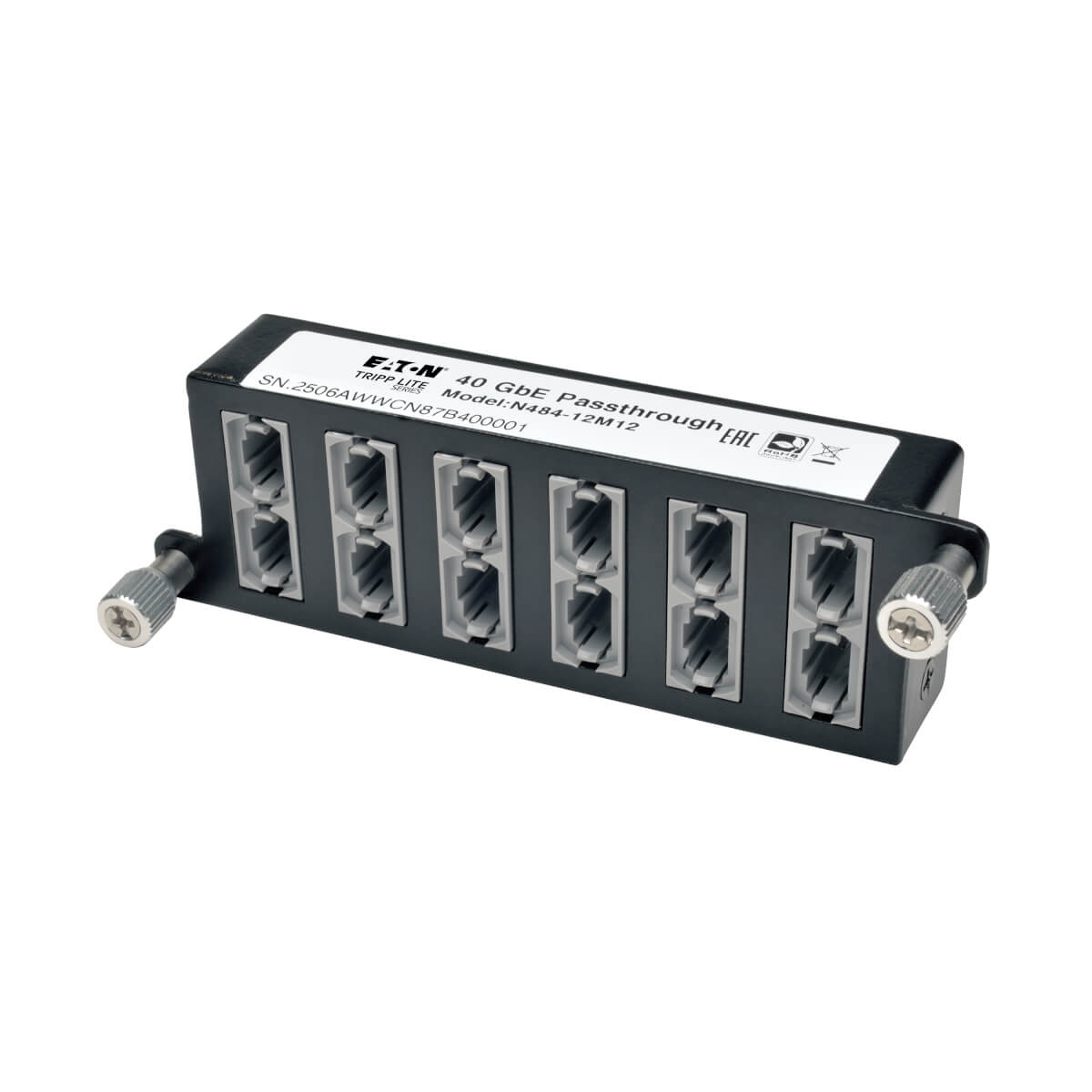

The N484-12M12 is a high-density 40 Gb pass-through cassette featuring 12 MTP/MPO 12-fiber connections, designed specifically for use with N484-00U and N484-01U chassis. It supports up to four cassettes per N484-01U or one cassette per N484-00U. Each MTP/MPO connector is rated for up to 40 GbE and offers an ultra-low insertion loss of just 0.35 dB, significantly below the IEEE 802.3ae maximum channel loss specification of <25 dB, Guaranteed compatibility when used with recommended cabling.
Designed specifically for use with N842-, N844- and N845-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy-duty 1.0mm cold-rolled steel.
Features
High Density Fiber Cassette for use with N484-00U and N484-01U chassis'
40Gb Pass-through Cassette, with (x12) 12-Fiber MTP/MPO connections ( Female )
Guaranteed compatibility when used with recommended cabling
Designed specifically for use with cables, such as the N842-, N844- and N845-Series cables
Factory terminated connectors reduce the time and labor required of field connector terminations
The N484-12M12 is a high-density 40 Gb pass-through cassette featuring 12 MTP/MPO 12-fiber connections, designed specifically for use with N484-00U and N484-01U chassis. It supports up to four cassettes per N484-01U or one cassette per N484-00U. Each MTP/MPO connector is rated for up to 40 GbE and offers an ultra-low insertion loss of just 0.35 dB, significantly below the IEEE 802.3ae maximum channel loss specification of <25 dB, Guaranteed compatibility when used with recommended cabling.
Designed specifically for use with N842-, N844- and N845-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy-duty 1.0mm cold-rolled steel.
Features
High Density Fiber Cassette for use with N484-00U and N484-01U chassis'
40Gb Pass-through Cassette, with (x12) 12-Fiber MTP/MPO connections ( Female )
Guaranteed compatibility when used with recommended cabling
Designed specifically for use with cables, such as the N842-, N844- and N845-Series cables
Factory terminated connectors reduce the time and labor required of field connector terminations
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
