| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEN484-1M24-LC12 |
| Manufacturer No: | N484-1M24-LC12 |
| Delivery: | In Stock: 5-7 Days |
 |

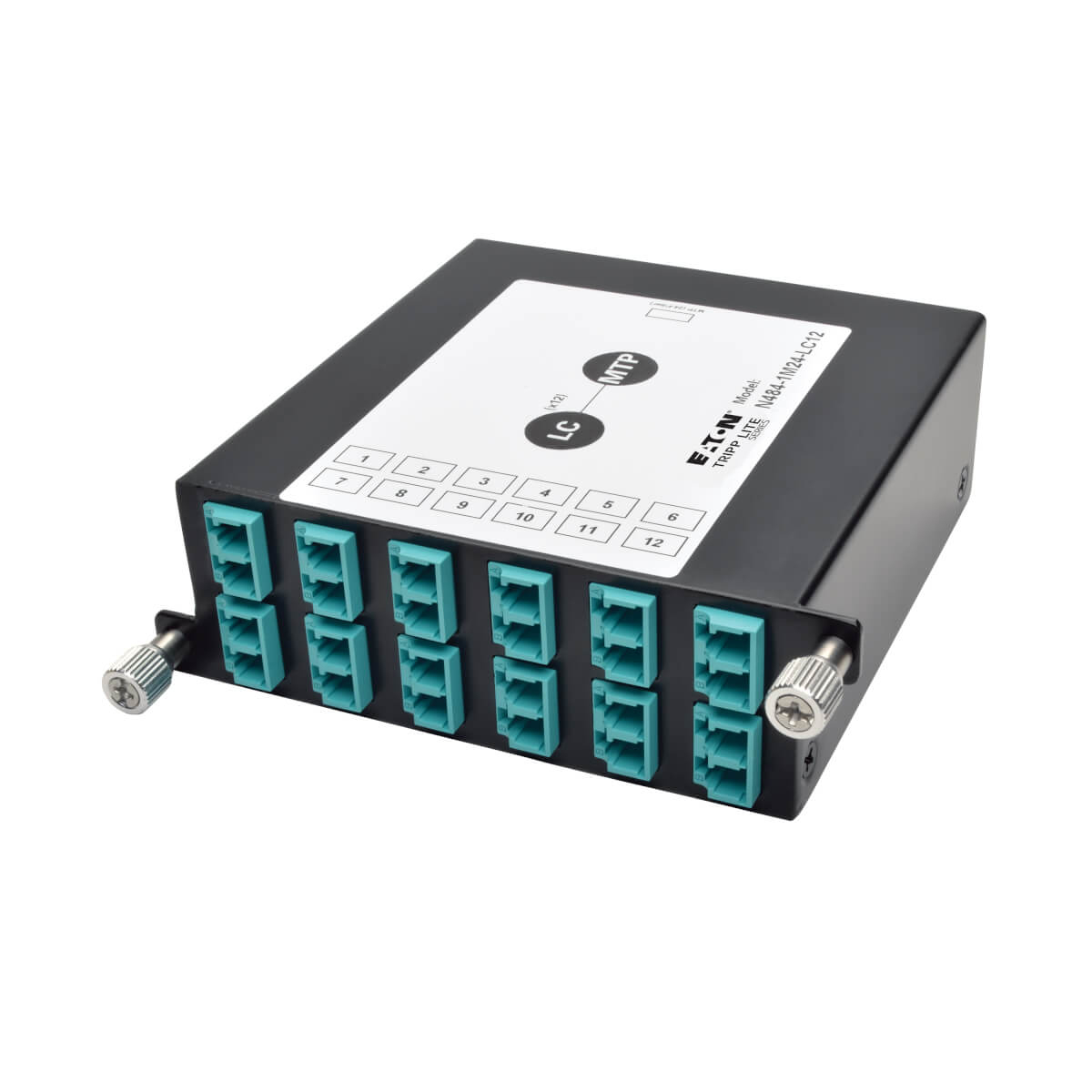

The N484-1M24-LC12 is a high-density 100/120 Gb to 10 Gb breakout cassette featuring (x12) LC connections and a 24-Fiber, OM4, MTP/MPO connection. Designed for use with N484-00U and N484-01U chassis, it supports up to four cassettes per N484-01U or one per N484-00U. Supports 100/120 GbE, it utilizes OM4 fiber optic cable internally, delivering an ultra-low insertion loss of just 0.35db—well below the IEEE 802.3ae maximum channel loss specification of <25db.
Effectively trunks 24-fibers between IDFs and MDFs with a single 24-fiber MTP/MPO cable, breaking out to (x12) LC Duplex fiber connections. 24-fiber MTP port designed for 100GBASE-SR10, CFP, CXP, Parallel Optics connectivity. Guaranteed compatibility when used with recommended cabling. Cassette designed specifically for use with N820-, N821-, and N846-Series cables.

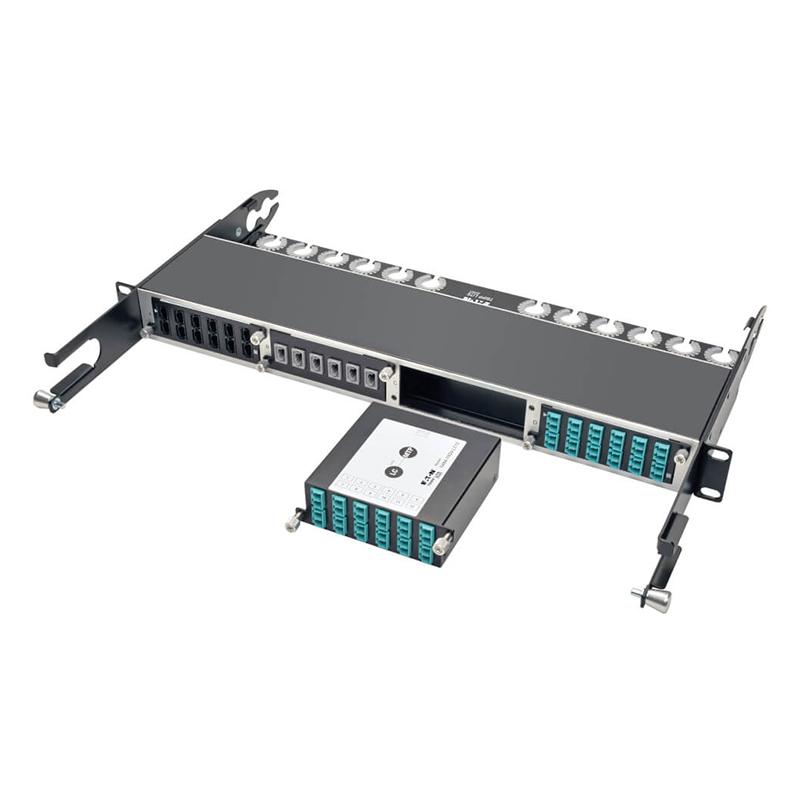

Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy-duty 1.0mm cold-rolled steel.
The N484-1M24-LC12 is a high-density 100/120 Gb to 10 Gb breakout cassette featuring (x12) LC connections and a 24-Fiber, OM4, MTP/MPO connection. Designed for use with N484-00U and N484-01U chassis, it supports up to four cassettes per N484-01U or one per N484-00U. Supports 100/120 GbE, it utilizes OM4 fiber optic cable internally, delivering an ultra-low insertion loss of just 0.35db—well below the IEEE 802.3ae maximum channel loss specification of <25db.
Effectively trunks 24-fibers between IDFs and MDFs with a single 24-fiber MTP/MPO cable, breaking out to (x12) LC Duplex fiber connections. 24-fiber MTP port designed for 100GBASE-SR10, CFP, CXP, Parallel Optics connectivity. Guaranteed compatibility when used with recommended cabling. Cassette designed specifically for use with N820-, N821-, and N846-Series cables.
Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy-duty 1.0mm cold-rolled steel.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
