Eaton Fibre Optic Patch Panels

The N484-12M12 is a high-density 40 Gb pass-through cassette featuring 12 MTP/MPO 12-fiber connections, designed specifically for use with N484-00U and N484-01U chassis. It supports up to four cassettes per N484-01U or one cassette per N484-00U. Each MTP/MPO connector is rated for up to 40 GbE and offers an ultra-low insertion loss of just 0.35 dB, significantly below the IEEE 802.3ae maximum channel loss specification of <25 dB, Guaranteed compatibility when used with recommended cabling.

Designed specifically for use with N842-, N844- and N845-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy-duty 1.0mm cold-rolled steel.

Features

High Density Fiber Cassette for use with N484-00U and N484-01U chassis'

40Gb Pass-through Cassette, with (x12) 12-Fiber MTP/MPO connections ( Female )

Guaranteed compatibility when used with recommended cabling

Designed specifically for use with cables, such as the N842-, N844- and N845-Series cables

Factory terminated connectors reduce the time and labor required of field connector terminations

The N482-3M8-LC12 40/100 Gb to 10/25 Gb Breakout Cassette works in tandem with N482-01U or N482-02U chassis to connect 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections in high-density network applications. It’s compatible with recommended cabling, including the N820-, N821-, N844-, N845- and N858-Series. Its 8-fiber MTP ports are Polarity B, optimized for parallel optics and Base-8 connectivity. This cassette also future proofs your network for eventual 50Gb and 200Gb speeds and beyond.

The cassette’s modular design installs easily in the N482-01U and N482-02U chassis with no tools required. Just insert the cassette into the chassis, and snap in its retention clips to secure it. Plug LC Ethernet cables, such as N820-01M-T cables, into the cassette using the cable’s convenient push/pull tabs. Up to five N482-3M8-LC12 cassettes fit in the N482-01U 1U enclosure panel, and 14 cassettes fit in the N482-02U 2U chassis. Dust tabs protect unused ports from potential damage.

The N482-3M8-LC12 complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements. Supports 40 GbE internally using OM4 fiber optic cable. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections. Ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40 GB, allowing all 12 LC duplex cassette ports to be used. Maximum insertion loss of 0.35 dB falls well under the IEEE 802.3ae maximum channel loss specification of <25 dB. This cassette also supports devices of varying speeds, including 10Gb, 25Gb, 40Gb and 100Gb network equipment.

Features

For use with N482-01U or N482-02U chassis

Simple installation with no tools required

Factory-terminated OM4 connectors

Supports 40 GbE internally using OM4 fiber optic cable

Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections

Designed for use with recommended cabling

The N484-1M24-LC12 is a high-density 100/120 Gb to 10 Gb breakout cassette featuring (x12) LC connections and a 24-Fiber, OM4, MTP/MPO connection. Designed for use with N484-00U and N484-01U chassis, it supports up to four cassettes per N484-01U or one per N484-00U. Supports 100/120 GbE, it utilizes OM4 fiber optic cable internally, delivering an ultra-low insertion loss of just 0.35db—well below the IEEE 802.3ae maximum channel loss specification of <25db.

Effectively trunks 24-fibers between IDFs and MDFs with a single 24-fiber MTP/MPO cable, breaking out to (x12) LC Duplex fiber connections. 24-fiber MTP port designed for 100GBASE-SR10, CFP, CXP, Parallel Optics connectivity. Guaranteed compatibility when used with recommended cabling. Cassette designed specifically for use with N820-, N821-, and N846-Series cables.

Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy-duty 1.0mm cold-rolled steel.

The Eaton N482-02U Enclosure is for 14 High-Density Fiber Cassettes, 2U. 2U, 19 inch rack-mountable design. It Supports up to 14 High Density Fiber Cassettes, allowing for up to 168 Duplex LC Ports (336 fiber connections), which is making the most of your rack space that is available.

Installation is simple, with the cassettes being easily installed or removed using push/pull tabs to lock or unlock them from the panel; no tools required. Management is a breeze with an optional rear-mounting cable management bracket that allows you to rout your cabling neatly and safely. A fold-down door panel is featured on the front of the unit and protects your connections, while rotating out of the way to provide full access. The door panel can also be removed altogether for installations where constant access is preferred. Constructed of heavy-duty steel housing.

Features

2U, 19-inch rack-mountable design.






Supports up to 14 High Density Fiber Cassettes, allowing for up to 168 Duplex LC Ports (336 fiber connections), making the most of your rack space.

Cassettes come in multiple variations, allowing you to connect different generations of equipment (10Gb, 40 Gb, 100/120Gb), and giving you the flexibility to adapt as your technology changes.

Features a fold-down door panel on the front of the unit that protects your connections, while rotating out of the way to provide full access. Door panel can also be removed altogether.

Constructed of heavy-duty steel housing

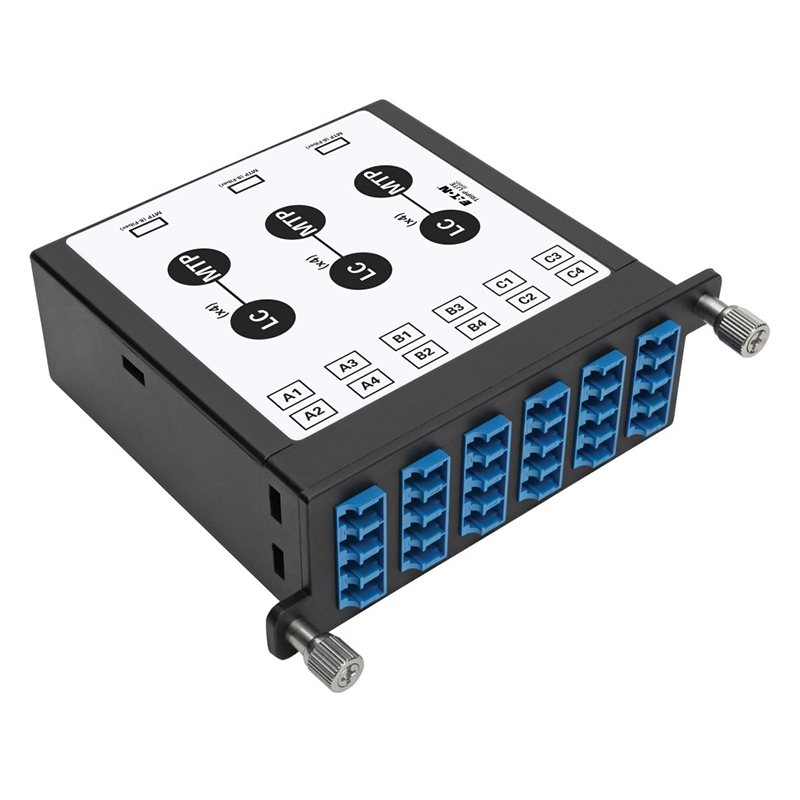

The N484-3M8L12S 9/125 Singlemode Fiber Optic 40/100 Gb to 10/25 Gb Breakout Cassette works in tandem with the N484-01U or N484-00U chassis (sold separately) to join 12 duplex LC fiber cables with three 8-fiber MTP/MPO connections. Ideal for interconnecting any combination of 10 Gb, 25 Gb, 40 Gb and 100 Gb network equipment in a simple, elegant and highly flexible way, it’s compatible with recommended cabling, including the N370- and N390-Series. Its 8-fiber MTP ports are Polarity B, optimized for parallel optics and Base-8 connectivity.

Easy to Install with No Tools Needed The fiber optic cassette installs easily in the N484-01U and N484-00U chassis with no tools required. Just insert the cassette into the chassis, and tighten its retention clips to secure it. Plug LC patch cables into the cassette using the cables’ convenient push/pull tabs.

Up to four cassettes fit into the N484-01U 1U enclosure panel, and one cassette fits into the N484-00U 0U sleeve. Dust tabs protect unused ports from potential damage.

Modular Design Lets You Change, Upgrade or Expand Your Application




The modular design makes it easy to modify, upgrade or expand your infrastructure as your needs grow. If you need to change out a single cassette, you can do so without replacing the panel or removing other cassettes. Because this system supports devices of varying speeds, you can mix and match 10 Gb, 40 Gb and 100 Gb network equipment. The N484-3M8L12S supports 40/100 Gb internally using singlemode fiber optic cables. It is ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40/100 Gb.

The fiber optic cassette installs easily in the N484-01U and N484-00U chassis with no tools required. Just insert the cassette into the chassis, and tighten its retention clips to secure it.

Plug LC Ethernet cables, such as N370- and N390-Series cables (sold separately), into the cassette using the cables’ convenient push/pull tabs. Up to four cassettes fit into the N484-01U 1U enclosure panel, and one cassette fits into the N484-00U 0U sleeve. Dust tabs protect unused ports from potential damage.




The N484-3M8L12S complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements. Maximum insertion loss of 0.35 dB falls well under the IEEE 802.3ae maximum channel loss specification of <25 dB.

The Eaton N484-01U is a 19-inch rack-mount chassis which can accommodate up to four high-density copper or fiber cassettes within just 1U of space. It offers a versatile selection of cassettes, including LC and MTP fiber, SFP+, and RJ45 copper. Fiber cassettes come in multiple variations, allowing you to connect and interconnect your 10 Gb, 40 Gb and 100/120 Gb equipment.

The N484-12SFP-K is an innovative 12-port passive SFP+ hub cassette that comes with six QSFP+ to (x4) SFP+ breakout cables, allowing for distributed redundancy between multiple 40 Gb devices. The N484-01U is a solution that is well suited for SME (Small and Medium Enterprise) and other applications where equipment is being connected in one to three adjacent racks. In addition, this unique chassis allows for seamless flexibility to connect to existing cabling infrastructure. Add up to 48 ports of Duplex LC, MTP, Cat5e/6 RJ45 or SFP+.

The N484-3M8-LC12 40/100Gb to 10/25Gb Breakout Cassette works in tandem with N484-01U or N484-00U chassis to connect 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections in high-density network applications. Compatible with recommended cabling, including the N820-, N821-, N844-, N845- and N858 Series. Its 8-fiber MTP ports are Polarity B, for parallel optics and Base-8 connectivity.

The cassette’s modular design installs easily in the N484-01U and N484-00U chassis with no tools required. Just insert the cassette into the chassis, and screw in its retention clips to secure it. Plug LC Ethernet cables, such as N820-01M-T cables, into the cassette using the cable’s convenient push/pull tabs. Up to four N484-3M8-LC12 cassettes fit in the N484-01U 1U enclosure panel, and one cassette fits in the N484-00U 0U sleeve. Dust tabs protect unused ports from potential damage.

The N484-3M8-LC12 complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements. Supports 40 GbE internally using OM4 fiber optic cable. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections.

Ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40 GB, allowing all 12 LC duplex cassette ports to be used. Maximum insertion loss of 0.35 dB falls well under the IEEE 802.3ae maximum channel loss specification of <25 dB. This cassette also supports devices of varying speeds, including 10Gb, 25Gb, 40Gb and 100Gb network equipment.

Designed Specifically for Use with Cabling

Guaranteed compatibility with recommended cables, including N820-, N821-, N844-, N845- and N858 Series.

Simple Fiber Installations Save Time and Money

Easy installation with no tools required. Installs neatly in N484-00U 0U chassisInstall up to 4 cassettes in N484-01U 1U enclosure panel.

Easy to Modify, Upgrade or Expand Fiber Infrastructure By Adding or Swapping Cassettes

Complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements0.35 dB maximum insertion loss falls under IEEE 802.3ae maximum channel loss spec of <25 dB. Supports devices of varying speeds, including 10 Gb, 25 Gb, 40 Gb and 100 Gb network equipment.

Premium Construction for Optimal Performance

Heavy-duty cold-rolled steel construction Factory terminated connectors reduce time and labor. Dust caps protect unused ports.

The N482-2M12-LC12 is a high-density 40 Gb to 10 Gb breakout cassette featuring 12 LC connections and two 12-fiber OM4 MTP/MPO ports. Designed for use with N482-01U and N482-02U high-density fiber enclosure panels, it supports up to five cassettes per N482-01U or 14 cassettes per N482-02U. Guaranteed compatible with recommended cabling, such as the N820-, N821-, N844-, and N845-Series cables.

Save Time with Simplified Fiber Cable Installations Configuring the N482-2M12-LC12 couldn’t be easier. It installs in the N482-01U or N482-02U chassis with no tools required. Just insert the cassette into the chassis, and tighten its retention clips to secure it.

Then plug the LC patch cables, such as N820-, N821- and N844-Series, into the factory-terminated connectors using the cable’s convenient push/pull tabs, and you’re ready to go. Up to five N482-2M12-LC12 cassettes can fit into the N482-01U 1U enclosure panel for a total of 60 servers and up to 14 cassettes can fit into the N482-02U 2U panel for a total of 168 10 Gb servers (more than 10 racks).




Installation is simple, with the cassette being easily installed or removed using push/pull tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Complies with IEEE 802.3ae (10Gbe) and ANSI T11.2 (Fibre Channel) requirements, with a maximum insertion loss of 0.35dB falling well under the IEEE 802.3ae maximum channel loss spec of <25dB. Constructed of heavy-duty steel housing.

The N48K-15M8L60-B 50/125 Breakout Fiber Patch Panel not only integrates equipment with 10G and 40G speeds, but also provides a simple, flexible path from 25Gb to 100Gb, as well as upcoming 50Gb to 200Gb speeds and beyond. The 1U chassis features five breakout cassettes. Each cassette contains 12 LC duplex ports and three built-in two-meter MTP multimode cables for a total of 15 QSFP fiber switch ports breaking out to 60 LC ports.

Base8 wiring with built-in MTP trunks maximizes rack space and link performance, while enabling simple cable deployment and optimized harness mapping. The N48K-15M8L60-B uses all 60 LC ports, meaning no dead ports as in Base12 wiring, with streamlined 1-to-1 port mapping. Eliminating the need for 12-fiber conversion modules results in a reduction of up to 50 percent in link attenuation.

The front panel folds down to protect the LC patch cords, as well as provide wire mapping by matching each cassette’s labeled MTP cables to the LC clusters. Writing space on the inside panel lets you custom-label each port. Each panel is serialized and insertion loss data is available upon request via the unit’s serial number.




Hardwired cassettes offer a 30-percent improvement in insertion loss with no separate MTP connection in the rear, resulting in longer duplex link distances. Color-coded magenta OM4 cables are easily distinguished from traditional aqua OM3 multimode fiber. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections.

Features

Total of 15 12-fiber MTP/MPO switch ports and 60 LC ports

Base8 wiring uses all LC ports—no dead ports as in Base12

Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections

Hardwired cassettes for 30% improvement in insertion loss

Easily identifiable color-coded magenta OM4 cables

The N484-12LC is a high-density 10 Gb pass-through cassette featuring 12 LC duplex connections, designed for seamless integration with the N484-00U and N484-01U chassis. It supports up to four cassettes per N484-01U or one cassette per N484-00U. Each duplex LC connection is rated for 10 GbE and offers an ultra-low maximum insertion loss of just 0.35 dB, significantly below the IEEE 802.3ae maximum channel loss specification of <25 dB, Guaranteed compatibility when used with recommended cabling.

Compatible with both singlemode and multimode fiber cables. Designed specifically for use with N820- and N821-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing is manufactured with heavy-duty 1.0mm cold-rolled steel.

Features

High Density Fiber Cassette for use with the N484-00U and N484-01U chassis'

10GbE Pass-Through Cassette, with (x12) LC Duplex connections

Guaranteed compatibility when used with recommended cabling

Compatible with both singlemode and multimode fiber cables.

Designed specifically for use with cables, such as the N820- and N821-Series cables

Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements

When used in conjunction with an N482-01U or N482-02U chassis (sold separately), the N482-3M8L12S-B 9/125 Fibre Breakout Cassette connects 12 LC duplex fibre cables to three 8-fiber MTP/MPO connections. The cassette has three built-in 2-meter 8-fiber MTP cables. Yellow singlemode cables stand out against ordinary aqua OM3 multimode fibre.

The cassette’s modular design installs easily in the N482-01U and N482-02U chassis with no tools required. Just insert the cassette into the chassis, and screw in its retention clips to secure it. Plug LC Ethernet cables, such as N370-Series cables (sold separately), into the cassette. Up to five N482-3M8L12S-B cassettes fit in the N482-01U 1U enclosure panel, and up to 14 cassettes fit in the N482-02U 2U sleeve. Dust tabs protect unused ports from potential damage. Guaranteed compatibility when used with recommended cabling, including N370-Series cables.

Easy to Install without Tools The cassette module snaps right in to the N482-01U 1U chassis (capacity: 5 cassettes, up to 60 Duplex LC ports) or the N482-02U 2U chassis (capacity: 14 cassettes, up to 168 Duplex LC ports).

Just pop out the chassis’ blanking panel, slide in the cassette and secure it with the integrated retention clips. Three 8-fiber MTP singlemode cables are already attached to reduce installation time. All you need to do is connect your LC duplex fiber cables to complete the connection.




Future-Proof Your Installation The modular solution makes it easy to modify, upgrade or expand your infrastructure as your needs grow. If you need to change out a single cassette, you can do so without replacing the panel or removing other cassettes. Because this system supports both 10 GB and 40 GB, you can connect network equipment of different speeds.

The cassette supports 40 GbE internally using singlemode fiber optic cables and is ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40 Gb.




The N482-3M8L12S-B complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements. Supports 40 GbE internally using 9/125 singlemode fiber optic cable. Ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40 GB, allowing all 12 LC duplex cassette ports to be used. Maximum insertion loss of 0.35 dB falls well under the IEEE 802.3ae maximum channel loss specification of
