| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEN482-3M8L12S-B |
| Manufacturer No: | N482-3M8L12S-B |
| Delivery: | In Stock: 5-7 Days |
 |

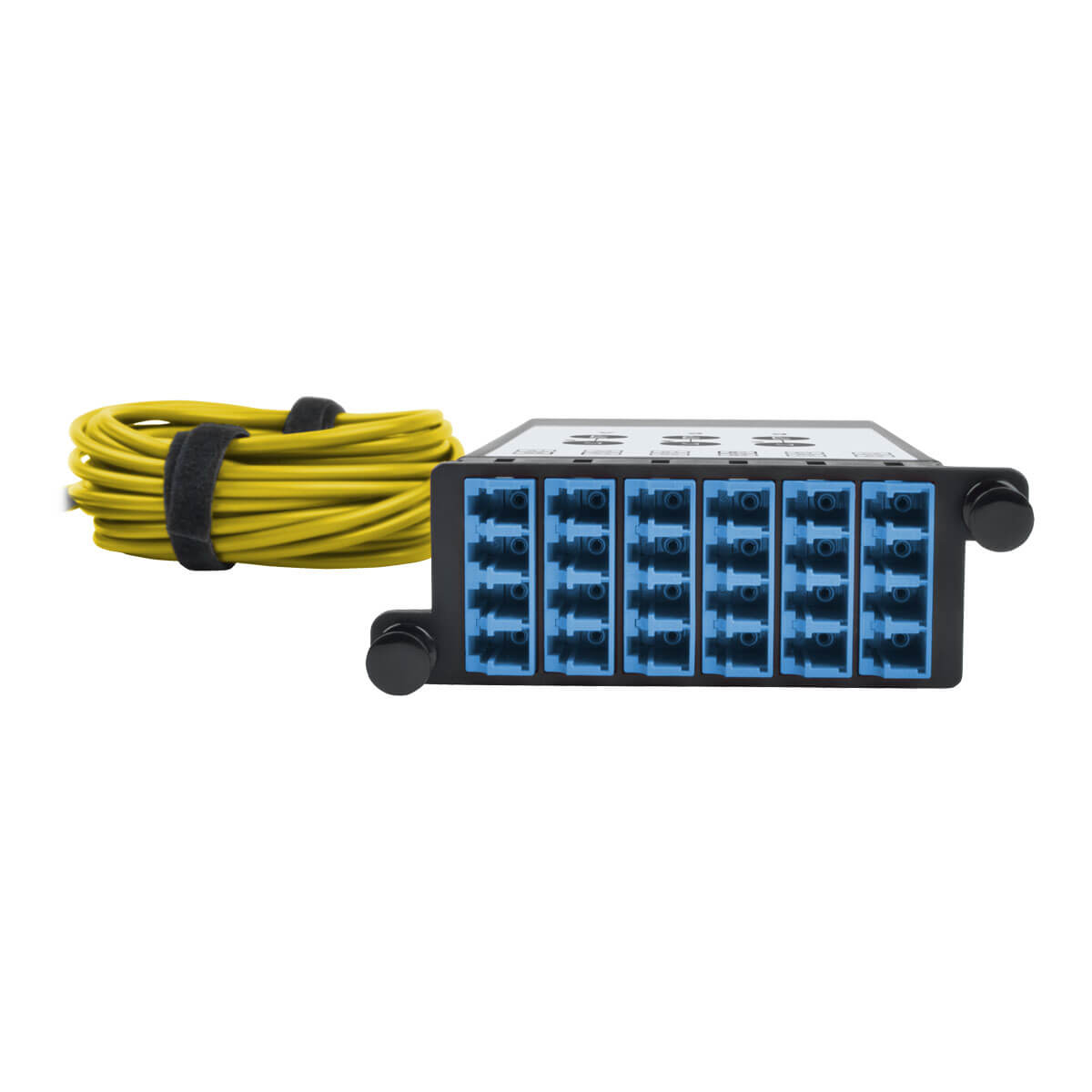

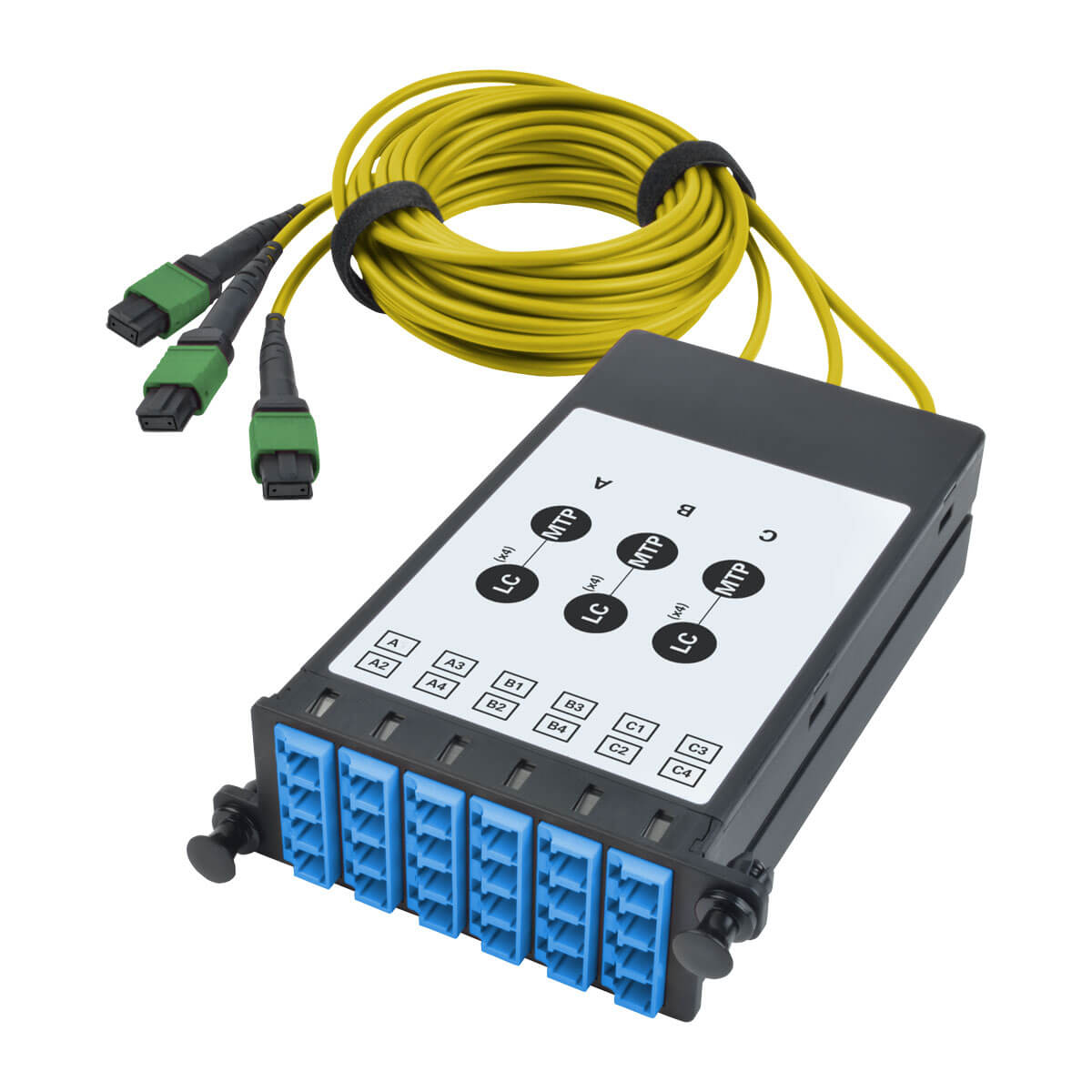

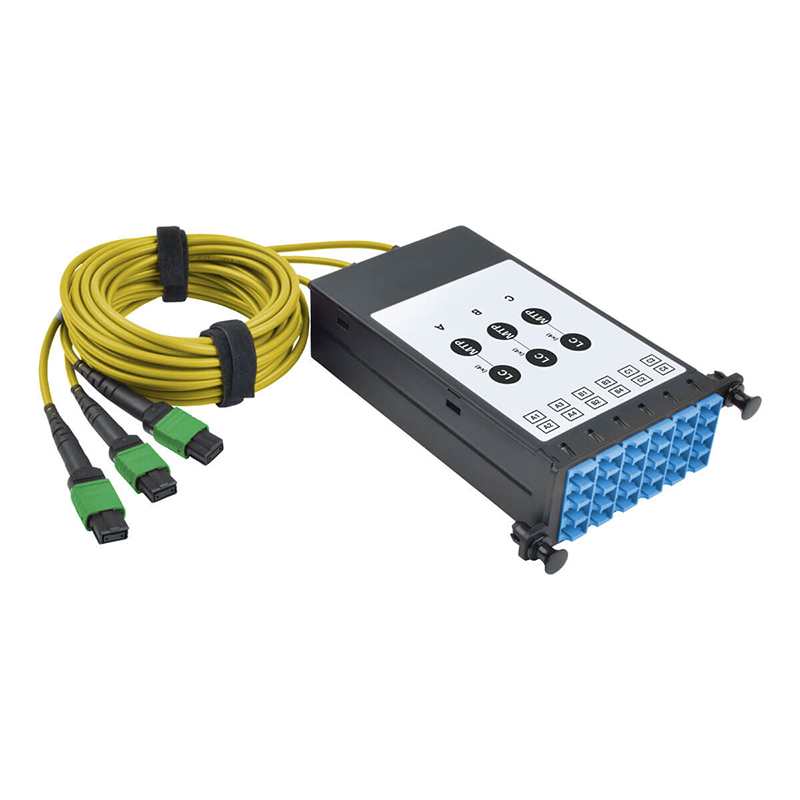

When used in conjunction with an N482-01U or N482-02U chassis (sold separately), the N482-3M8L12S-B 9/125 Fibre Breakout Cassette connects 12 LC duplex fibre cables to three 8-fiber MTP/MPO connections. The cassette has three built-in 2-meter 8-fiber MTP cables. Yellow singlemode cables stand out against ordinary aqua OM3 multimode fibre.
The cassette’s modular design installs easily in the N482-01U and N482-02U chassis with no tools required. Just insert the cassette into the chassis, and screw in its retention clips to secure it. Plug LC Ethernet cables, such as N370-Series cables (sold separately), into the cassette. Up to five N482-3M8L12S-B cassettes fit in the N482-01U 1U enclosure panel, and up to 14 cassettes fit in the N482-02U 2U sleeve. Dust tabs protect unused ports from potential damage. Guaranteed compatibility when used with recommended cabling, including N370-Series cables.
The cassette module snaps right in to the N482-01U 1U chassis (capacity: 5 cassettes, up to 60 Duplex LC ports) or the N482-02U 2U chassis (capacity: 14 cassettes, up to 168 Duplex LC ports).

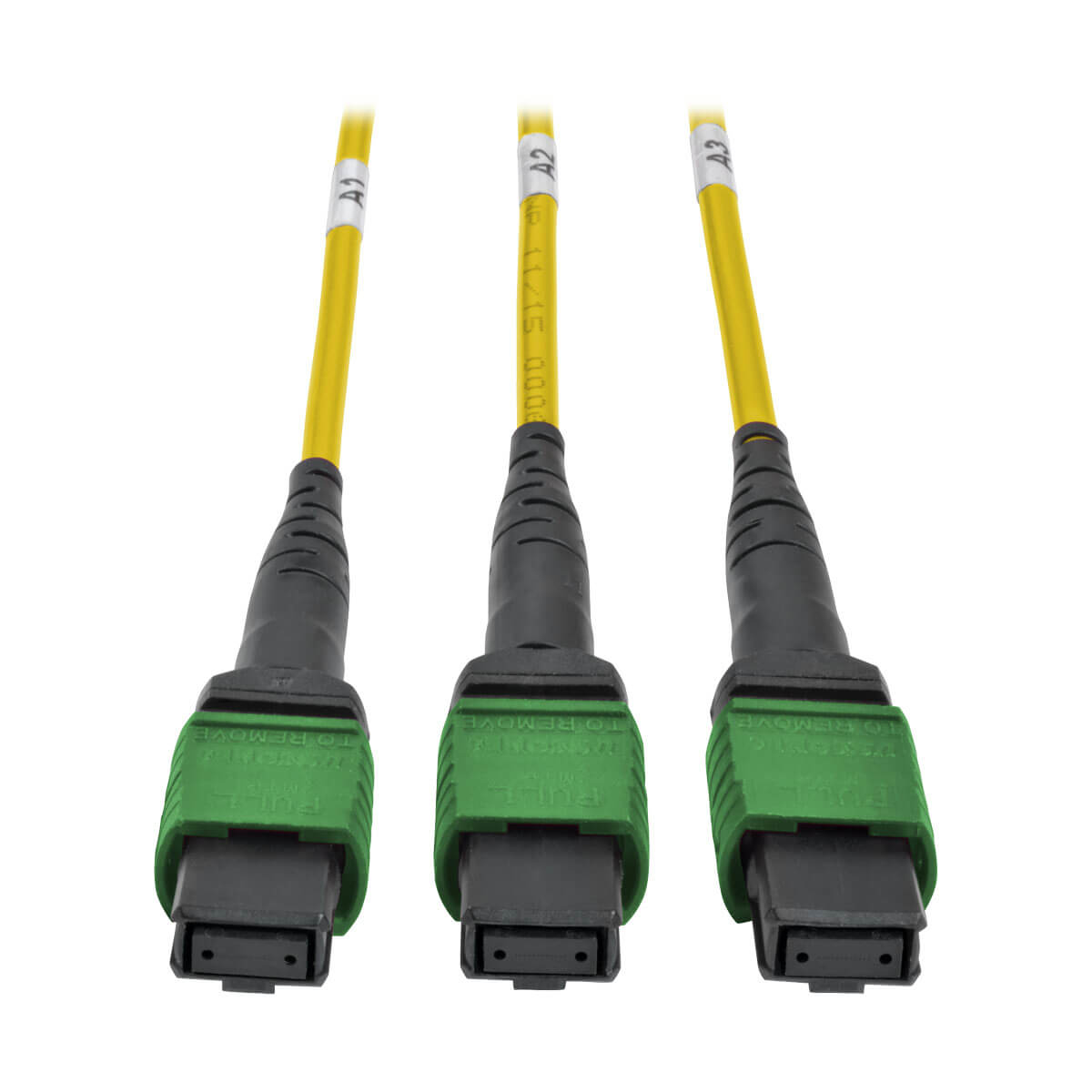

Just pop out the chassis’ blanking panel, slide in the cassette and secure it with the integrated retention clips. Three 8-fiber MTP singlemode cables are already attached to reduce installation time. All you need to do is connect your LC duplex fiber cables to complete the connection.

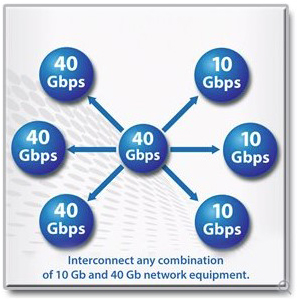

The modular solution makes it easy to modify, upgrade or expand your infrastructure as your needs grow. If you need to change out a single cassette, you can do so without replacing the panel or removing other cassettes. Because this system supports both 10 GB and 40 GB, you can connect network equipment of different speeds.
The cassette supports 40 GbE internally using singlemode fiber optic cables and is ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40 Gb.
The N482-3M8L12S-B complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements. Supports 40 GbE internally using 9/125 singlemode fiber optic cable. Ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40 GB, allowing all 12 LC duplex cassette ports to be used. Maximum insertion loss of 0.35 dB falls well under the IEEE 802.3ae maximum channel loss specification of <25 dB. This cassette also supports devices of varying speeds, including 10Gb, 25Gb, 40Gb and 100Gb network equipment.
With factory-terminated connectors that reduce time and labor, the N482-3M8L12S-B is made from only the finest materials to ensure fast installations and optimal performance.

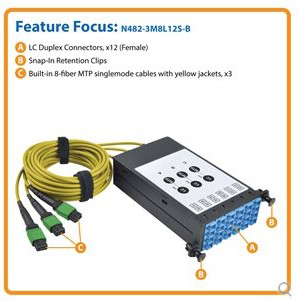

Features
For use with N482-01U or N482-02U chassis

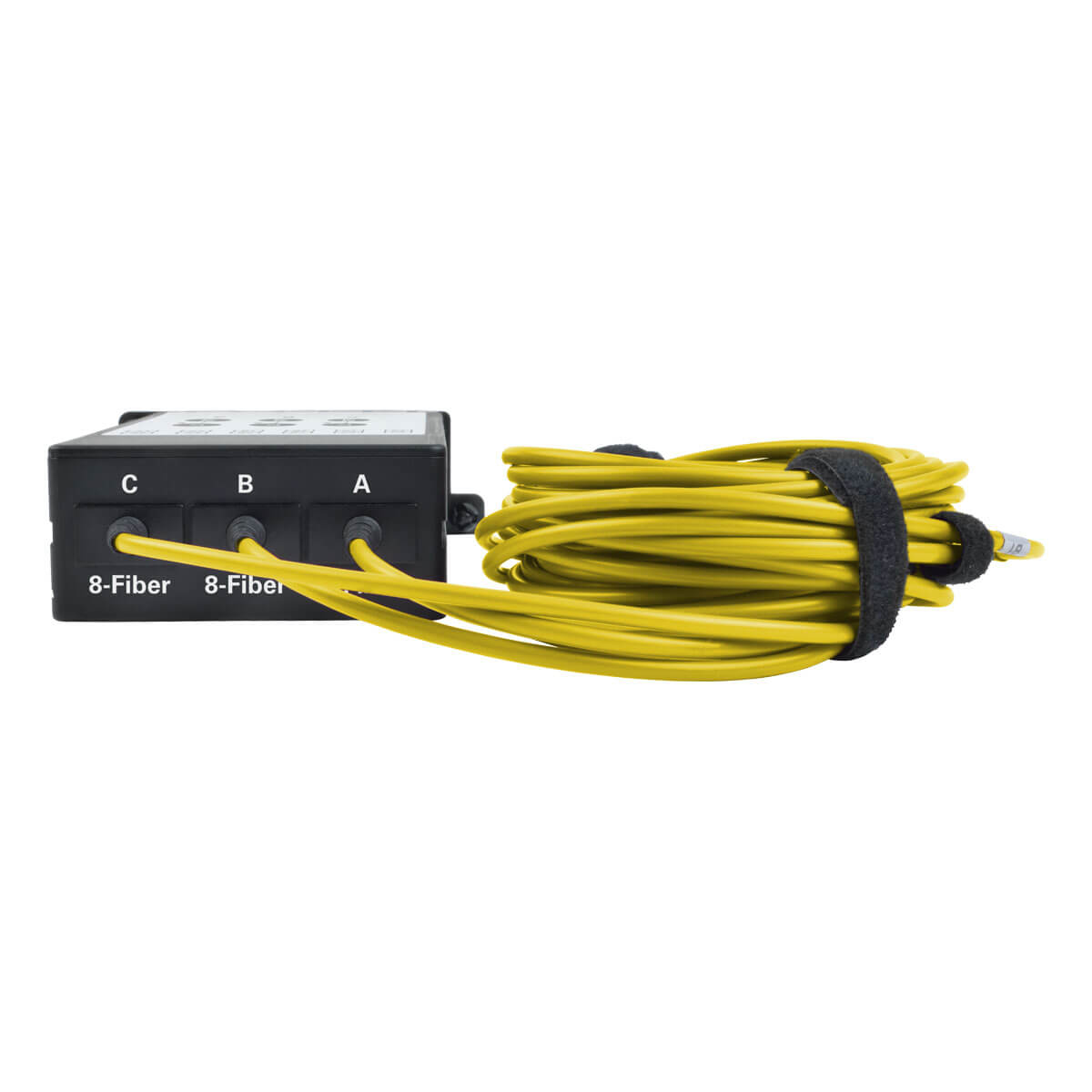

3 yellow built-in 2-meter 8-fiber MTP singlemode cables
Guaranteed compatibility when used with recommended cabling
Designed specifically for use with N370-Series cables
Factory-terminated connectors
Supports 40 GbE internally using fiber optic cable
Simple installation with no tools required
When used in conjunction with an N482-01U or N482-02U chassis (sold separately), the N482-3M8L12S-B 9/125 Fibre Breakout Cassette connects 12 LC duplex fibre cables to three 8-fiber MTP/MPO connections. The cassette has three built-in 2-meter 8-fiber MTP cables. Yellow singlemode cables stand out against ordinary aqua OM3 multimode fibre.
The cassette’s modular design installs easily in the N482-01U and N482-02U chassis with no tools required. Just insert the cassette into the chassis, and screw in its retention clips to secure it. Plug LC Ethernet cables, such as N370-Series cables (sold separately), into the cassette. Up to five N482-3M8L12S-B cassettes fit in the N482-01U 1U enclosure panel, and up to 14 cassettes fit in the N482-02U 2U sleeve. Dust tabs protect unused ports from potential damage. Guaranteed compatibility when used with recommended cabling, including N370-Series cables.
The cassette module snaps right in to the N482-01U 1U chassis (capacity: 5 cassettes, up to 60 Duplex LC ports) or the N482-02U 2U chassis (capacity: 14 cassettes, up to 168 Duplex LC ports).
Just pop out the chassis’ blanking panel, slide in the cassette and secure it with the integrated retention clips. Three 8-fiber MTP singlemode cables are already attached to reduce installation time. All you need to do is connect your LC duplex fiber cables to complete the connection.
The modular solution makes it easy to modify, upgrade or expand your infrastructure as your needs grow. If you need to change out a single cassette, you can do so without replacing the panel or removing other cassettes. Because this system supports both 10 GB and 40 GB, you can connect network equipment of different speeds.
The cassette supports 40 GbE internally using singlemode fiber optic cables and is ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40 Gb.
The N482-3M8L12S-B complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements. Supports 40 GbE internally using 9/125 singlemode fiber optic cable. Ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40 GB, allowing all 12 LC duplex cassette ports to be used. Maximum insertion loss of 0.35 dB falls well under the IEEE 802.3ae maximum channel loss specification of <25 dB. This cassette also supports devices of varying speeds, including 10Gb, 25Gb, 40Gb and 100Gb network equipment.
With factory-terminated connectors that reduce time and labor, the N482-3M8L12S-B is made from only the finest materials to ensure fast installations and optimal performance.
Features
For use with N482-01U or N482-02U chassis
3 yellow built-in 2-meter 8-fiber MTP singlemode cables
Guaranteed compatibility when used with recommended cabling
Designed specifically for use with N370-Series cables
Factory-terminated connectors
Supports 40 GbE internally using fiber optic cable
Simple installation with no tools required
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
