The Eaton N238 is the smart choice for upgrading your home or office network. Its robust construction and advanced features ensure you get the reliable, high-speed Ethernet connectivity you need for all your online activities. Simplify your wiring setup and futureproof your network with this top-tier punch-down jack.
Key features
UL-certified for ANSI/TIA/EIA-568-B.2-1 Cat6 standards
250 MHz bandwidth for blazing-fast Cat6 speeds
Compact design fits standard faceplates and outlets
Dual-color coded for easy 568A/568B wiring
Pack Size: | |
Colour: |

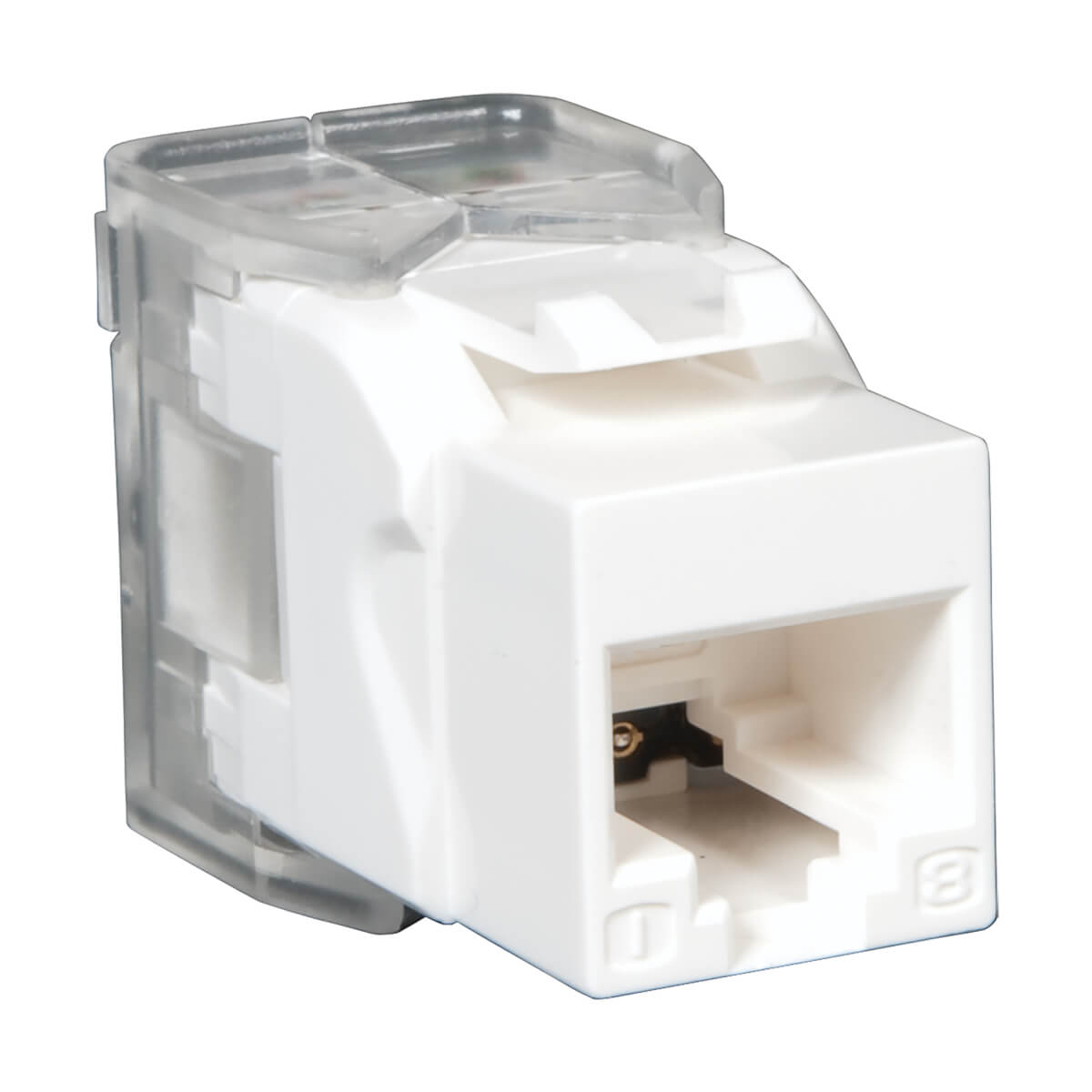

The N238-001-WH-TF allows you to terminate Cat6 and Cat5e wall jacks without the use of a punch-down tool. Simply lace the conductors into the stuffer cap, press the 110 connector and lock in place. Use in either Cat6 or Cat5e installations. Use in standard keystone wall plates, patch panels or surface-mount boxes.

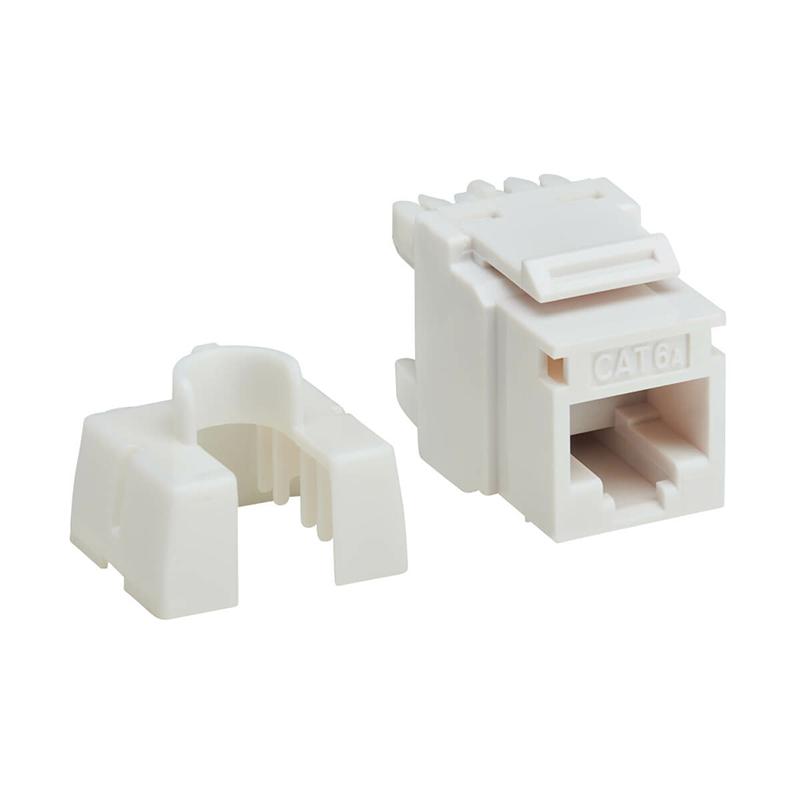

The N238-001-WH-6A Cat6a Keystone Jack. This versatile component snaps right into any standard network interface, giving your installation a clean, professional look while future-proofing your connectivity and use a 110 or Krone punch-down tool to terminate the cable.
Supports Type 4 Power over Ethernet Plus (PoE++) to Give You More Installation Choices
Because this Cat6a keystone jack supports Type 4 PoE++ (4PPoE), it can help supply the power to operate compatible PoE devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.
Meets or Exceeds Current Standards for Performance
Recommended for all Cat6a cabling environments, the N238-001-WH-6A is UL-certified and fully compliant with EIA/TIA Cat6a specifications. The keystone jack features a uniquely patterned printed circuit board designed for 650 MHz performance. Dual color-coded labeling is present for both 568A and 568B (258A) wiring schemes. It’s an ideal keystone jack for residential, commercial and data center in-wall ports or networking closets for installers that opt to terminate their own keystones.
TAA-Compliant for GSA Schedule Purchases
The N238-001-WH-6A is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

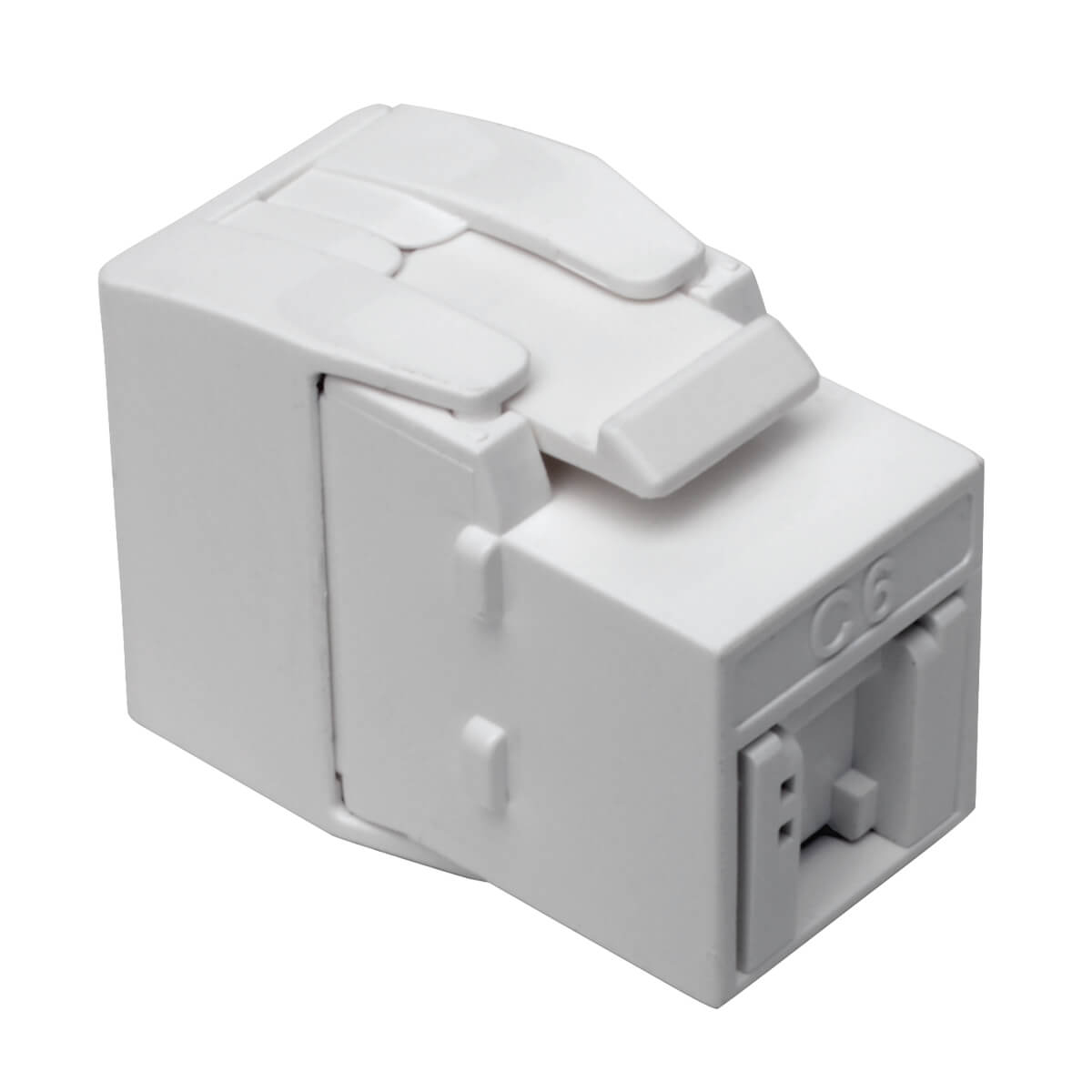

Toolless Keystone Jack Strengthens Your High-Speed Cat5e/Cat6 Network
Terminate your network patch cable without the time, effort and expense of a punchdown tool. Ideal for Cat6 premise wiring, the RJ45 keystone jack snaps into wall plates, patch panels and surface-mount boxes and works with all shielded Cat6 cables. Toolless punchdown connection is compatible with 22–24 AWG solid wire cabling. A shutter/dust cap protects the jack from dust and other contaminants when not in use.
Specifically Designed for Use in Surveillance, VoIP and Other PoE+ Applications
This PoE+ (Power over Ethernet) jack prevents spark-gap erosion that degrades the plug and jack contacts over time and can affect data and/or power transmission capabilities to maximize performance with PoE applications. The N238-001-GY-TF handles the frequent mating and unmating of surveillance cameras, VoIP phone systems, wireless access points and other PoE and PoE+ devices under electrical load.
TAA-Compliant for GSA Schedule Purchases
The N238-001-GY-TF is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

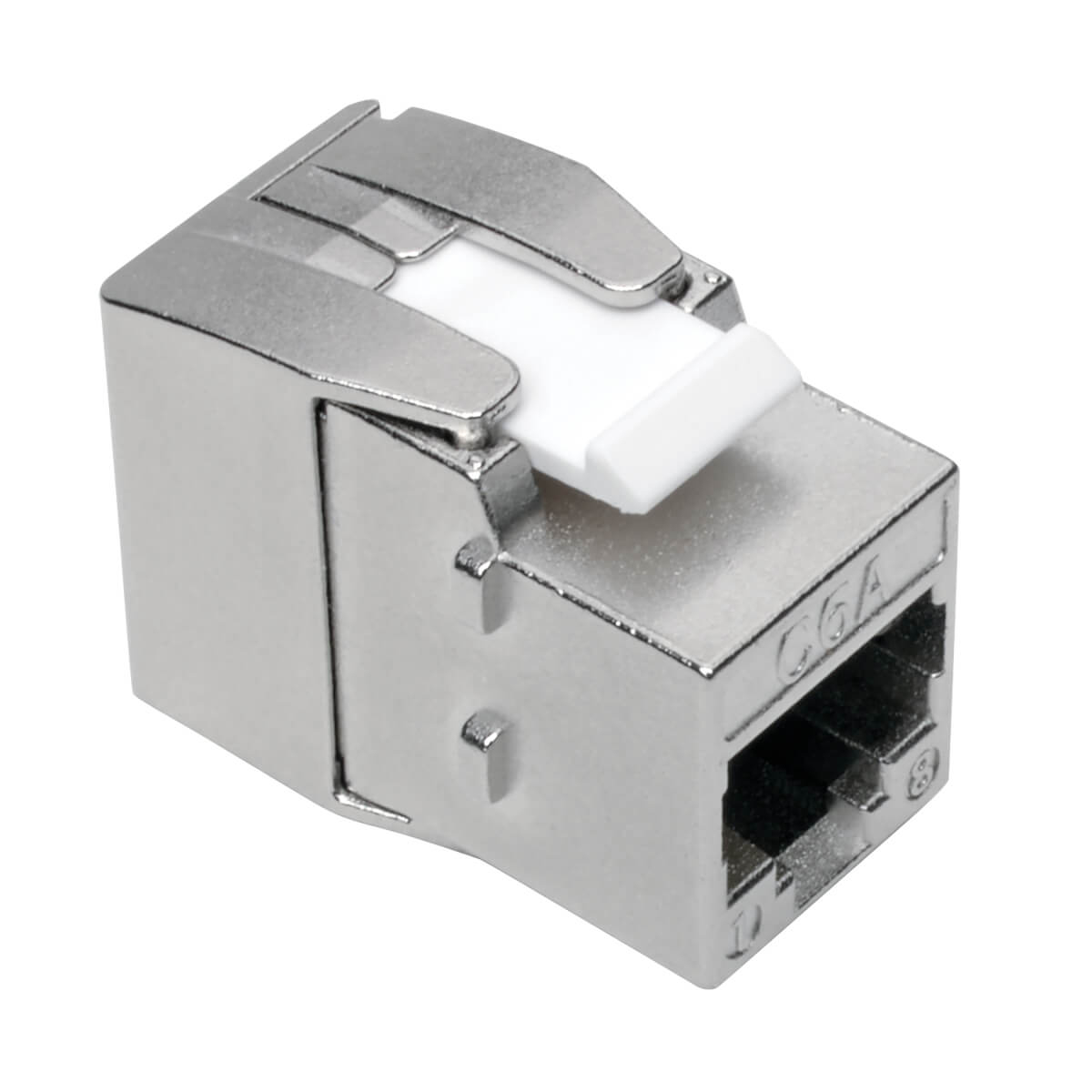

Toolless Keystone Jack Strengthens Your High-Speed Cat5e/Cat6/Cat6a Network
Terminate your network patch cable without the time, effort and expense of a punchdown tool. Ideal for Cat6 premise wiring, the RJ45 keystone jack snaps into wall plates, patch panels and surface-mount boxes and works with all shielded Cat6a cables. Toolless punchdown connection is compatible with 22–24 AWG solid wire cabling. A dust cap protects the jack from dust and other contaminants when not in use.
Specifically Designed for Use in Surveillance, VoIP and Other PoE+ Applications
To maximize performance with PoE (Power over Ethernet) applications, this keystone jack is specifically designed to prevent spark gap erosion that degrades the plug and jack contacts over time and can negatively influence data and/or power transmission capabilities. Connecting PoE devices saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device.
Heavy Shielding Protects Your Network Data from Destructive Line Noise
The fully shielded protective metal housing helps fight against EMI/RFI line noise that interferes with your network signal and can distort or destroy data.
TAA-Compliant for GSA Schedule Purchases
The N238-001-SH-TF is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

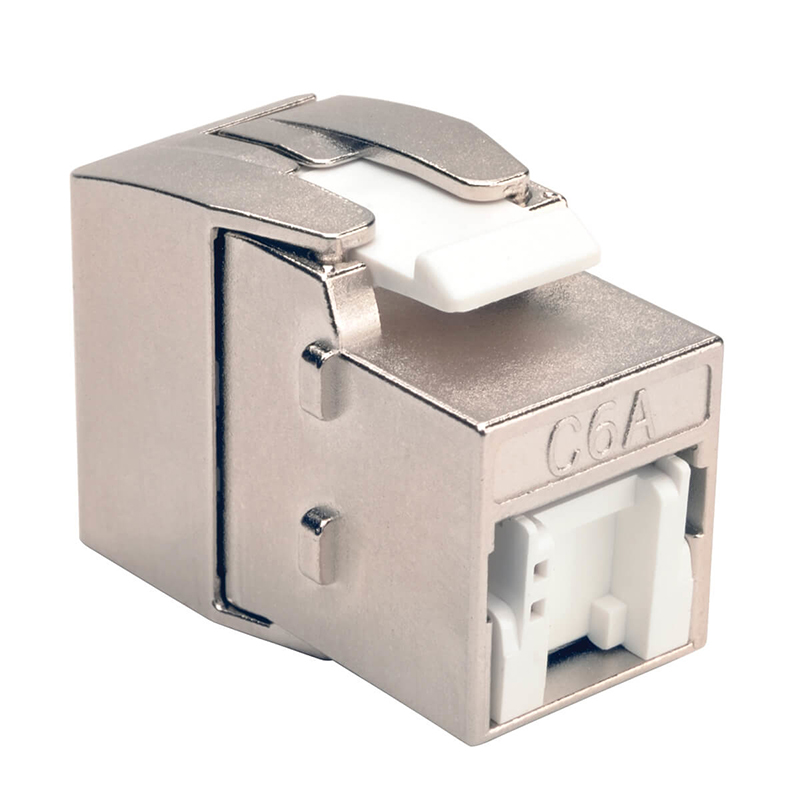

Strengthen your high-speed network with the N238-001-SH-TFA Toolless Shielded Cat6a Keystone Jack. Terminate your Cat6a wall jack without using a punchdown tool. Just lace the conductors into the stuffer cap, press the 110 connector, and lock the jack into place. Use in wallplates, patch panels and surface-mount boxes.
Power over Ethernet Plus (PoE+) compliant. RJ45 port is compatible with all shielded Cat6a cables, and toolless punchdown connection is compatible with 22-24 AWG solid wire cabling. The N238-001-SH-TFA’s protective housing is fully shielded to reduce EMI/RFI interference that can damage or degrade data.

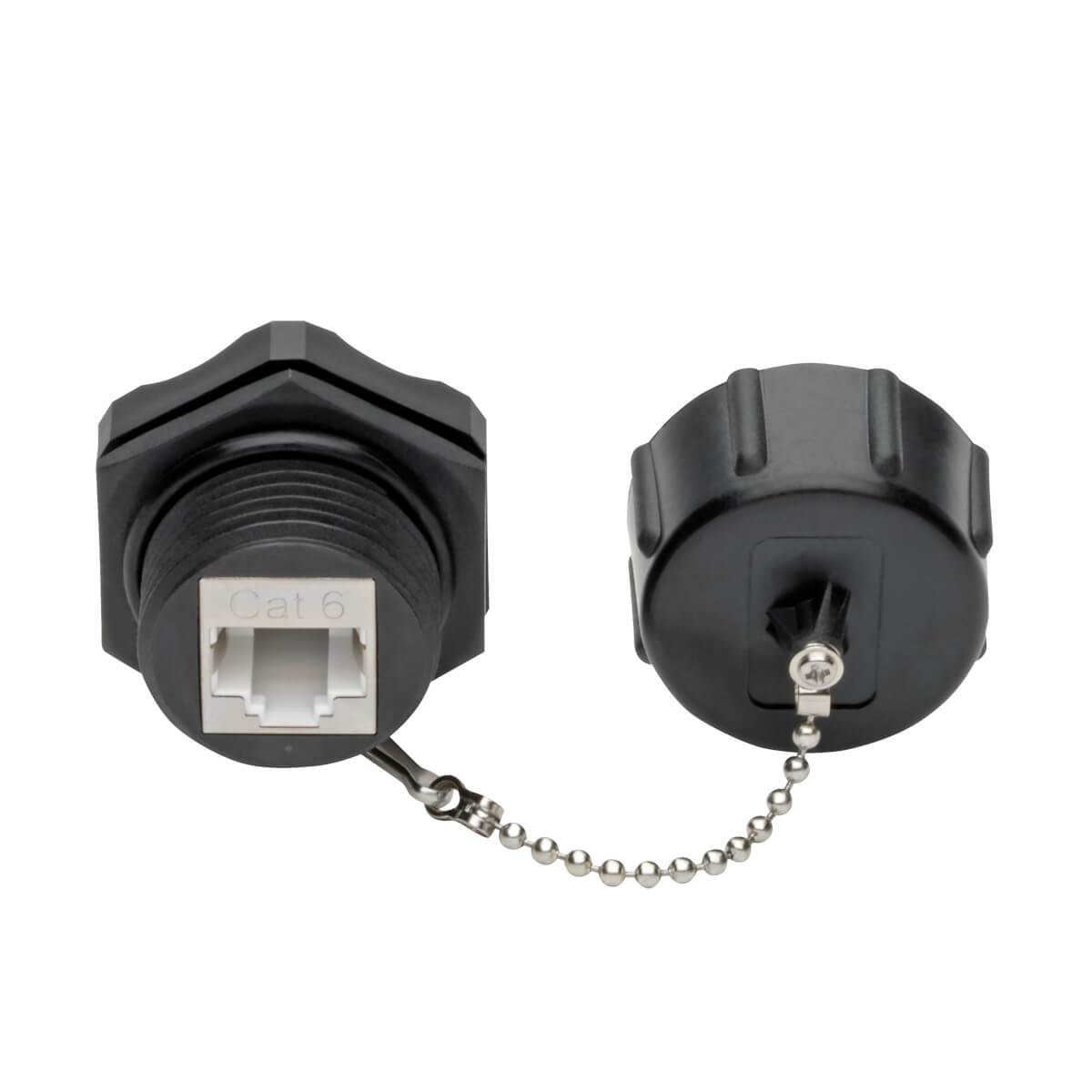

Keystone RJ45 Cat5e Jack Recommended for Outdoor or Harsh Outdoor Environments
This Cat6 shielded keystone jack lets you connect two Cat5e/6 patch cables for Gigabit Ethernet networks or digital signage in outdoor applications and other areas where protection from harsh elements is essential. It inserts into an industrial-grade wall plate or surface-mount box to create a watertight seal. An included dust cap protects the shielded RJ45 coupler from dust, debris and moisture when not in use.
IP68 Rating Denotes Resistance to Dust and Water
The IP68 rating means the keystone RJ45 Cat5e jack is not only 100% protected against dust, but also able to endure immersion in 1.5 meters of water for up to 60 minutes with no damage or decline in performance, making the kit ideal for basement applications*. For applications that require IP68 protection, we recommend using the keystone jack with a N206-SB01-IND surface-mount box and N206-Series Cat6 patch cabling. If only IP44 protection against splashing water from all directions is required, we recommend pairing the keystone jack with the N206-Series cable and an N206-FP01-IND, N206-FP02-IND or N206-FP04-IND metal wall plate (all sold separately).
Heavy Shielding Protects Your Network Data from Destructive Line Noise
The Cat6 shielded keystone jack fights against EMI/RFI line noise that interferes with your Ethernet or audio/video signal and can distort or destroy data. Electromagnetic interference and radio frequency interference can be created by electric motors, power cables, welding equipment and other heavy machinery frequently found in industrial applications.
TAA-Compliant for GSA Schedule Purchases
The N206-KJ01-IND is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
*Based on manufacturer's guarantee. Standard IP68 rating guarantees water resistance at depths up to 1.5 meters for up to 30 minutes.

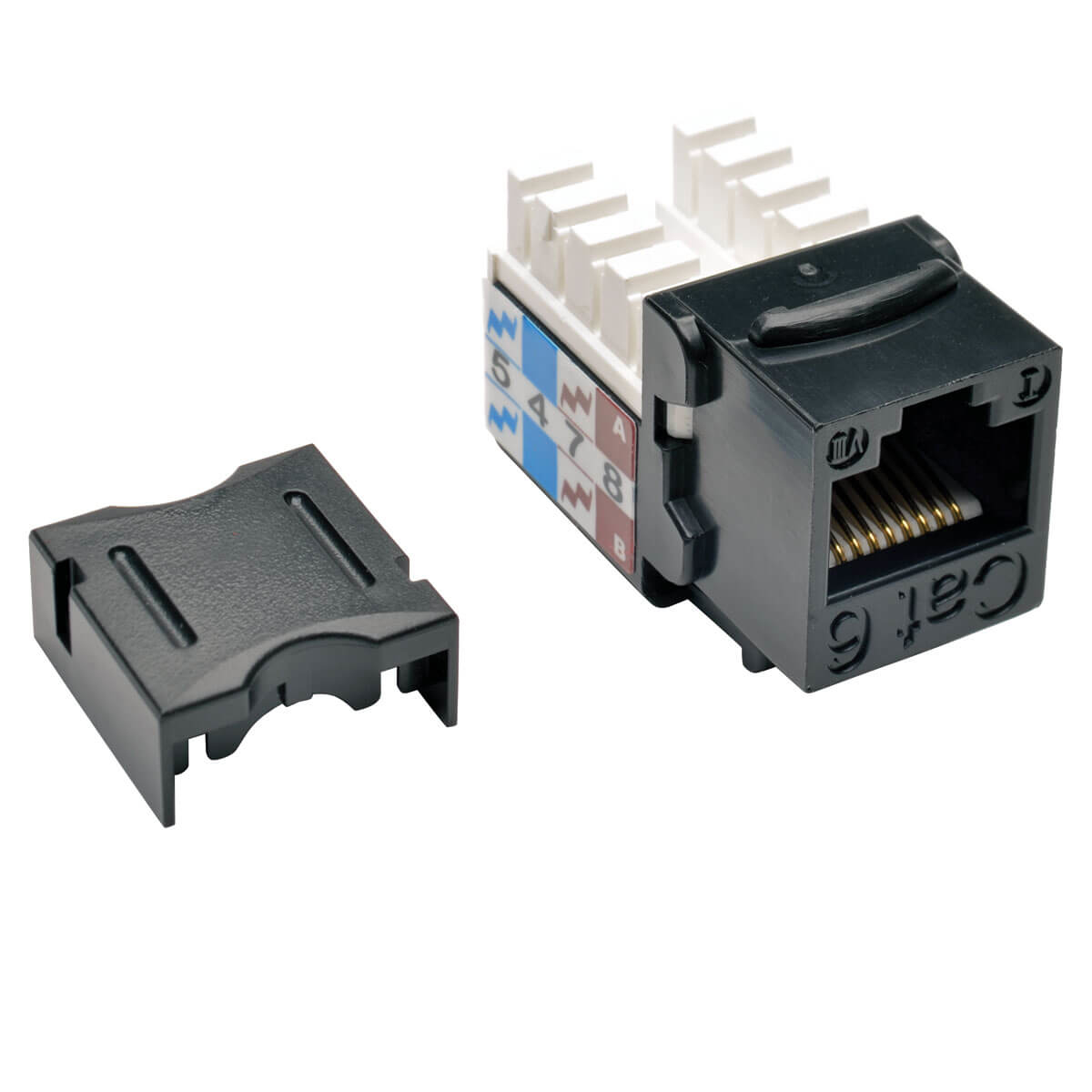

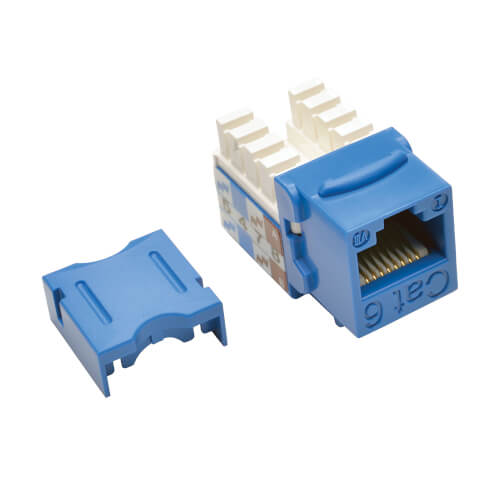

This Cat6/Cat5e 110-Style Punch-Down Keystone Jack maximises flexibility in any UTP Ethernet system. The jack is ideal for Cat5e cabling environments and meets the UL-certified ANSI/TIA/EIA-568-B.2-1 Permanent Link/Channel Identification Test for Cat6 cabling systems.
The printed circuit board is specially patterned and fully complies with EIA/TIA Cat6 connecting hardware regulations, ensuring Cat6 250 MHz performance. It can be installed in any standard face plate, outlet box, or panel due to its small footprint. It also has dual-color-coded labelling for both 568A and 568B (258A) wiring configurations.
UTP Cat6 22-24 AWG Solid Cable

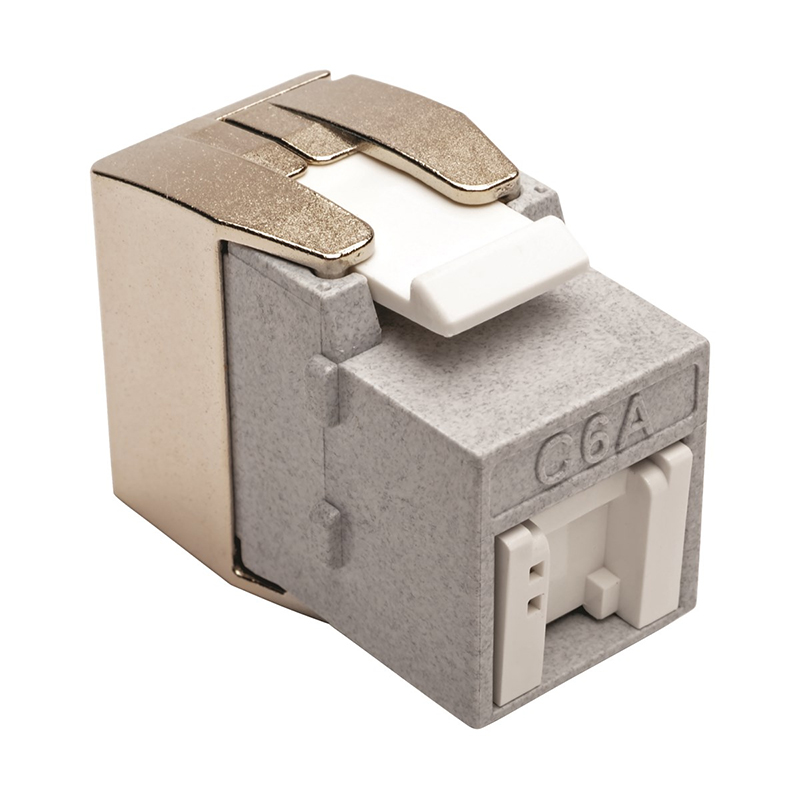

Strengthen your high-speed network with the N238-001-GY-TFA Toolless Cat6a Keystone Jack. Terminate your Cat6a wall jack without using a punchdown tool. Just lace the conductors into the stuffer cap, press the 110 connector, and lock the jack into place. Use in standard keystone wallplates, patch panels and surface-mount boxes. RJ45 port is compatible with all Cat6a cables, and toolless punchdown connection is compatible with 22-24 AWG solid wire cabling. Power over Ethernet Plus (PoE+) compliant.
Superior Construction for Superior Performance
UL-listed Meets all EIA/TIA Cat6a requirements.
Features a shutter / dust cap that protects from dust and contaminants when not in use.
TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchasing.
