| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEN484-3M8-LC12 |
| Manufacturer No: | N484-3M8-LC12 |
| Delivery: | In Stock: Next Day |
 |

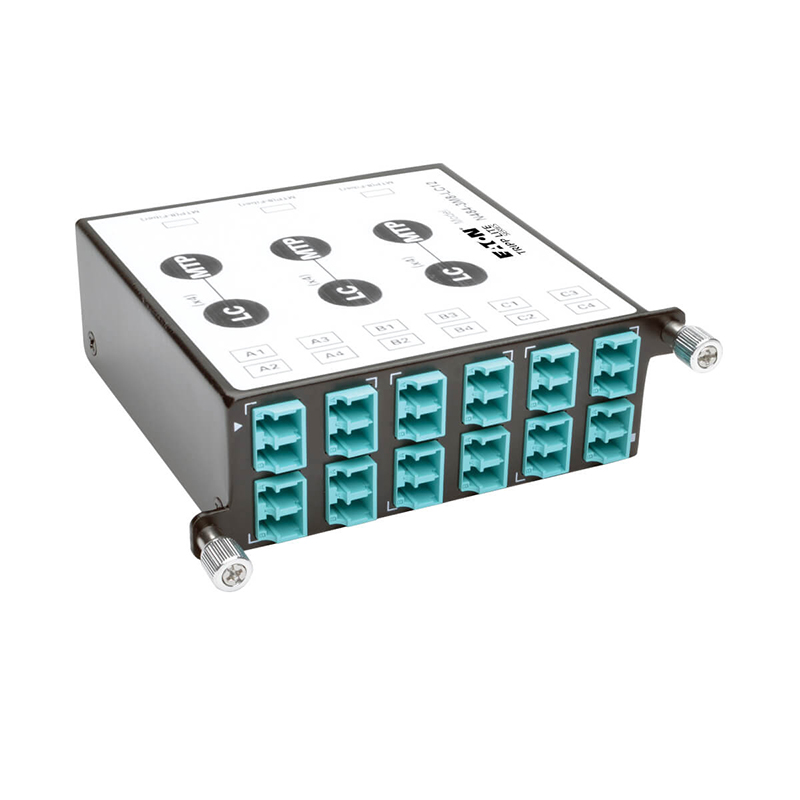

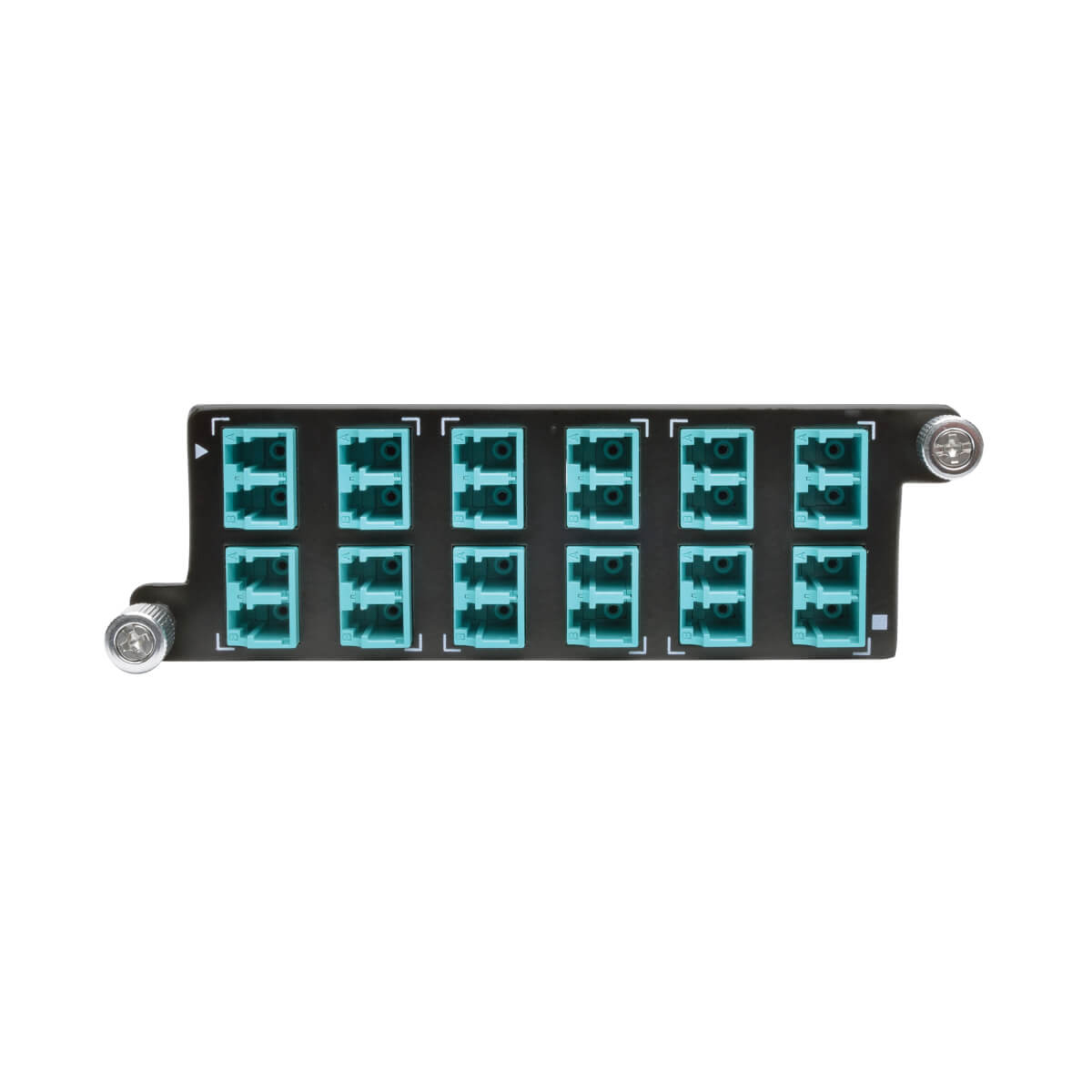

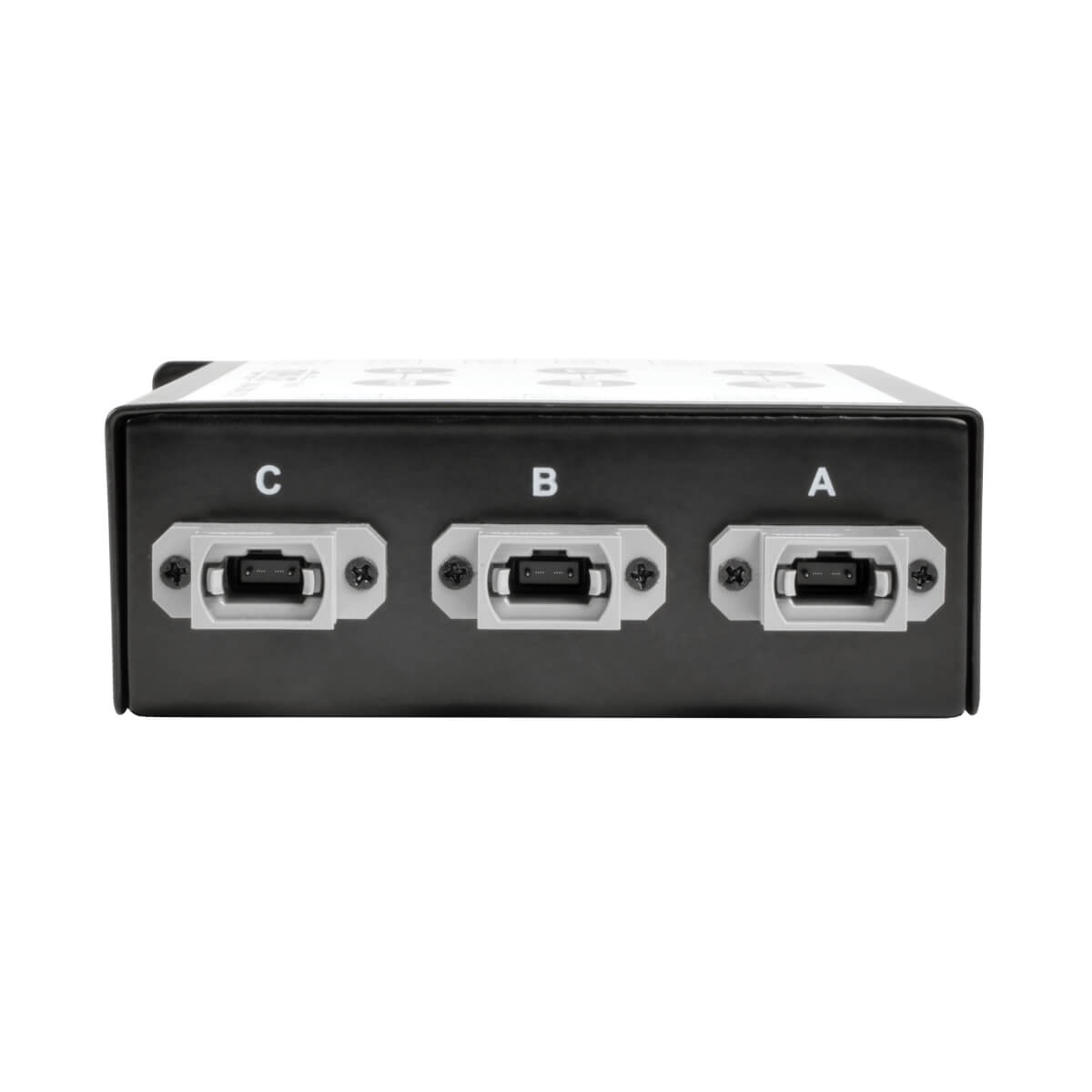

The N484-3M8-LC12 40/100Gb to 10/25Gb Breakout Cassette works in tandem with N484-01U or N484-00U chassis to connect 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections in high-density network applications. Compatible with recommended cabling, including the N820-, N821-, N844-, N845- and N858 Series. Its 8-fiber MTP ports are Polarity B, for parallel optics and Base-8 connectivity.

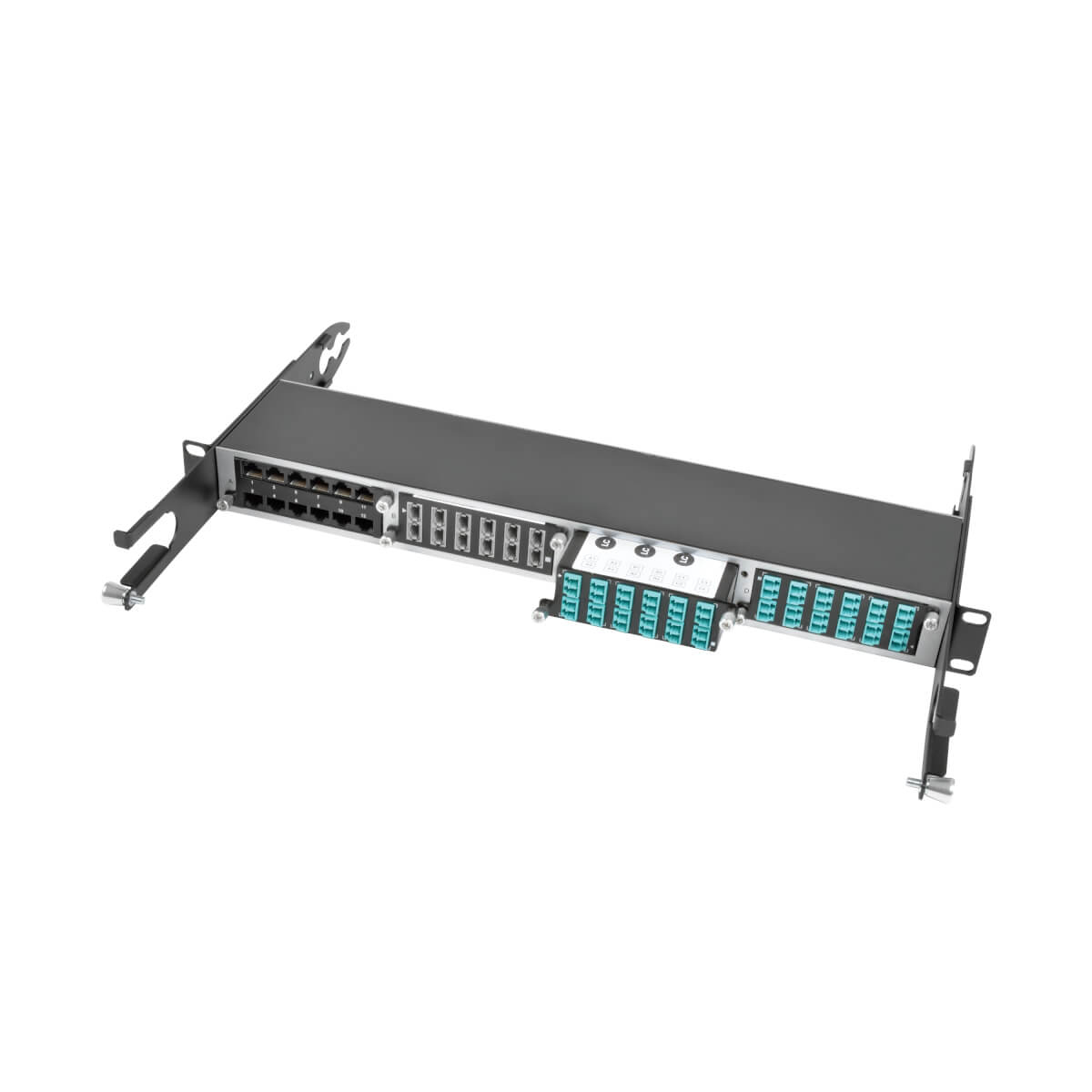

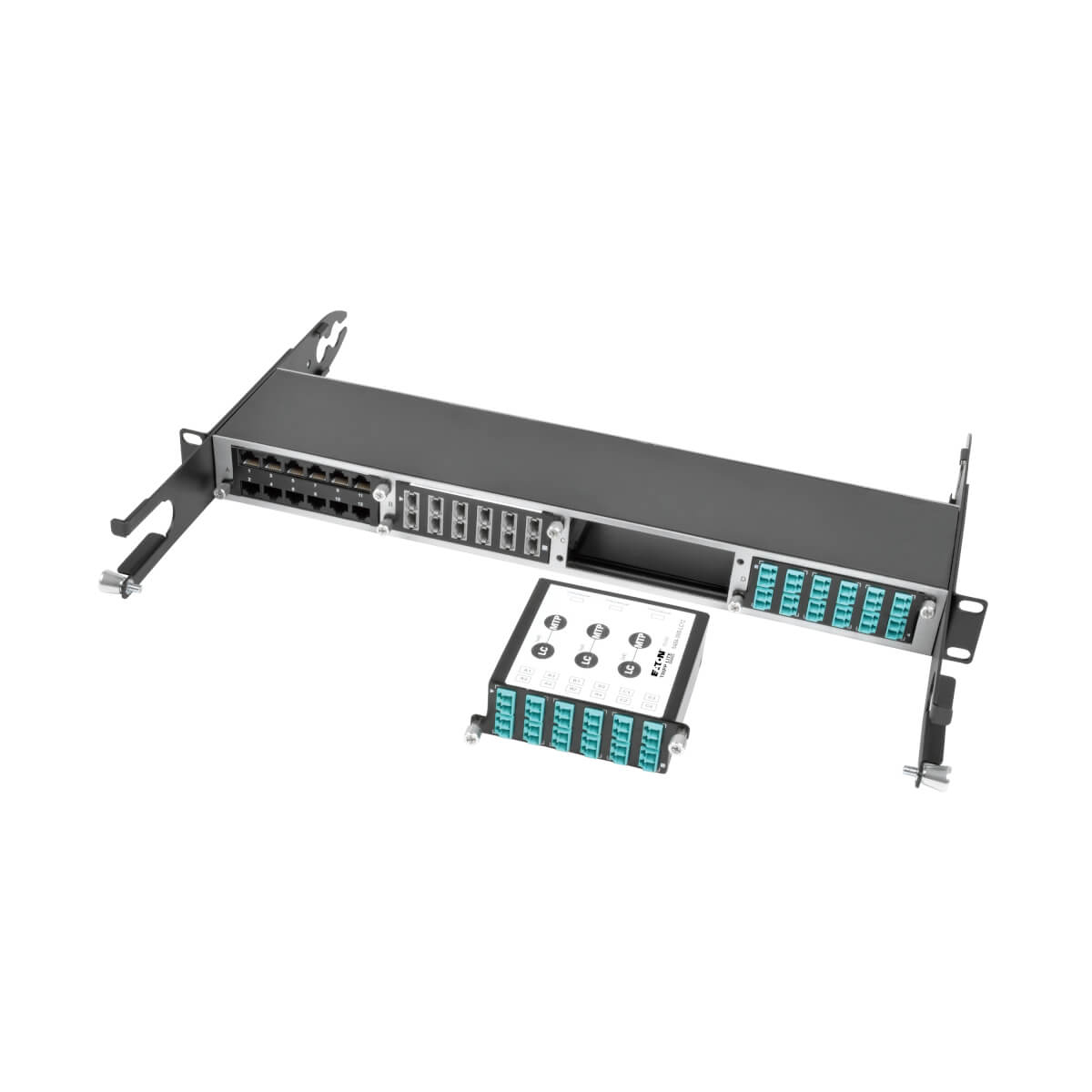

The cassette’s modular design installs easily in the N484-01U and N484-00U chassis with no tools required. Just insert the cassette into the chassis, and screw in its retention clips to secure it. Plug LC Ethernet cables, such as N820-01M-T cables, into the cassette using the cable’s convenient push/pull tabs. Up to four N484-3M8-LC12 cassettes fit in the N484-01U 1U enclosure panel, and one cassette fits in the N484-00U 0U sleeve. Dust tabs protect unused ports from potential damage.
The N484-3M8-LC12 complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements. Supports 40 GbE internally using OM4 fiber optic cable. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections.
Ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40 GB, allowing all 12 LC duplex cassette ports to be used. Maximum insertion loss of 0.35 dB falls well under the IEEE 802.3ae maximum channel loss specification of <25 dB. This cassette also supports devices of varying speeds, including 10Gb, 25Gb, 40Gb and 100Gb network equipment.
Designed Specifically for Use with Cabling
Guaranteed compatibility with recommended cables, including N820-, N821-, N844-, N845- and N858 Series.
Simple Fiber Installations Save Time and Money
Easy installation with no tools required. Installs neatly in N484-00U 0U chassisInstall up to 4 cassettes in N484-01U 1U enclosure panel.
Easy to Modify, Upgrade or Expand Fiber Infrastructure By Adding or Swapping Cassettes
Complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements0.35 dB maximum insertion loss falls under IEEE 802.3ae maximum channel loss spec of <25 dB. Supports devices of varying speeds, including 10 Gb, 25 Gb, 40 Gb and 100 Gb network equipment.
Premium Construction for Optimal Performance
Heavy-duty cold-rolled steel construction Factory terminated connectors reduce time and labor. Dust caps protect unused ports.
The N484-3M8-LC12 40/100Gb to 10/25Gb Breakout Cassette works in tandem with N484-01U or N484-00U chassis to connect 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections in high-density network applications. Compatible with recommended cabling, including the N820-, N821-, N844-, N845- and N858 Series. Its 8-fiber MTP ports are Polarity B, for parallel optics and Base-8 connectivity.
The cassette’s modular design installs easily in the N484-01U and N484-00U chassis with no tools required. Just insert the cassette into the chassis, and screw in its retention clips to secure it. Plug LC Ethernet cables, such as N820-01M-T cables, into the cassette using the cable’s convenient push/pull tabs. Up to four N484-3M8-LC12 cassettes fit in the N484-01U 1U enclosure panel, and one cassette fits in the N484-00U 0U sleeve. Dust tabs protect unused ports from potential damage.
The N484-3M8-LC12 complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements. Supports 40 GbE internally using OM4 fiber optic cable. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections.
Ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40 GB, allowing all 12 LC duplex cassette ports to be used. Maximum insertion loss of 0.35 dB falls well under the IEEE 802.3ae maximum channel loss specification of <25 dB. This cassette also supports devices of varying speeds, including 10Gb, 25Gb, 40Gb and 100Gb network equipment.
Designed Specifically for Use with Cabling
Guaranteed compatibility with recommended cables, including N820-, N821-, N844-, N845- and N858 Series.
Simple Fiber Installations Save Time and Money
Easy installation with no tools required. Installs neatly in N484-00U 0U chassisInstall up to 4 cassettes in N484-01U 1U enclosure panel.
Easy to Modify, Upgrade or Expand Fiber Infrastructure By Adding or Swapping Cassettes
Complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements0.35 dB maximum insertion loss falls under IEEE 802.3ae maximum channel loss spec of <25 dB. Supports devices of varying speeds, including 10 Gb, 25 Gb, 40 Gb and 100 Gb network equipment.
Premium Construction for Optimal Performance
Heavy-duty cold-rolled steel construction Factory terminated connectors reduce time and labor. Dust caps protect unused ports.
