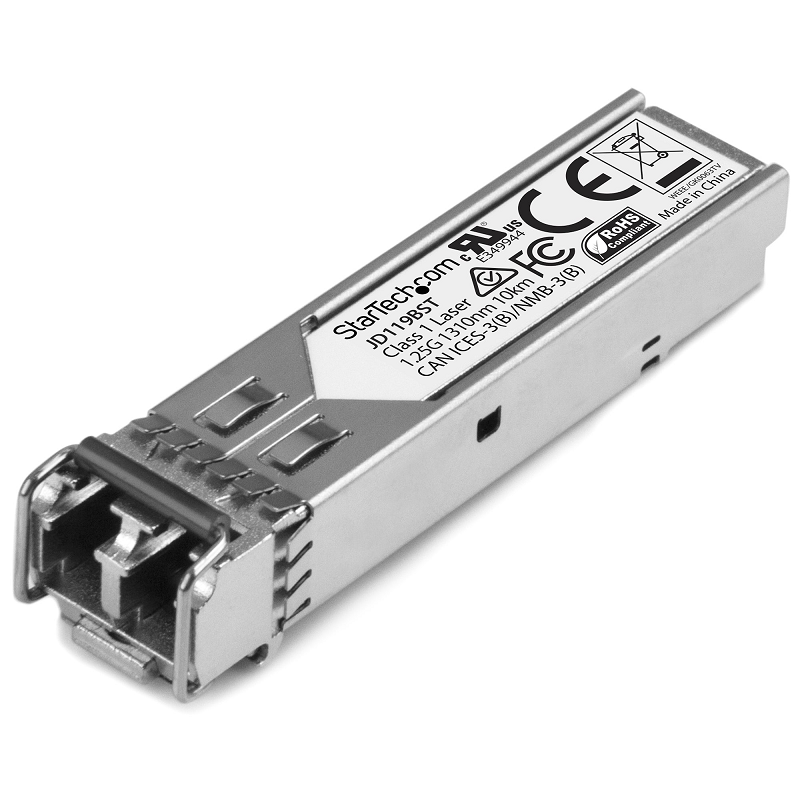

HPE JD119B Compatible SFP Module - 1000BASE-LX - 1GbE Single Mode Fiber Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM HPE 5900, 12500, 5500HPE JD119B Compatible SFP Module - 1000BASE-LX - 1GbE Single Mode Fiber Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM HPE 5900, 12500, 5500
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The JD119BST is an HP JD119B compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Applications
Replacing defective or damaged SFP modulesin HP switches and routers
Expand your network to remote segments
Features:
100% HPE JD119B COMPATIBLE: Works with HPE switches like 5900, 12500, 5500, 5820, 5120 and others
TECHNICAL SPECS: 1000BASE-LX 1Gbps Single Mode (SMF) LC Connector 1310nm Digital Diagnostic Monitoring (DDM) Distances up to 10km (6.2mi)
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself - not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Technical Specifications:
Wavelength: 1310nm
Maximum Data Transfer Rate: 1.25 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 3,092,408 hours
Power Consumption: Less than 1 Watt
DDM: Yes
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Maximum data transfer rate
1250 Mbit/s
Interface type
SFP
Performance
Product colour
Silver
Housing material
Aluminium
Mean time between failures (MTBF)
3092408 h
Digital Diagnostics Monitoring (DDM)
Yes
Fiber optic connector
LC
Maximum transfer distance
10000 m
Wavelength
1310 nm
Maximum data transfer rate
1250 Mbit/s
SFP transceiver standard
LX
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
13.7 mm
Depth
56.6 mm
Height
12.5 mm
Weight
16 g
Logistics data
Master (outer) case width
25.4 cm
Master (outer) case length
30.5 cm
Master (outer) case height
20.1 cm
Quantity per master (outer) case
36 pc(s)
Full specification and details can be found in the

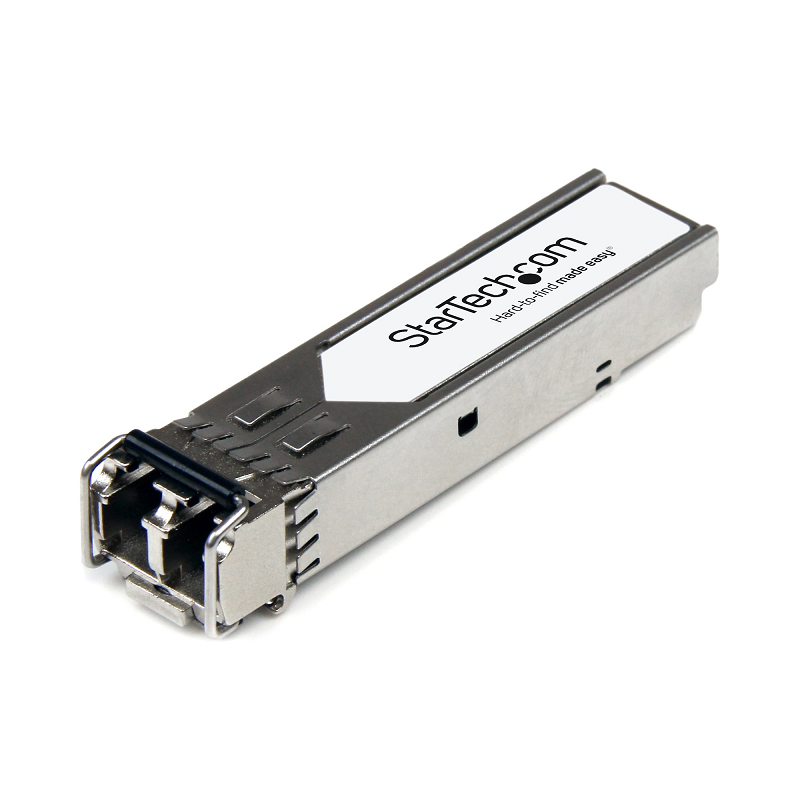

HPE 455886-B21 Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE BladeSystem, 562SFP+, 560SFP+
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The 455886-B21-ST is a HP 455886-B21 compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBase-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Features:
100% HPE 455886-B21 COMPATIBLE: Works with HPE switches like BladeSystem, 562SFP+, 560SFP+, 537SFP+, SimpliVity 380 and others
TECHNICAL SPECS: 10GBASE-LR 10Gbps Single Mode (SMF) LC Connector 1310nm Digital Diagnostic Monitoring (DDM) Distances up to 10km (6.2mi)
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself - not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Technical Specifications:
Wavelength: 1330nm
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 1,386,624,697 hours
Power Consumption: < 1.3W
DDM: Yes
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Performance
Product colour
Silver
Compatible products
455886-B21
Mean time between failures (MTBF)
1386624697 h
Brand compatibility
HP
SFP transceiver type
Fiber optic
Maximum transfer distance
10000 m
Wavelength
1310 nm
Maximum data transfer rate
10000 Mbit/s
Weight & dimensions
Width
58.4 mm
Depth
13.9 mm
Height
13.7 mm
Weight
21 g
Logistics data
Master (outer) case width
9 cm
Master (outer) case length
11.5 cm
Master (outer) case height
3.1 cm
Quantity per master (outer) case
1 pc(s)
Full specification and details can be found in the

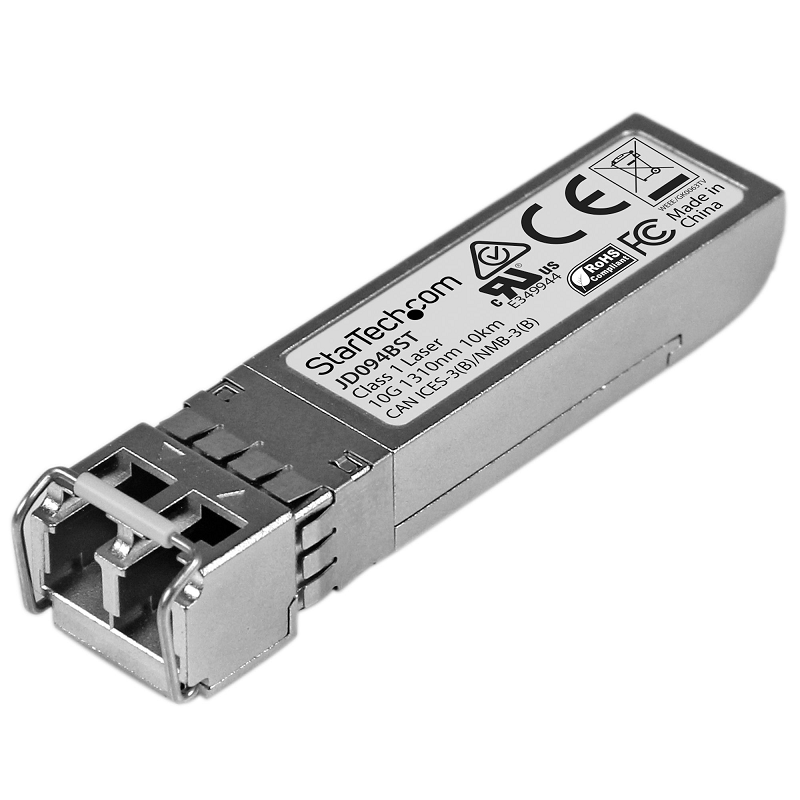

HPE JD094A Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE 5900, 12500, 5500
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The JD094A-ST is an HP JD094A compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBase-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Features:
100% HPE JD094A COMPATIBLE: Works with HPE switches like 5900, 12500, 5500, 5820, 5120 and others
TECHNICAL SPECS: 10GBASE-LR 10Gbps Single Mode (SMF) LC Connector 1310nm Digital Diagnostic Monitoring (DDM) Distances up to 10km (6.2mi)
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself - not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Technical Specifications:
Wavelength: 1330nm
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 1,386,624,697 hours
Power Consumption: < 1.3W
DDM: Yes
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Performance
Product colour
Silver
Compatible products
JD094A
Mean time between failures (MTBF)
1386624697 h
Brand compatibility
HP
SFP transceiver type
Fiber optic
Maximum transfer distance
10000 m
Wavelength
1310 nm
Maximum data transfer rate
10000 Mbit/s
Weight & dimensions
Width
58.4 mm
Depth
13.9 mm
Height
13.7 mm
Weight
21 g
Logistics data
Master (outer) case width
9 cm
Master (outer) case length
11.5 cm
Master (outer) case height
3.1 cm
Quantity per master (outer) case
1 pc(s)
Full specification and details can be found in the
HPE 0231A0A8 Compatible SFP+ Module - 10GBASE-LR - Single Mode Fiber (SMF) - 10GE Gigabit Ethernet SFP+ - LC 10 km - 1310nm - DDM
The 0231A0A8-ST is a HP 0231A0A8 compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBase-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Features:
100% HPE 0231A0A8 COMPATIBLE: Designed, programmed and tested to work with compatible HPE switches and routers to deliver dependable 10GbE connectivity
TECHNICAL SPECS: 10GBASE-LR 10 Gbps Single Mode LC Connector 1310nm Digital Diagnostic Monitoring (DDM) Distances up to 10 km (6.2 mi)
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself - not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Technical Specifications:
Wavelength: 1310nm
Maximum Data Transfer Rate: 10Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 1,386,624,697 hours
Power Consumption: < 1.3W
DDM: Yes
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Maximum data transfer rate
10310 Mbit/s
Interface type
SFP+
Performance
Product colour
Silver
Compatible products
0231A0A8
Mean time between failures (MTBF)
1386624697 h
Brand compatibility
HP
SFP transceiver type
Fiber optic
Digital Diagnostics Monitoring (DDM)
Yes
Fiber optic connector
LC
Maximum transfer distance
10000 m
Wavelength
1310 nm
Duplex system
Full
Maximum data transfer rate
10310 Mbit/s
Interface type
SPF+
Single-mode fiber (SMF) supported
Yes
Multi-mode fiber (MMF) supported
No
SFP transceiver standard
LR
Weight & dimensions
Width
58.4 mm
Depth
13.9 mm
Height
13.7 mm
Weight
21 g
Full specification and details can be found in the

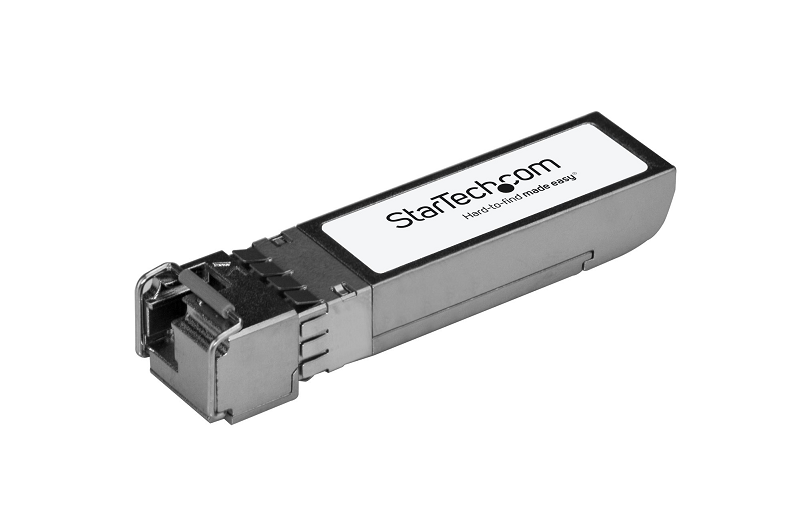

HPE J9151A Compatible SFP+ Module - 10GBASE-BX - 10 GbE Gigabit Ethernet BiDi Fiber (SMF) (J9151A-BX-D-ST)
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The J9151A-BX-D-ST is an HP J9151A-BX-D compatible downstream fiber SFP+ transceiver which pairs with StarTech.com's J9151A-BX-U-ST. They are designed, programmed and tested to work with 10GBase-BX compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Features:
100% HPE J9151A COMPATIBLE: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ works with HPE switches like 2920, 2910al, 3500yl, 3800, 5400zl and others
INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
TECHNICAL SPECS: 10GBASE-BX 10Gbps 10G Bi-Directional Downstream Single Mode (SMF) LC Connector 1330nmTx/1270nmRx Digital Diagnostic Monitoring (DDM) Distances up to 10km (6.2mi)
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself, not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with OEM routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Technical Specifications:
Wavelength: 1330nmTx/1270nmRx
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 2,104,865 hours
Power Consumption: < 1.3W
DDM: Yes
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Performance
Product colour
Silver
Compatible products
J9151A
Mean time between failures (MTBF)
646156559 h
Brand compatibility
HP
SFP transceiver type
Fiber optic
Tx wavelength (max)
1330 nm
Rx wavelength (max)
1270 nm
Maximum transfer distance
10000 m
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
SFP transceiver standard
BX
Weight & dimensions
Width
58.4 mm
Depth
13.9 mm
Height
12.6 mm
Weight
24 g
Logistics data
Master (outer) case width
9 cm
Master (outer) case length
11.5 cm
Master (outer) case height
3.1 cm
Quantity per master (outer) case
1 pc(s)
Full specification and details can be found in the

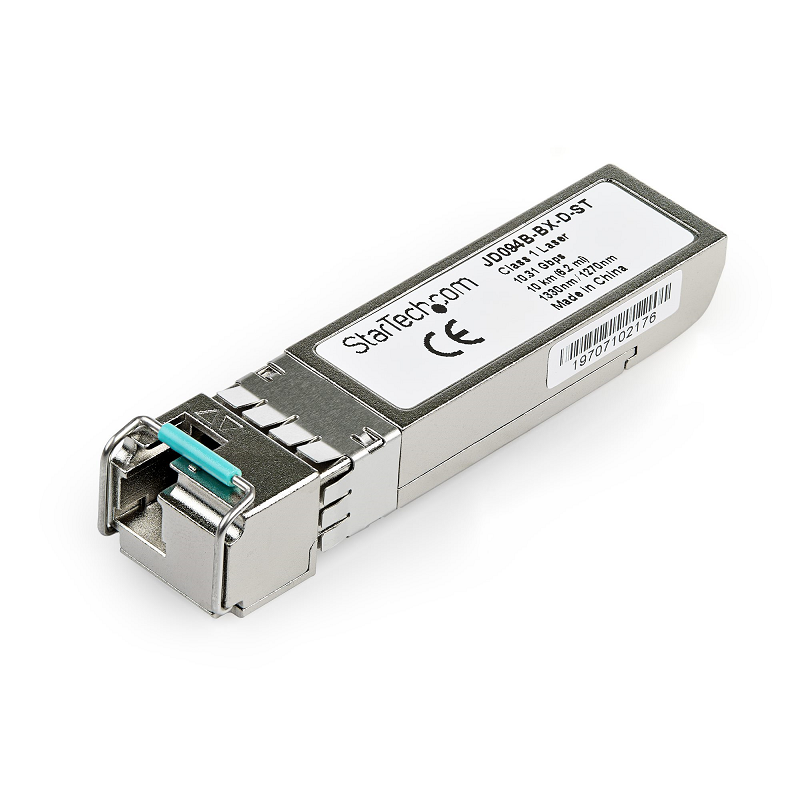

HPE JD094B-BX-D Compatible SFP+ Module - 10GBASE-BX - 10 GbE Gigabit Ethernet BiDi Fiber (SMF) (JD094B-BX-D-ST)
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The JD094B-BX-D-ST is an HP JD094B-BX-D compatible downstream fiber SFP+ transceiver which pairs with StarTech.com's JD094B-BX-U-ST. They are designed, programmed and tested to work with 10GBase-BX compatible HP switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Features:
100% HPE JD094B-BX-D COMPATIBLE: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ works with HPE switches like 5900, 12500, 5500, 5820, 5120 and others
INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
TECHNICAL SPECS: 10GBASE-BX 10Gbps 10G Bi-Directional Downstream Single Mode (SMF) LC Connector 1330nmTx/1270nmRx Digital Diagnostic Monitoring (DDM) Distances up to 10km (6.2mi)
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself, not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with OEM routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Technical Specifications:
Wavelength: 1330nmTx/1270nmRx
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
Power Consumption: > 1.3W
DDM: Yes
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Performance
Product colour
Silver
Compatible products
JD094B
Mean time between failures (MTBF)
646156559 h
Brand compatibility
HP
Fiber optic connector
LC
Tx wavelength (max)
1330 nm
Rx wavelength (max)
1270 nm
Maximum transfer distance
10000 m
Maximum data transfer rate
10000 Mbit/s
Weight & dimensions
Width
58.4 mm
Depth
13.9 mm
Height
12.6 mm
Weight
24 g
Logistics data
Master (outer) case width
9 cm
Master (outer) case length
11.5 cm
Master (outer) case height
3.1 cm
Quantity per master (outer) case
1 pc(s)
Full specification and details can be found in the

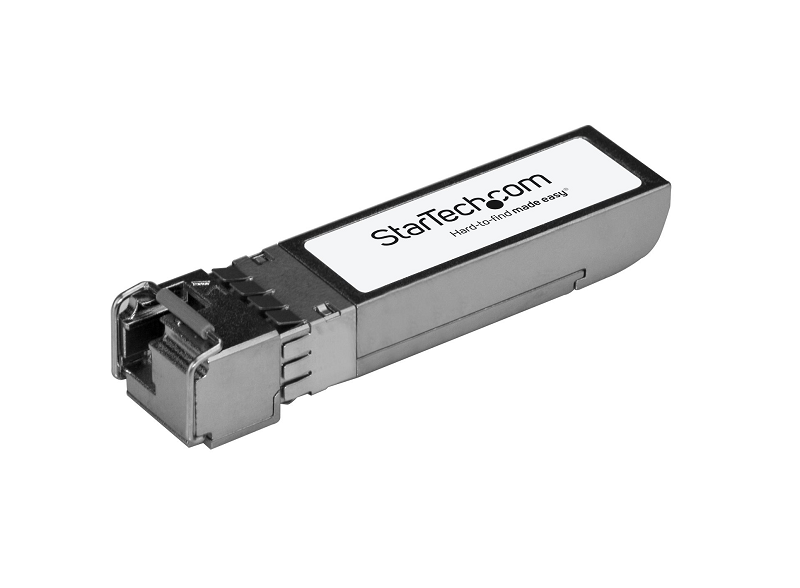

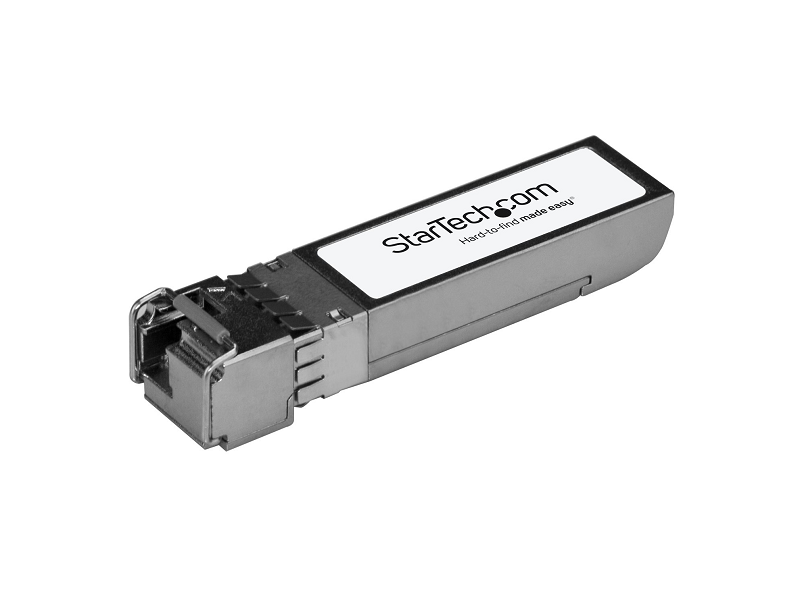

HPE JD094B-BX-U Compatible SFP+ Module - 10GBASE-BX - 10 GbE Gigabit Ethernet BiDi Fiber (SMF) (JD094B-BX-U-ST)
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The JD094B-BX-U-ST is an HP JD094B-BX-U compatible upstream fiber SFP+ transceiver which pairs with StarTech.com's JD094B-BX-D-ST. They are designed, programmed and tested to work with 10GBase-BX compatible HP switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Features:
100% HPE JD094B-BX-U COMPATIBLE: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ works with HPE switches like 5900, 12500, 5500, 5820, 5120 and others
INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
TECHNICAL SPECS: 10GBASE-BX 10Gbps 10G Bi-Directional Upstream Single Mode (SMF) LC Connector 1270nmTx/1330nmRx Digital Diagnostic Monitoring (DDM) Distances up to 10km (6.2mi)
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself, not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with OEM routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Technical Specifications:
Wavelength: 1270nmTx/1330nmRx
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
Power Consumption: > 1.3W
DDM: Yes
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Performance
Product colour
Silver
Compatible products
JD094B
Mean time between failures (MTBF)
646156559 h
Brand compatibility
HP
Fiber optic connector
LC
Tx wavelength (max)
1270 nm
Rx wavelength (max)
1330 nm
Maximum transfer distance
10000 m
Maximum data transfer rate
10000 Mbit/s
Weight & dimensions
Width
58.4 mm
Depth
13.9 mm
Height
12.6 mm
Weight
24 g
Logistics data
Master (outer) case width
9 cm
Master (outer) case length
11.5 cm
Master (outer) case height
3.1 cm
Quantity per master (outer) case
1 pc(s)
Full specification and details can be found in the
HPE JD094B-BX40-U Compatible SFP+ Module - 10GBASE-BX - 10 GbE Gigabit Ethernet BiDi Fiber (SMF) (JD094B-BX40-U-ST)
10 Gbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty
The JD094B-BX40-U-ST is an HP JD094B-BX40-U compatible upstream fiber SFP+ transceiver which pairs with StarTech.com's JD094B-BX40-D-ST. They are designed, programmed and tested to work with 10GBase-BX compatible HP switches and routers. The SFP+ transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Features:
100% HPE JD094B-BX40-U COMPATIBLE: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ works with HPE switches like 5900, 12500, 5500, 5820, 5120 and others
INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
TECHNICAL SPECS: 10GBASE-BX 10Gbps 10G Bi-Directional Upstream Single Mode (SMF) LC Connector 1270nmTx/1330nmRx Digital Diagnostic Monitoring (DDM) Distances up to 40km (24.8mi)
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself, not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with OEM routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Technical Specifications:
Wavelength: 1270nmTx/1330nmRx
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 40 km (24.8 mi)
Power Consumption: > 1.6W
DDM: Yes
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Performance
Product colour
Silver
Compatible products
JD094B
Mean time between failures (MTBF)
646156559 h
Brand compatibility
HP
Fiber optic connector
LC
Tx wavelength (max)
1270 nm
Rx wavelength (max)
1330 nm
Maximum transfer distance
40000 m
Maximum data transfer rate
10000 Mbit/s
Weight & dimensions
Width
58.4 mm
Depth
13.9 mm
Height
12.6 mm
Weight
24 g
Logistics data
Master (outer) case width
9 cm
Master (outer) case length
11.5 cm
Master (outer) case height
3.1 cm
Quantity per master (outer) case
1 pc(s)
Full specification and details can be found in the
HPE JD094B Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE 5900, 12500, 5500
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The JD094BST is an HP JD094B compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Applications:
Replacing defective or damaged SFP+ modulesin HP switches and routers
Expand your network to remote segments
Features:
100% HPE JD094B COMPATIBLE: Works with HPE switches like 5900, 12500, 5500, 5820, 5120 and others
TECHNICAL SPECS: 10GBASE-LR 10Gbps Single Mode (SMF) LC Connector 1310nm Digital Diagnostic Monitoring (DDM) Distances up to 10km (6.2mi)
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself - not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Technical Specifications:
Wavelength: 1330nm
Maximum Data Transfer Rate: 11.1 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 2,104,865 hours
Power Consumption: Less than 1.2 Watts
DDM: Yes
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Networking standards
IEEE 802.3ae
Performance
Product colour
Silver
Housing material
Aluminium
Mean time between failures (MTBF)
2104865 h
Digital Diagnostics Monitoring (DDM)
Yes
Fiber optic connector
LC
Maximum transfer distance
10000 m
Wavelength
1310 nm
Maximum data transfer rate
10000 Mbit/s
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
13.9 mm
Depth
58.4 mm
Height
12.6 mm
Weight
20 g
Logistics data
Master (outer) case width
34 cm
Master (outer) case length
35.8 cm
Master (outer) case height
21.1 cm
Quantity per master (outer) case
55 pc(s)
Full specification and details can be found in the

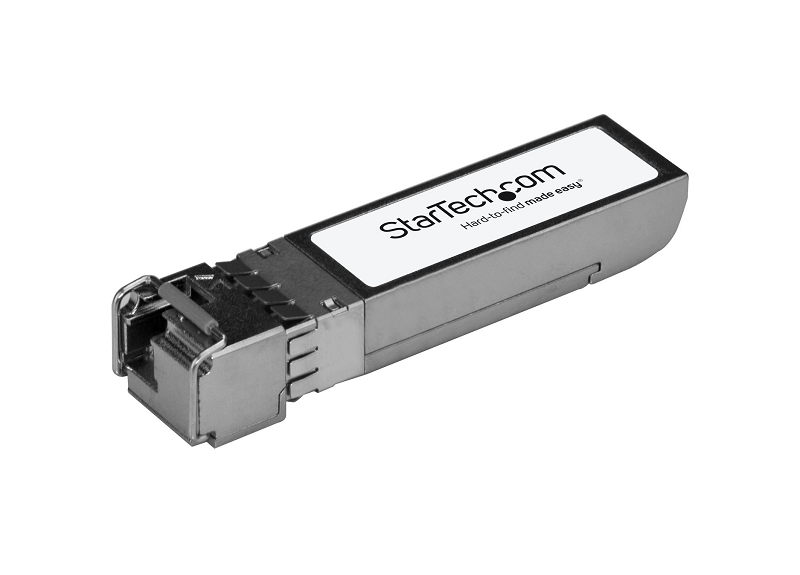

HPE JD094B-BX40-D Compatible SFP+ Module - 10GBASE-BX - 10 GbE Gigabit Ethernet BiDi Fiber (SMF) (JD094B-BX40-D-ST)
10 Gbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty
The JD094B-BX40-D-ST is an HP JD094B-BX40-D compatible downstream fiber SFP+ transceiver which pairs with StarTech.com's JD094B-BX40-U-ST. They are designed, programmed and tested to work with 10GBase-BX compatible HP switches and routers. The SFP+ transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Features:
100% HPE JD094B-BX40-D COMPATIBLE: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ works with HPE switches like 5900, 12500, 5500, 5820, 5120 and others
INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
TECHNICAL SPECS: 10GBASE-BX 10Gbps 10G Bi-Directional Downstream Single Mode (SMF) LC Connector 1330nmTx/1270nmRx Digital Diagnostic Monitoring (DDM) Distances up to 40km (24.8mi)
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself, not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with OEM routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Technical Specifications:
Wavelength: 1330nmTx/1270nmRx
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 40 km (24.8 mi)
Power Consumption: > 1.6W
DDM: Yes
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Performance
Product colour
Silver
Compatible products
JD094B
Mean time between failures (MTBF)
646156559 h
Brand compatibility
HP
Fiber optic connector
LC
Tx wavelength (max)
1330 nm
Rx wavelength (max)
1270 nm
Maximum transfer distance
40000 m
Maximum data transfer rate
10000 Mbit/s
Weight & dimensions
Width
58.4 mm
Depth
13.9 mm
Height
12.6 mm
Weight
24 g
Logistics data
Master (outer) case width
9 cm
Master (outer) case length
11.5 cm
Master (outer) case height
3.1 cm
Quantity per master (outer) case
1 pc(s)
Full specification and details can be found in the
HPE J9151E Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE 2930F, 8325, 3810M
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The J9151E-ST is a HP J9151E compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBase-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Features:
100% HPE J9151E COMPATIBLE: Works with HPE switches like 2930F, 8325, 3810M, 5400zl, 5400R and others
TECHNICAL SPECS: 10GBASE-LR 10Gbps Single Mode (SMF) LC Connector 1310nm Digital Diagnostic Monitoring (DDM) Distances up to 10km (6.2mi)
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself - not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Technical Specifications:
Wavelength: 1310nm
Maximum Data Transfer Rate: 10Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 1,386,624,697 hours
Power Consumption: < 1.3W
DDM: Yes
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Performance
Product colour
Silver
Compatible products
J9151E
Mean time between failures (MTBF)
1386624697 h
Brand compatibility
HP
SFP transceiver type
Fiber optic
Digital Diagnostics Monitoring (DDM)
Yes
Fiber optic connector
LC
Maximum transfer distance
10000 m
Wavelength
1310 nm
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Fiber ethernet cabling technology
10GBASE-LR
Single-mode fiber (SMF) supported
Yes
Multi-mode fiber (MMF) supported
No
SFP transceiver standard
LR
Weight & dimensions
Width
58.4 mm
Depth
13.9 mm
Height
13.7 mm
Weight
21 g
Logistics data
Master (outer) case width
9 cm
Master (outer) case length
11.5 cm
Master (outer) case height
3.1 cm
Quantity per master (outer) case
1 pc(s)
Full specification and details can be found in the
HPE J9151A Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE 2920, 2910al, 3500yl
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The J9151A-ST is a HP J9151A compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBase-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Features:
100% HPE J9151A COMPATIBLE: Works with HPE switches like 2920, 2910al, 3500yl, 3800, 5400zl and others
TECHNICAL SPECS: 10GBASE-LR 10Gbps Single Mode (SMF) LC Connector 1310nm Digital Diagnostic Monitoring (DDM) Distances up to 10km (6.2mi)
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself - not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Technical Specifications:
Wavelength: 1310nm
Maximum Data Transfer Rate: 10Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 1,386,624,697 hours
Power Consumption: < 1.3W
DDM: Yes
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Performance
Product colour
Silver
Compatible products
J9151A
Mean time between failures (MTBF)
1386624697 h
Brand compatibility
HP
SFP transceiver type
Fiber optic
Digital Diagnostics Monitoring (DDM)
Yes
Fiber optic connector
LC
Maximum transfer distance
10000 m
Wavelength
1310 nm
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Fiber ethernet cabling technology
10GBASE-LR
Single-mode fiber (SMF) supported
Yes
Multi-mode fiber (MMF) supported
No
SFP transceiver standard
LR
Weight & dimensions
Width
58.4 mm
Depth
13.9 mm
Height
13.7 mm
Weight
21 g
Logistics data
Master (outer) case width
9 cm
Master (outer) case length
11.5 cm
Master (outer) case height
3.1 cm
Quantity per master (outer) case
1 pc(s)
Full specification and details can be found in the
HPE J9151D Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE 2540, 2920, 2930M
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The J9151D-ST is a HP J9151D compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBase-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Features:
100% HPE J9151D COMPATIBLE: Works with HPE switches like 2540, 2920, 2930M, 3800, and others
TECHNICAL SPECS: 10GBASE-LR 10Gbps Single Mode (SMF) LC Connector 1310nm Digital Diagnostic Monitoring (DDM) Distances up to 10km (6.2mi)
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself - not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Technical Specifications:
Wavelength: 1310nm
Maximum Data Transfer Rate: 10Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 1,386,624,697 hours
Power Consumption: < 1.3W
DDM: Yes
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Performance
Product colour
Silver
Compatible products
J9151D
Mean time between failures (MTBF)
1386624697 h
Brand compatibility
HP
SFP transceiver type
Fiber optic
Digital Diagnostics Monitoring (DDM)
Yes
Fiber optic connector
LC
Maximum transfer distance
10000 m
Wavelength
1310 nm
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Fiber ethernet cabling technology
10GBASE-LR
Single-mode fiber (SMF) supported
Yes
Multi-mode fiber (MMF) supported
No
SFP transceiver standard
LR
Weight & dimensions
Width
58.4 mm
Depth
13.9 mm
Height
13.7 mm
Weight
21 g
Logistics data
Master (outer) case width
9 cm
Master (outer) case length
11.5 cm
Master (outer) case height
3.1 cm
Quantity per master (outer) case
1 pc(s)
Full specification and details can be found in the
HPE AJ717A Compatible SFP+ Module - 8G Fiber Channel WW - 8GbE Single Mode Fiber Optic Transceiver - 8GE Gigiabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE SN6000, SN6500, SN8600B
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The AJ717AST is an HP AJ716B compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 8Gb fiber channel connectivity over fiber cable, for 8GFC compliant networks, with a maximum distance of up to 10 km (6.2 mi).
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Applications:
Replacing defective or damaged SFP+ modulesin HP switches and routers
Expand your network to remote segments
Features:
100% HPE AJ717A COMPATIBLE: Works with HPE switches like SN6000, SN6500, SN8600B, StoreFabric, and others
TECHNICAL SPECS: 8G Fiber Channel WW 8Gbps Single Mode (SMF) LC Connector 1310nm Digital Diagnostic Monitoring (DDM) Distances up to 10km (6.2mi)
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself - not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Technical Specifications:
Wavelength: 1310nm
Maximum Data Transfer Rate: 8 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 2,104,865 hours
Power Consumption: Less than 1.5 Watts
DDM: Yes
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Maximum data transfer rate
8000 Mbit/s
Interface type
SFP+
Performance
Product colour
Silver
Housing material
Aluminium
Mean time between failures (MTBF)
2104865 h
Digital Diagnostics Monitoring (DDM)
Yes
SFP transceiver type
Fiber optic
Digital Diagnostics Monitoring (DDM)
Yes
Fiber optic connector
LC
Maximum transfer distance
10000 m
Wavelength
1310 nm
Maximum data transfer rate
8000 Mbit/s
Interface type
SFP+
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
13.9 mm
Depth
58.4 mm
Height
12.6 mm
Weight
21 g
Logistics data
Master (outer) case width
35.4 cm
Master (outer) case length
41 cm
Master (outer) case height
35 cm
Quantity per master (outer) case
100 pc(s)
Full specification and details can be found in the

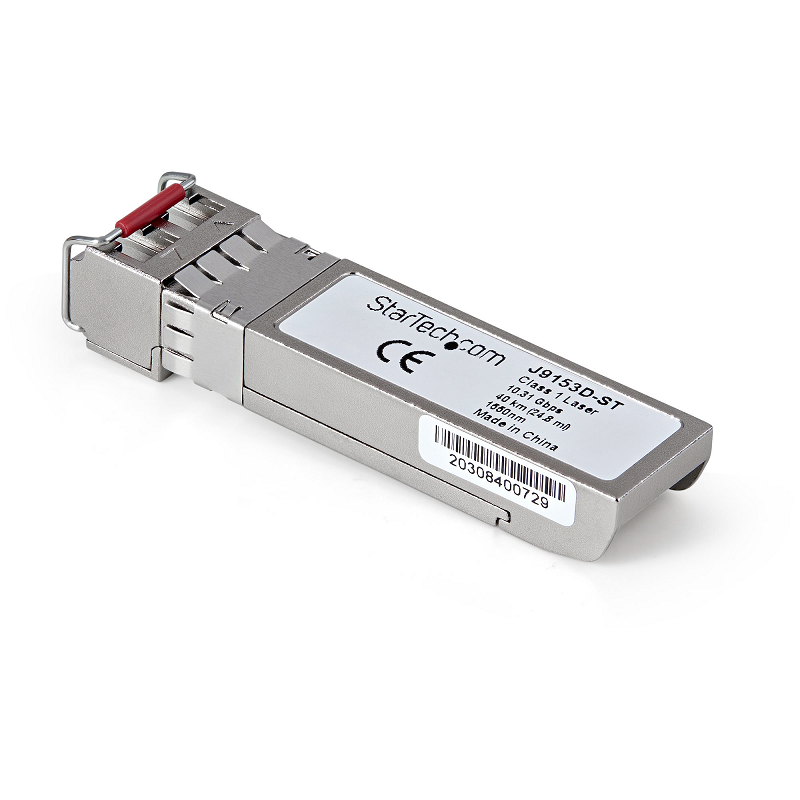

HPE J9153D Compatible SFP+ Module - 10GBASE-ER - 10GbE Single Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 40km - 1550nm - DDM HPE 2530, 2540, 2910al
10 Gbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty
The J9153D-ST is an HP JD093Bcompatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBase-ER compliant networks, with a maximum distance of up to 40 km (24.8 mi).
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Features:
100% HPE J9153D COMPATIBLE: Works with HPE switches like 2530, 2540, 2910al, 2930F, 2930M and others
TECHNICAL SPECS: 10GBASE-ER 10Gbps Single Mode (SMF) LC Connector 1550nm Digital Diagnostic Monitoring (DDM) Distances up to 40km (24.8mi)
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself - not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Technical Specifications:
Wavelength: 1550nm
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode
Connection Type: LC Connector
Maximum Transfer Distance: 40 km (24.8 mi)
MTBF: 498,745,585 hours
Power Consumption: > 1.6W
DDM: Yes
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Performance
Product colour
Silver
Compatible products
J9153D
Mean time between failures (MTBF)
498745585 h
Brand compatibility
HP
Fiber optic connector
LC
Maximum transfer distance
40000 m
Wavelength
1330 nm
Maximum data transfer rate
10000 Mbit/s
Weight & dimensions
Width
58.4 mm
Depth
13.9 mm
Height
13.7 mm
Weight
24 g
Logistics data
Master (outer) case width
9 cm
Master (outer) case length
11.5 cm
Master (outer) case height
3.1 cm
Quantity per master (outer) case
1 pc(s)
Full specification and details can be found in the

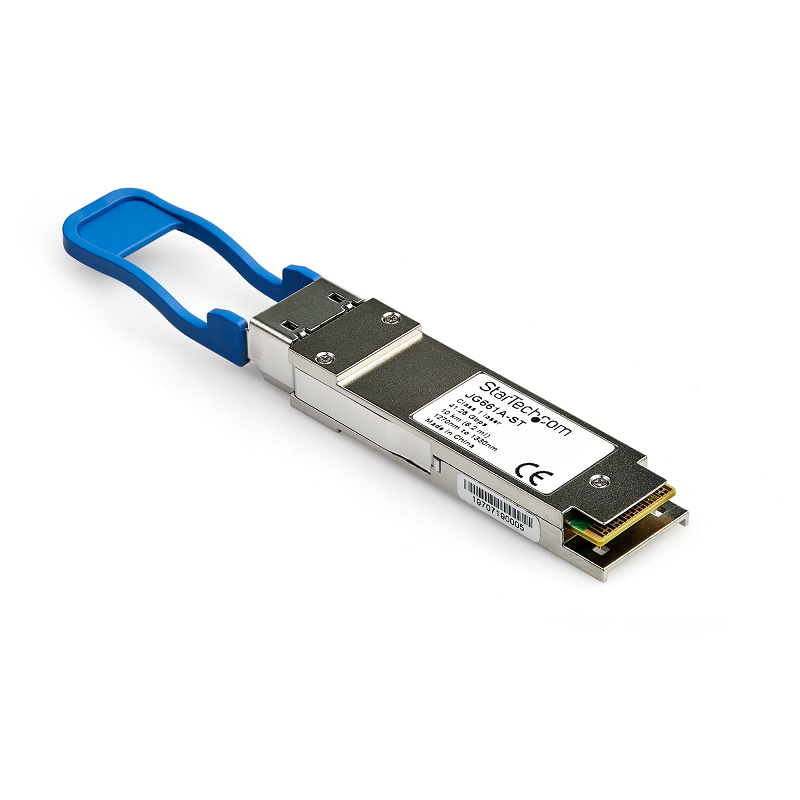

HPE JG661A Compatible QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - LC 10km - 1270nm to 1330nm - DDM HPE 5900AF, 12902
40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The JG661A-ST is a HP JG709A compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBase-SR4 compliant networks, with a maximum distance of up to 300 m (984 ft).
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Features:
100% HPE JG661A COMPATIBLE: Works with HPE switches like 5900AF, 12902 and others
TECHNICAL SPECS: 40GBASE-LR4 40Gbps Single Mode (SMF) LC Connector 1270nm to 1330nm Digital Diagnostic Monitoring (DDM) Distances up to 10km (6.2mi)
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself - not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
StarTech.com SFPs
All StarTech.com SFP & QSFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of QSFP+ modules and direct-attach QSFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.
Technical Specifications:
Wavelength: 850nm
Maximum Data Transfer Rate: 40 Gbps
Type: Multi Mode Fiber
Connection Type: MPO Connector
Maximum Transfer Distance: 300 m (984 ft)
MTBF: 244,610,583 hours
Power Consumption: > 1.3W
DDM: Yes
Network
SFP transceiver type
Fiber optic
Fiber optic connector
MPO
Maximum data transfer rate
40000 Mbit/s
Interface type
QSFP+
Performance
Product colour
Silver
Compatible products
JG661A
Mean time between failures (MTBF)
244610583 h
Brand compatibility
HP
Fiber optic connector
MPO
Maximum transfer distance
300 m
Wavelength
850 nm
Maximum data transfer rate
40000 nm
SFP transceiver standard
LR4
Weight & dimensions
Width
122 mm
Depth
18.5 mm
Height
8.5 mm
Weight
49 g
Logistics data
Master (outer) case width
12 cm
Master (outer) case length
20.5 cm
Master (outer) case height
3.5 cm
Quantity per master (outer) case
1 pc(s)
Full specification and details can be found in the
- Review: The 10 Best Wireless Access Points
- Review: The Top 10 Best Ethernet Cables
- What Is An Ethernet Cable And What Does It Do?
- 10 Best CCTV Security IP Cameras For Home & Business
- Review: Best Powerline Adapters In The UK
- Celebrating 20 Years Of Comms Express!
- The Top 10 DrayTek Wireless Access Points
- Best Selling APC Products At Comms Express
- Review: Top 5 Best Performing APC Uninterruptible Power Supply Units (UPS)
- Review: Top 10 Best PDU’s
