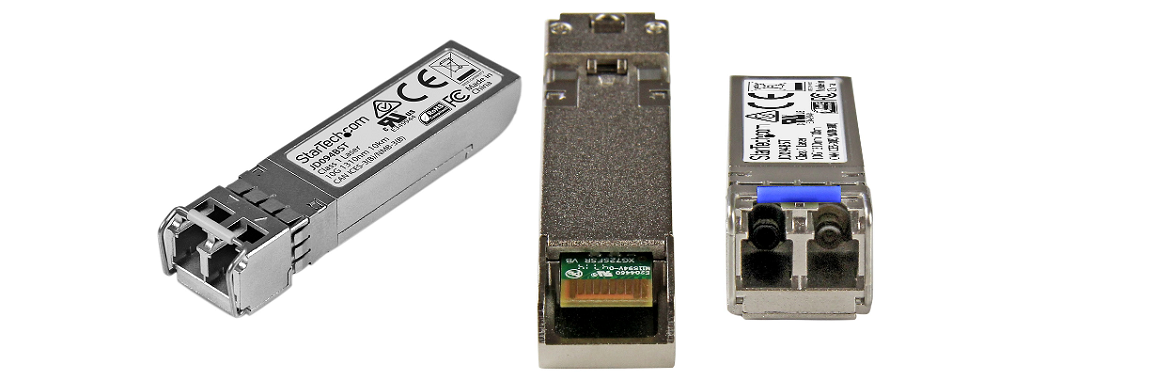

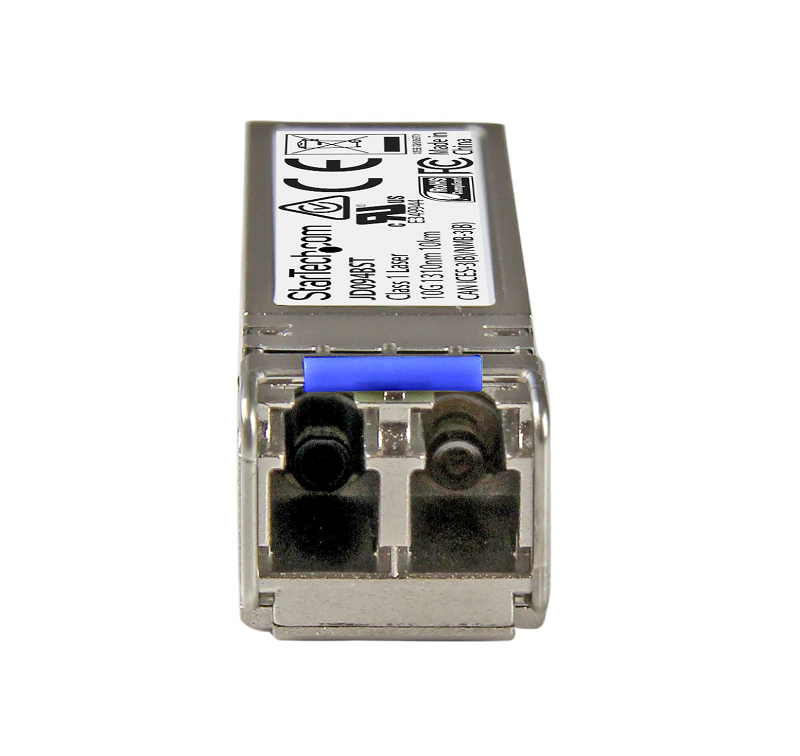

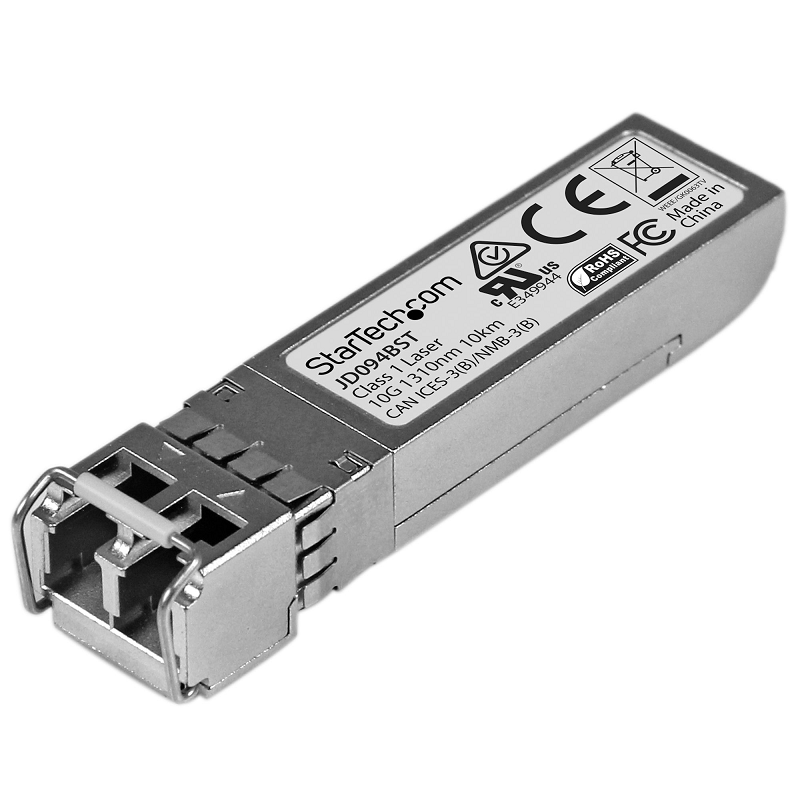

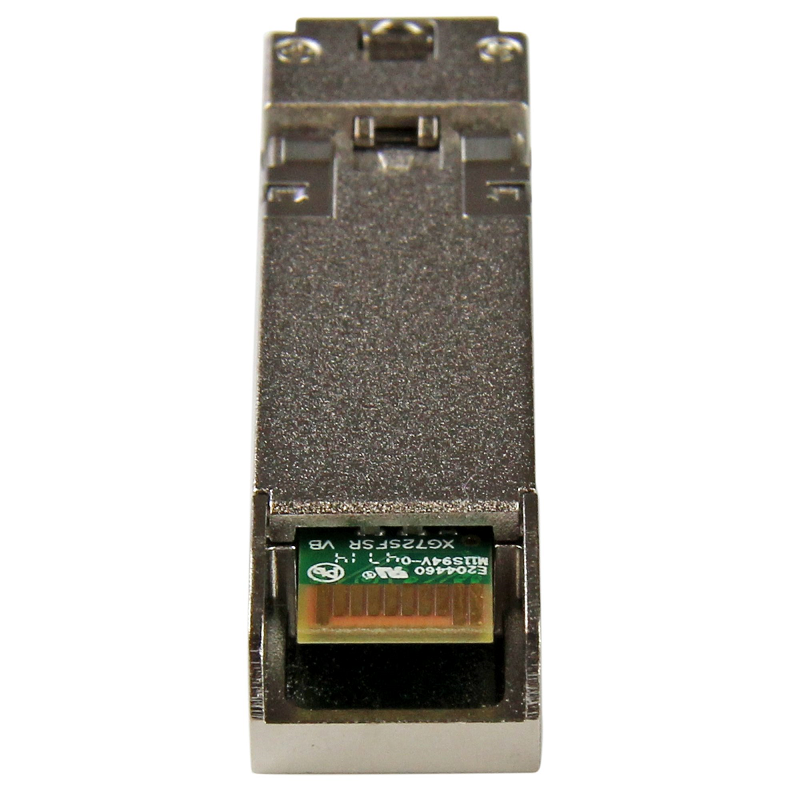

HPE JD094B Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE 5900, 12500, 5500
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The JD094BST is an HP JD094B compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Network | |
SFP transceiver type | Fiber optic |
Fiber optic connector | LC |
Maximum data transfer rate | 10000 Mbit/s |
Interface type | SFP+ |
Networking standards | IEEE 802.3ae |
Performance | |
Product colour | Silver |
Housing material | Aluminium |
Mean time between failures (MTBF) | 2104865 h |
Digital Diagnostics Monitoring (DDM) | Yes |
Fiber optic connector | LC |
Maximum transfer distance | 10000 m |
Wavelength | 1310 nm |
Maximum data transfer rate | 10000 Mbit/s |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | -40 - 85 °C |
Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
Width | 13.9 mm |
Depth | 58.4 mm |
Height | 12.6 mm |
Weight | 20 g |
Logistics data | |
Master (outer) case width | 34 cm |
Master (outer) case length | 35.8 cm |
Master (outer) case height | 21.1 cm |
Quantity per master (outer) case | 55 pc(s) |
Full specification and details can be found in the PDF file
