Marshall Tufflex GST Plugs and Adapters

POWER MODULE 6 GANG

SINGLE MASTER SWITCH

GST in/out modules – Individually fused


Key Features • Feed: GST18 connector

• 6 off Individually 3.15A fused sockets with single master switch


Code UPM6003 Pack 1 Dimensions 62mm x 42mm x 473mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 13 Amps
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

16A RCBO MODULE GST/GST

Input via GST or 20mm knockout with GST output


Key Features • Feed: GST18 Connector

• 30mA 16Amp RCBO


Code UPR2010 Pack 1 Dimensions 62mm x 82mm x 222mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS EN 61009-1:2012+A12:2016
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 16 Amps Max
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

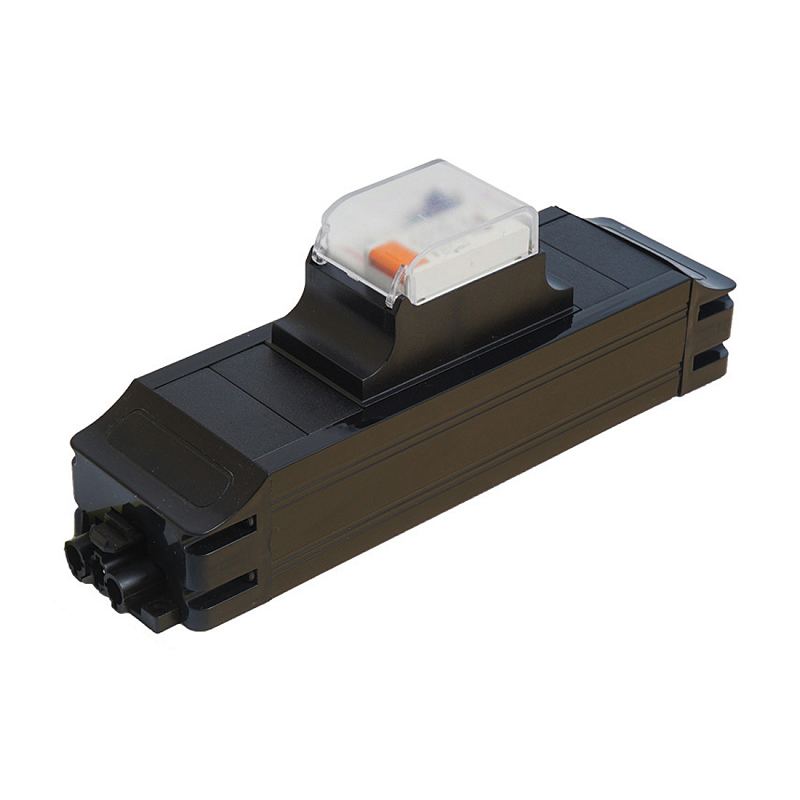

16A RCBO MODULE 20MM/GST

Input via GST or 20mm knockout with GST output


Key Features • Feed: 20mm knockout

• 30mA 16Amp RCBO


Code UPR2020 Pack 1 Dimensions 62mm x 82mm x 222mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS EN 61009-1:2012+A12:2016
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 16 Amps Max
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

16A RCBO MT32/GST CE


Key Features • Feed: MT32 4-POLE

• 30mA 16Amp RCBO


Code UPR2020 Pack 1 Dimensions 62mm x 82mm x 222mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS EN 61009-1:2012+A12:2016
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 16 Amps Max
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

16A RCBO MT32/GST ST


Key Features • Feed: MT32 3-POLE

• 30mA 16Amp RCBO


Code UPR2020 Pack 1 Dimensions 62mm x 82mm x 222mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS EN 61009-1:2012+A12:2016
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 16 Amps Max
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

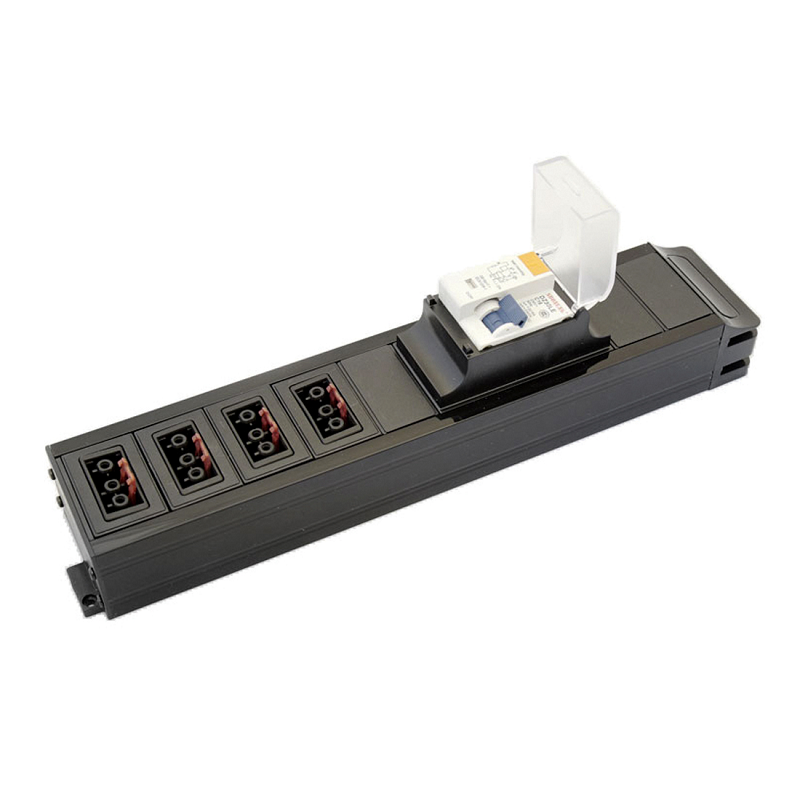

16A RCBO TYPE C 4 GANG 30MA

Direct feed from tap off lead via 20mm gland hole to connector block with multiple GST outputs

20mm KO for connection to tap-off


Key Features • Feed: 20mm knockout

• 30mA 16Amp RCBO

• 4 off GST18 outlets


Code UPR4040 Pack 2 Dimensions 62mm x 82mm x 222mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS EN 61009-1:2012+A12:2016
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 16 Amps Max
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

16A RCBO 30mA & 4G MT32/GST CE


Key Features • Feed: MT32 4-POLE

• 30mA 16Amp RCBO

• 4 off GST18 outlets


Code UPR4040CE Dimensions 62mm x 82mm x 222mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS EN 61009-1:2012+A12:2016
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 16 Amps Max
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

16A RCBO 30mA & 4G MT32/GST ST


Key Features • Feed: MT32 3-POLE

• 30mA 16Amp RCBO

• 4 off GST18 outlets


Code UPR4040CE Dimensions 62mm x 82mm x 222mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS EN 61009-1:2012+A12:2016
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 16 Amps Max
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

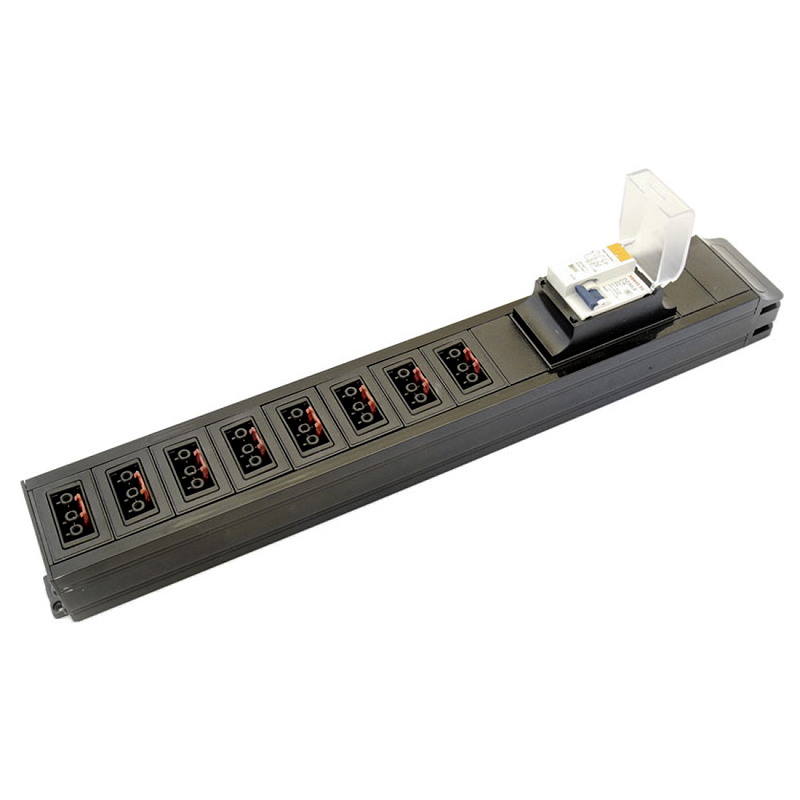

16A RCBO 30mA & 8G MT32/GST CE

Clean Earth option

Input via pre-wired MT32 connector with multiple GST outputs


Key Features • Feed: MT32 4-POLE

• 30mA 16Amp RCBO

• 8 off GST18 outlets


Code UPR4080 Pack 2 Dimensions 62mm x 82mm x 436mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS EN 61009-1:2012+A12:2016
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 16 Amps Max
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

16A RCBO 30mA & 8G MT32/GST CE

Direct feed from tap off lead via 20mm gland hole to connector block with multiple GST outputs

20mm KO for connection to tap-off


Key Features • Feed: 20mm knockout

• 30mA 16Amp RCBO

• 8 off GST18 outlets


Code UPR4080 Pack 2 Dimensions 62mm x 82mm x 436mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS EN 61009-1:2012+A12:2016
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 16 Amps Max
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

16A RCBO 30mA & 8G MT32/GST ST

Input via pre-wired MT32 connector with multiple GST outputs


Key Features • Feed: MT32 3-POLE

• 30mA 16Amp RCBO

• 8 off GST18 outlets


Code UPR4080ST Pack 2 Dimensions 62mm x 82mm x 436mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS EN 61009-1:2012+A12:2016
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 16 Amps Max
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

POWER FEED UNIT 4 GANG INDV FUSED 4 X 13A SOCKETS

Direct feed from tap off lead via 20mm gland hole to connector block with multiple 13A socket outlets


Key Features • Feed: 20mm knockout

• 13A Master Fuse

• 4 off Individually 5A fused sockets


Code UPR8041 Pack 2 Dimensions 62mm x 42mm x 410mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS EN 61009-1:2012+A12:2016
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 13 Amps
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

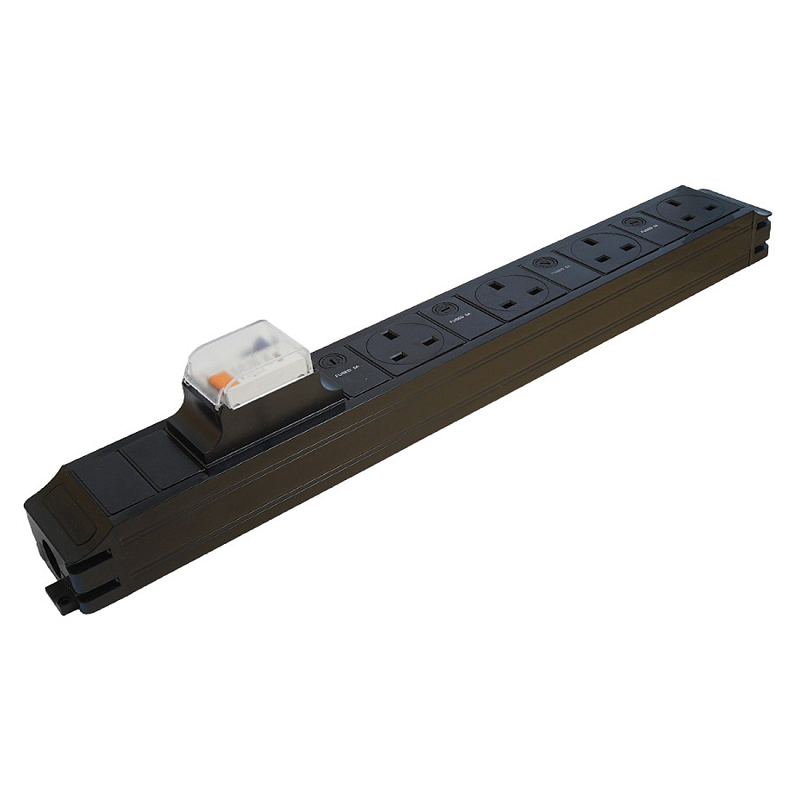

POWER FEED UNIT 4 GANG INDV FUSED 4 X 13A SOCKETS

Direct feed from tap off lead via 20mm gland hole to connector block with multiple 13A socket outlets


Key Features • Feed: 20mm knockout

• 30mA 16Amp RCBO

• 4 off Individually 5A fused sockets


Code UPR8043 Pack 2 Dimensions 62mm x 42mm x 480mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS EN 61009-1:2012+A12:2016
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 16 Amps Max
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

4G ind fuse & RCBO MT32/GST CE

Fed via pre-wired MT32 connector with multiple 13A socket outlets.


Key Features • Feed: MT32 4-POLE

• 30mA 16Amp RCBO

• 4 off Individually 5A fused sockets


Code UPR8043CE Pack 2 Dimensions 62mm x 42mm x 480mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS EN 61009-1:2012+A12:2016
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 16 Amps Max
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

4G ind fuse & RCBO MT32/GST ST

Fed via pre-wired MT32 connector with multiple 13A socket outlets.


Key Features • Feed: MT32 3-POLE

• 30mA 16Amp RCBO

• 4 off Individually 5A fused sockets


Code UPR8043ST Pack 2 Dimensions 62mm x 42mm x 480mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS EN 61009-1:2012+A12:2016
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 16 Amps Max
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

POWER FEED UNIT 6 GANG INDV FUSED 6X13A SOCKETS

Direct feed from tap off lead via 20mm gland hole to connector block


Additional details can be found in the Product Catalogue PDF file

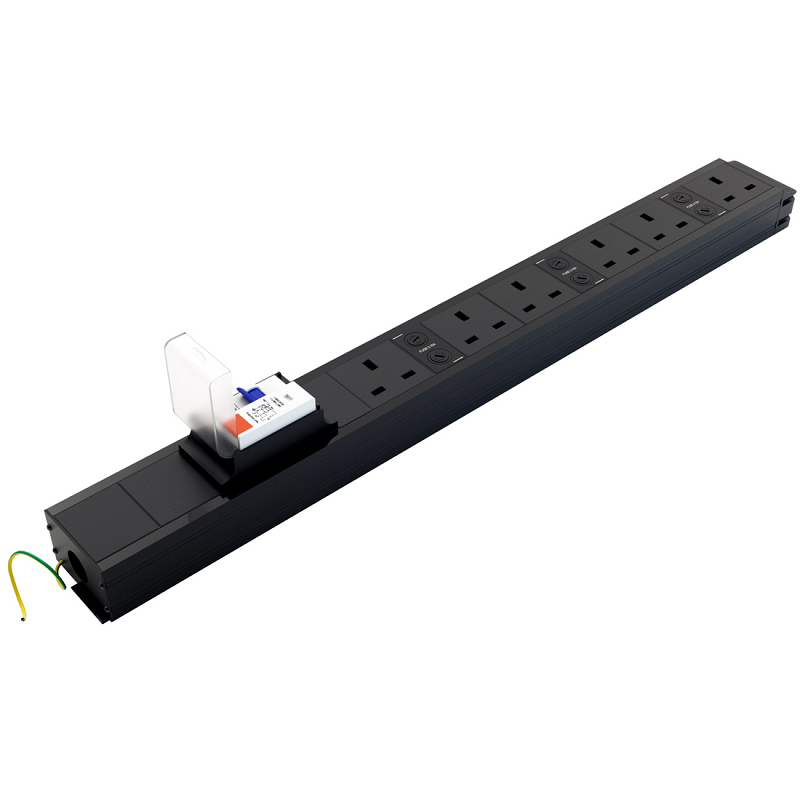

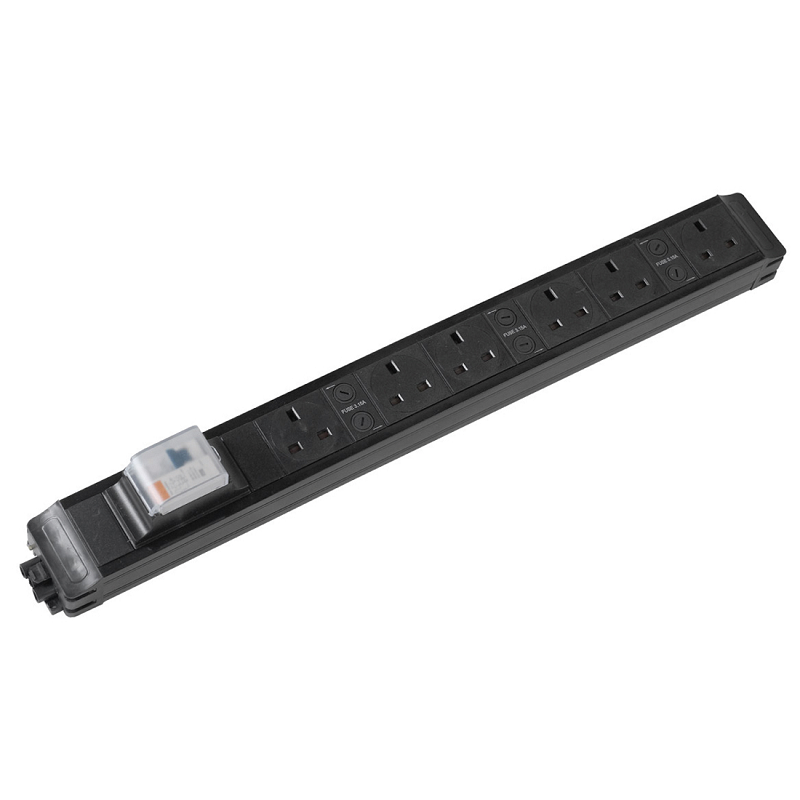

POWER FEED UNIT 6 GANG INDV FUSED RCBO + 6X13A SOCKETS

Direct feed from tap off lead via 20mm gland hole to connector block with multiple 13A socket outlets

Direct feed from tap off lead via 20mm gland hole to connector block


Key Features • Feed: 20mm knockout

• 30mA 16Amp RCBO

• 6 off Individually 5A fused sockets


Code UPR8061 Pack 2 Dimensions 62mm x 82mm x 620mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS EN 61009-1:2012+A12:2016
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 16 Amps Max
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

6G ind fuse & RCBO 20mm/GST CE

Fed via pre-wired MT32 connector with multiple 13A socket outlets


Additional details can be found in the Product Catalogue PDF file

6G ind fuse & RCBO MT32/GST ST

Fed via pre-wired MT32 connector with multiple 13A socket outlets


Key Features • Feed: MT32 3-POLE Connector

• 30mA 16Amp RCBO

• 6 off Individually 5A fused sockets


Code UPR8061ST Pack 2 Dimensions 62mm x 82mm x 620mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS EN 61009-1:2012+A12:2016
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 16 Amps Max
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

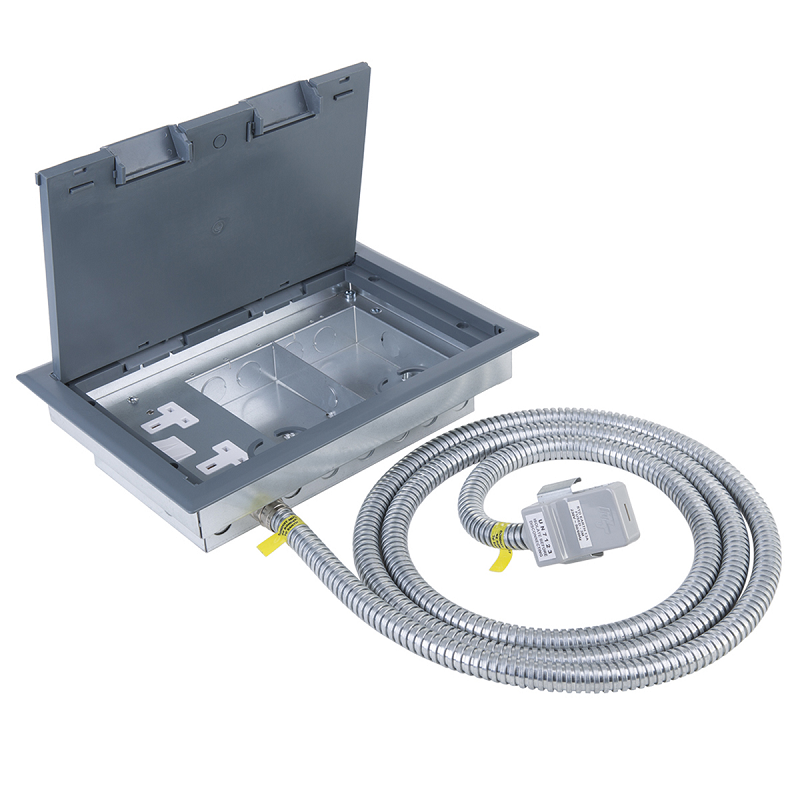

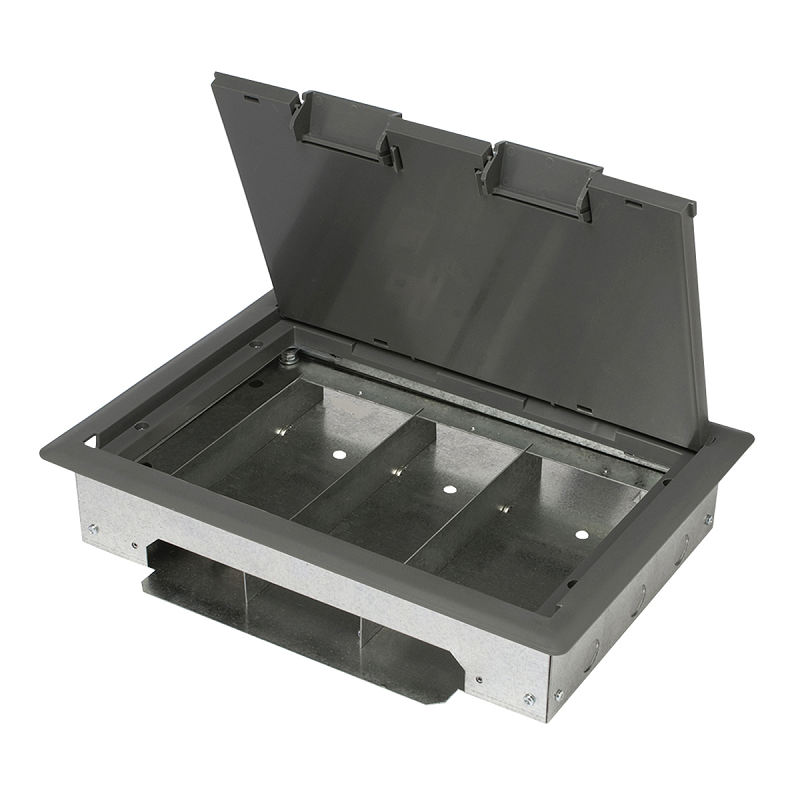

3/4 COMP BOX STD + UN7113 + UP651/UP751

357 x 257 x 83mm pre-wired floor box with 3m tap-off. 1 x 2 gang standard.


Key Features • Feed: 3m STD Tap-Off Unfused

• Grey Trim and Lid

• Pre-wired with 13A Twin Socket

• Reversible Lid

• Accepts carpets or tiles up to 6mm


UPW400 UPW410 Compartment 3 compartment 4 compartment Pack 1 1 Variation Standard Standard Colour Silver Silver Dimensions Floor Aperture 322mm x 222mm
Carpet tile 305mm x 170mm
Trim 358mm x 258mm Floor Aperture 322mm x 222mm
Carpet tile 305mm x 170mm
Trim 358mm x 258mm Materials Galvanised steel base, Polypropylene lid & trim, Zinc plated steel load plate. Galvanised steel base, Polypropylene lid & trim, Zinc plated steel load plate. Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS EN 61534-22:2014
BS 1363-2:2016+A1:2018 CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS EN 61534-22:2014
BS 1363-2:2016+A1:2018 Rated voltage (Un) 230 volts 230 volts Operating voltage range 50 – 253V 50 – 253V Rated load current 13 Amps 13 Amps
Full specification and details for the UPW400 can be found in the UPW400 Product Datasheet PDF file

Full specification and details for UPW410 can be found in the UPW410 Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

3/4 COMP BOX STD + UN7113 + UP651/UP751

357 x 257 x 83mm pre-wired floor box with 3m tap-off. 1 x 2 gang standard.


Key Features • Feed: 3m CE Tap-Off Unfused

• Grey Trim and Lid

• Pre-wired with 13A Twin Socket

• Reversible Lid

• Accepts carpets or tiles up to 6mm

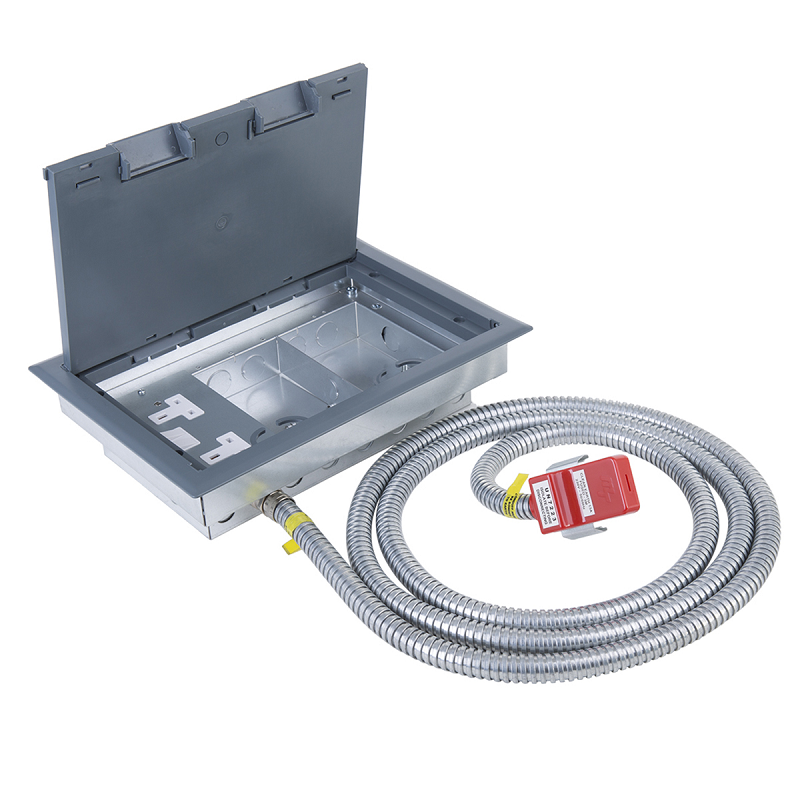

UPW405 UPW415 Compartment 3 compartment 4 compartment Pack 1 1 Variation Clean Earth Clean Earth Colour Silver Silver Dimensions Floor Aperture 322mm x 222mm
Carpet tile 305mm x 170mm
Trim 358mm x 258mm Floor Aperture 322mm x 222mm
Carpet tile 305mm x 170mm
Trim 358mm x 258mm Materials Galvanised steel base, Polypropylene lid & trim, Zinc plated steel load plate. Galvanised steel base, Polypropylene lid & trim, Zinc plated steel load plate. Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS EN 61534-22:2014
BS 1363-2:2016+A1:2018 CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS EN 61534-22:2014
BS 1363-2:2016+A1:2018 Rated voltage (Un) 230 volts 230 volts Operating voltage range 50 – 253V 50 – 253V Rated load current 13 Amps 13 Amps
Full specification and details for the UPW405 can be found in the UPW405 Product Datasheet PDF file

Full specification and details for UPW415 can be found in the UPW415 Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

3/4 COMP FLOOR OUTLET BOX

Floor outlet box 3 and 4 compartment for use with In-Screed Flooring System.

A range of floor outlet boxes, fittings and plates in galvanised steel, with choice of PVC-U or steel ducting designed to be positioned within screed flooring.


Key Features • One box suit 3 or 4 bay configuration

• Suitable for 60-85mm Screed Depth

• Adjustable trim height

• Range of power and data accessories

• Optional sub-frame for higher traffic loads with Steel lid

• Lock for lid option

• Accepts carpets or tiles up to 6mm thick


Code USF32 Pack 2 Dimensions Base 324mm x 222mm x 55mm
Carpet tile 305mm x 170mm
Trim 358mm x 258mm Materials Galvanised steel base, Polypropylene lid & trim, Zinc plated steel load plate. Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS EN 61534-22:2014
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

ADAPTOR IN SCREED SYSTEM

Adaptor for use with In-Screed Flooring System.


Additional details can be found in the Product Catalogue PDF file

BLANK END IN SCREED SYSTEM

3 x 20mm ko

Blank end for use with In-Screed Flooring System.


Additional details can be found in the Product Catalogue PDF file

BLANK END SCREED SYSTEM 25MM

6 x 20mm ko

Blank end for use with In-Screed Flooring System.


Additional details can be found in the Product Catalogue PDF file

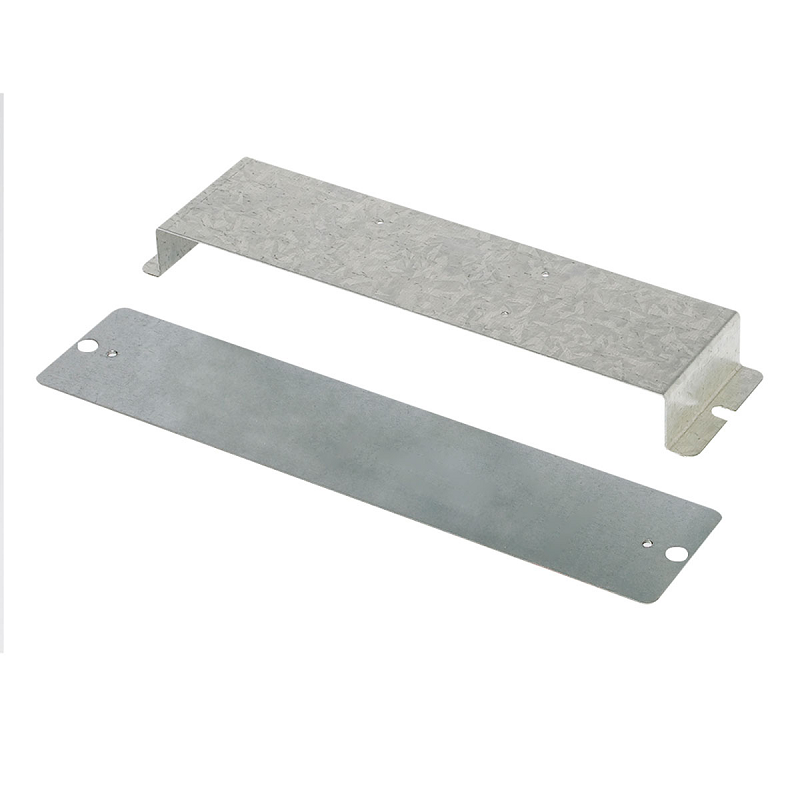

CONNECTOR IN SCREED SYSTEM

Coupler for use with In-Screed Flooring System.


Additional details can be found in the Product Catalogue PDF file

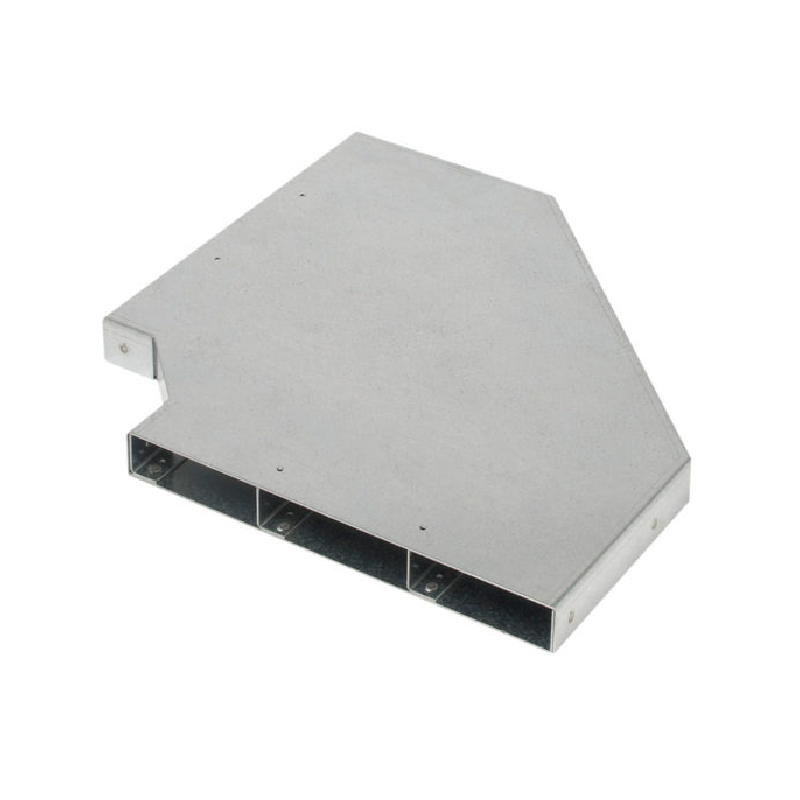

FLAT BEND IN SCREED SYSTEM

Flat bend (excluding connector), Steel, for use with In-Screed Flooring System.


Additional details can be found in the Product Catalogue PDF file

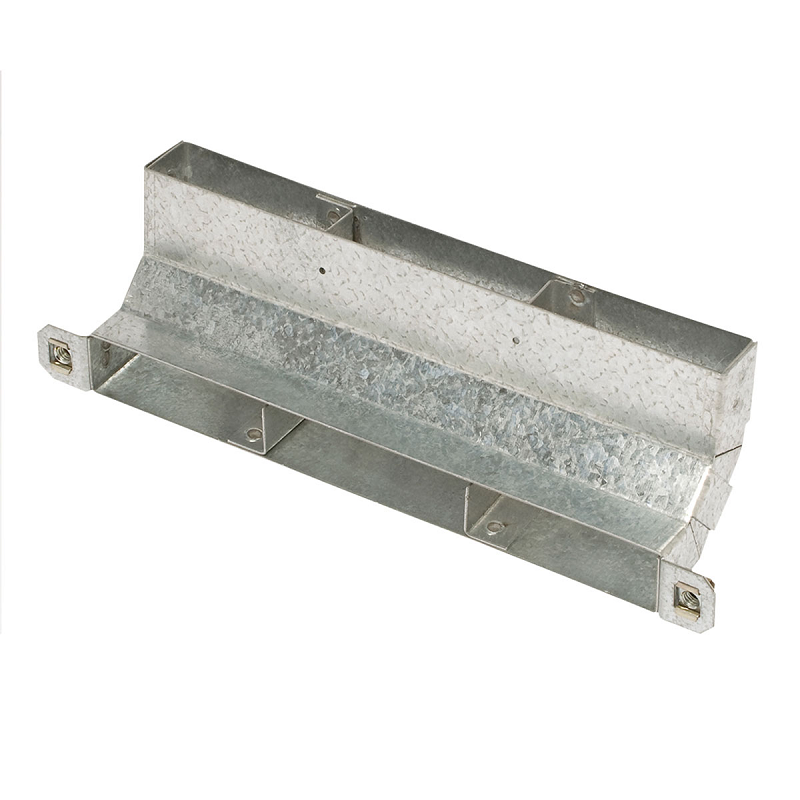

VERTICAL BEND 90 DEGREES STEEL

Riser (excluding connector), Steel, for use with In-Screed Flooring System.


Additional details can be found in the Product Catalogue PDF file

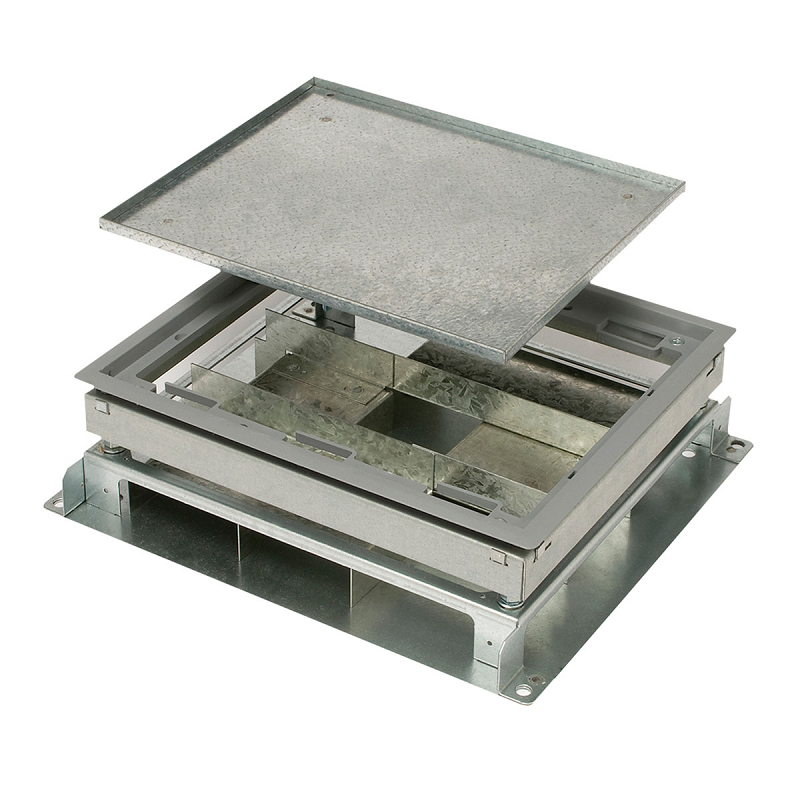

UNIVERSAL JUNCTION BOX

Universal Junction Box, excluding adaptors, for use with In-Screed Flooring System.


Key Features • Suitable for MT In-Screed system

• Range of Adaptors available

• Suitable for 60-85mm Screed Depth

• Adjustable height


Code USJ3 Pack 1 Dimensions 313mm x 313mm Materials Galvanised steel Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS EN 61534-22:2014
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

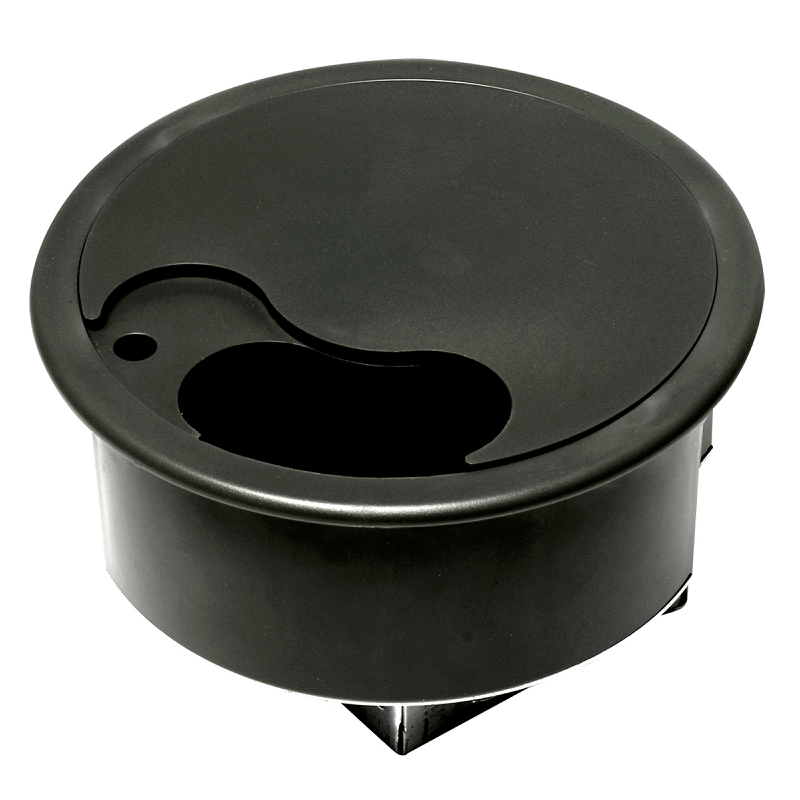

FLOOR GROMMET

Without foam insert.

Cut out size for above grommets Ø125mm


Key Features • One compartment suitable for 1 Gang Accessory

• Integrated lid locking screw

• Quick installation

• Adjustable lid can be set to meet optimum cable requirement, minimising air leakage through the opening

• Can be used with flexible cable and Flexible conduit.

• Black (RAL9004) or Grey (RAL7037)


UTG1BK UTG1GY Pack 1 1 Colour Black RAL9004 Grey RAL7037 Dimensions Floor Cut-out Ø125
Overall diameter Ø140
Depth 87mm (including accessory box) Floor Cut-out Ø125
Overall diameter Ø140
Depth 87mm (including accessory box) Materials ABS Flame Retardant and Galvanised Steel
Nitrile foam insert ABS Flame Retardant and Galvanised Steel
Nitrile foam insert Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:20018
BS EN 61534-1:2011
BS EN 61534-22:2009
All Plastics are UL94-V0 rated and pass IEC 60695-2 glow wire test at 850°C CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:20018
BS EN 61534-1:2011
BS EN 61534-22:2009
All Plastics are UL94-V0 rated and pass IEC 60695-2 glow wire test at 850°C
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

GST 3 POLE MALE CONNECTOR

A range of power and data modules ideal for under desk mounting.

Additional details can be found in the Product Catalogue PDF file

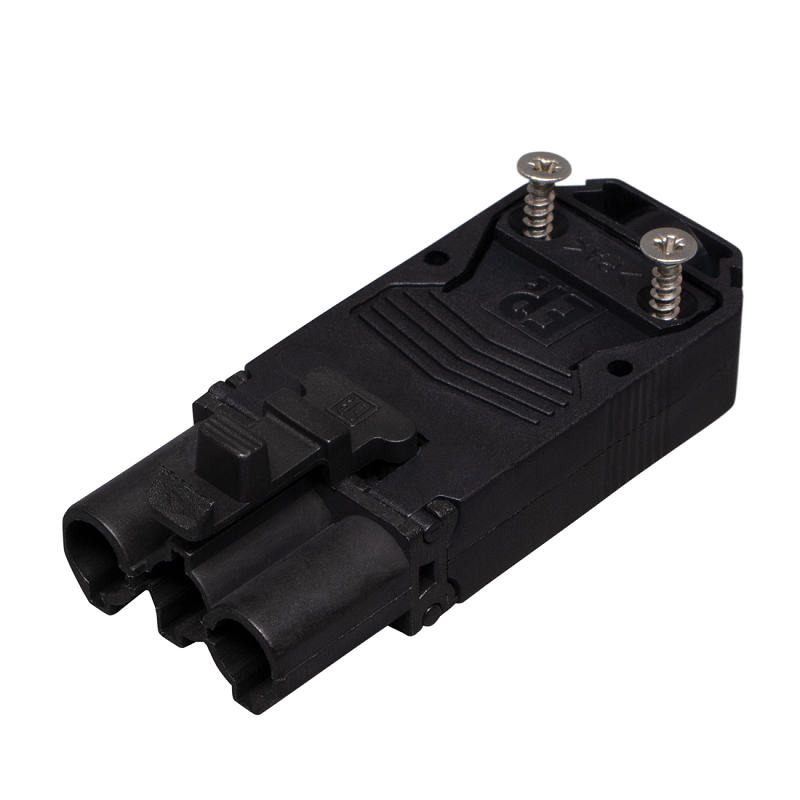

GST 3 POLE FEMALE CONNECTOR

A range of power and data modules ideal for under desk mounting.

Additional details can be found in the Product Catalogue PDF file

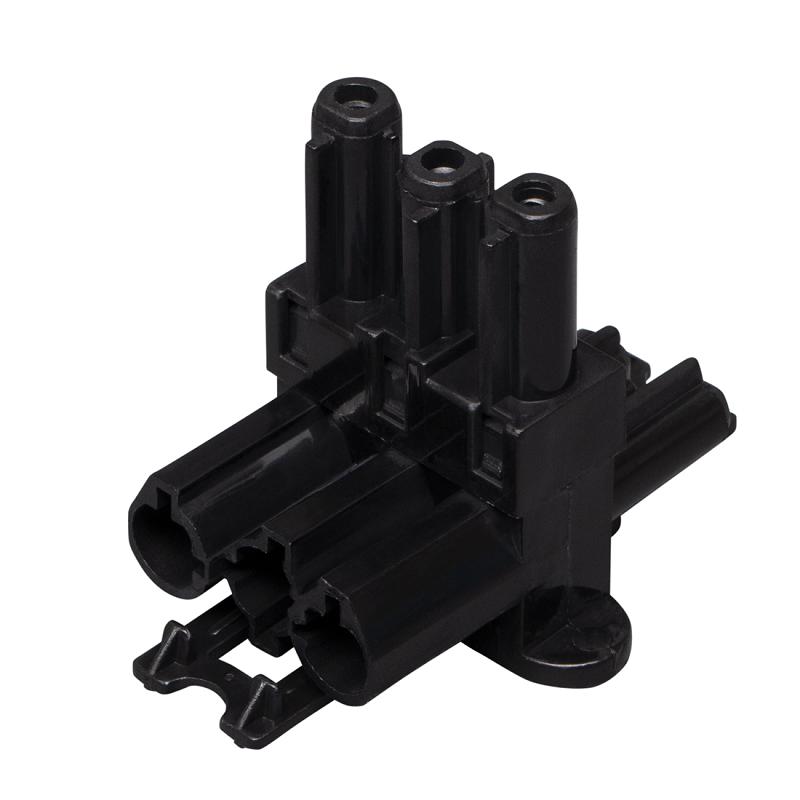

GST CONNECTOR COUPLER 2XF OUT

2xF out

A range of power and data modules ideal for under desk mounting.

Additional details can be found in the Product Catalogue PDF file

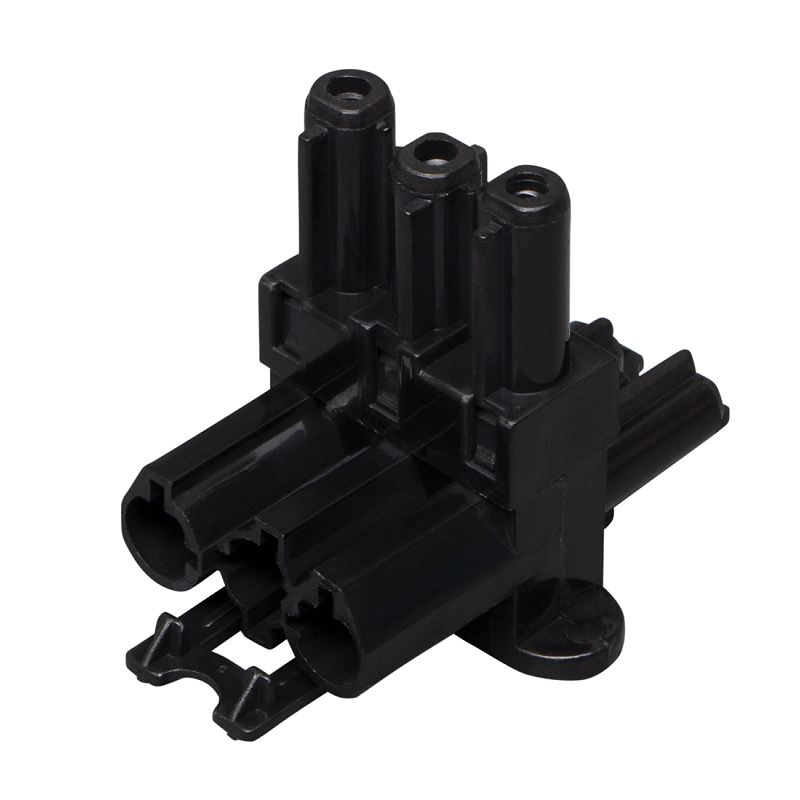

GST CONNECTOR COUPLER 3XF OUT

3xF out

A range of power and data modules ideal for under desk mounting.

Additional details can be found in the Product Catalogue PDF file

GST CONNECTOR COUPLER 5XF OUT

5xF out

A range of power and data modules ideal for under desk mounting.

Additional details can be found in the Product Catalogue PDF file

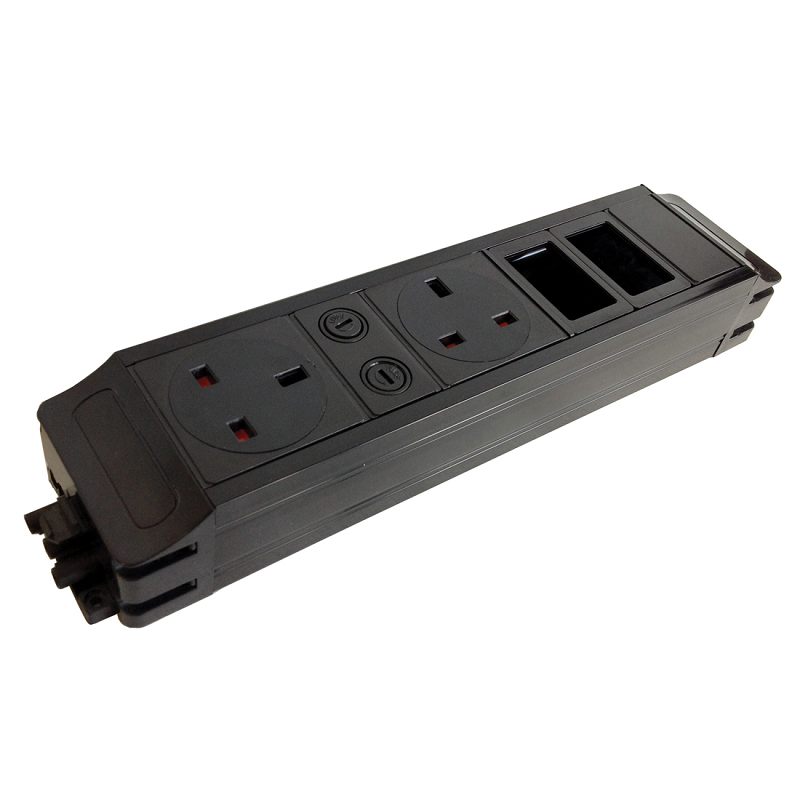

POWER AND DATA MODULE 2 GANG 2 X POWER 2X6C DATA KO

GST input, data leads exit via 20mm knockout hole

A range of power and data modules ideal for under desk mounting.

Key Features • Feed: GST18 connector

• 2 off Individually 5A fused sockets

• 2 off LJ6 6C data apertures


Code UPD2020 Pack 1 Dimensions 62mm x 42mm x 278mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 13 Amps
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

POWER AND DATA MODULE 4 GANG 4 X POWER + 2X6C DATA KO

GST input, data leads exit via 20mm knockout hole

A range of power and data modules ideal for under desk mounting.

Key Features • Feed: GST18 connector

• 4 off Individually 5A fused sockets

• 2 off LJ6 6C data apertures


Code UPD4020 Pack 1 Dimensions 62mm x 42mm x 417mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 13 Amps
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

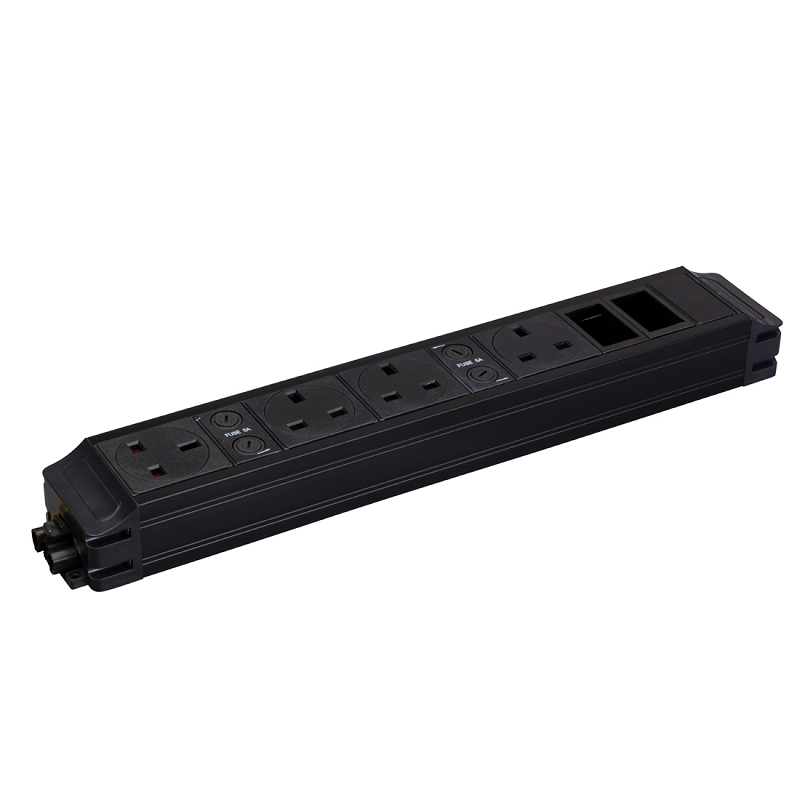

POWER AND DATA MODULE 4 GANG 4 X POWER + 4X6C DATA KO

GST input

A range of power and data modules ideal for under desk mounting.

Key Features • Feed: GST18 connector

• 4 off Individually 5A fused sockets

• 4 off LJ6 6C data apertures


Code UPD4040 Pack 1 Dimensions 62mm x 42mm x 486mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 13 Amps
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

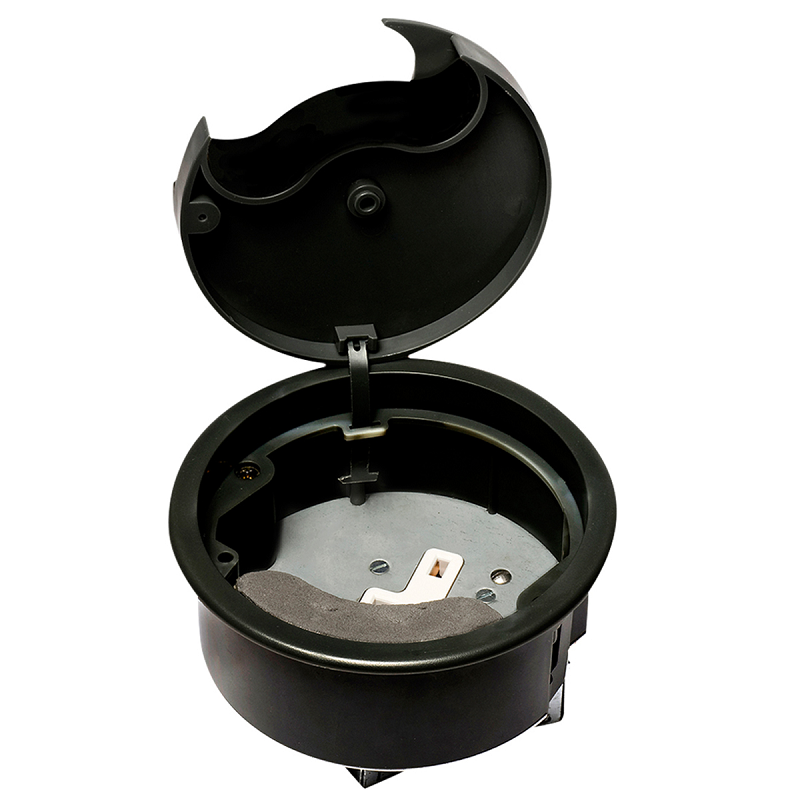

FLOOR POWER GROMMET

With foam insert.


Key Features • Feed: 3m CE Tap-Off Unfused

• Grey Trim and Lid

• Pre-wired with 13A Twin Socket

• Reversible Lid

• Accepts carpets or tiles up to 6mm


UPG1BK UPG1GY Colour Black Grey Dimensions Floor Cut-out Ø125
Overall diameter Ø140
Depth 87mm (including accessory box) Floor Cut-out Ø125
Overall diameter Ø140
Depth 87mm (including accessory box) Material ABS Flame Retardant and Galvanised Steel
Nitrile foam insert ABS Flame Retardant and Galvanised Steel
Nitrile foam insert Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:20018
BS EN 61534-1:2011
BS EN 61534-22:2009
All Plastics are UL94-V0 rated and pass IEC 60695-2 glow wire test at 850°C CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:20018
BS EN 61534-1:2011
BS EN 61534-22:2009
All Plastics are UL94-V0 rated and pass IEC 60695-2 glow wire test at 850°C
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

POWER MODULE 2 GANG

GST in/out modules – Individually fused

A range of power and data modules ideal for under desk mounting.


Key Features • Feed: Feed: GST18 connector

• 2 off Individually 5A fused sockets


Code UPM2001 Description Unswitched Dimensions 62mm x 42mm x 180mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 13 Amps
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

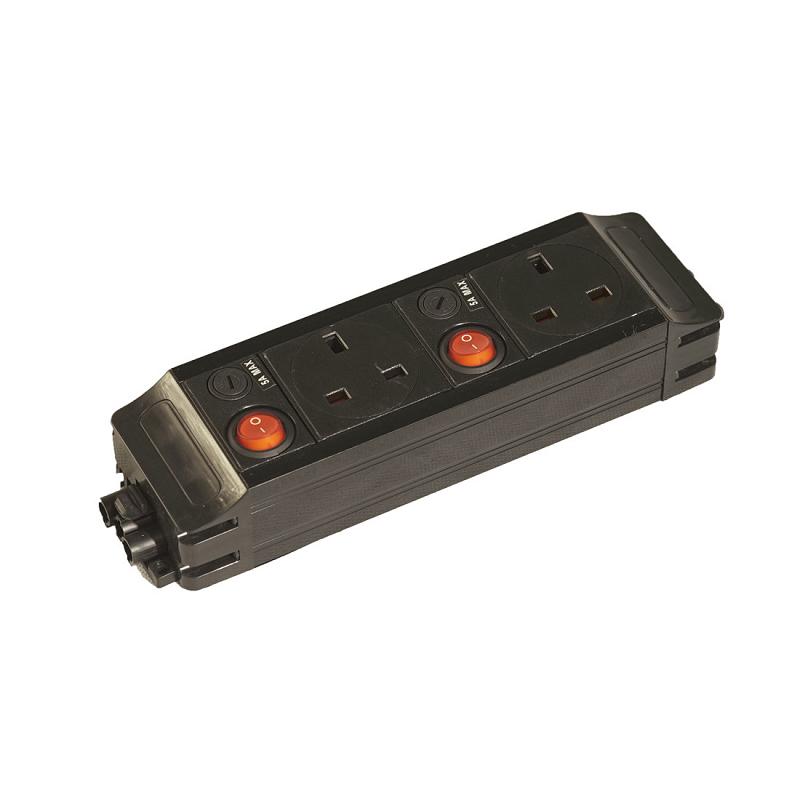

POWER MODULE 2 GANG (IND SWITCHED SOCKETS)

GST in/out modules – Individually fused

A range of power and data modules ideal for under desk mounting.


Key Features • Feed: GST18 connector

• 2 off Individually 5A fused sockets with independent switches


Code UPM2002 Pack 1 Dimensions 62mm x 42mm x 212mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 13 Amps
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

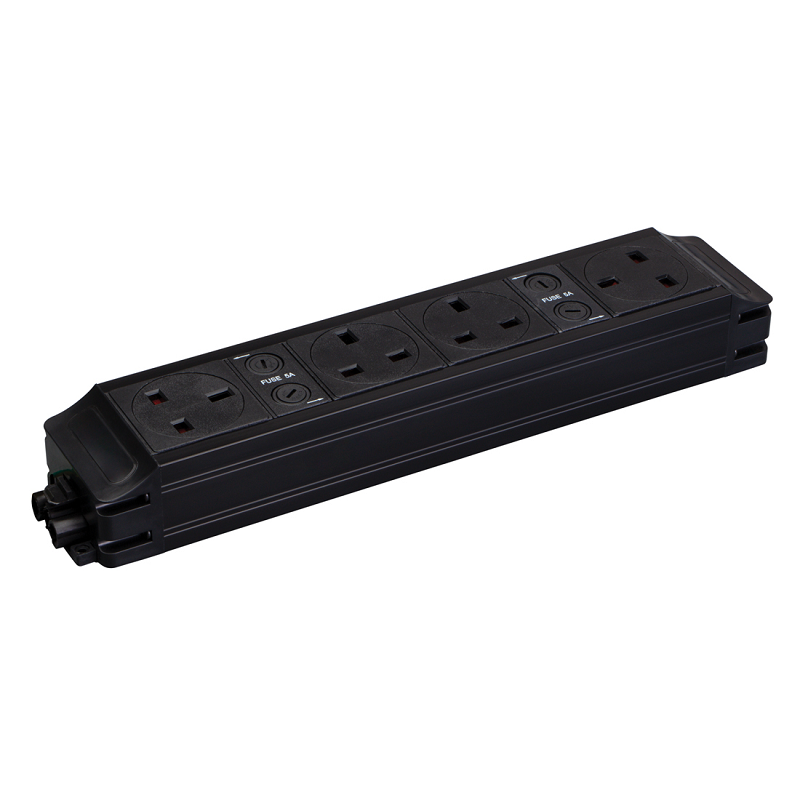

POWER MODULE 4 GANG

GST in/out modules – Individually fused

A range of power and data modules ideal for under desk mounting.


Key Features • Feed: GST18 connector

• 4 off Individually 5A fused sockets


Code UPM4001 Pack 1 Dimensions 62mm x 42mm x 310mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 13 Amps
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

POWER MODULE 4 GANG 4XPOWER 2XUSB

4 x Power; 1 x USB Type A + 1 x USB Type C

GST in/out modules – Individually fused

A range of power and data modules ideal for under desk mounting.


Key Features • Feed: GST18 connector

• 4 off Individually 5A fused sockets

• Dual USB Fast Charge Type A sockets 5V DC 3.4A


Code UPM4002 Pack 1 Dimensions 62mm x 42mm x 397mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 13 Amps
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

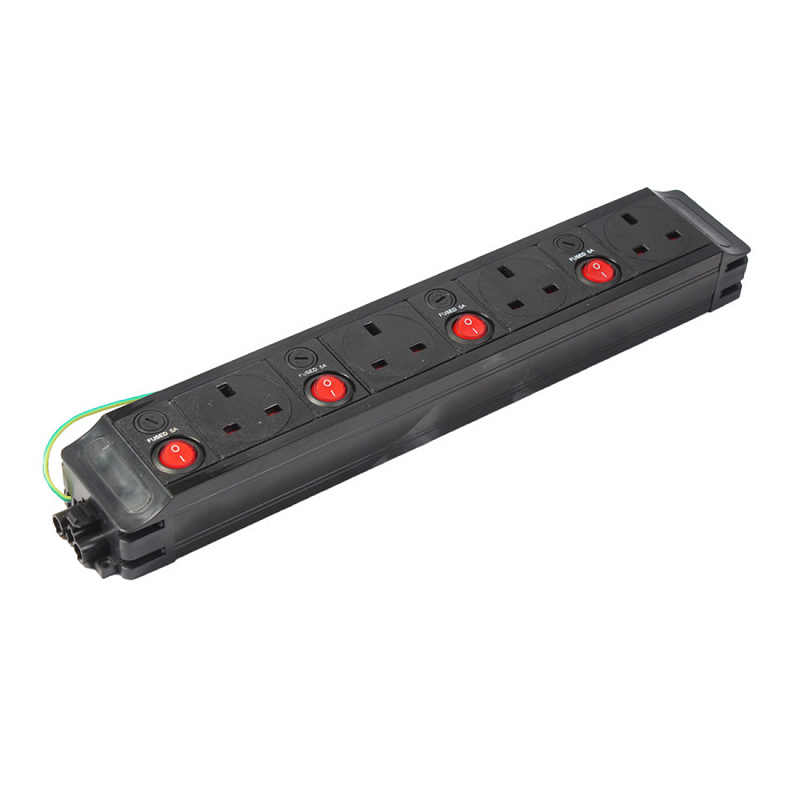

POWER MODULE 4 GANG (IND SWITCHED SOCKETS)

GST in/out modules – Individually fused

A range of power and data modules ideal for under desk mounting.


Key Features • Feed: GST18 connector

• 4 off Individually 5A fused sockets with independent switches


Code UPM4003 Pack 1 Dimensions 62mm x 42mm x 373mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 13 Amps
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

POWER MODULE 6 GANG

GST in/out modules – Individually fused

A range of power and data modules ideal for under desk mounting.


Key Features • Feed: GST18 connector

• 6 off Individually 3.15A fused sockets


Code UPM6001 Description Unswitched Dimensions 62mm x 42mm x 449mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 13 Amps
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file

POWER MODULE 6 GANG 6XPOWER 2XUSB

6 x Power +1 x USB Type A + 1 x USB Type C

GST in/out modules – Individually fused

A range of power and data modules ideal for under desk mounting.


Key Features • Feed: GST18 connector

• 6 off Individually 3.15A fused sockets

• Dual USB Fast Charge Type A sockets 5V DC 3.4A


Code UPM6002 Pack 1 Dimensions 62mm x 42mm x 530mm Materials PC Compliance / Standards CE & UKCA Marked
Low Voltage Directive 2014/35/EU
The Electrical Equipment (Safety) Regulations 2016
BS 7671:2018
BS 1363-2:1995+A4:2012
BS 8488:2009+A1:2010
BS 6396:2008+A1:2015 Rated voltage (Un) 230 volts Operating voltage range 50 – 253V Rated load curren 13 Amps
Full specification and details can be found in the Product Datasheet PDF file

Additional details can be found in the Product Catalogue PDF file
