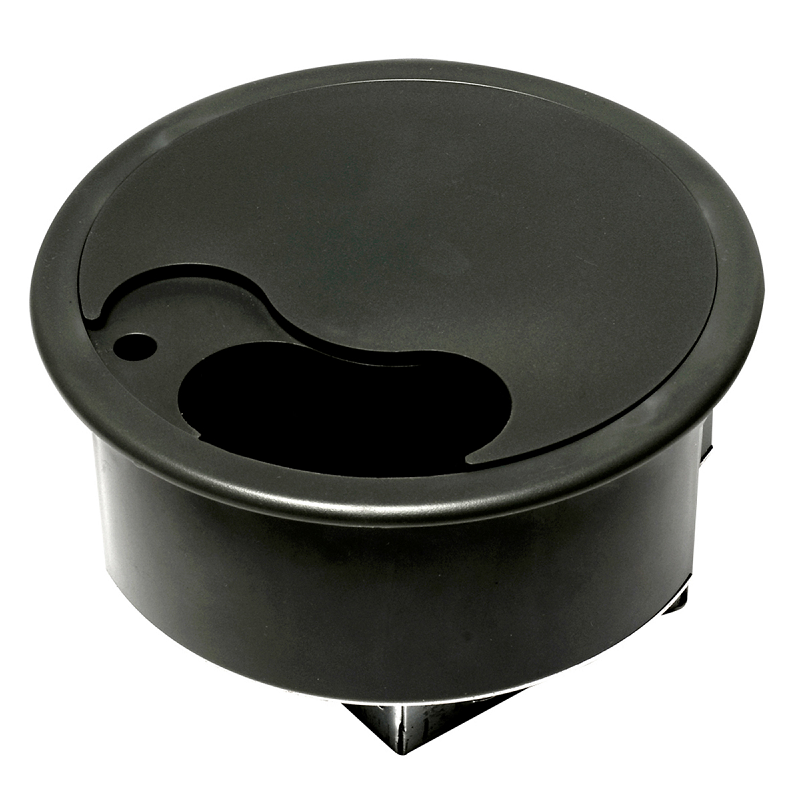

FLOOR GROMMET
Without foam insert.
Cut out size for above grommets Ø125mm
• One compartment suitable for 1 Gang Accessory
• Integrated lid locking screw
• Quick installation
• Adjustable lid can be set to meet optimum cable requirement, minimising air leakage through the opening
• Can be used with flexible cable and Flexible conduit.
• Black (RAL9004) or Grey (RAL7037)
UTG1BK | UTG1GY | |
Pack | 1 | 1 |
Colour | Black RAL9004 | Grey RAL7037 |
Dimensions | Floor Cut-out Ø125 Overall diameter Ø140 Depth 87mm (including accessory box) |
Floor Cut-out Ø125 Overall diameter Ø140 Depth 87mm (including accessory box) |
Materials | ABS Flame Retardant and Galvanised Steel Nitrile foam insert |
ABS Flame Retardant and Galvanised Steel Nitrile foam insert |
Compliance / Standards | CE & UKCA Marked Low Voltage Directive 2014/35/EU The Electrical Equipment (Safety) Regulations 2016 BS 7671:20018 BS EN 61534-1:2011 BS EN 61534-22:2009 All Plastics are UL94-V0 rated and pass IEC 60695-2 glow wire test at 850°C |
CE & UKCA Marked Low Voltage Directive 2014/35/EU The Electrical Equipment (Safety) Regulations 2016 BS 7671:20018 BS EN 61534-1:2011 BS EN 61534-22:2009 All Plastics are UL94-V0 rated and pass IEC 60695-2 glow wire test at 850°C |
Full specification and details can be found in the Product Datasheet PDF file
Additional details can be found in the Product Catalogue PDF file
