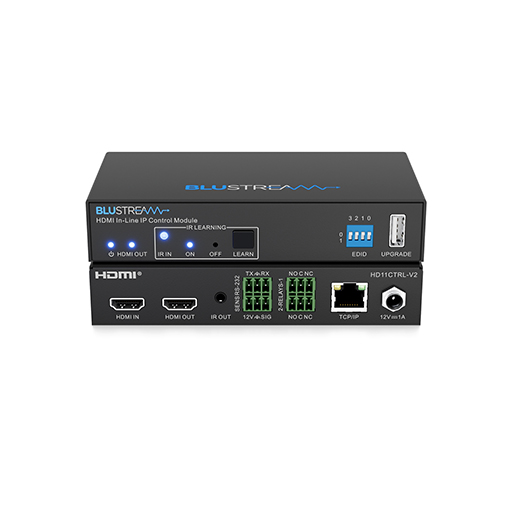

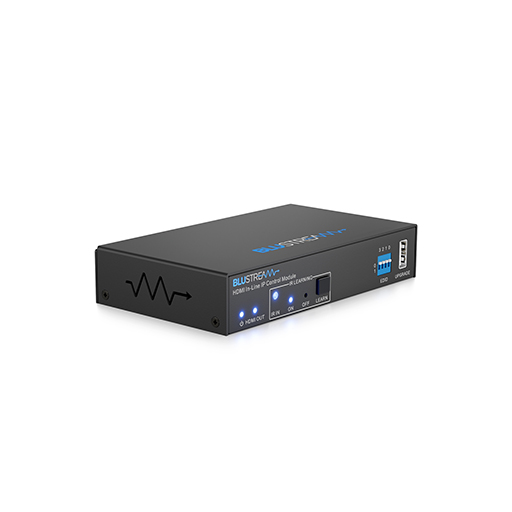

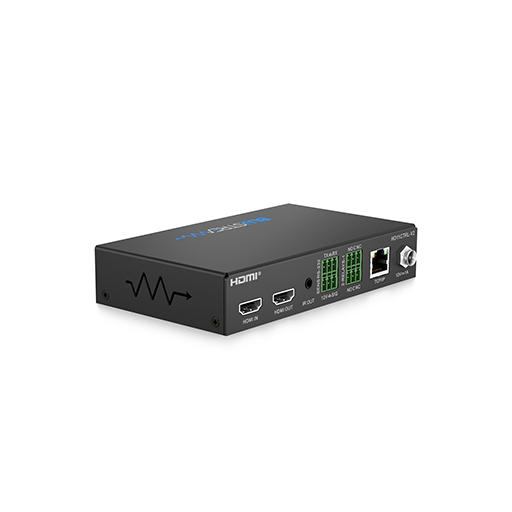

Blustream HD11CTRL-V2 HDMI 2.0 In-line Controller

The Blustream HD11CTRL-V2 HDMI 2.0 In-line Controller automates and manages HDMI signals in AV systems, providing reliable control over displays and connected devices. With multiple configuration options, this unit includes RS-232, IR or IP command triggers, display on / off control via CEC, and HDMI signal sensing. External relay inputs allow 3rd party triggers for integration with devices such as sensors or switches. The addition of a web-GUI allows for simple configuration and advanced management and distribution of 3rd party commands and automated processes.

The HD11CTRL-V2 will also help with HDMI compatibility, HDCP 2.2, clock stretching, EDID and handshaking issues that can cause problems when distributing HDMI signals, especially 4K. The HD11CTRL-V2 supports full HDMI 2.0 and HDCP 2.2, with video resolutions up to and including 4K @ 60Hz 4:4:4.

Key Features of BlueStream HD11CTRL-V2

• Automated in-line HDMI control module supporting up to 10 macros, with up to 10 command functions per macro
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports resolutions up to 4K UHD 60Hz 4:4:4
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Features Smart-Scale technology to convert 4K input signal to 1080p output (Note: 4:2:2 colour space not supported)
• Can help to solve most HDMI EDID, HDCP, compatibility, and handshaking issues
• Automatic display control via CEC, RS-232, IR or IP
• IR learning up to 30 IR commands
• Relay control for interface to third party devices such as projector screens
• Signal sense input for connection from third party devices such as sensors or switches
• HDCP 2.2 compliant with advanced EDID management
• In-built web-GUI for configuration and control

Flexible Control

The HD11CTRL-V2 allows seamless management of HDMI displays and devices, helping to address common EDID, HDCP, and compatibility issues while automating repetitive commands for convenience.

Discreet Integration

Its compact design and multiple interfaces make it suitable for installations where equipment is hidden in cabinets or racks, keeping setups clean while maintaining full control over connected AV components.
