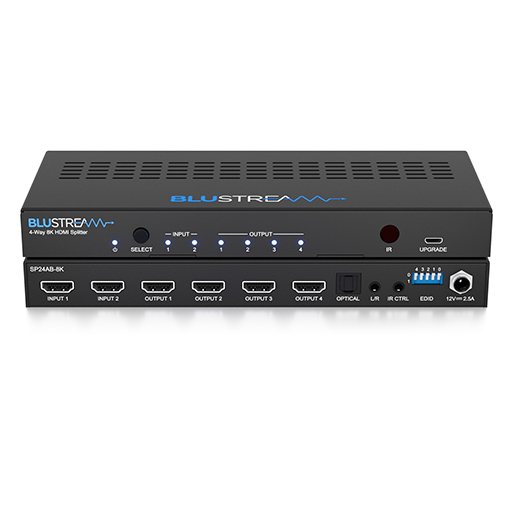

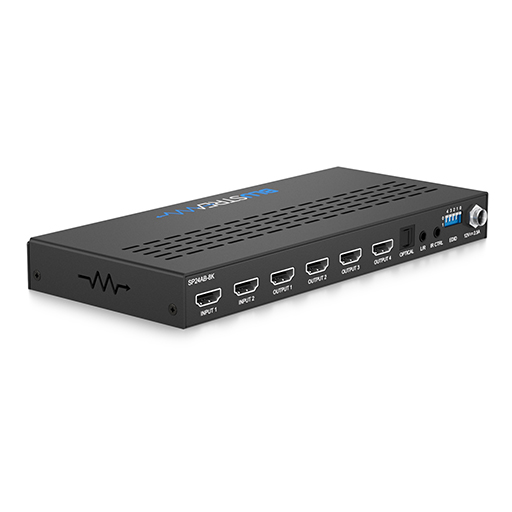

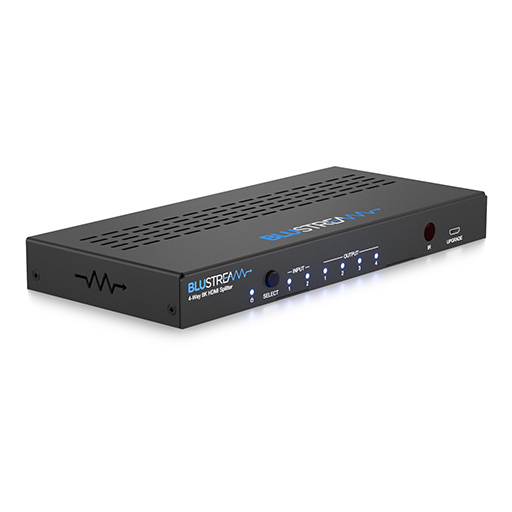

Blustream SP24AB-8K 2 Input 4-Way 8K HDMI 2.1 HDCP 2.3 Splitter

The Blustream SP24AB-8K is a high-performance HDMI splitter designed to share two HDMI 2.1 sources across four displays simultaneously. It supports ultra-high resolutions, including 8K at 60Hz and 4K at 120Hz, along with HDR content. Each output adapts to the connected display, ensuring compatibility with lower-resolution devices without affecting the other outputs. The unit offers both automatic and manual source switching via the front panel or IR remote, while audio can be routed concurrently through analogue L/R and coaxial digital outputs. Advanced EDID management and HDCP 2.3 compliance ensure wide compatibility across devices.

Key Features of BlueStream SP24AB-8K

• Features 2 x selectable HDMI 2.1 inputs that are split to 4 x HDMI outputs
• Supports HDMI 2.1 specification including HDR (40Gbps maximum)
• Supports up to 8K 60Hz YCbCr 4:2:0 10bit, 8K 30Hz RGB/YCbCr 4:4:4 10bit, or 4K 120Hz RGB/YCbCr 4:4:4 10bit
• Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Auto HDMI source switching via 5v and / or TMDS signal sensing
• Manual HDMI source switching via front panel and IR
• Audio breakout to analogue L/R audio and Coaxial (S/PDIF) digital outputs concurrently
• 5v / 12v IR Compatible
• HDCP 2.3 compliant with advanced EDID management

Video & Audio Performance

Supports high-resolution formats up to 8K 60Hz and 4K 120Hz with HDR. Audio passthrough includes multichannel and object-based formats, ensuring compatibility with the latest audio systems.

Connectivity & Controls

Equipped with 2 HDMI inputs, 4 HDMI outputs, analogue and coaxial audio outputs, IR input, and Micro-USB firmware upgrade port. Both automatic and manual source selection are supported for flexible operation.
