Blustream SP12CS 2-Way 4K HDMI 2.0 Splitter

The Blustream SP12CS 2-Way HDMI Splitter allows a single HDMI source to be shared across two displays without any loss in video quality. Supporting HDMI 2.0 and HDCP 2.2, it handles 4K UHD at 60Hz with full 4:4:4 chroma and HDR content. Each output can adapt to the display's capability, downscaling if necessary, while maintaining maximum resolution on the other screen. Audio can be routed simultaneously via analogue L/R and optical outputs, giving flexibility for different audio setups. Advanced EDID management ensures compatibility with a wide range of devices, making this splitter suitable for both home and professional AV setups.

Key Features of BlueStream SP12CS

• Features 1x HDMI input that is replicated to 2x HDMI outputs
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports up to 4K UHD 60Hz 4:4:4
• Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• HDMI audio breakout to analogue L/R audio and optical digital outputs concurrently
• CEC (Consumer Electronic Command) will only pass between the source device and the sink connected to output 1
• Advanced EDID management
• HDCP 2.2 Support

Video & Audio Compatibility

Supports a wide range of video formats from VGA to 4K UHD, including HDR and all HDMI standard resolutions. Audio passthrough covers Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD formats.

Physical & Connectivity Details

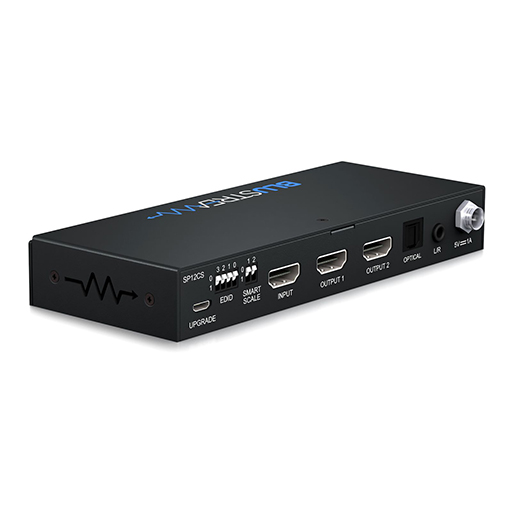

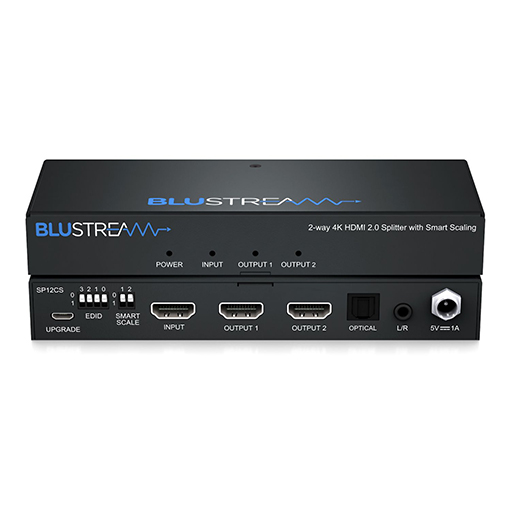

Includes 1 HDMI input, 2 HDMI outputs, optical and analogue L/R audio outputs, and DIP switch EDID controls. Powered via 5V DC supply, with compact dimensions for easy installation in any AV setup.
