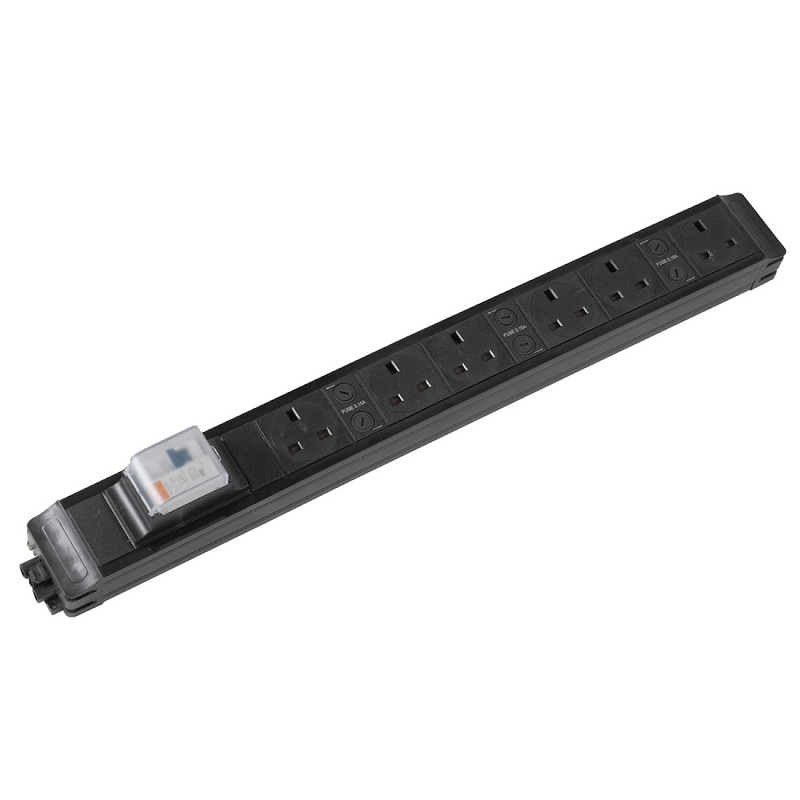

POWER FEED UNIT 6 GANG INDV FUSED RCBO + 6X13A SOCKETS
Direct feed from tap off lead via 20mm gland hole to connector block with multiple 13A socket outlets
Direct feed from tap off lead via 20mm gland hole to connector block
• Feed: 20mm knockout
• 30mA 16Amp RCBO
• 6 off Individually 5A fused sockets
Code | UPR8061 |
Pack | 2 |
Dimensions | 62mm x 82mm x 620mm |
Materials | PC |
Compliance / Standards | CE & UKCA Marked Low Voltage Directive 2014/35/EU The Electrical Equipment (Safety) Regulations 2016 BS 7671:2018 BS 1363-2:1995+A4:2012 BS EN 61009-1:2012+A12:2016 BS 8488:2009+A1:2010 BS 6396:2008+A1:2015 |
Rated voltage (Un) | 230 volts |
Operating voltage range | 50 – 253V |
Rated load curren | 16 Amps Max |
Full specification and details can be found in the Product Datasheet PDF file
Additional details can be found in the Product Catalogue PDF file
