| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
If you wish to enquire about this product please contact us on
0800 488 0000
Colour: |
| Part No: | MT-UPG1BK |
| Manufacturer No: | UPG1BK |
| Delivery: | In Stock: 7-10 Days |
 |

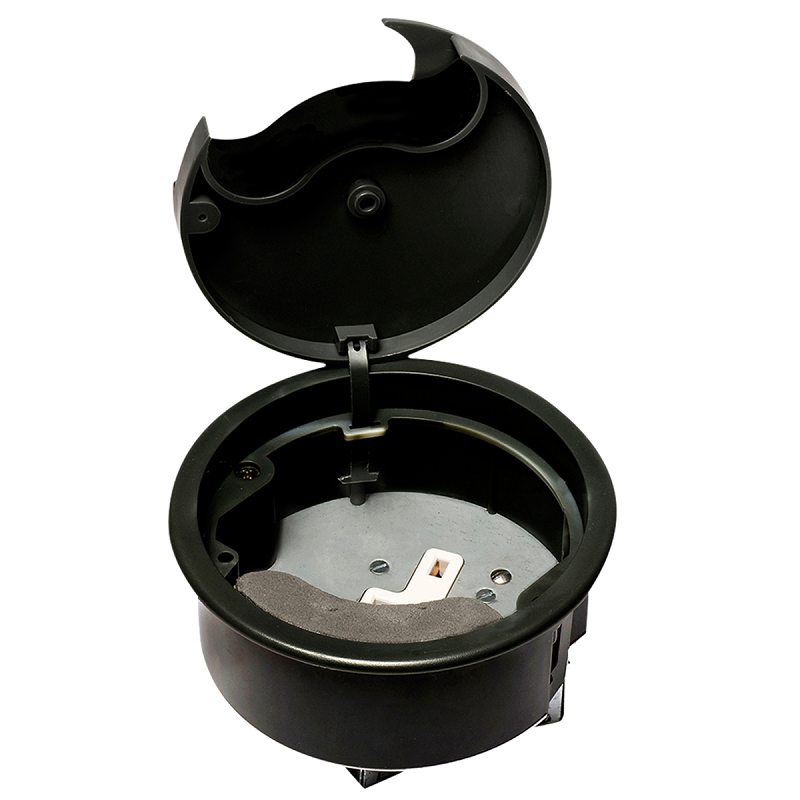

FLOOR POWER GROMMET
With foam insert.
• Feed: 3m CE Tap-Off Unfused
• Grey Trim and Lid
• Pre-wired with 13A Twin Socket
• Reversible Lid
• Accepts carpets or tiles up to 6mm
| UPG1BK | UPG1GY | |
| Colour | Black | Grey |
| Dimensions | Floor Cut-out Ø125 Overall diameter Ø140 Depth 87mm (including accessory box) |
Floor Cut-out Ø125 Overall diameter Ø140 Depth 87mm (including accessory box) |
| Material | ABS Flame Retardant and Galvanised Steel Nitrile foam insert |
ABS Flame Retardant and Galvanised Steel Nitrile foam insert |
| Compliance / Standards | CE & UKCA Marked Low Voltage Directive 2014/35/EU The Electrical Equipment (Safety) Regulations 2016 BS 7671:20018 BS EN 61534-1:2011 BS EN 61534-22:2009 All Plastics are UL94-V0 rated and pass IEC 60695-2 glow wire test at 850°C |
CE & UKCA Marked Low Voltage Directive 2014/35/EU The Electrical Equipment (Safety) Regulations 2016 BS 7671:20018 BS EN 61534-1:2011 BS EN 61534-22:2009 All Plastics are UL94-V0 rated and pass IEC 60695-2 glow wire test at 850°C |
Full specification and details can be found in the Product Datasheet PDF file
Additional details can be found in the Product Catalogue PDF file
FLOOR POWER GROMMET
With foam insert.
• Feed: 3m CE Tap-Off Unfused
• Grey Trim and Lid
• Pre-wired with 13A Twin Socket
• Reversible Lid
• Accepts carpets or tiles up to 6mm
| UPG1BK | UPG1GY | |
| Colour | Black | Grey |
| Dimensions | Floor Cut-out Ø125 Overall diameter Ø140 Depth 87mm (including accessory box) |
Floor Cut-out Ø125 Overall diameter Ø140 Depth 87mm (including accessory box) |
| Material | ABS Flame Retardant and Galvanised Steel Nitrile foam insert |
ABS Flame Retardant and Galvanised Steel Nitrile foam insert |
| Compliance / Standards | CE & UKCA Marked Low Voltage Directive 2014/35/EU The Electrical Equipment (Safety) Regulations 2016 BS 7671:20018 BS EN 61534-1:2011 BS EN 61534-22:2009 All Plastics are UL94-V0 rated and pass IEC 60695-2 glow wire test at 850°C |
CE & UKCA Marked Low Voltage Directive 2014/35/EU The Electrical Equipment (Safety) Regulations 2016 BS 7671:20018 BS EN 61534-1:2011 BS EN 61534-22:2009 All Plastics are UL94-V0 rated and pass IEC 60695-2 glow wire test at 850°C |
Full specification and details can be found in the Product Datasheet PDF file
Additional details can be found in the Product Catalogue PDF file
